Factory direct supply of smart card laminating machine/ID card laminating machine
- $1800.00 /set
- 1 set
- Wuhan Wenlin Technology Co., Ltd.
- Hubei, China
- Ms Lisa Ren
| Mechanical test report: | if | payment terms: | L/C, T/T |
| Main selling points: | fully automatic | strength: | 5.3 kW |
| control method: | Smart Digital Control | Dimensions (L*W*H): | 950*740*1530mm |
| Voltage: | 220V | Packaging Details: | Standard export wooden packaging |
| Core components: | engine, motor | Applicable industries: | Manufacturing plants, machinery repair shops, printing shops, advertising agencies |
| Video outbound inspection: | if | Voltage: | 220V |
| cooling method: | water circulation cooling system | Platen size: | 210*297 mm |
| Layers: | 2~30 floors | size: | 950*740*1530mm |
| Supply capacity: | 100 sets per month | Core component warranty: | 1 year |
| According to the law: | hydraulic | Warranty: | one year |
| Health status: | new | Marketing Type: | normal product |
| After-sales service provided: | Engineers available to repair machinery overseas | Showroom location: | not any |
| port: | Shanghai port | brand: | Wen Lin |
| weight: | 300 | Package preview: | |
| Origin: | Hubei, China | Work pressure: | 3~4.5MPa |
| Temperature control range: | 0-150℃ |

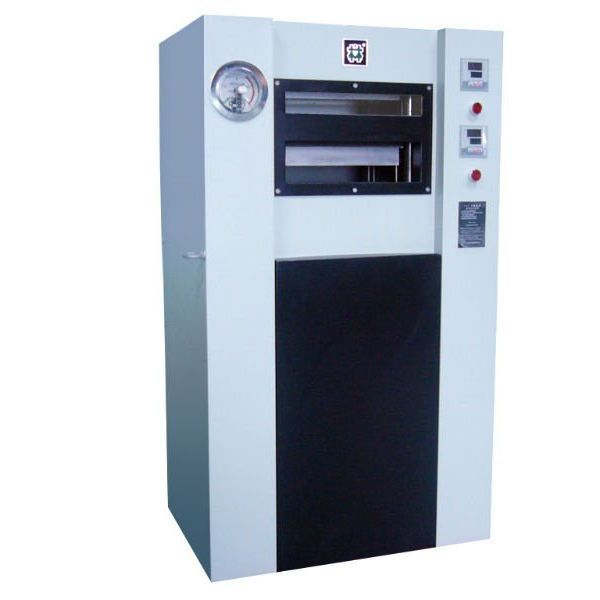

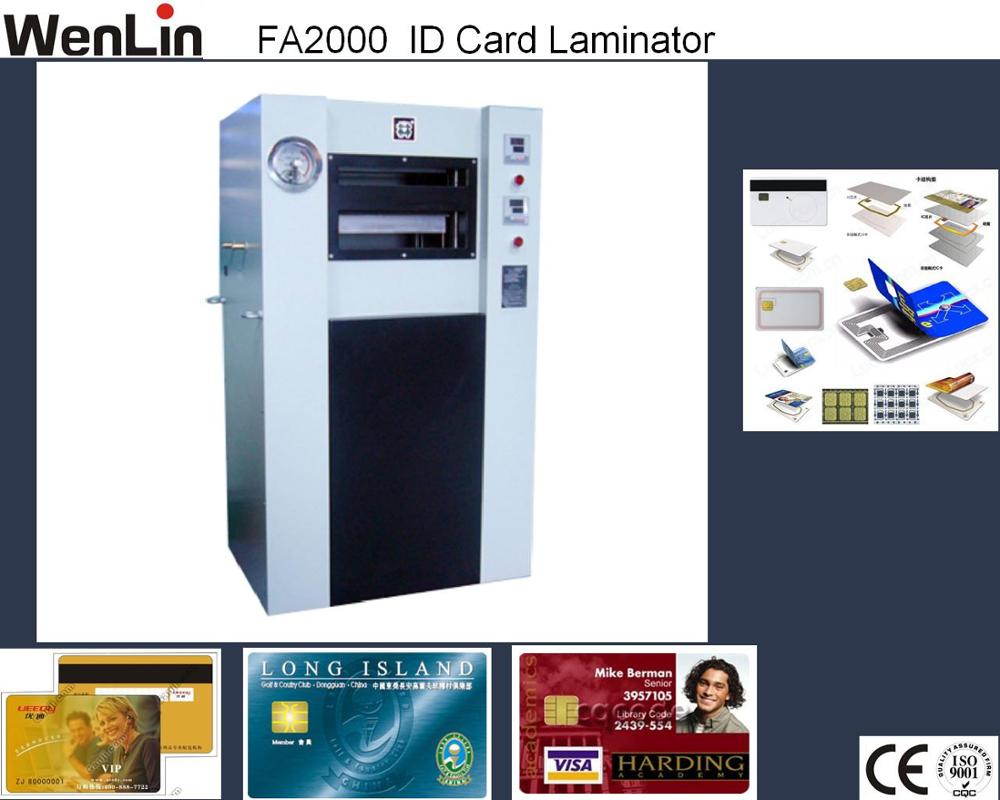

Wenlin-FA2000Factory direct supply smart card laminating machine
Brand: Wenlin
Specifications: 210mm×297mm
feature
1. Standard hydraulic system, effectively guaranteeing pressure maintenance without pressure release
2. Integral cast iron heating and cooling plate assembly, long-lasting guarantee of bonding effect
3. Using water circulation cooling system
introduce:
WENLIN-FA2000 is a fully automatic laminating machine. It adopts an intelligent digital temperature control system. It does not require any operation during work. The double-layer design effectively improves work efficiency. It adopts air cooling and water cooling. The machine has a fast clocking speed and a good cooling effect. It is suitable for Suitable for making various personalized cards, it is a good helper for professional card marking users! Suitable for non-contact IC, ID magnetic core material.
Applications:
The double-layer PVC card making machine is suitable for making various personalized cards, such as the production of non-contact IC cards and ID cards.
| Model | Wenlin-FA2000 |
| cooling method | water cooling |
| heating method | electro-thermal |
| pressure method | hydraulic |
| Pressure accuracy | 0.1 MPa |
| temperature accuracy | 0-150℃ |
| Sheet smoothness | 0.05mm |
| laminate | aluminum alloy |
| hydraulic cylinder | 1 |
| platen size | 210mm x 297mm |
| layer | 2~30 |
| control method | Smart Digital Control |
| Work pressure: | 3~4.5MPa |
| open space | 50mm |
| plate thickness | 45 mm |
| electrical | 220V, 50HZ, 5.3KW |
| aspect | Length 950mm×width 740mm×height 1530mm |
| weight | 300 kg |
| output | >800 cards/hour |
product view
Packaging and Shipping
Certificate
Company Profile
Established in 2001, Wuhan Wenlin Technology Co., Ltd. is a smart card manufacturing equipment research and development, production and material supply enterprise. IC, ID, RFID smart card laminating machines and punching machines are well-known all over the world. It has more than 1,000 customers in more than 50 countries and regions around the world, including world-renowned card companies. The machine is widely used in the production of UnionPay, VISA, MasterCard, second-generation ID cards, resident cards, etc. card, social security card, dual-interface card and IC, ID smart card, etc.
Wenlin is a high-tech enterprise recognized by the Chinese government, a project enterprise of the National Torch Plan, and a demonstration enterprise of technological innovation and patent transformation.
The "Wenlin" trademark has been rated as a famous trademark in Hubei Province and Wuhan City for more than ten consecutive years.
Wenlin has passed CE and ISO9001 certification, and obtained 12 national invention patents, nearly 100 utility model patents and software copyrights.
Casting a century-old famous brand, casting a century-old Wenlin. It is Wenlin's eternal goal to provide customers with the best card making solutions and services. We are willing to cooperate with agents all over the world.
