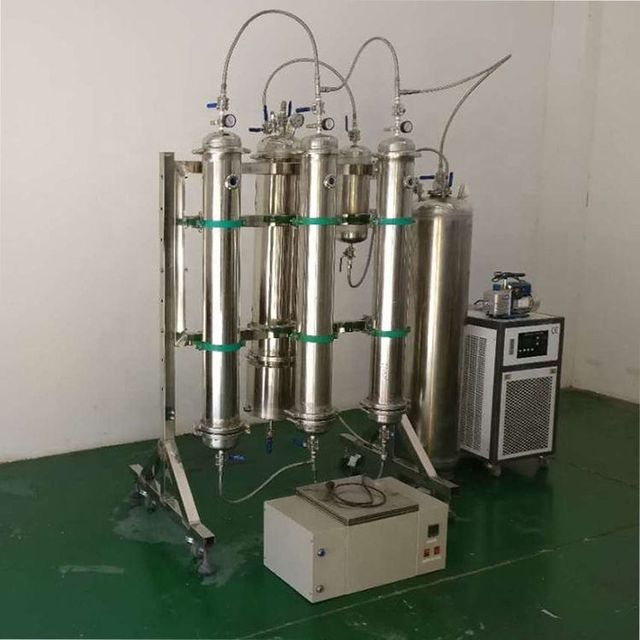

China Manufacturer Sells Butane Extraction Carbon Dioxide Extractor
- $90.00 / >=2 sets
- 2 sets
- Shanghai North Brooks Co.,ltd.
- Shanghai, China
- Ms Daisy Zhu
PRODUCT DETAIL
Core components: | Bearings, pressure vessels, pumps | application: | powder |
Key words: | extraction | payment terms: | letter of credit, wire transfer |
usage: | automatic running | Marketing Type: | New Products 2020 |
Applicable industries: | Food and Beverage Factory, Food and Beverage Store, Pharmaceutical | Core Components Warranty: | 1 year |
Function: | Extract the essence of various substances | product name: | CO2 supercritical extractor |
Mechanical test report: | if | Showroom location: | United States, no |
type: | CO2 Extractor | Material: | 304 stainless steel |
process: | supercritical extraction | Packaging Details: | Carton/Plywood Box |
Warranty: | 1 year | Supply capacity: | 30 small CO2 extraction machines per month |
Health status: | new | Certification: | Chief Executive |
place of origin; place of origin: | China Shanghai | Weight (kg): | 1300kg |
brand: | north brooks | port: | Shanghai |
capacity: | From 0.5 to 3000L | Main selling point: | Sustainable |
type: | customizable | Video external inspection: | if |
Extraction type: | From solid to liquid |
Specification
Model | capacity | pressure | Main Specifications |
NB120-50-0.5 | 0.5L | 50Mpa | 1 extraction 2 separation |
NB121-50-0.5 | 0.5L | 50Mpa | 1 extraction 2 separation 1 tank |
NB120-50-01 | 1L | 50Mpa | 1 extraction 2 separation |
NB121-50-01 | 1L | 50Mpa | 1 extraction 2 separation 1 tank |
NB120-50-02 | 2L | 50Mpa | 1 extraction 2 separation |
NB121-50-02 | 2L | 50Mpa | 1 extraction 2 separation 1 tank |
NB120-50-05 | 5L | 50Mpa | 2 extraction 2 separation |
NB121-50-05 | 5L | 50Mpa | 2 extraction 2 separation 1 tank |
NB220-50-06 | (5+1)L | 50Mpa | 2 extraction 2 separation |
NB221-50-06 | (5+1)L | 50Mpa | 2 extraction 2 separation 1 tank |
NB220-40-11 | (10+1)L | 40Mpa | 2 extraction 2 separation |
NB221-40-11 | (10+1)L | 40Mpa | 2 extraction 2 separation 1 tank |
NB220-40-20 | (10+10)L | 40Mpa | 2 extraction 2 separation |
NB221-40-20 | (10+10)L | 40Mpa | 2 extraction 2 separation 1 tank |
NB120-40-24 | 24L | 40Mpa | 1 extraction 2 separation |
NB121-40-24 | 24L | 40Mpa | 1 extraction 2 separation 1 tank |
NB220-40-48 | 24L*2 | 40Mpa | 2 extraction 2 separation |
NB221-40-48 | 24L*2 | 40Mpa | 2 extraction 2 separation 1 tank |
NB320-40-72 | 24L*3 | 40Mpa | 3 extraction 2 separation |
NB321-40-72 | 24L*3 | 40Mpa | 3 extraction 2 separation 1 tank |
NB420-40-96 | 24L*4 | 40Mpa | 2 extraction 2 separation |
NB421-40-96 | 24L*4 | 40Mpa | 2 extraction 2 separation 1 tank |
NB220-40-100 | 50L*2 | 40Mpa | 2 extraction 2 separation |
NB221-40-100 | 50L*2 | 40Mpa | 2 extraction 2 separation 1 tank |
NB320-40-150 | 50L*3 | 40Mpa | 3 extraction 2 separation |
NB420-40-200 | 50L*4 | 40Mpa | 4 extraction 2 separation |
NB220-40-200 | 100L*2 | 40Mpa | 2 extraction 2 separation |
NB630-40-300 | 50L*6 | 40Mpa | 6 Extraction 3 Separation |
NB320-35-300 | 100L*3 | 35Mpa | 3 extraction 2 separation |
NB320-35-600 | 200L*3 | 35Mpa | 3 extraction 2 separation |
NB220-35-600 | 300L*2 | 35Mpa | 2 extraction 2 separation |
NB220-35-1000 | 500L*2 | 35Mpa | 2 extraction 2 separation |
NB220-35-2000 | 1000L*2 | 35Mpa | 2 extraction 2 separation |
Product Description:
The device is used to extract materials (solid or liquid) under high pressure and suitable temperature
extraction. Change the conditions in the separation kettle to dissolve the dissolved substances to achieve the purpose of separation
Supercritical CO2 extraction equipment includes several parts: extraction kettle, separation kettle, mixer, CO2
High pressure pump, azeotrope pump, refrigeration system, heat exchange system, CO2 storage tank, CO2 level gauge, purification
systems, flow meters, temperature control systems, safety protection systems, etc.
It is suitable for the extraction of fat-soluble and heat-sensitive substances with high boiling point. Prepared with CO2 as solvent
Extraction and purification of biological products, food, medicine and other products.
The device is used to extract materials (solid or liquid) under high pressure and suitable temperature
extraction. Change the conditions in the separation kettle to dissolve the dissolved substances to achieve the purpose of separation
Supercritical CO2 extraction equipment includes several parts: extraction kettle, separation kettle, mixer, CO2
High pressure pump, azeotrope pump, refrigeration system, heat exchange system, CO2 storage tank, CO2 level gauge, purification
systems, flow meters, temperature control systems, safety protection systems, etc.
It is suitable for the extraction of fat-soluble and heat-sensitive substances with high boiling point. Prepared with CO2 as solvent
Extraction and purification of biological products, food, medicine and other products.
