China factory Mini Crane Price Lift Monkey Mini Crane Post Lift
- $80.00 /set
- 1 set
- Hebei liediao hoisting equipment manufacturing Co., Ltd
- Hebei, China
- Ms Lydia DU
PRODUCT DETAIL
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Packaging Details: | wooden bag |
| power supply: | construction site | brand: | LD |
| Supply capacity: | 100 pieces per month | Mechanical test report: | if |
| capacity: | 100kg-1T | port: | Qingdao port and Tianjin port |
| Showroom location: | not any | Lifting height: | 2.2 meters |
| Marketing Type: | New Products 2022 | Health status: | new |
| Package preview: | Certification: | Yes | |
| Applicable industries: | Clothing Stores, Building Materials Stores, Machinery Repair Shops, Manufacturing Plants, Household, Energy and Mining | usage: | lifting heavy objects |
| Origin: | Hebei | color: | yellow |
| Weight (kg): | 65 kg | Warranty: | 1 year |
| Energy source: | electrical | Core component warranty: | 1 year |
| Sling Type: | wire rope | boost speed: | 13 m/min |
| Core components: | Bearings, pumps, gearboxes, engines | Video shipment inspection: | if |
Product Description

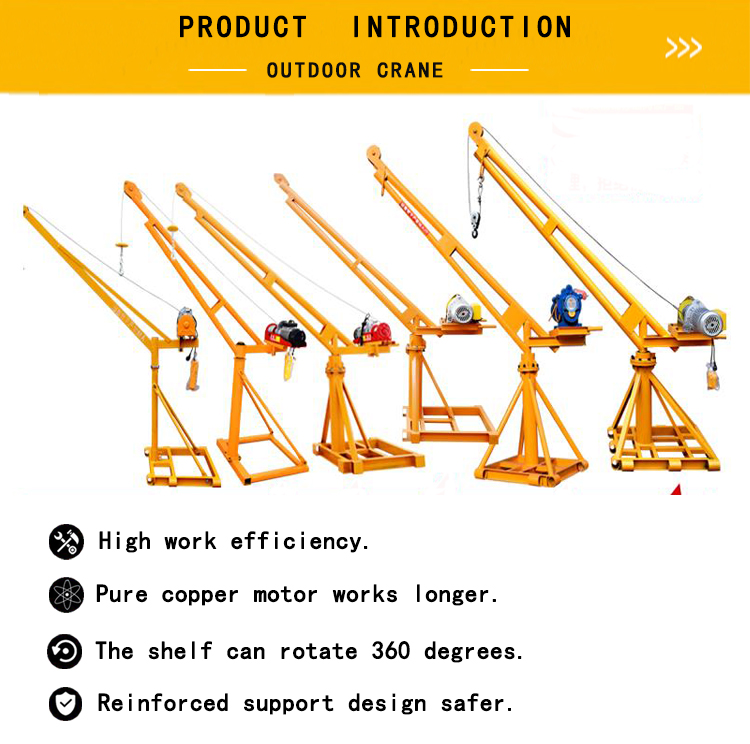

0.5 Ton Construction Roofing Crane Small Mini Outdoor Indoor Home Suspension Crane.
The outdoor crane products of our factory can be customized. Please tell me what specification you need
Name | outdoor crane |
Material | steel |
Which of the above products do you need? Contact me for more information.

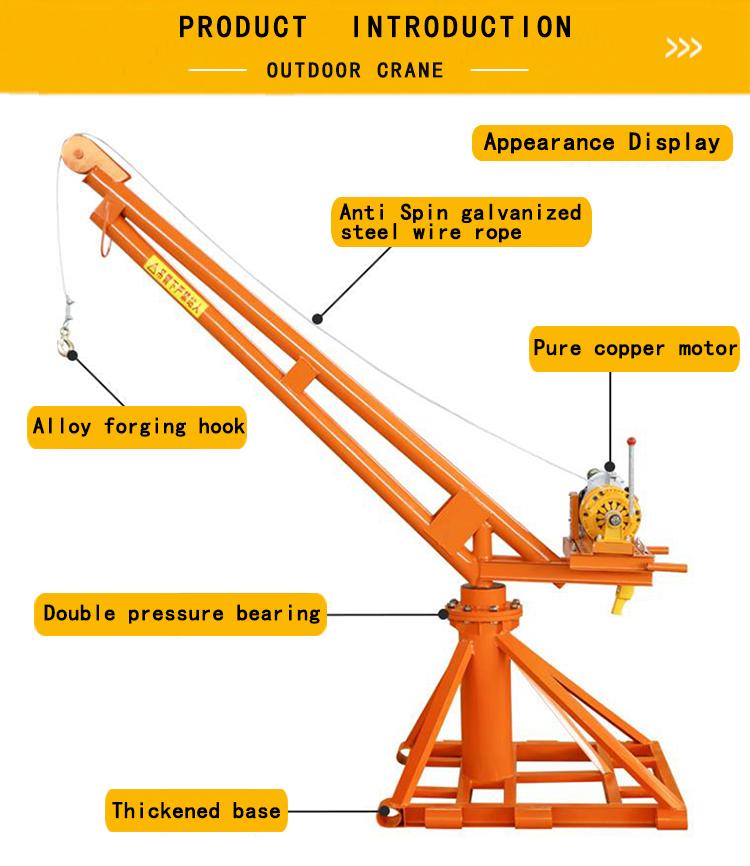

detailed drawing

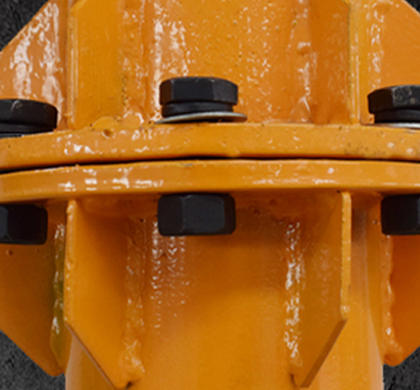

thickened flange
Thickened flange, reinforced and thickened, safer to use.

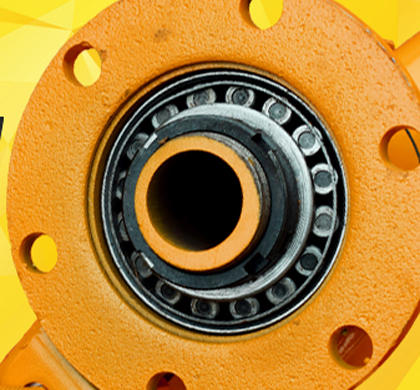

Dual Bearing Design
Stable structure made by Eurocom, refined and durable dual bearings for longer life.

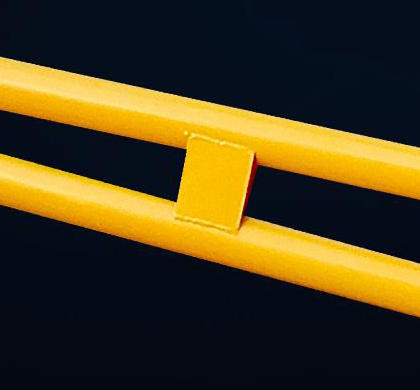

thickened steel pipe
All connection positions adopt seamless welding technology, which is firm and stable without breaking

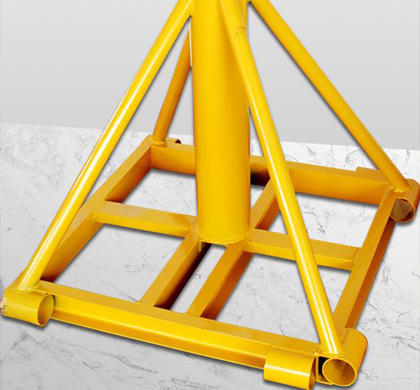

Reinforced base design
It adopts thickened I-beam, triangular design, strong stability and high gravity.

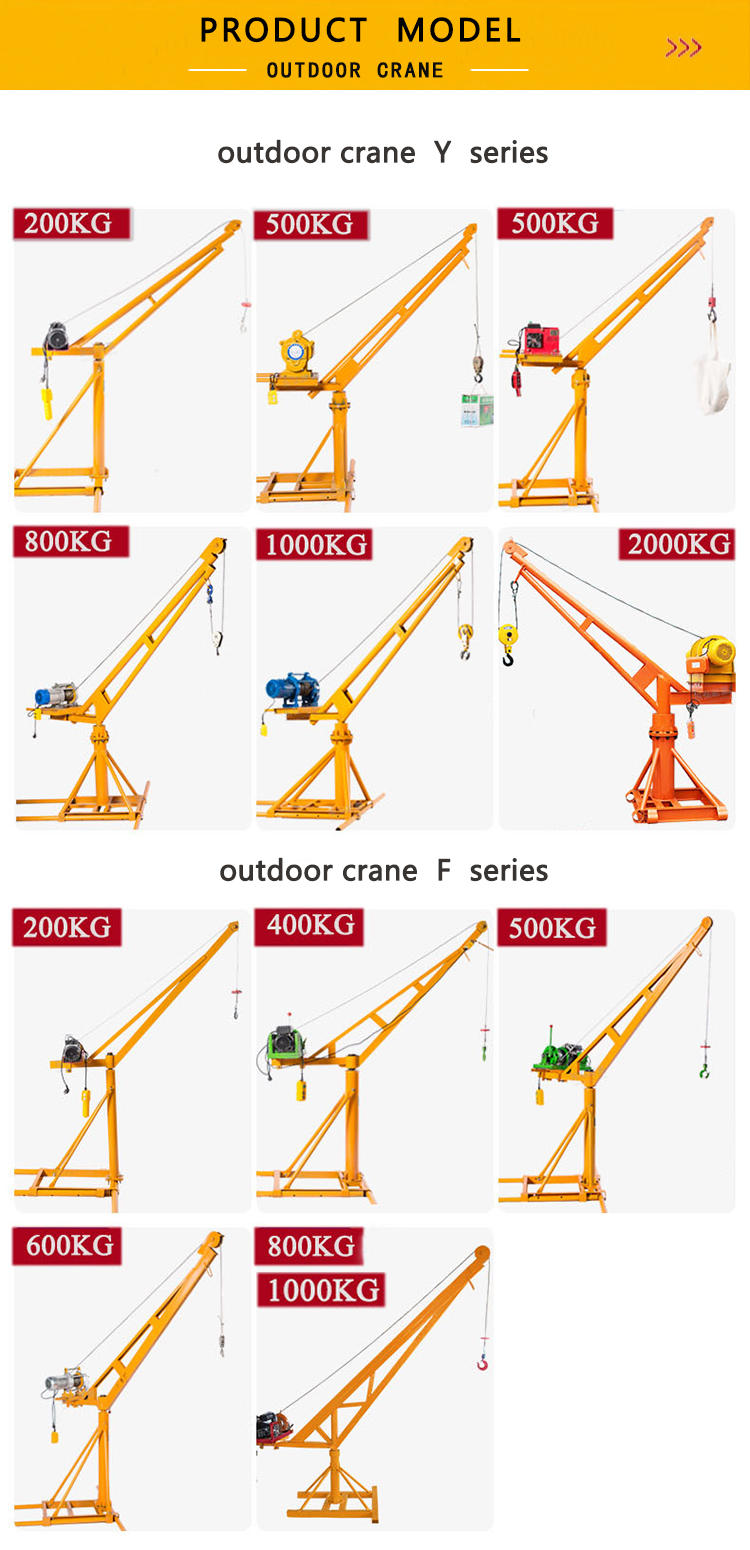

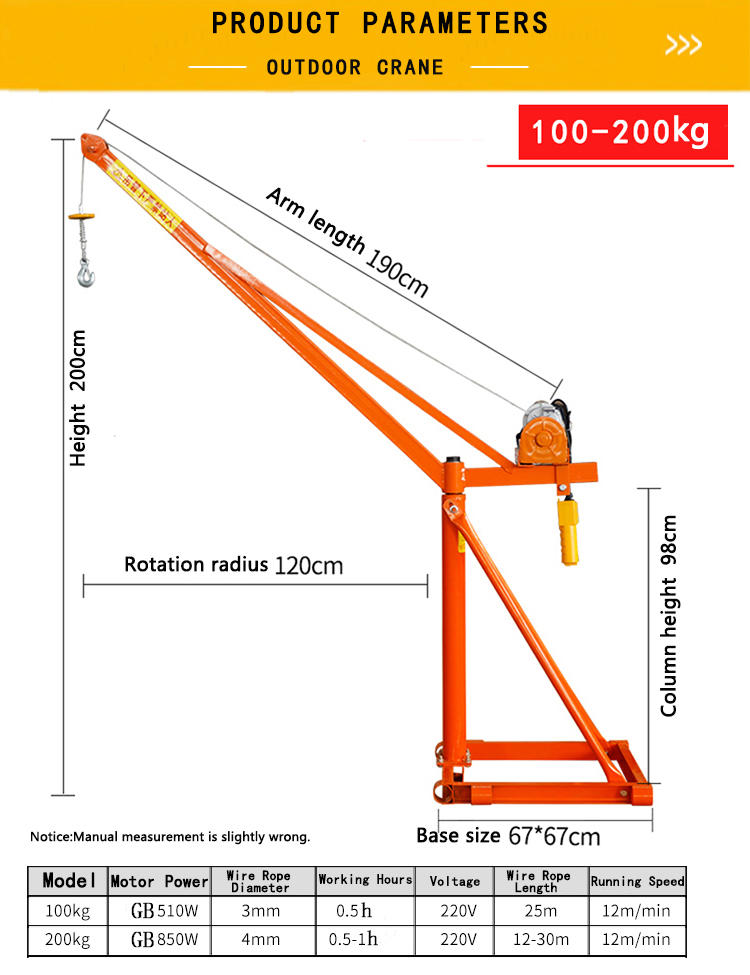

Product parameters
Kind tips:
When choosing the height of the working floor, be sure to choose the appropriate length of wire rope. For example, 12m steel wire rope can be selected for 1-2 floors, 20m steel wire rope can be selected for 3-4 floors, and 30m steel wire rope can be selected for 5-7 floorsBe sure to choose steel
A wire rope suitable for the height of your floor, not too long. For example, it is used on the second floor, but the 30m steel wire rope is bought, which is easy to crush the wire rope.
Note: We are based on the height of the floor in China, and you can contact customer service for the specific floor height.

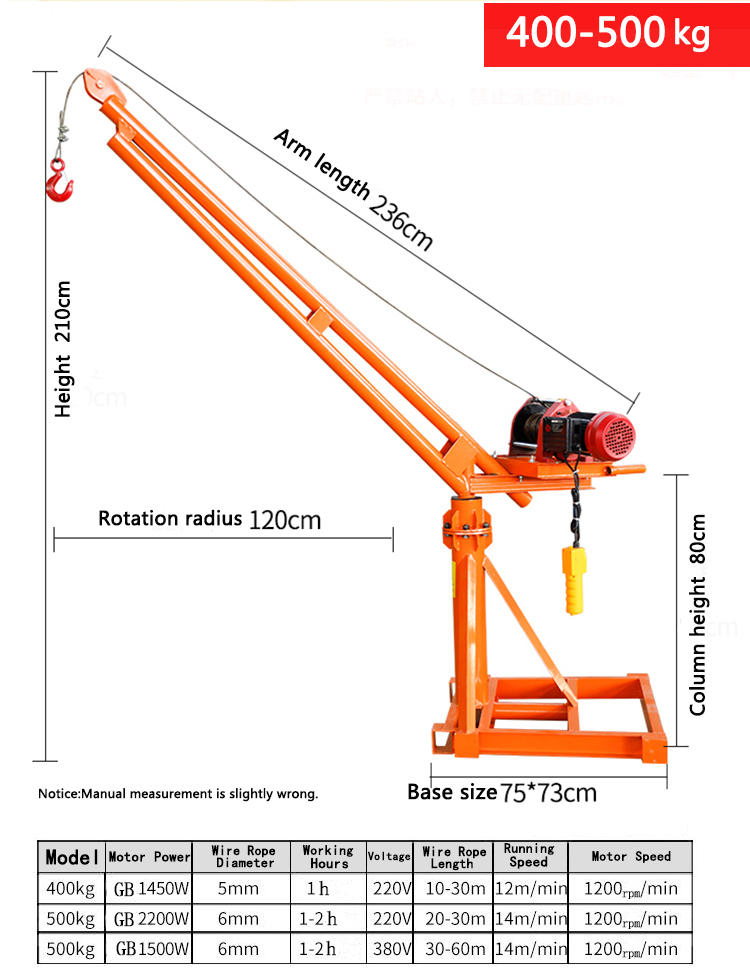

Model | Motor Power | wire rope diameter | operating hours | Voltage | length | running speed | engine speed |
100 kg | National standard 510W | 3mm | 0.5 hours | 220V | 25 meters | 12m/min | / |
200 kg | National standard 850W | 4 mm | 0.5-1 hour | 220V | 12-30 meters | 12m/min | / |

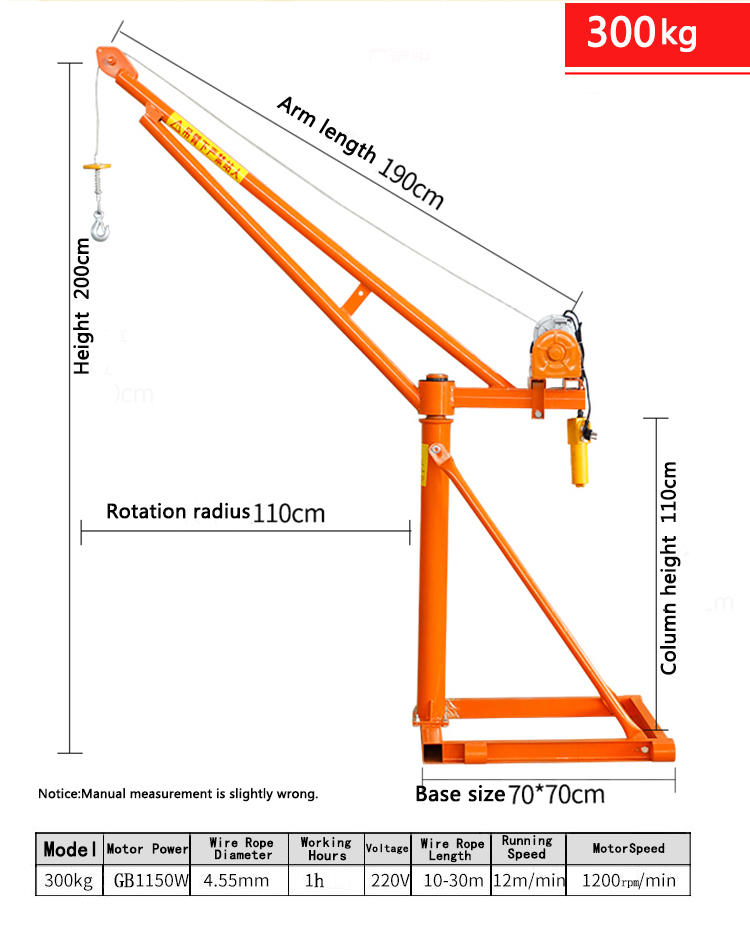

300 kg | National standard 1150W | 4.55 mm | 1-2 hours | 220V | 10-30 meters | 12m/min | 1200 rpm |
400 kg | National standard 1450W | 5 mm | 1 hour | 220V | 10-30 meters | 12m/min | 1200 rpm |
500 kg | National standard 2200W | 6mm | 1-2 hours | 220V | 20-30 meters | 14 m/min | 1200 rpm |
500 kg | National standard 1500W | 6mm | 1-2 hours | 380V | 30m-60m | 14 m/min | 1200 rpm |

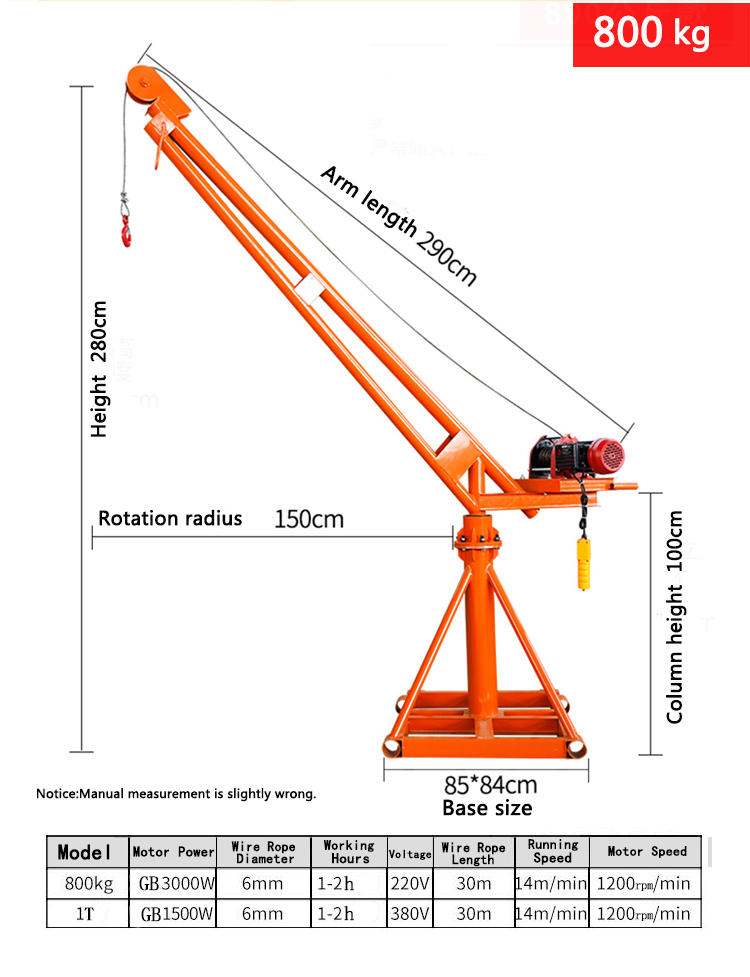

800 kg | National standard 3000W | 6mm | 1-2 hours | 220V | 30 meters | 14 m/min | 1200 rpm |

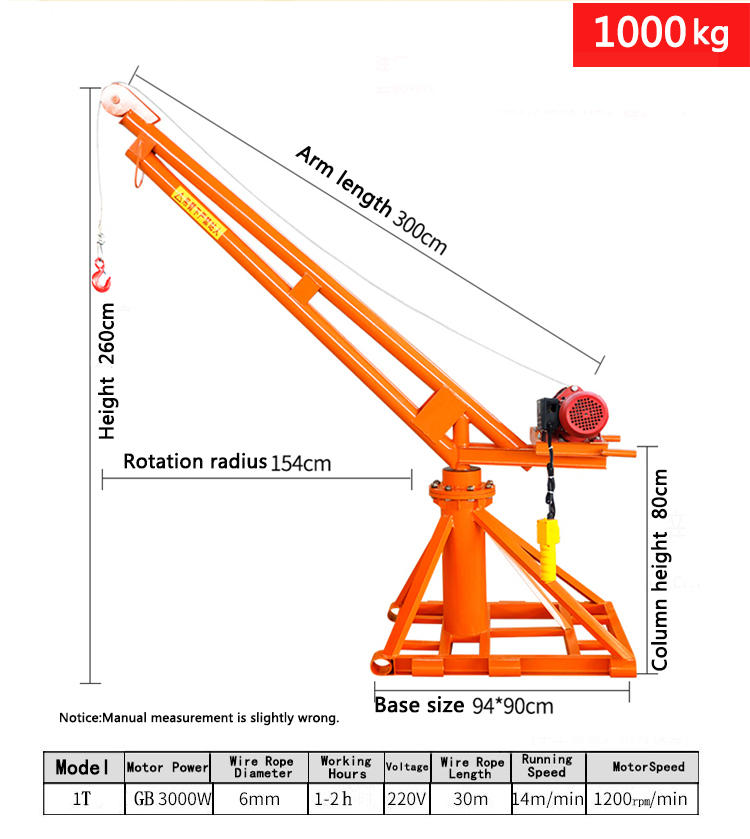

1 ton | National standard 1500W | 6mm | 1-2 hours | 380V | 30 meters | 14 m/min | 1200 rpm |
1 ton | National standard 3000W | 6mm | 1-2 hours | 220V | 30 meters | 14 m/min | 1200 rpm |
mark:
1: A set of outdoor crane includes: frame, motor, wire rope, hook, switch:
2: Frequency of use: The motor works intermittently and cannot be used for a long time.
3: Recommended load: The manufacturer's standard lifting height is 12m. If it exceeds 20m, plus the wire rope load, the sound is 20m (75%), 25m (60%), 30m (50%). :4: 12m for 1-2 floors, 20m for 3-4 floors, 30m for 5-7 floors.

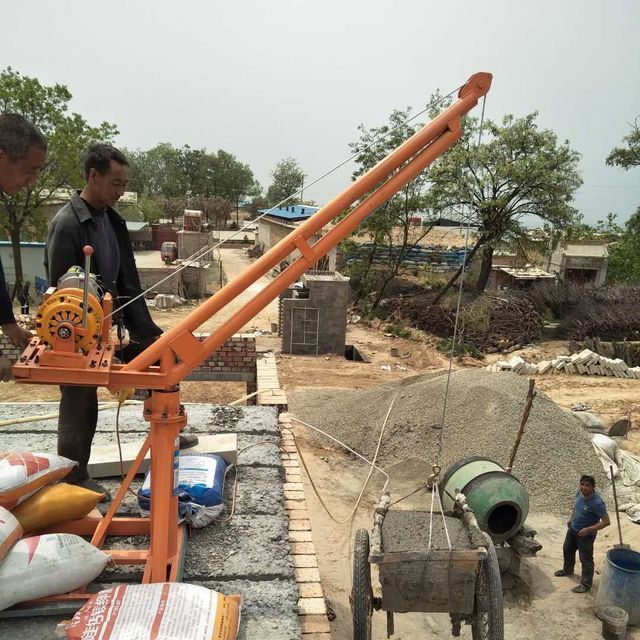

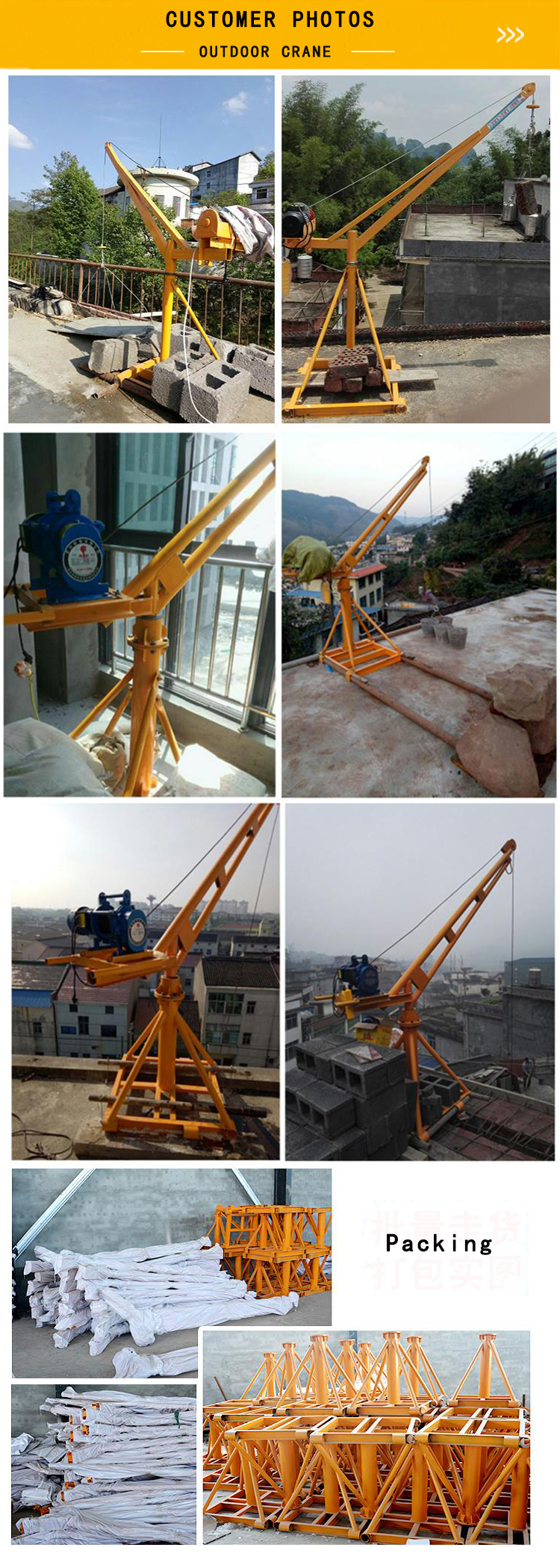

customer photo
Loading tips:
When the manufacturer's standard lifting height is 12M, the corresponding weight of the load. If 20m and extended steel wire ropes are used, the load will be affected, and the relative tension will be reduced by 20m (70%) and 30m (50%).
common problem:
1: What should I do if the motor heats up during use?
Please rest assured that this is a normal phenomenon and not a quality problem. All miniature electric hoist motors will generate heat for a long time during operation. Our motors are 100% pure copper motor movement. We will conduct more than 30 minutes of experiments before sales to ensure the quality is on sale.
2: What should I do if I find that the wire rope is wound on one side during use?
At this time we can adjust the parallelism of the machine. If the machine is tilted when it is working, or it is not tilted when it is fixed, but the hoist is tilted when it is hanging things, a wire rope will be messed up.
