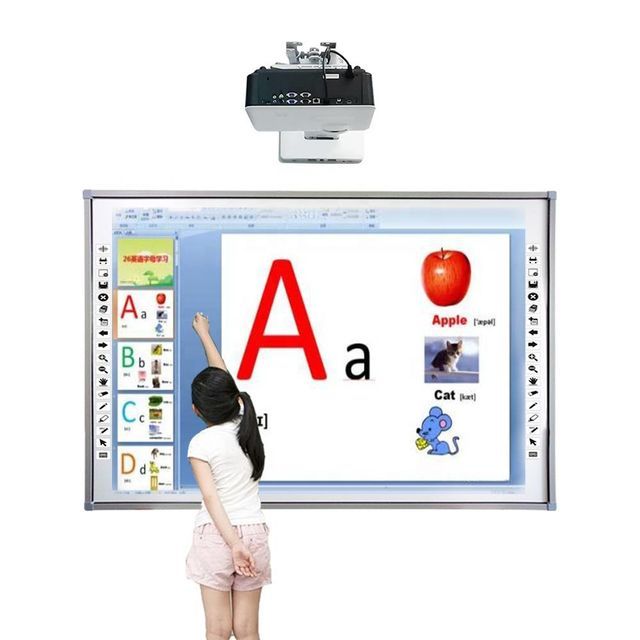

China interactive whiteboard, infrared multi-finger touch ultra-thin aluminum frame track smart board for school/office

PRODUCT DETAIL
model:ST-9400Ttype:whiteboard

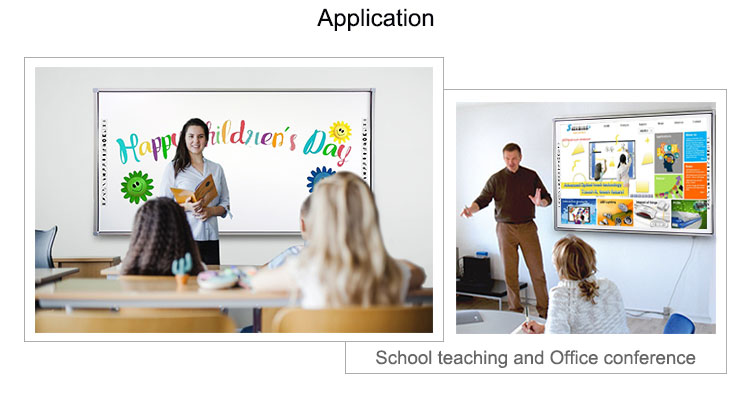

application:school teachingWhiteboard Type:Interactive whiteboard
Packaging Details:Yihua interactive whiteboard a carton/wooden case/palletcolor:grey
Contact point:6-32 pointsOrigin:Shandong China
Material:Nano + aluminum honeycomb/ceramicpayment terms:L/C, T/T, Western Union, payoneer
product name:Interactive whiteboardWarranty:3 years
Supply capacity:3000 sets per monthbrand:find the soul
technology:Infraredport:Qingdao
Certificate:CE/FCC/ROHS/ISO9001operating system:Windows XP/Vista/7/8/10, Linux, Mac, Android
size:83 88 96 100 inchesfold:No
T-related products

China infrared multi-finger touch ultra-thin frame high-tech trace interactive whiteboard school/office smart board

Product Description



ST-9400T series interactive whiteboard adopts infrared technology, Alulimum ultra thin frame, supports 6-32 touch points. Featuring our unique matte polymer/enamel finish that provides the best surface for projection and writing.



We have our own R&D team, independently developed two pieces of software, and combine the software to create an interactive teaching and training environment, making the classroom more interesting and attractive.

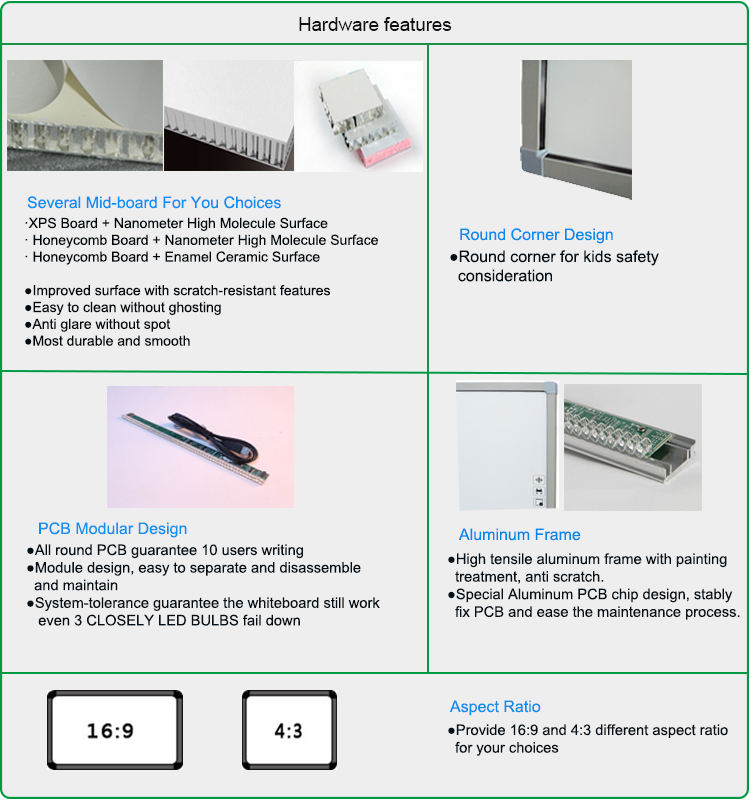

Features

♦Ultra-narrow high-strength aluminum frame, painted, anti-scratch, light weight.

♦Curved plastic corners are specially designed for child protection.

♦Aluminum honeycomb/ceramic board with nano-polymer surface, smooth surface and anti-scratch. Water-based marker pens are available.

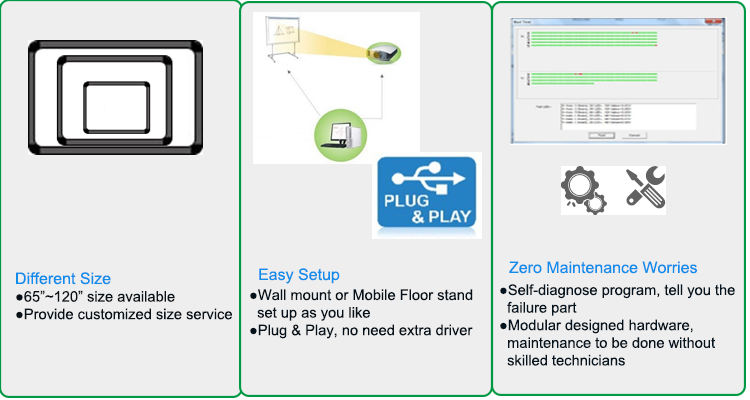

♦Modular PCB component design, easy to separate and disassemble, easy to maintain.

♦USB cable power supply, plug and play, no driver.

♦Wall-mounted and floor-mounted.

♦Regular size: 83"/88"/96"/100" 4:3/16:9 aspect ratio selection.

♦OEM sizes from 50" to 120" are acceptable.

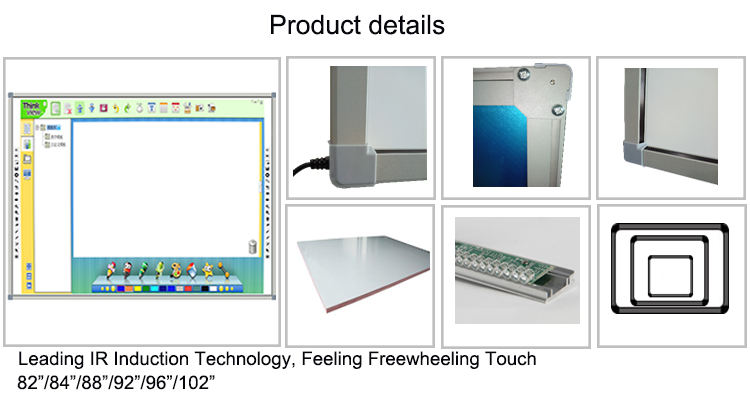

detailed image





Software Details

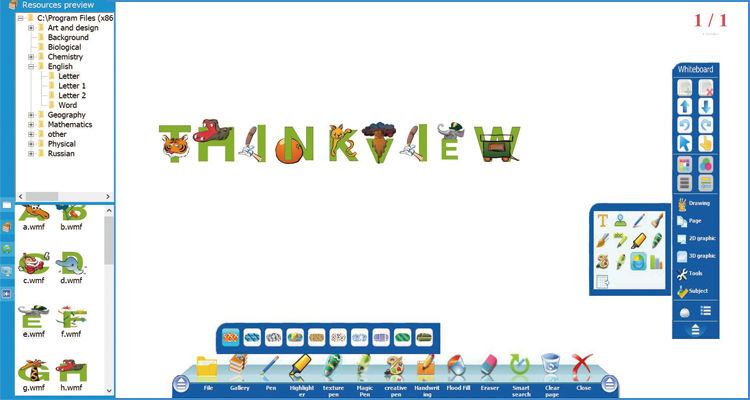

Thinkview Edukit V 5.1 is specially designed for high school teaching, the main features are as follows:

⇒Provide rich teaching resources and subject tools (mathematics, English, chemistry, physics, etc.) to make the classroom more interesting and attractive.

⇒Support work annotation mode, easy-doc camera, insert files/tables/videos/audio and many other functions beyond your imagination.

⇒Support multiple file formats: Word/Excel/PDF/Powerpoint.

⇒Support multiple operating systems: Android/windows/Linux.

⇒ Support global languages.



Specification



ST-9400T Series Infrared Multi-touch Interactive Whiteboard
Touch Specifications
touch technology Infrared sensor 6-32 point touch

touch resolution

32767*32767
Coordinate accuracy ≥1mm
tracking speed 8 m/s
transfer speed 12M/sec
Curson speed 180pps
Response time 10ms for the first click, 3ms for continuous clicks
Input Finger, stylus, or any other opaque object
interface USB2.0/3.0
Supported OS Windows xp/vista/7/8/10, Linux, Mac, Android
Mechanical
Middle plate material Nano polymer surface + aluminum honeycomb/ceramic
shadow effect excellent low glare
Viewing angle Left and right: 170° / Up and down: 160°
environmental
Operating temperature -15℃~+55℃
Working humidity 20-90%
Storage temperature -40℃~+70℃
storage humidity 10-90%
electric
power supply DC 5V via PC USB port
Input voltage DC 4.6V~DC 5V
Working current ≤110mA
power consumption ≤2W

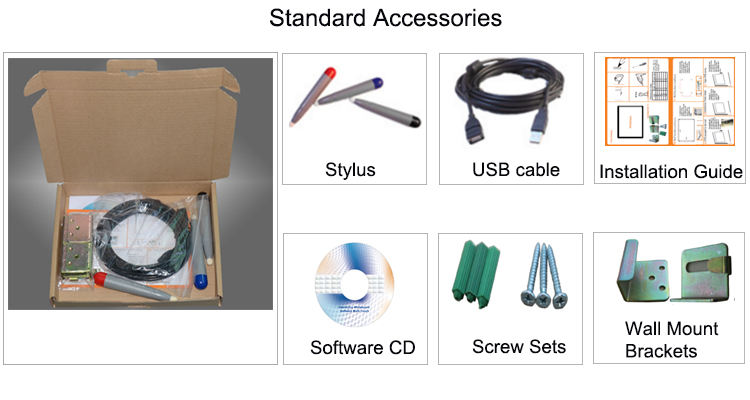

Accessories
stylus marker black/green/red
wall bracket 1 set (including screws)
software disc 1 item
usb cable 5 meters
User Manual/Installation Guide 1 item
mobile floor stand Elective
Certificate CE/FCC/Ross
Warranty 3 years limited
