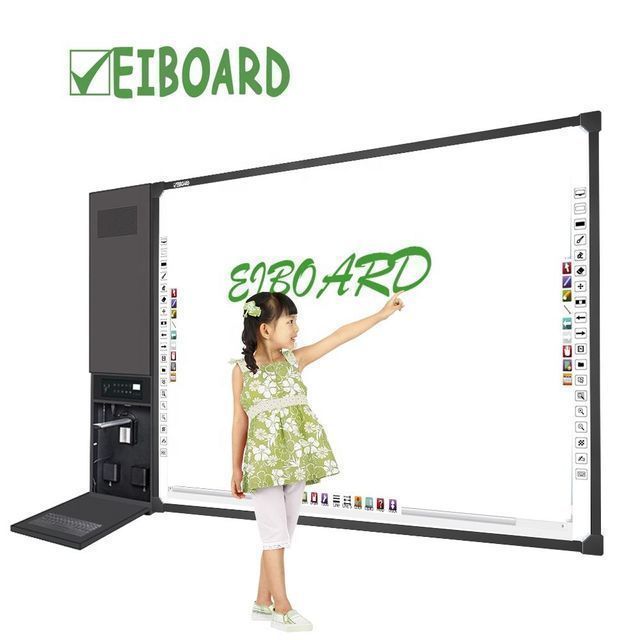

School supply all in one touch screen interactive smart whiteboard

PRODUCT DETAIL
Item 5 - Wireless Microphone:Standard accessoriesPackaging Details:School Supply Integrated Touch Screen Interactive Smart Whiteboard Single Packing Information: (2 CTNS) 1710*1350*100mm/25kg +1380*360*260mm/17kg 20" container: 80 pcs 40" container: 118 pcs 40 HQ: 210 pcs
Install:Wall Mount or Mobile Standproject:82" interactive electronic whiteboard + multimedia all-in-one machine
model. :FC-4000+FC-82IRplace of origin; place of origin:Guangdong, China
name:All-in-one touch screen interactive smart whiteboardWhiteboard Type:Interactive whiteboard
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramTypes of:whiteboard
Supply capacity:5000 pieces/month 80 000 pieces/yearmodel:FC-82IR , FC-4000
Project 1 - Multimedia All-in-One:Speaker, PC, Controller, Visualizer, Keyboard+Mouse, Microphoneport:Shenzhen
brand:love boardPackage preview:
fold:NoProject 2 - Whiteboard:82 inch infrared interactive whiteboard
Item 3 - Projector:short throw projectorOptional parts:Projector + all-in-one remote control
Item 4 - All-in-one Remote Control:EIBOARD patented product (optional)

School supply all in one touch screen interactive smart whiteboard

Recommended Products

OEM EIBOARD Customized 55" 65" 75" 86" Interactive Electronic Whiteboard Smart Whiteboard Tablet for Classroom and Meeting Room



Product Description

 illustrate:

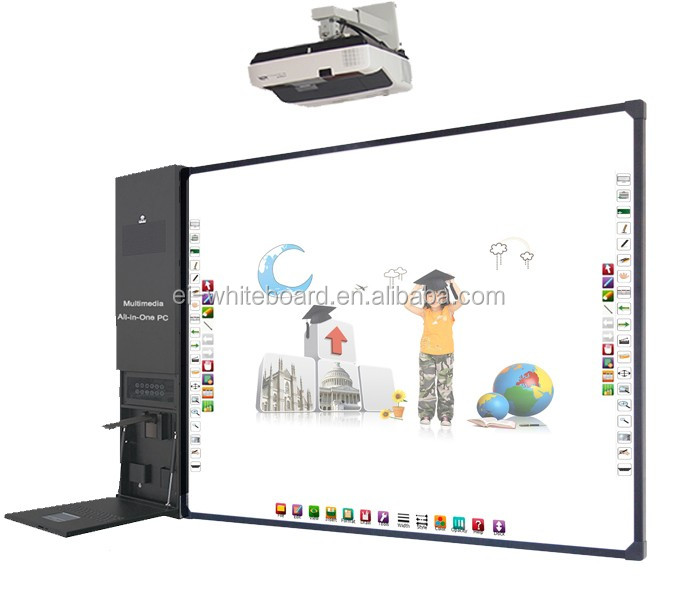

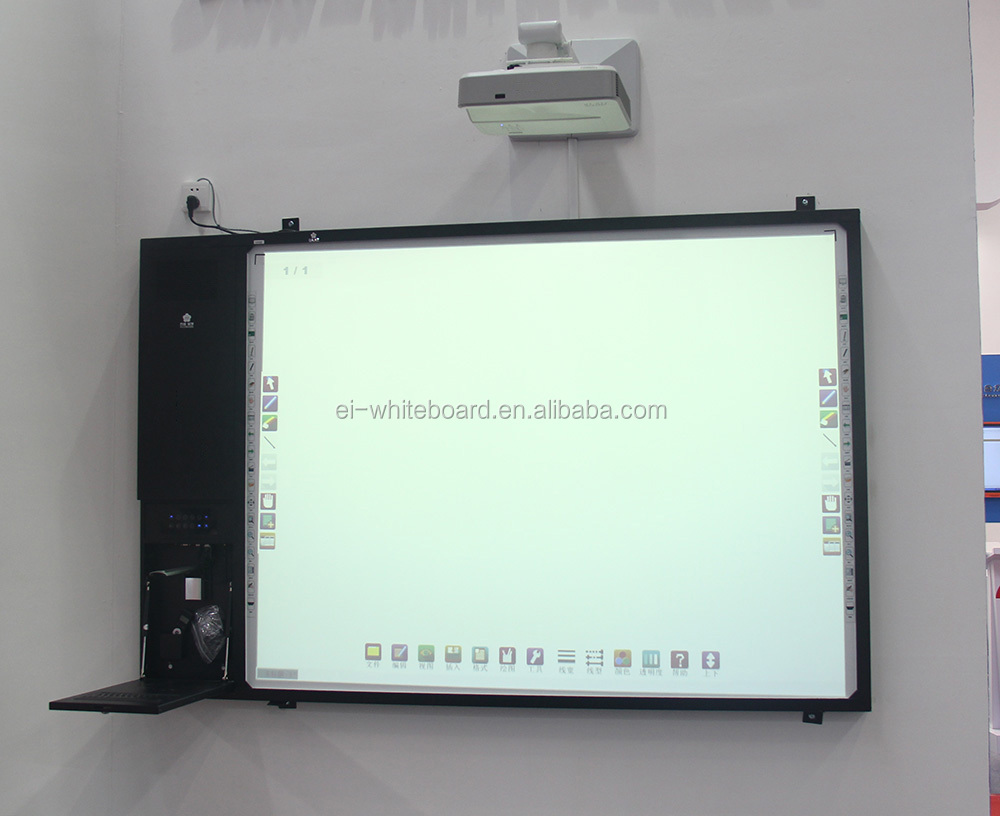

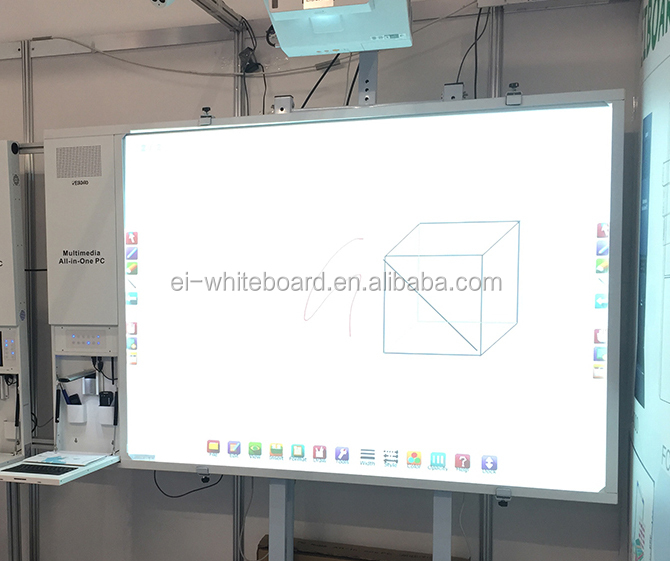

The complete all-in-one interactive whiteboard is a combination of 2 products:
1) 82" Infrared Interactive Whiteboard (FC-82IR)
2) Multimedia all on one computer(FC-4000, i3 PC, 4G RAM, 500G HDD, speaker, central controller, keyboard+ pad, Wireless MIC)

Note: Any type of projector can be used for the above solution.





Key features of the all-in-one interactive whiteboard:

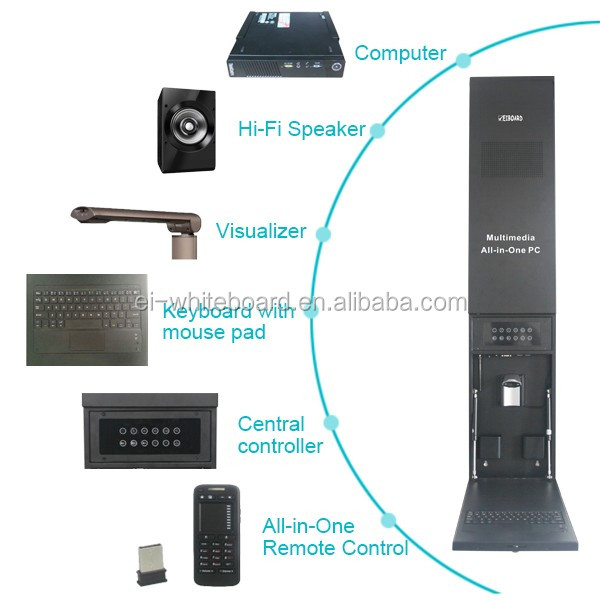

1. The system includes 82-inch infrared interactive whiteboard, i3 PC, 4G memory, 500G hard disk, 2*20W HiFi speakers, central control system, 5 million pixel visualizer, patented keyboard + mouse pad, and wireless microphone.

2. Integrated whiteboard solutions with multilingual and functional software tools, eg. Pen, move, rotate, scale, etc.

3. The infrared interactive whiteboard allows multiple users to work simultaneously.

4. 60 seconds quick start, one key to turn on/off all devices.

5. Wall-mounted or mobile bracket is easy to install and easy to maintain.

6. FC-4000+FC-82IR is a fully integrated system that can transform your classroom or conference room and bring learning back to life.

7. Widely used in education, business, training, etc.

8. Optional configuration: HDMI, WIFI module, ID card smart lock, I5/I7/OPS mini PC

9. Optional accessories: any brand projector, patented all-in-one remote control, wireless microphone.





All-in-one interactive board specifications:

model.

FC-4000 and FC-82IR

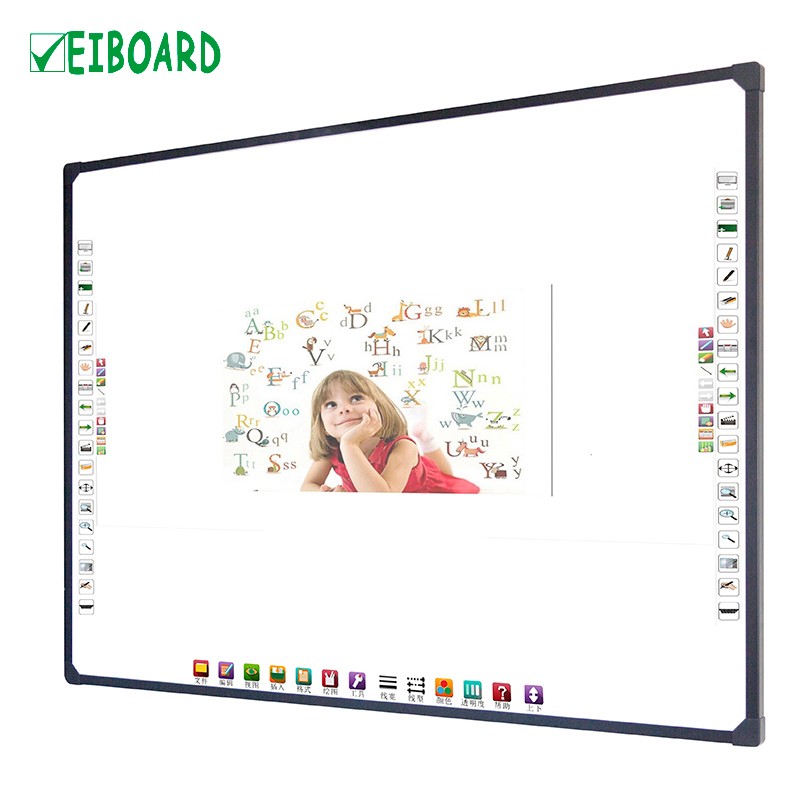

Infrared Interactive Electronic Whiteboard FC-82IR

size

82 inches

technology

infrared

writing

finger or any opaque object

resolution

32768×32768 pixels

Response time

<6 milliseconds

cursor speed

200''/ms

Coordinate accuracy

0.05mm

interface

USB

energy consumption

≤1W

operating system

Win7, Win 8, Vista, XP

free software

yes

OS for 10 points Touch

Windows

calibration

9 or 16 points

frame

aluminum alloy

Multimedia all-in-one machine FC-4000

cabinet

dimension

1280x290x80mm

color

black and white

locking system

mechanical key

top level interface

Lan port, VGA output, power input/output, RS232, IR, USB port, audio output, video output, etc.

weight

NG 15.5kg GW17kgs

Structural features

Slim and compact design, fully enclosed top panel, side cable holes, dust-proof

personal computer

CPU

Intel I3 CPU, 3.4Ghz with OPS computer, pluggable design

storage

Memory: 4GB, Hard Disk: 500GG

speaker

strength

20W**2, resistance 4Ω, sensitivity 85DB, frequency response: 100HZ-18KHZ

amplifier

Frequency response: 20Hz-20KHz, sensitivity: 450mV

Frequency response

20HZ-20KHZ

Central controller system

control panel

touch panel

function key

VGA, Power On/Off, Mute, Projector On/Off, PC On/Off, Video Out, Video In, USB*2, Optional HDMI

quick start

One key to turn on/off the system

projector protection

Projector shutdown delay device

input/output interface

Audio,Video,VGA,USB,232 port,Power Output,IR port,Microphone,Lan port,HDMI(Optional)

Digital Visualizer

resolution

5.0 megapixels

scan size

A4

scan object

Documents, documents, books, text, real objects, human faces, etc.

light resource

High brightness LED, natural light

photo format

JPEG, TIF, PDF, etc.

video format

AVI, MPEG4, H.264, FLV

Keyboard + 2.4G remote control with MIC

Contains patented design

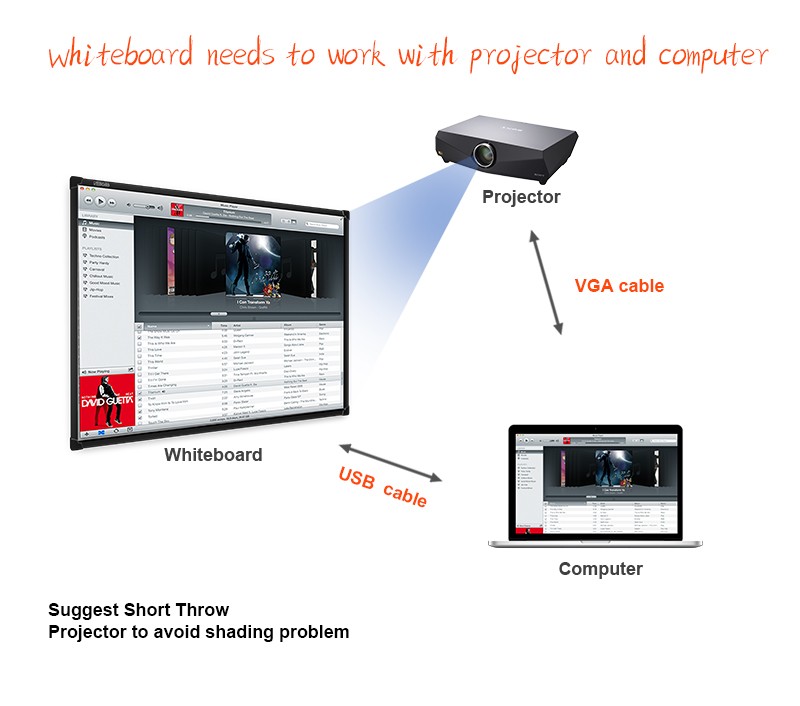

If I have a projector and just need an interactive whiteboard, how do I use it?

If you don't have a projector and computer, we suggest you can use LED interactive touch screen:

65" 75" 86" 98" Electronic Touch Screen Flat Panel Display Smart Whiteboard School and Conference Interactive Whiteboard

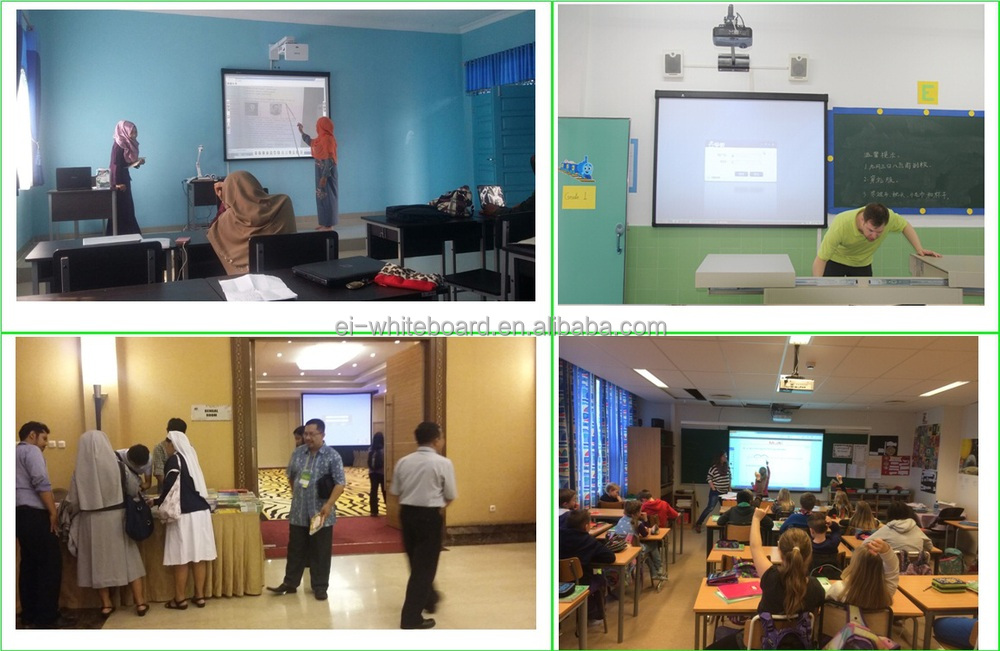

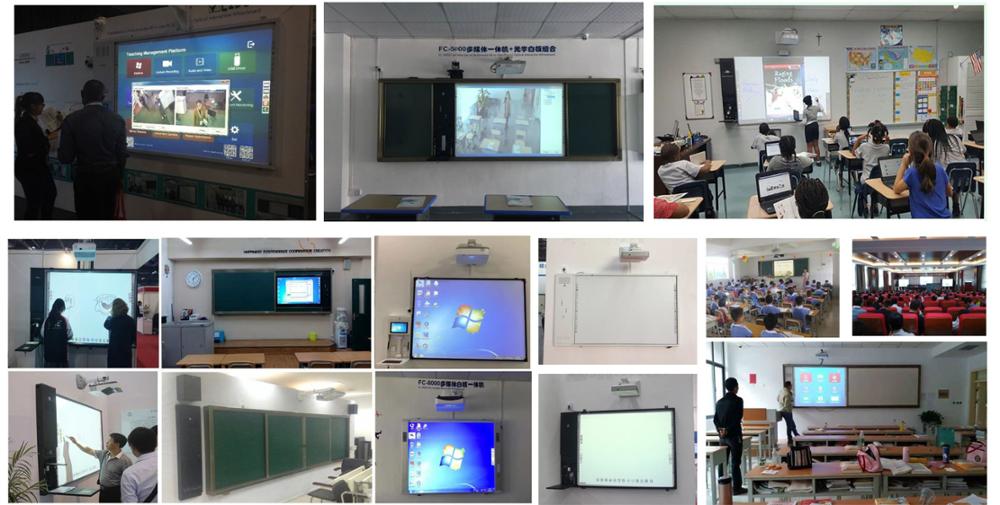

details andApplications of the All-in-One Interactive Board:
