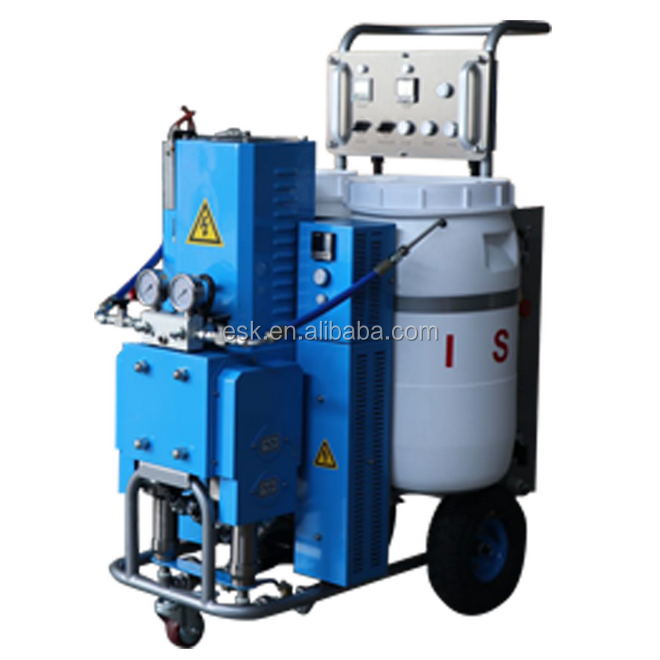

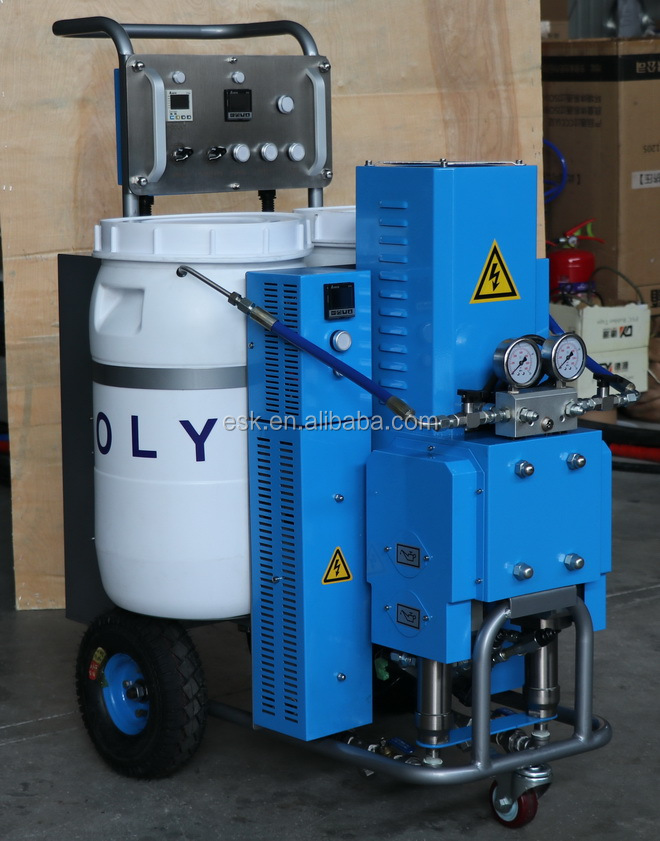

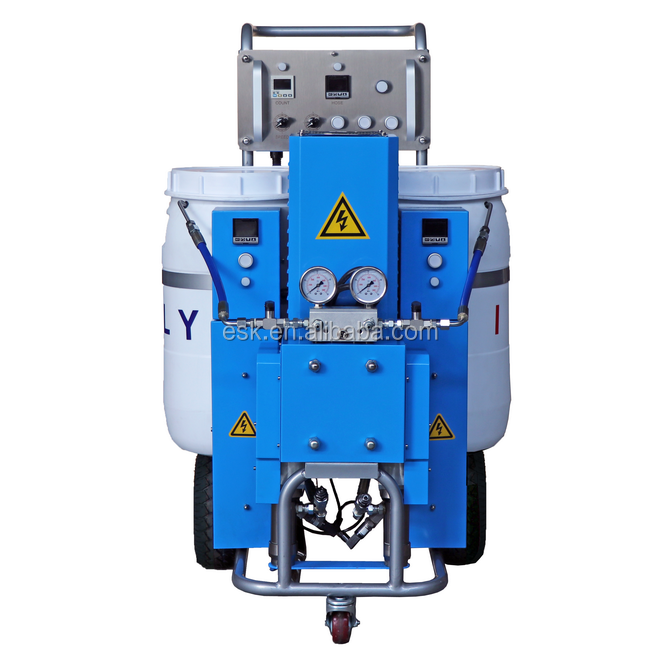

Closed cell polyurethane foam insulation machine FD-E10H
- $4500.00 / 1 - 1 sets
$4400.00 / 2 - 4 sets
$4300.00 / 5 - 9 sets
$4250.00 / >=10 sets - 1 set
- Taian E.S.K. International Co., Ltd.
- Shandong, China
- Mr David Lee
| feature: | Polyurethane/Polyurea | brand: | ESK |
| capacity: | 6-10 kg/min | pressure: | 17 MPa |
| Main selling points: | energy saving | Marketing Type: | New Products 2020 |
| payment terms: | L/C, T/T | color: | blue |
| product name: | Polyurethane spraying machine | Applicable industries: | Building materials store, manufacturing plant, retail, construction |
| Voltage: | 220/380 | Product Category: | Insulating Rigid Foam, Rigid Insulating Foam |
| Power (kW): | 10 | type: | electric drive |
| Package preview: | Core component warranty: | 1.5 years | |
| port: | Qingdao | After-sales service provided: | Engineers available to service machinery overseas |
| Showroom location: | Canada, United States, Philippines, Romania, Ukraine, Australia | Video shipment inspection: | if |
| Material: | Polyurethane A+B Isocyanate | Dimensions (L*W*H): | 705*879*1126mm |
| Packaging Details: | Glued wooden box | Origin: | China |
| Core components: | Motor, water pump, PLC, pressure vessel | Weight (kg): | 150 kg |
| Supply capacity: | 50 sets per month | Health status: | new |
| Processing type: | foam machine | application: | wall roof insulation |
| Mechanical test report: | if | Type of machine: | electrical |
| Warranty: | 1.5 years |
PU foam machine is used for:
- foam insulation sprayer,
- Wall roof insulation foam sprayer.
- External wall insulation
- Insulation of walls, refrigerators and roofs
- Freezer
- Solar water tank insulation
- Rigid polyurethane only
- roof waterproofing
Advantage:
· Portable and compact design, easy to move anywhere.
· Electric drive ensures more stable pressure and output.
30% energy saving, the whole machine only 10000w
· High efficiency output capacity of 10 kg per minute
The maximum length of the high-pressure heat pipe can reach 45 meters
|
project |
FD-E10H polyurethane spraying machine |
|
proportional fixed host |
1 set |
|
Self-cleaning spray gun |
1 set |
|

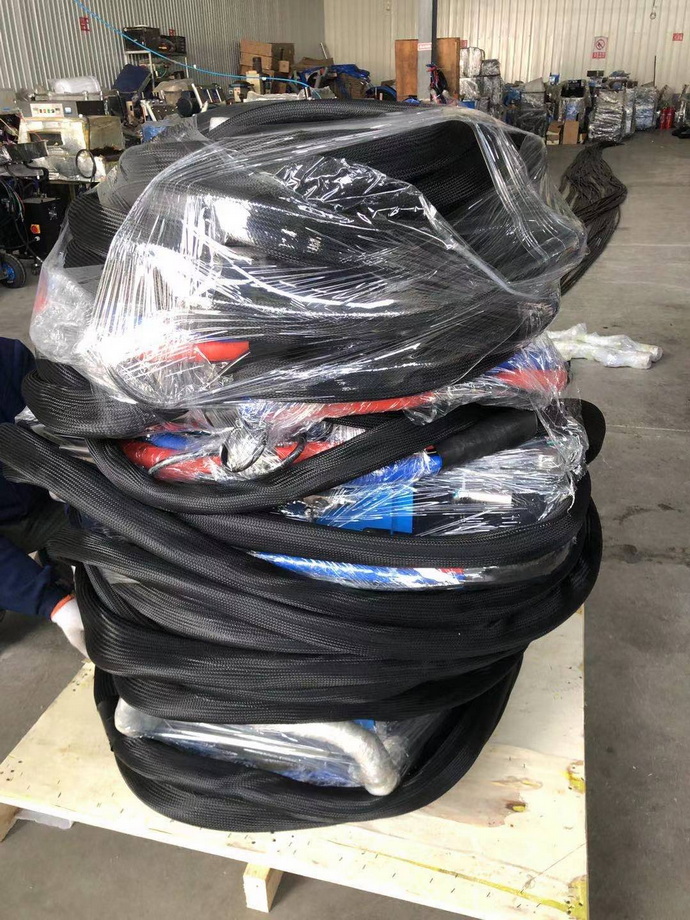

heated hose |
50 feet (15 meters) |
|
Raw material data ratio |
1:1 (fixed) |
|
Raw material viscosity range |
200-1000CPS (at working temperature) |
|
working pressure |
17 MPa (170 bar) |
|
Maximum Fluid Temperature |
88°C (190°F) |
|
maximum output |
6-10 kg/min (13-22 lb/min) |
|
Heating tube power |
1000W/15m |
|
Voltage |
230V 1 phase / 230V 3 phases / 400V 3 phases |
|
Machine size |
705*879*1126mm |
|
gross weight |
180 kg |
|
net weight |
150 kg |
|
barrel volume |
40 L (each) |
|
Maximum heating tube length |
100 feet (30m) 45 meters can be customized |
Q: What is the warranty time?
A: 18 months from when you receive the goods.
During the warranty period, we will ship free parts by air for free,
After that, we will provide spare parts based on parts cost.
Q: What is the delivery time/delivery time?
Answer: 20 days
Q: What is your minimum order?
Answer: 1
Q: What's your payment term?
A: 1- 30% deposit on order confirmation, 70% before shipment.
2- Trade Assurance

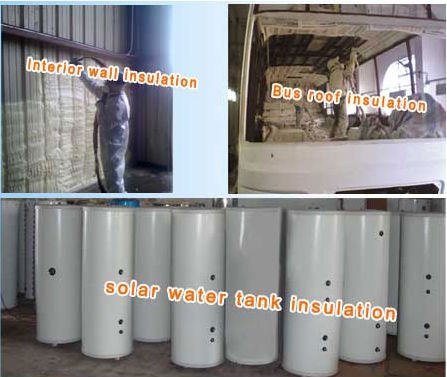

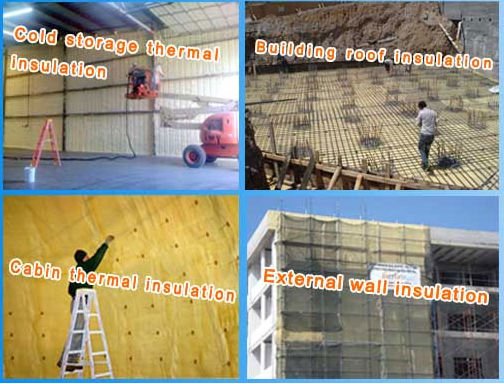

scope of application

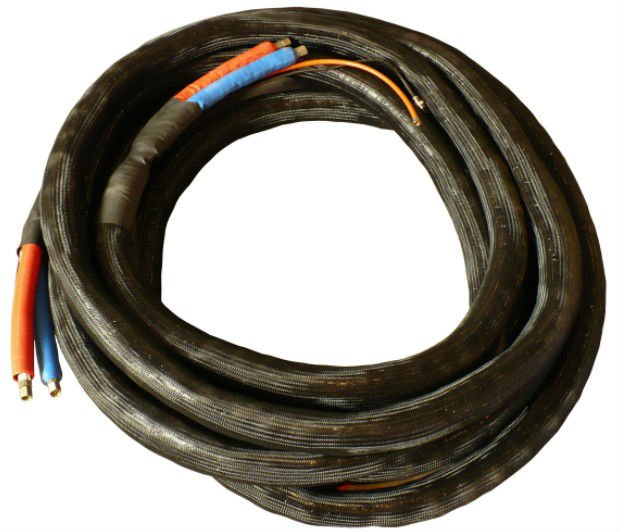

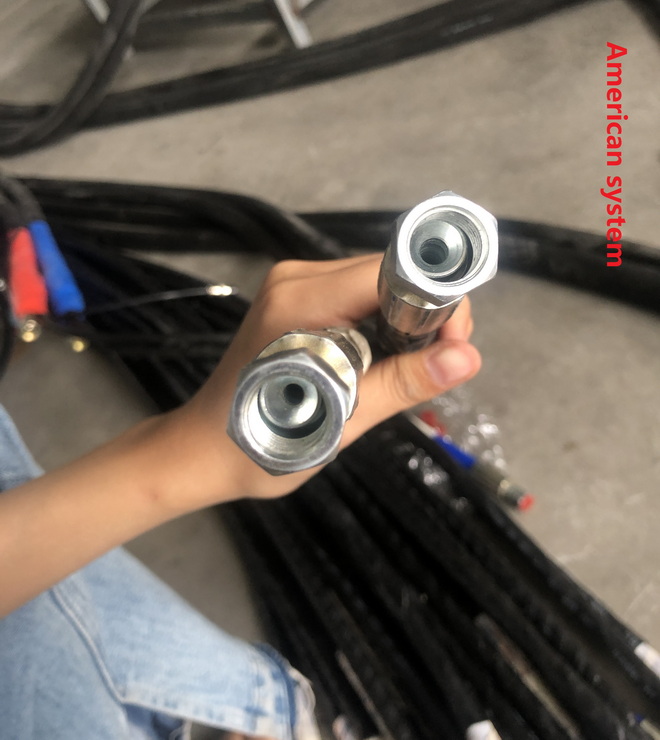

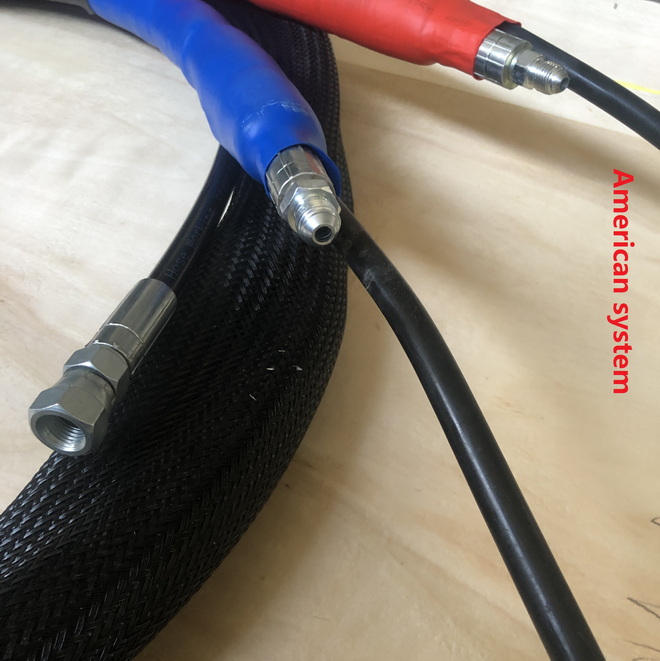

connecting hose

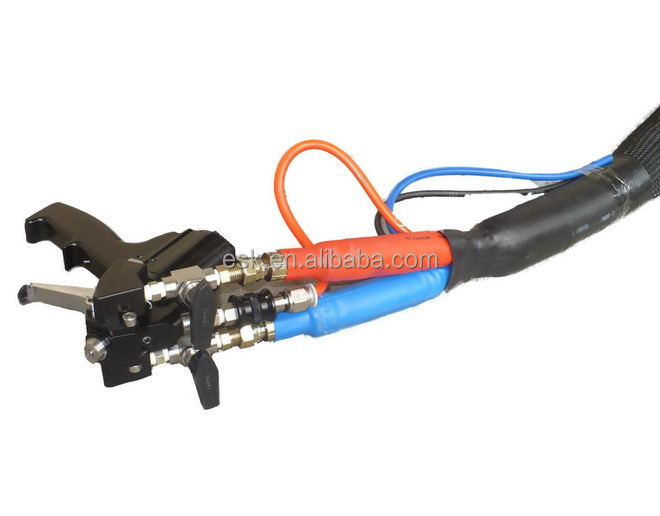

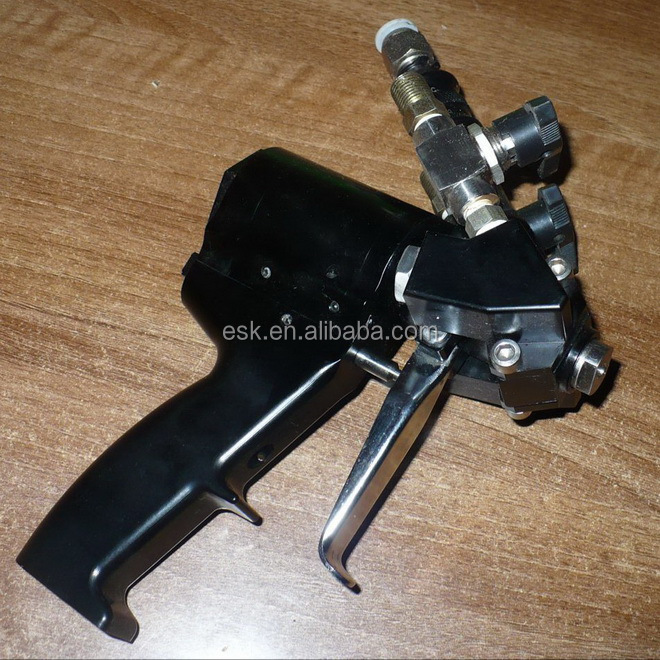

spray gun
feed pump

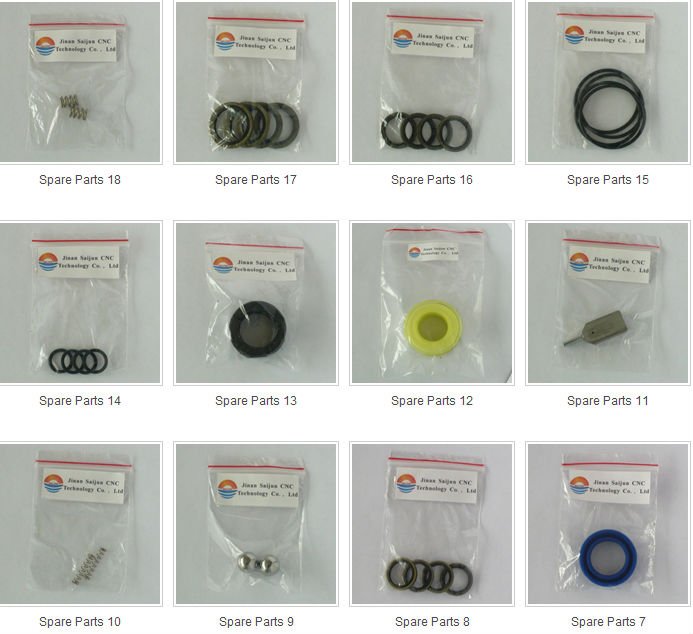

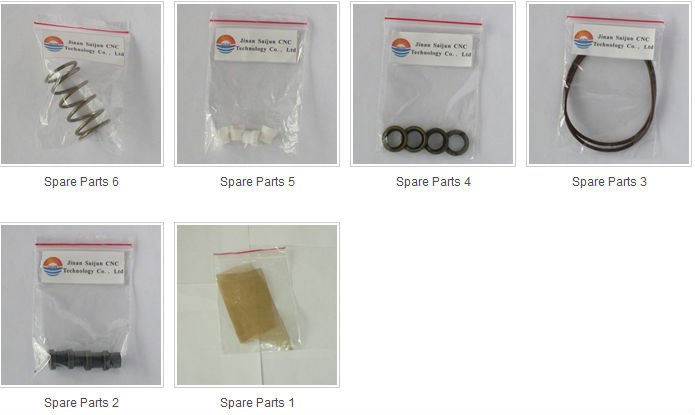

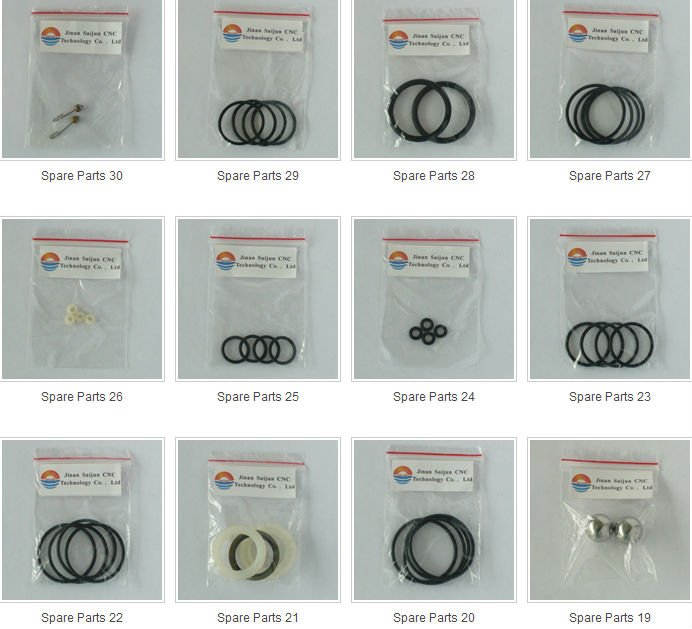

spare parts free
