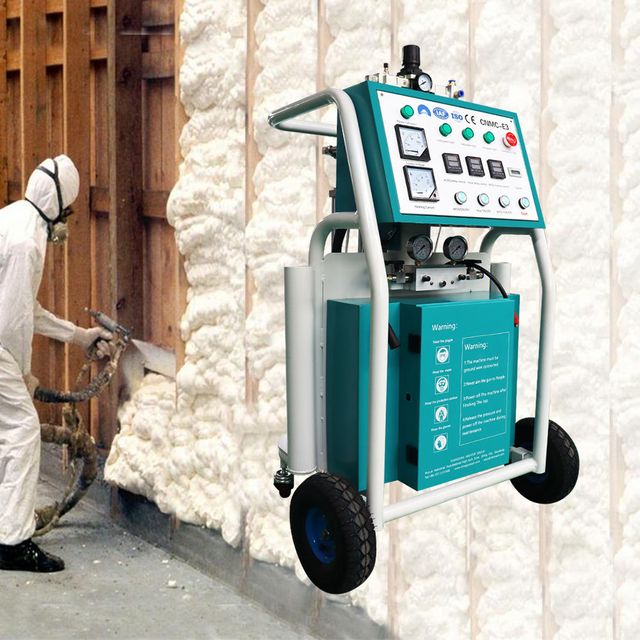

closed cell polyurethane insulation foam insulation machine sprayer pu foam sprayer

  • $3100.00 / 1 - 9 sets
    $2900.00 / 10 - 999 sets
    $1000.00 / >=1000 sets
  • 1 set
  • Shandong Hightop Group
  • Shandong, China
  • Mr Mike Jiang
PRODUCT DETAIL
strength:7.5KWSupply capacity:500 pieces per month
Minimum order quantity:1 setHealth status:new
Applicable industries:Hotels, Building Materials Stores, Manufacturing Plants, Mechanical Repair Shops, Farms, Home Use, Retail, Construction, Energy and MiningType of machine:pneumatic
Voltage:110V/220V/380VMaximum Hose Support:90m
Power (kW):7.5Drive mode:pneumatic
Main selling point:easy to operateport:Qingdao, Ningbo, Shanghai
Raw output:2-12 kg/minplace of origin; place of origin:Shandong China
Marketing Type:New Products 2020Energy source:220V/110V/380V 50/60HZ
Processing type:Foaming machineCore Components Warranty:3 years
Product Category:Foam sprayerproduct name:Closed cell polyurethane insulation foam insulation machine spraying equipment
Warranty:3 yearsPackaging Preview:
Weight (kg):250kgShowroom location:Spain, Romania
Mechanical test report:ifMaximum output pressure:11Mpa
application:PU Foam Polyurethane Spray and Injectionoutput:2-12 kg/min
payment terms:L/C,Western Union,T/TCore components:Pumps, PLCs, Pressure Vessels
brand:China Nonferrous Metals GroupVideo external inspection:if

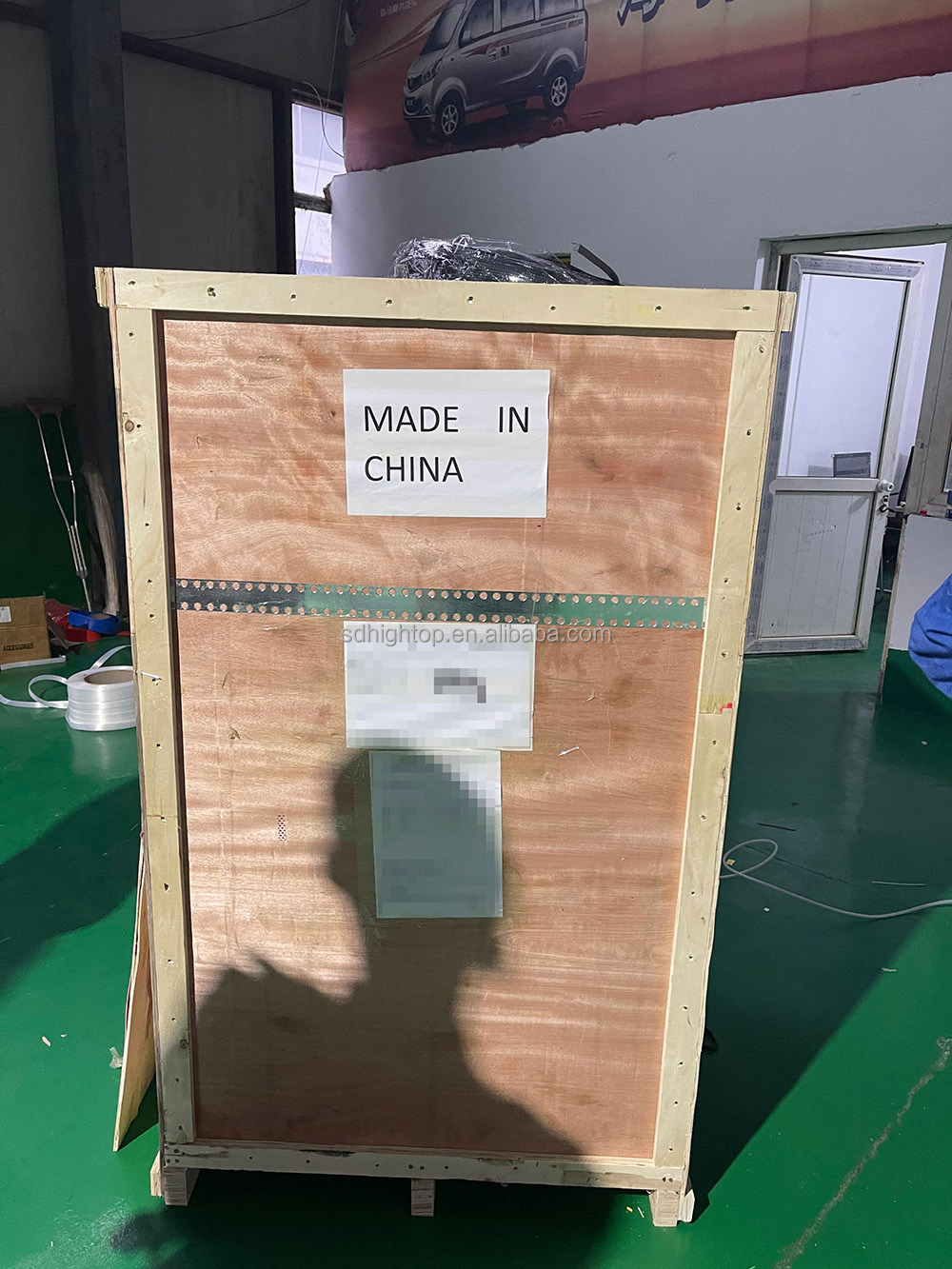

Packaging Details:Wooden box closed cell polyurethane insulation foam insulation machine spraying machine pu foam spraying machine

closed cell polyurethane insulation foam insulation machine sprayer pu foam sprayer

Product Description

Introduction of closed cell polyurethane insulation foam insulation machine spraying machine pu foam spraying machine

closed cell polyurethane insulation foam insulation machine sprayer pu foam sprayerIt can be used in various construction environments, spraying two-component materials such as polyurethane foam material (optional), widely used in embankment waterproofing, pipeline anticorrosion, auxiliary cofferdam, storage tank, pipeline coating, cement layer protection, sewage treatment, Roofing, basement waterproofing, industrial maintenance, wear-resistant lining, cold storage insulation, wall insulation, etc.

Here's why we recommend it:

1. In the cold winter, the machine can quickly preheat the foaming chemicals to help save time and improve the spraying effect and foaming effect. Equipped with a return valve, it is very convenient for operators to recycle chemicals.

2. The heating hose is the same as the Graco machine, with internal heating and low-voltage current to protect the operator's personal safety to the greatest extent.

3. Display in Fahrenheit and Celsius, which is convenient for users in different regions to view their habits.

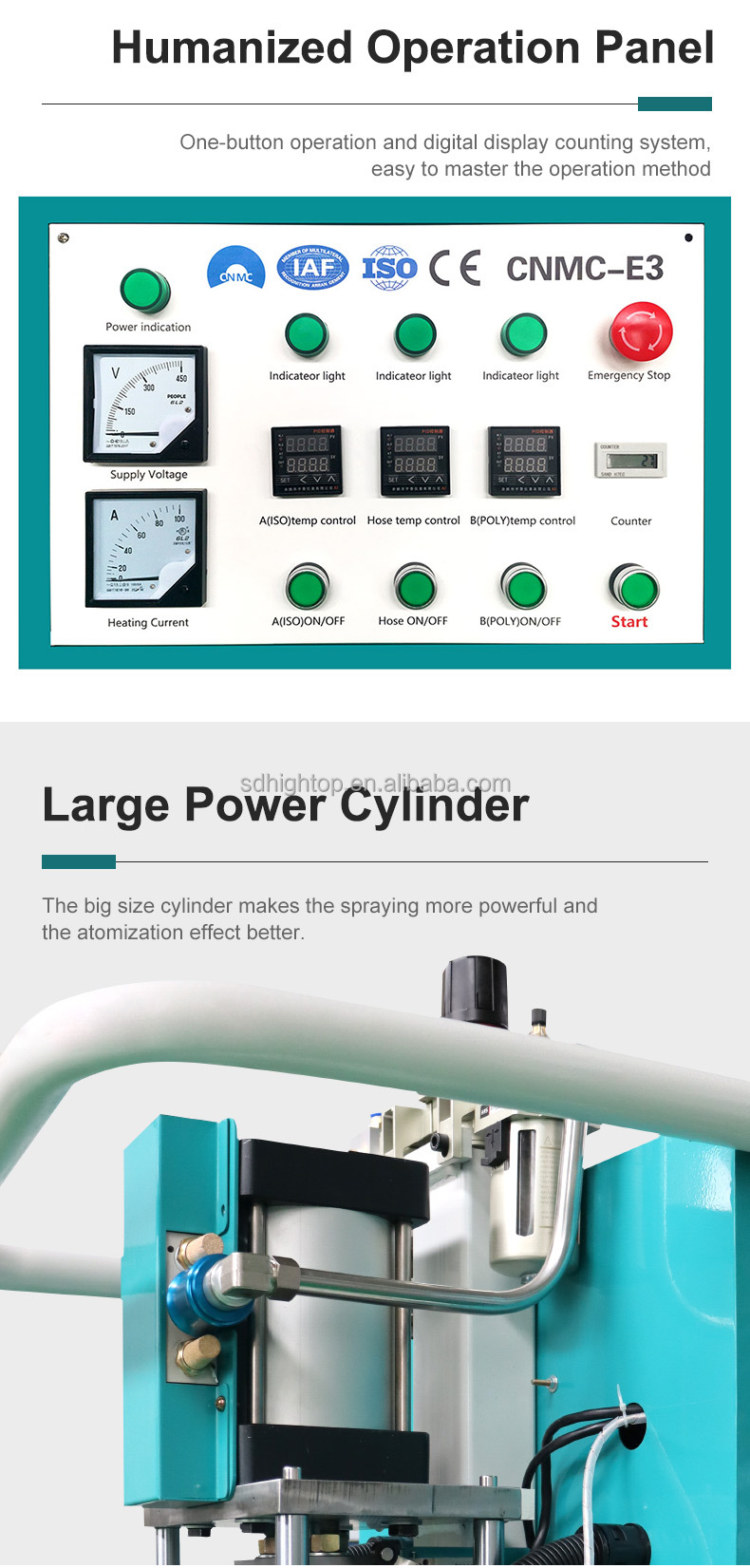

Plastic spray insulation machine CNMC-E3feature:

1. UseHigh power cylinderMake the spray stronger and the atomization effect better.
2. The heating hose of the new upgraded machine CNMC-E3 heats up faster.In the cold winter, the machine can be warmed up
Quick lather helps save time and improves spray and lather results. Equipped with return device
valve, which is very convenient for the operator to recycle chemicals.
3. The machine containsleakage protectorPrevent machine leakage and human body electric shock,
Improve the safety performance of the machine.

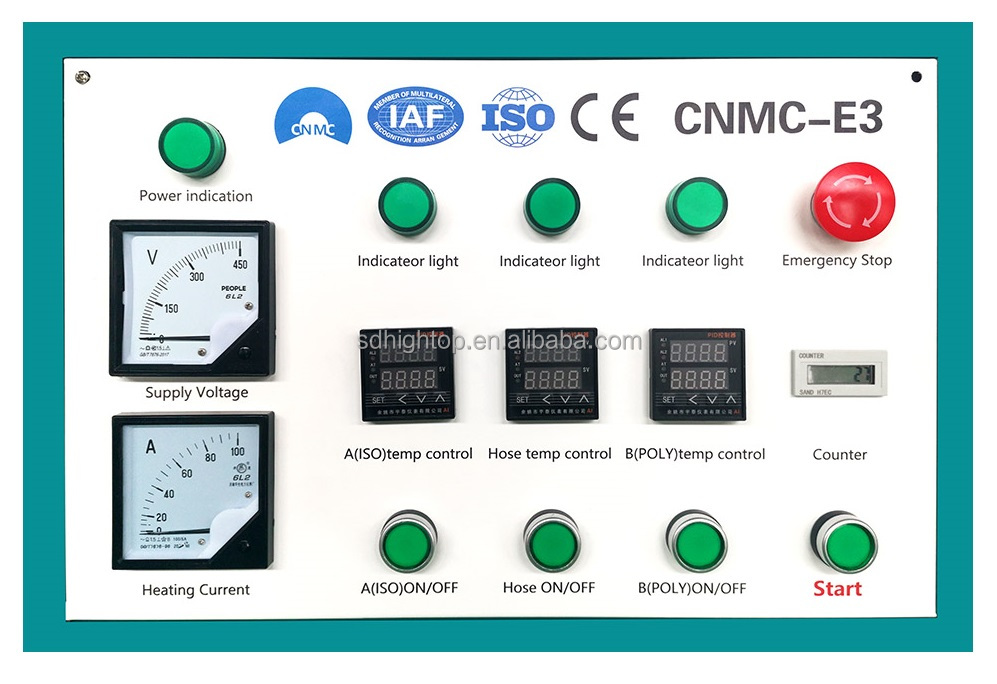

4.Add voltmeter and ammeter, so the voltage and current conditions inside the machine can be detected.
5. The appearance design conforms to the principle of artificial mechanics, and it is easier to move the machine.
6.Heated hose with internal heating and low voltage current, to protect the operator's personal safety
to the greatest extent possible.
7. The quick door is installed, which makes the maintenance and inspection of the machine more convenient



Plastic spray insulation machineCNMC-E3 Details:



Parameters of closed cell polyurethane insulation foam insulation machine sprayer pu foam sprayer

Model

CNMC-E2 & CNMC-E3

energy source

110V/220V/380V

heating power

7.5KW

drive mode

pneumatic

raw output

2~12kg/min

maximum working pressure

17Mpa

AB material yield ratio

1:1

Maximum hose support

90m

Complete set list:



host

1 set

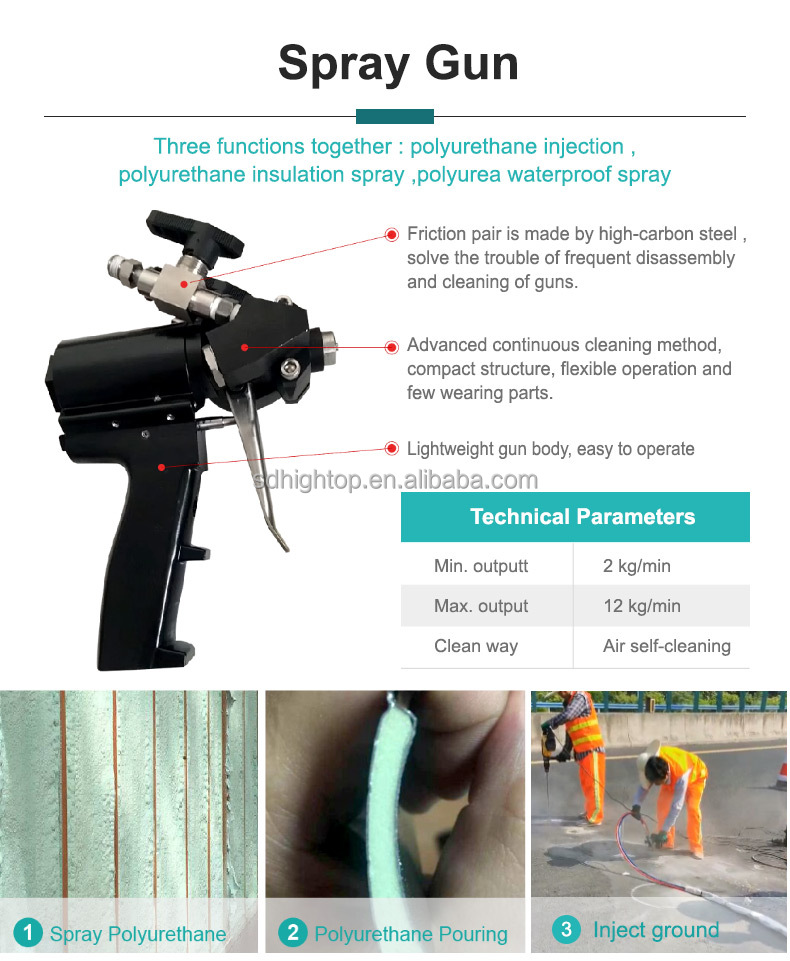

spray gun

1 set

heated hose

15m

Pump

2

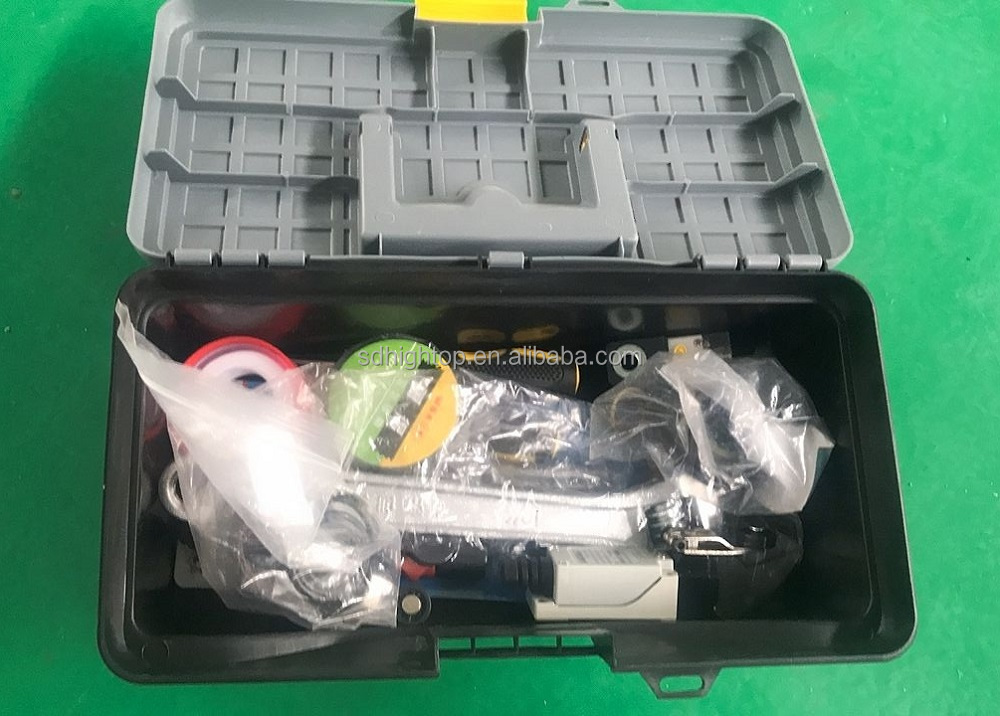

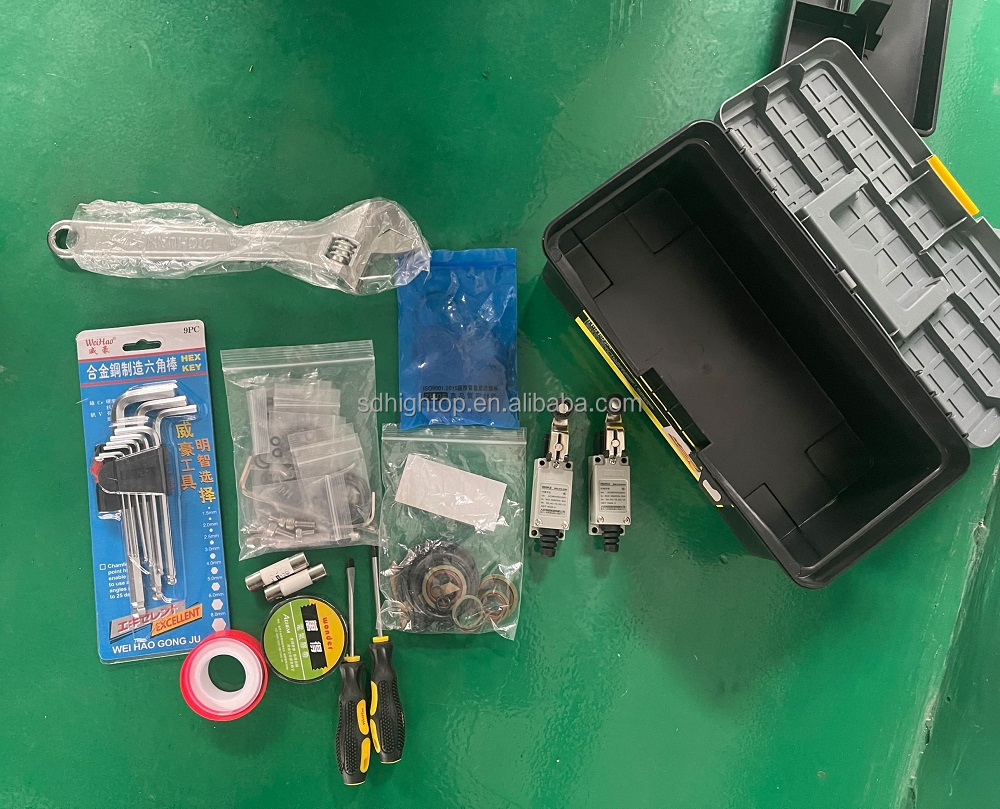

spare parts

1 set

User's Manual CD-ROM

1 serving

Closed cell polyurethane thermal insulation foam insulation machine spraying machinepu foam spraying machineclosed cell polyurethane thermal insulation machine spraying machinepu foam spraying machine



advantage:

1. Primary heating system:

It consists of two separate independent block heaters without seals.

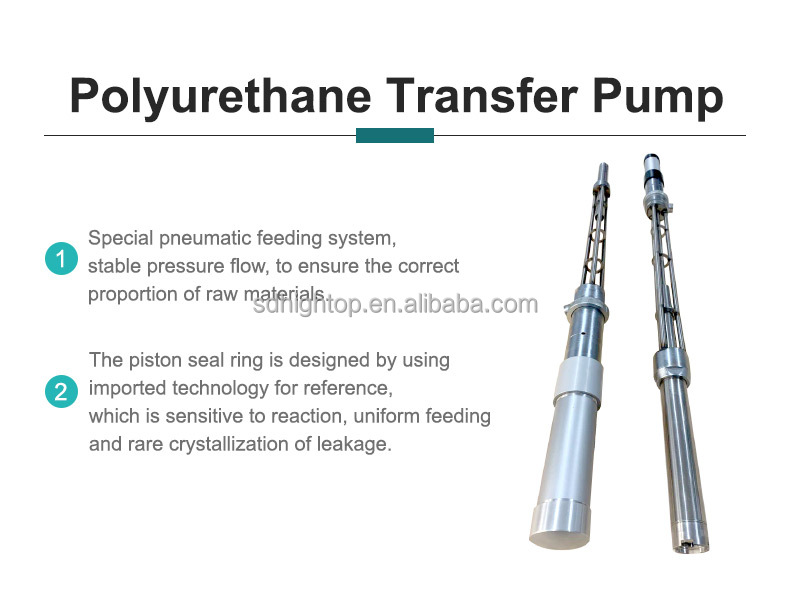

2. Proportional pump:

The system consists of two positive displacement piston pumps driven by air motors.

3.Recirculation system:

The recirculation of the two components allows for faster reaching of the preset temperature at the heater before starting to spray and during temporary shutdowns.

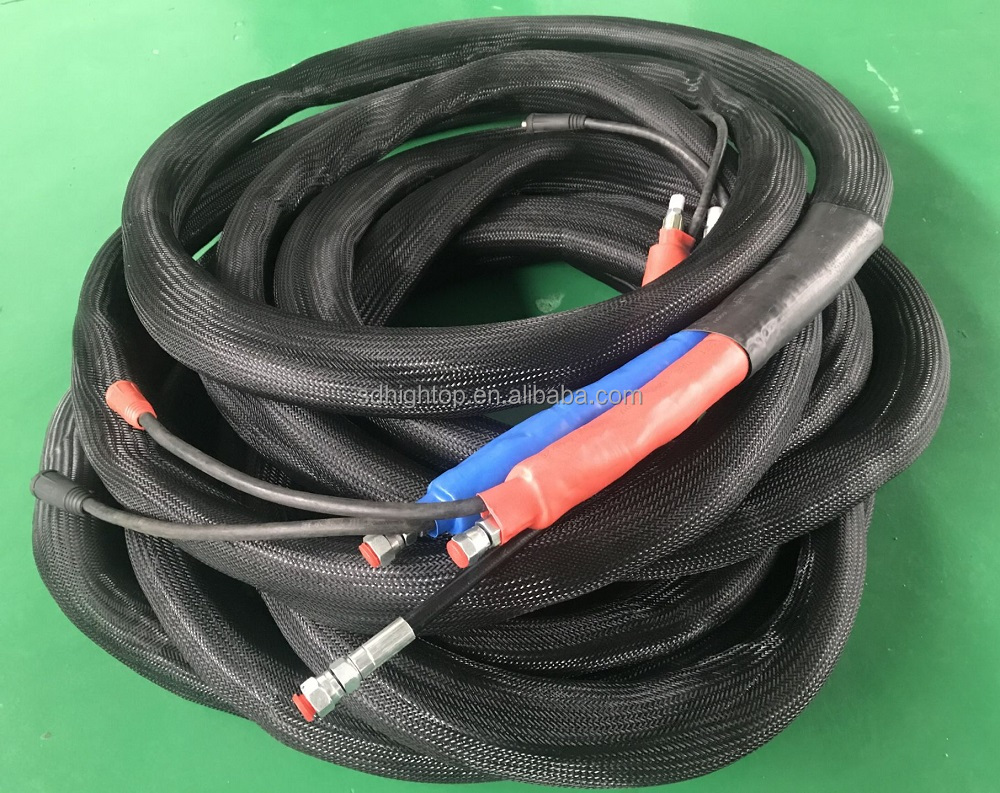

4. Hose heating system:

hoseThe heating system is designed at 1000W per 15m, allowing heating up to 90m.

detailed image

Image of closed cell polyurethane thermal foam insulation machine spraying equipment pu foam spraying machine

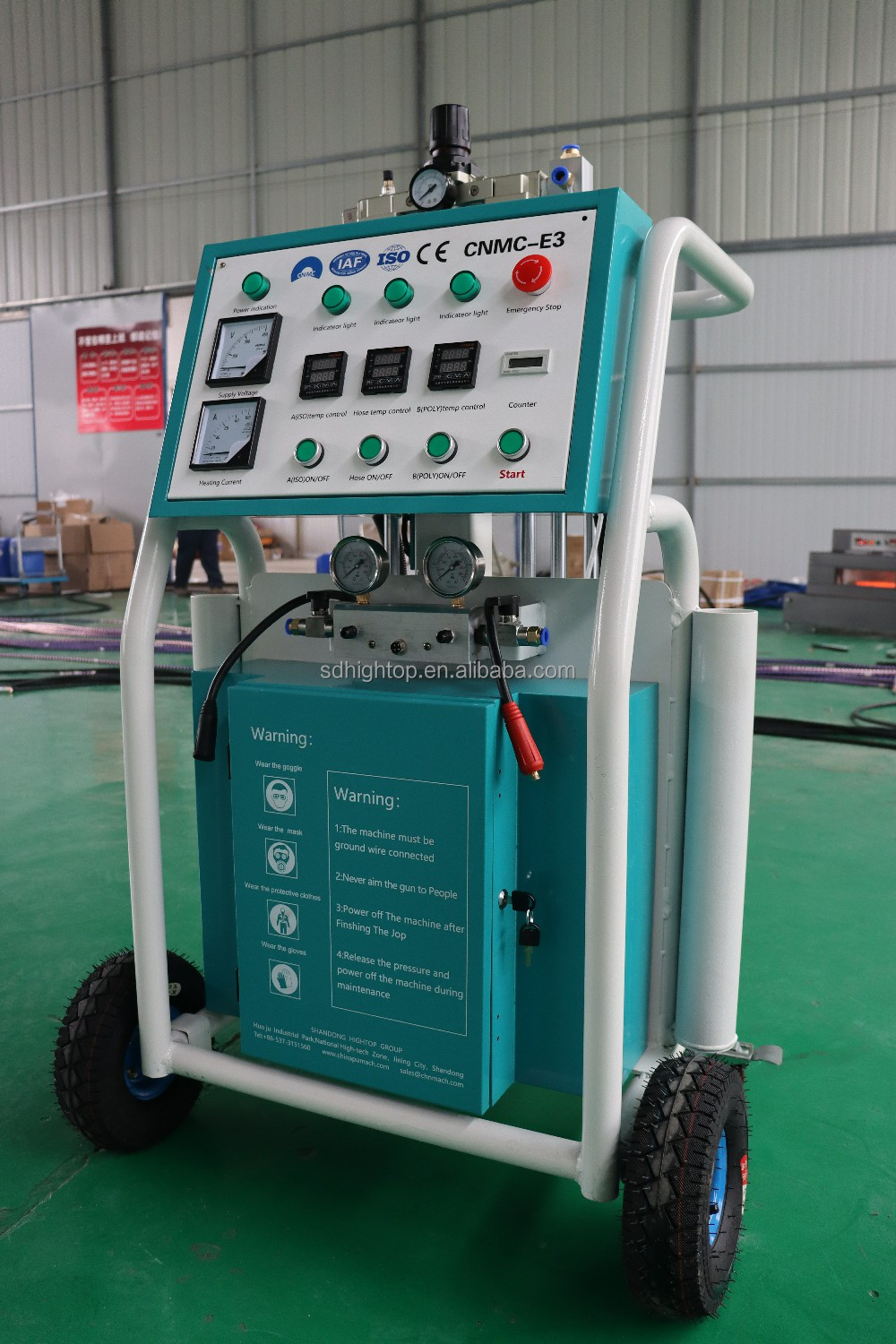

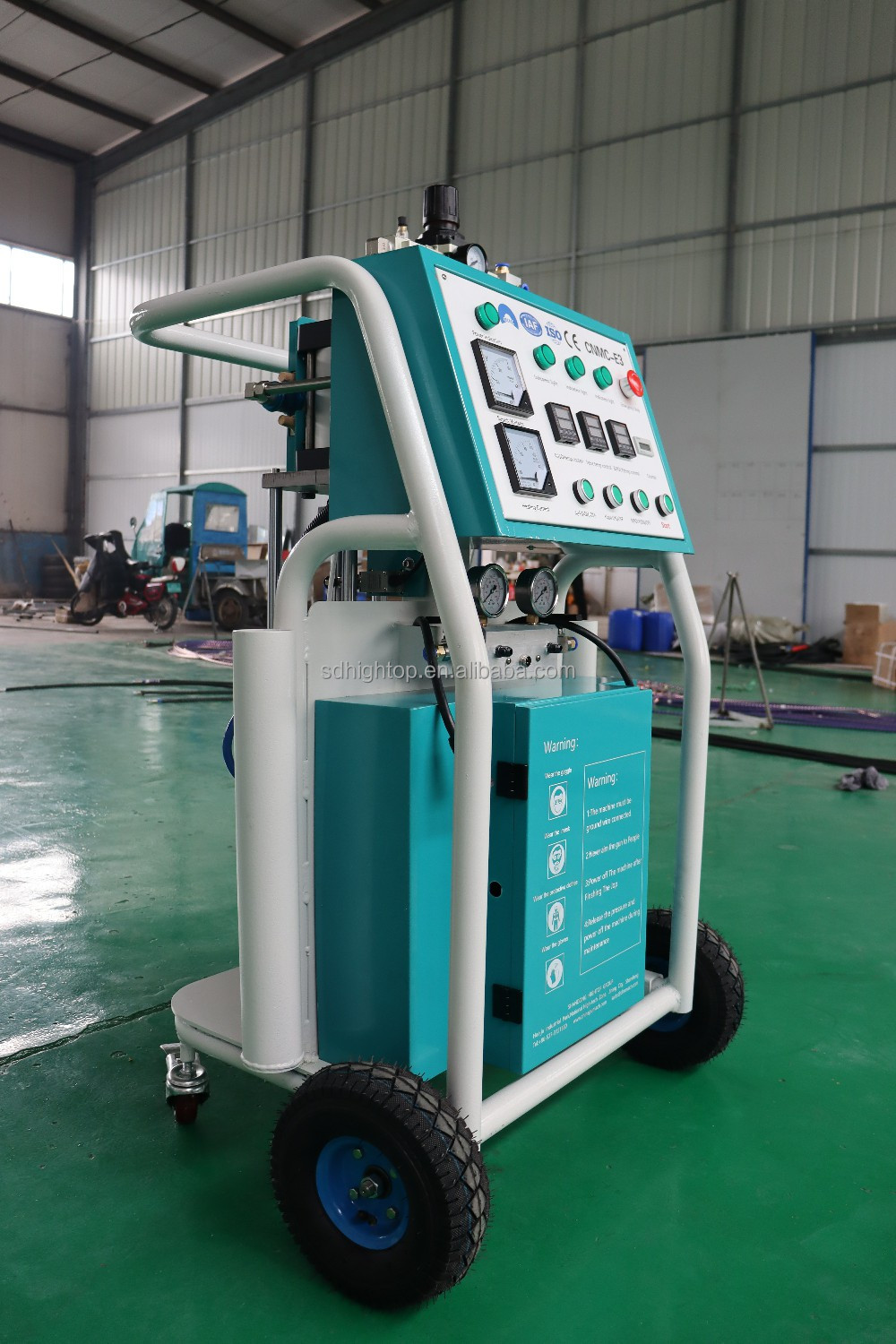

Insulation foam spraying machine CNMC-E3:

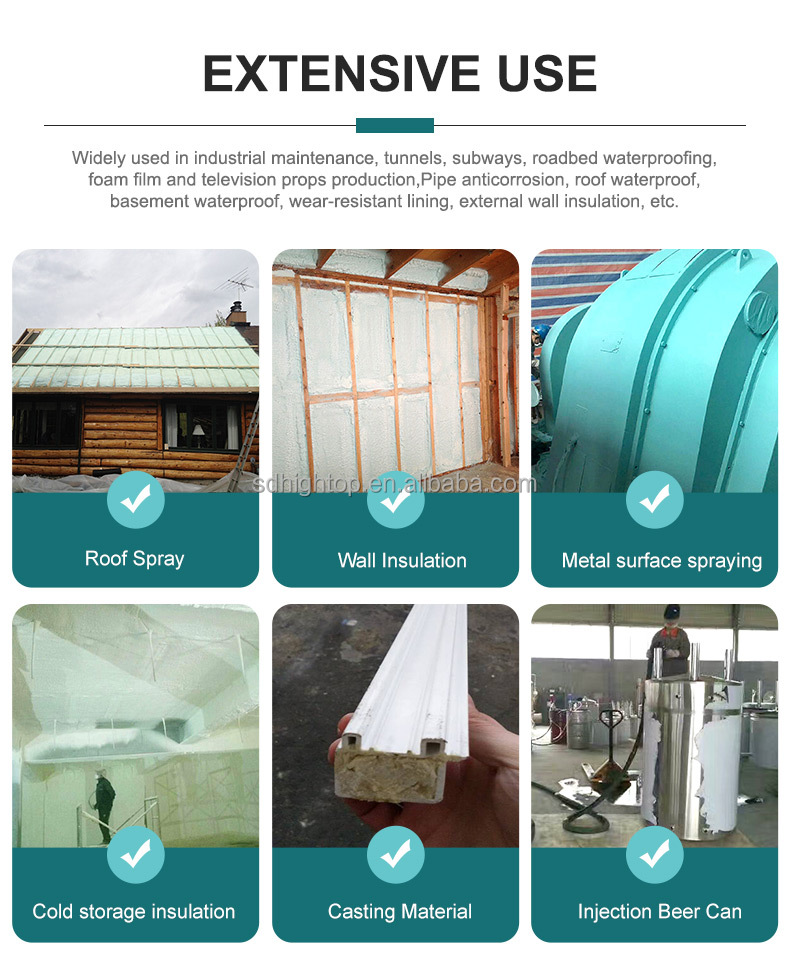

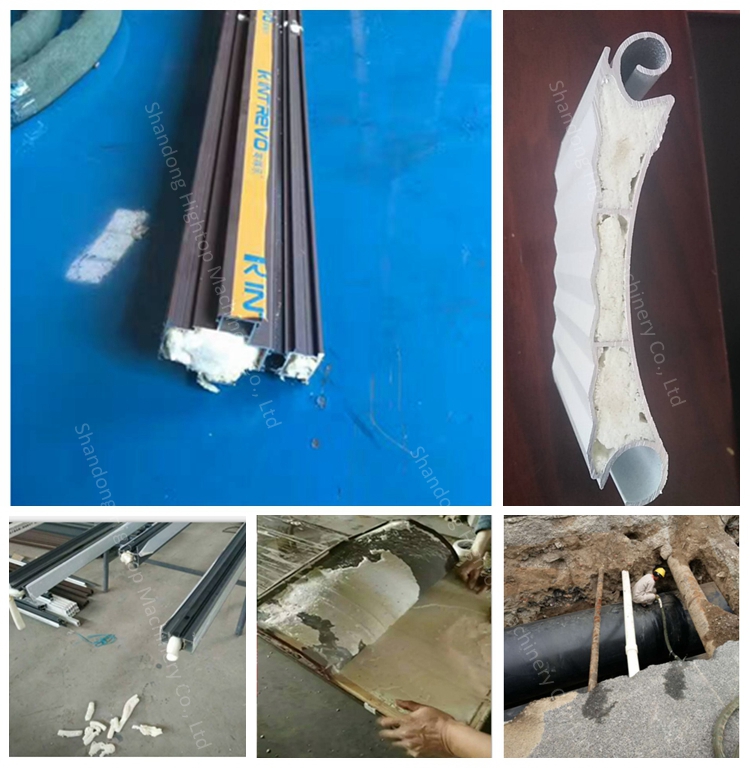

application

Application of closed cell polyurethane insulation foam insulation machine spraying equipment pu foam spraying machine

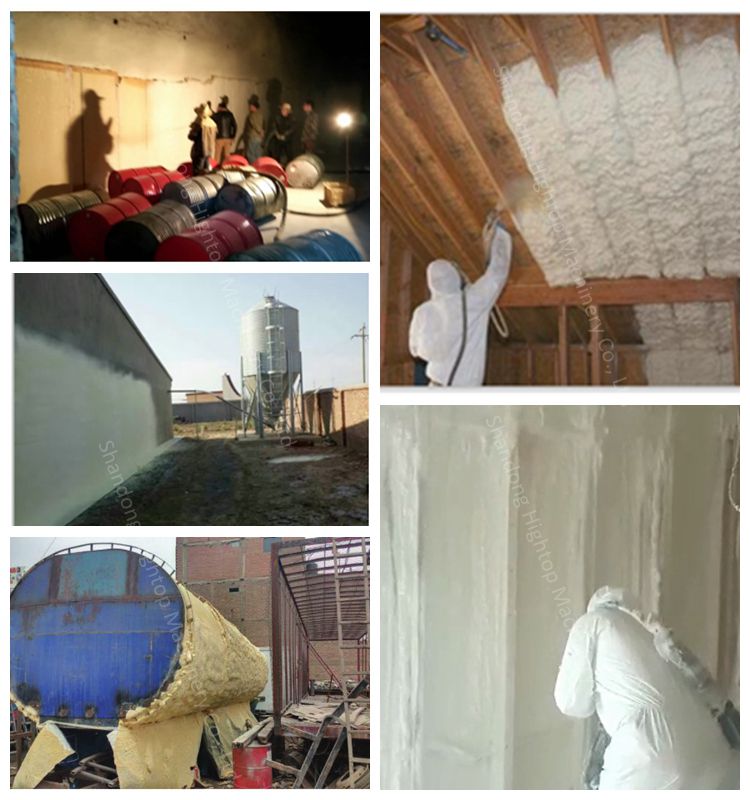

Insulation Foam Spray:

Polyurethane foam injection molding:
