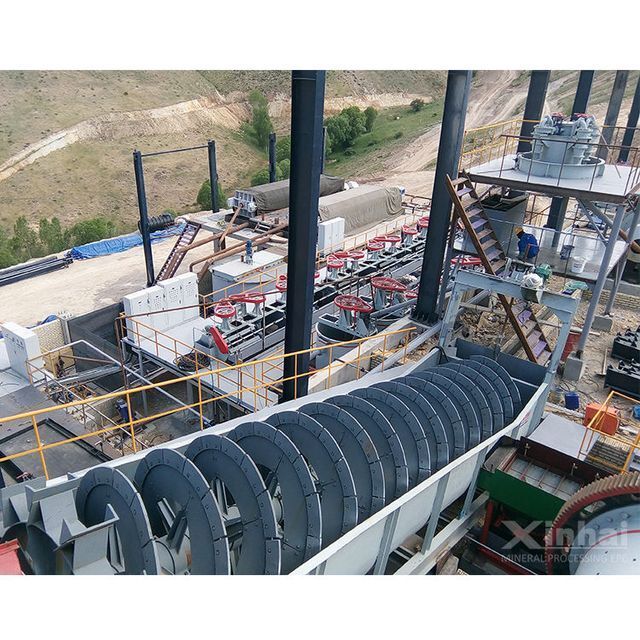

Complete Silica Sand Washing Plant Machine Price For Sale
- $83000.00 / 1 - 2 sets
$82000.00 / 3 - 4 sets
$81000.00 / >=5 sets - 1 set
- Shandong Xinhai Mining Technology & Equipment Inc.
- Shandong, China
- Ms xinhai mining
PRODUCT DETAIL
| Brand Name: | Xinhai; | Product name: | silica sand washing plant; |
| Machinery Test Report: | Provided; | Payment Terms: | L/C,D/P,D/A,T/T; |
| Dimension(L*W*H): | depends; | Port: | Qingdao, China; |
| Color: | Customizable; | Condition: | New; |
| Application: | Ore; | Capacity(t/h): | depends; |
| Core Components: | Engine; | Place of Origin: | Shandong, China; |
| Supply Ability: | 85 Sets per Month; | Warranty of core components: | 1 Year; |
| Motor Type: | AC Motor; | Applicable Industries: | Energy & Mining; |
| Packaging Detail: | as your Requirement; | Showroom Location: | None; |
| Marketing Type: | Hot Product; | Video outgoing-inspection: | Provided; |
| Weight: | 600 KG; | Superiority: | Guards; |
| Warranty: | 6-12 months; |
Products Description
Silica washing plant——Product Description [Introduction]: Quartz sand purification is removal of a small amount of impurities and the high difficulty separation technique to obtain refined quartz sand or high purity quartz sand. The purification technologies of quartz sand at home and abroad are washing, classifying and desliming, scrubbing, magnetic separation, flotation, acid leaching, microbial leaching, etc.[Application]: Quartz sand dressing Production Line is suitable for quartz sand containing iron or mica. | ||
Process Description
Silica washing plant——Process Description
Washing and Classifying Desliming
The SiO2 grade in quartz sand decreases by quartz sand size becoming finer, so washing and desliming of crude quartz sand is necessary before next step.
Scrubbing
Scrubbing
Scrubbing is the way to remove film iron and impurity minerals on the surface of quartz by mechanical force and crush these mineral aggregate. The quartz sand gets further purification by classification. There are two kinds of methods, including rob scrubbing and mechanical scrubbing.
Flotation
Flotation
The separation of mica and quartz is difficult, but there are two effective methods: anionic collector in acid condition and anionic - cationic collector in alkaline condition. The purification of quartz sand can reach 99% after scrubbing, desliming,magnetic separation and flotation.
Acid Leaching
Acid Leaching
Dilute acid had a significant effect on removing iron and aluminum, and concentrated acid for the removal of titanium and chromium, and mixed acid for mineral impurity. Control various factors of acid leaching should be based on quartz final grade requirements, and as far as possible reduce the acid concentration, temperature and dosage to achieve quartz purification.
Process Flow
Mineral Processing EPC+M+O
Xinhai devotes to providing “Turn-key Solution for Mineral Processing Plant”, namely “design and research- complete equipment manufacturing and procurement-commissioning and delivery - management and operation”. Up to now, Xinhai has established multiple overseas offices in the world.
Related Products
The silica processing plants mainly include following equipment,You can "click" the picture to know more information!
Jaw Crusher
Ball Mill
Vibrating Screen
Shaking Table
Jig
Magnetic Separator
Flotation Cell
Hydrocyclone
Agitation Tank
