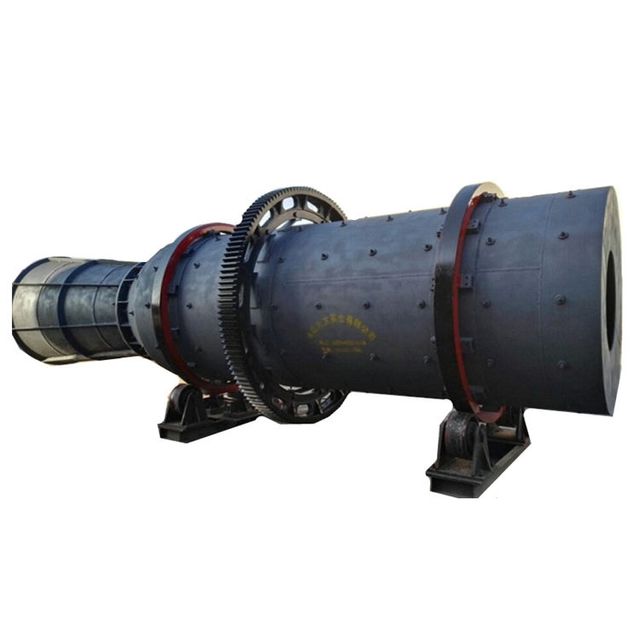

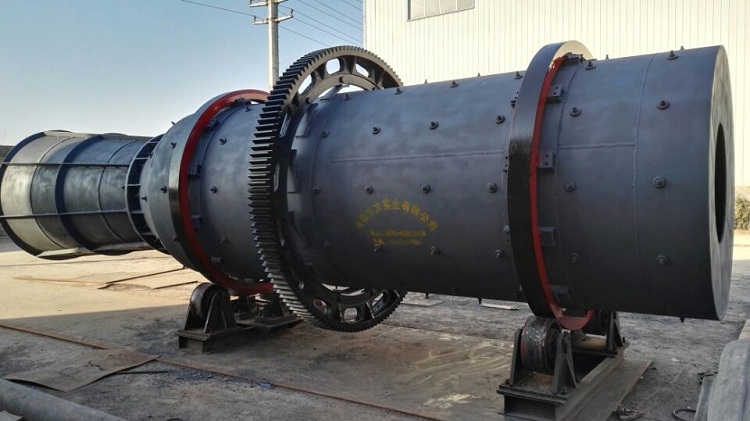

Drum washing machine price sand washing factory for sale ore washing machine

PRODUCT DETAIL
Packaging Preview:Warranty:1 year
After-sales service provides:Video technical supportSupply capacity:100 sets per month
Health status:newCore components:PLC, engine, bearing, motor, gear, pump
Core Components Warranty:1 yearport:Qingdao, Shanghai, Tianjin
Video external inspection:ifMarketing Type:normal product
Showroom location:not anyLocal service location:not any
Capacity (tons/hour):150-250Mechanical test report:Not available
Certification:International Organization for StandardizationDimensions (L*W*H):different
Applicable industries:Manufacturing, Construction, Energy & Miningplace of origin; place of origin:Henan, China (Mainland)
brand:F&D Industriespayment terms:Letter of credit, wire transfer, wire transfer, etc.
Motor Type:AC motorPackaging Details:1. Standard container 2. Bare package 3. Wooden case
weight:Kilogram

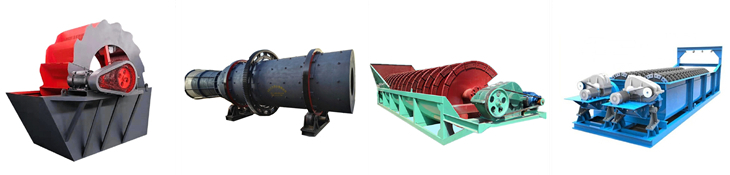

product category

Sand washing machine category

→ View all

Wheel Sand Washer
Drum type sand washing machine
Single Spiral Sand Washer
Double spiral sand washing machine
Product Description

Front-load washing machines are suitable for ore separation in ferrous and non-ferrous metal mining. It washes raw ore with water to remove clay, sand and other impurities. This washing process can make the raw ore meet the requirements of beneficiation and economy. It is widely used to remove coarse concentrates of clay, especially granular ores buried in mud. It is an ideal equipment for large-capacity and high-demand ore and stone washing industries.

working principle

The stone washing machine uses mechanical equipment to clean the rough stone. The quality requirements of the project and sufficient productivity are guaranteed to meet the supply of stone materials for the concrete batching plant.

Its work flow is generally: raw material storage, transportation, cleaning, finished product transportation, sewage sedimentation and reuse.

Raw materials are generally stored in hoppers. Hopper capacity depends on loading height, transport height and flow angle of the material. The larger the hopper capacity, the better.

The raw material is usually conveyed by belt. According to the sludge content of the raw material, it is best to set a throttling device at the mouth of the bucket to control the amount of cleaning.

Since the amount of mud and dust attached to the rough stone provided by the quarry is not large and the adhesion is small, the cleaning process does not need to be too long. The key is that when the stone is cleaned and discharged, the visceral water in the tank cannot be attached to the visceral water in the tank, resulting in secondary pollution of the stone.

Finished stone is usually transported by belt conveyor to finished product storage area or hopper for use, so it is best to cover or rinse the storage area.

Regardless of the type of stone washing machine, a large amount of sewage is generated, and the water consumption is almost the same. Considering the environmental requirements, sewage sedimentation and reuse tanks are generally set up. The volume and settling level of the pond are determined according to the output, and mechanical or manual sludge cleaning is also considered.

advantage

Large-capacity hopper, easy to disassemble and assemble, the screw blade stirs, rolls, pushes the material, and cleans the stone for the second time. The principle is the same as that of the drum mixer. Easy disassembly and assembly, simple requirements for site and foundation. Suitable for mobile construction occasions.

technical parameter



Model

Feed size (mm)

Mixing barrel length (mm)

Screen drum length (mm)

Screen diameter (mm)

Motor power (kW)

Speed ​​(r/min)

Capacity (tons/hour)

Φ1.5*6m

250

4000

2000

5-20

11

12.5

30-60

Φ1.8*9m

300

6000

3000

15

10.3

50-100

Φ2.0*11m

350

8000

3000

18.5

9.2

80-150

Φ2.2*13m

400

10000

3000

30

8.5

100-200

Φ2.5*15m

400

10000

5000

37

7.8

150-250

Note: The above technical parameters are for reference only.

Our company can customize products according to the actual situation of users.
