Cost-effective MS3102 24-28S waterproof female 5015 connector
- $9.56 / 5 - 499 pieces
$7.52 / 500 - 999 pieces
$6.36 / >=1000 pieces - 5 pieces
- Shenzhen Huilin Digital Technology Co., Ltd.
- Guangdong, China
- Ms Coco Chen
PRODUCT DETAIL
| Insulation resistance: | ≥5000 milliohms | type: | Socket - female socket |
| Contact information: | 24 pins | Waterproof rate: | IP67 level |
| Package: | export standard packaging | project name: | MS3102 24-28S waterproof female seat 5015 connector |
| Sales unit: | single product | application: | industrial |
| Rated current: | 13A | temperature range: | -55°C to +125°C |
| letter of credit: | MS3102-24-28S-SQ-S | model: | MS3102-24-28S-SQ-S |
| Packaging Details: | Standard export packaging | describe: | circular connector |
| brand: | Wheeling | Wire chisel: | AWG22-16 |
| Rated voltage: | 500V | Plug cycle: | ≥500 times |
| Single pack size: | 25X18X15 cm | Package preview: | |
| Gross weight per piece: | 1.500 kg | Origin: | Guangdong, China |
Specification
thing | Cost-effective MS3102 24-28S waterproof female 5015 connector |
Contact Plating | silver |
Insulation resistance | ≥5000 milliohms |
rated current | 13A |
Rated voltage | 500V |
wire chisel | AWG22-16 |
temperature range | -55°C to +125°C |
waterproof rate | IP67 level |
Insertion times | ≥100 times |
painting
Product Description

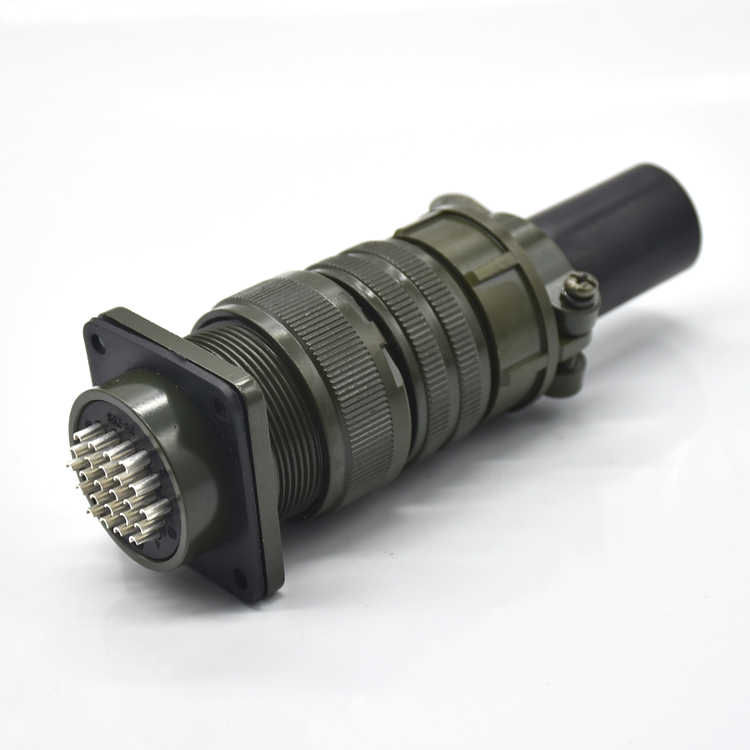

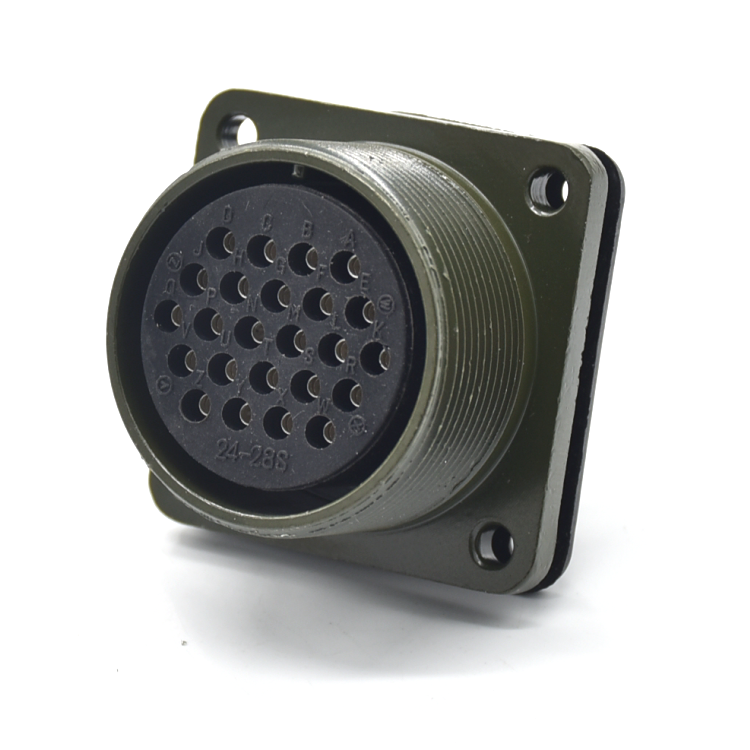

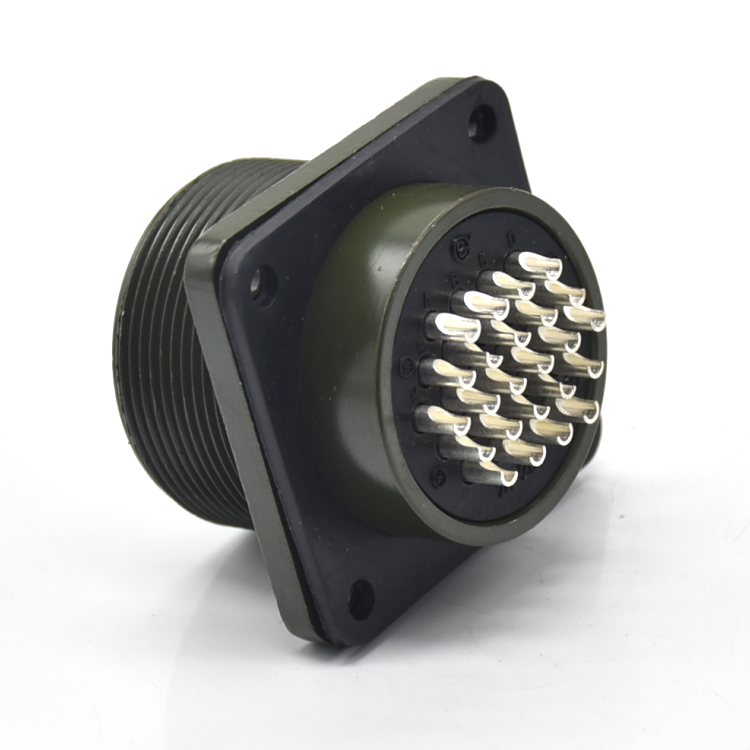

MS3102-24-28S Female receptacle.
With silver-plated contacts, it has stronger corrosion resistance and conductivity.
square socket,welding.
Suitable for extreme ambient temperatures-55°C to +125°C
