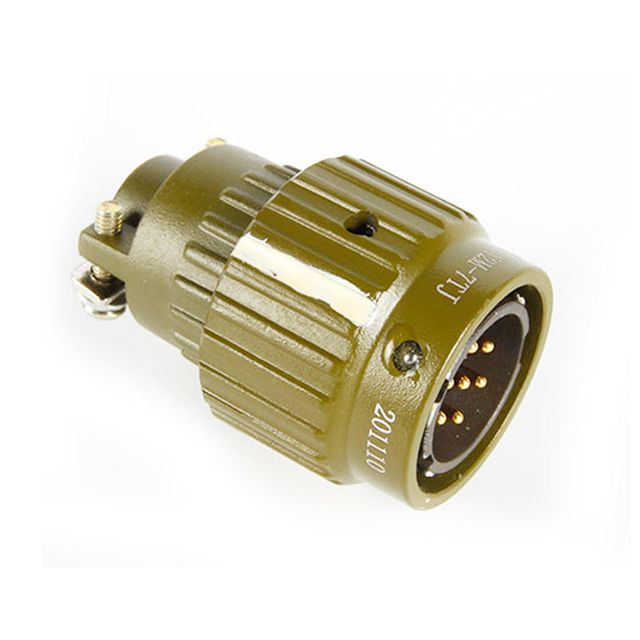

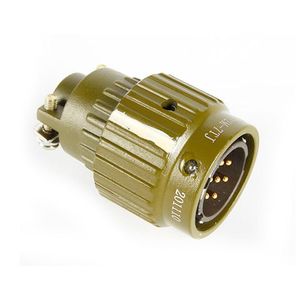

Y2M-7TJ 7 pin military circular connector
- $10.00 /piece
- 1 piece
- Taixing Hangjie Electronic Co., Ltd.
- Jiangsu, China
- Ms fairy ji
PRODUCT DETAIL
| port: | Shanghai | Packaging Details: | Carton, 270*360*260cm |
| Socket Type: | T-plug, Z-socket | Contact material: | copper alloy |
| type: | DIN | product name: | Y2M-7TJ 7-pin military circular connector |
| application: | aviation, military | Connector type: | circular connector |
| Supply capacity: | 50,000 pieces per month | Contact Type: | J pin, K socket |
| Material: | aluminum | Relative temperature: | -55°C ~ +125°C |
| model: | Y2M-7TJ | brand: | hang street |
| gender: | male | Installation method: | L-cable, B-flange |
| payment terms: | Wire transfer, MoneyGram | place of origin; place of origin: | Jiangsu, China |
| Delivery Details: | Ships within 10 days of payment |
Product Description

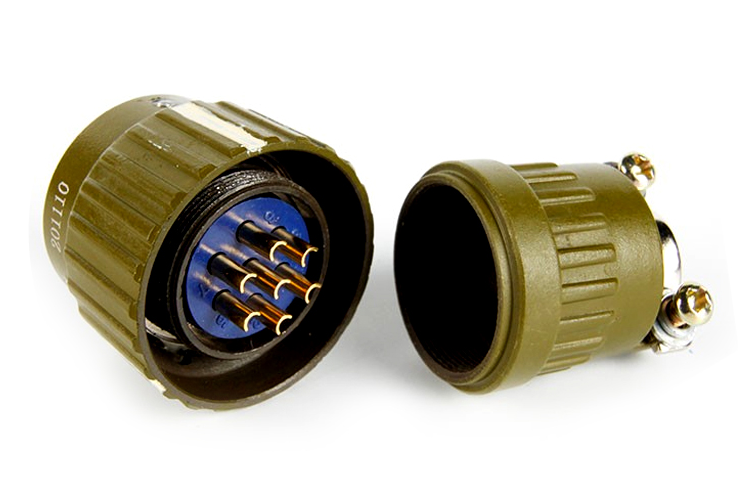

Y2M-7TJ 7-pin military circular connector
Y2M series circular connectors with bayonet connection mechanism have the characteristics of convenient use and fast connection. The socket is waterproof. Widely used for circuit connection between electrical equipment and various electronic equipment.

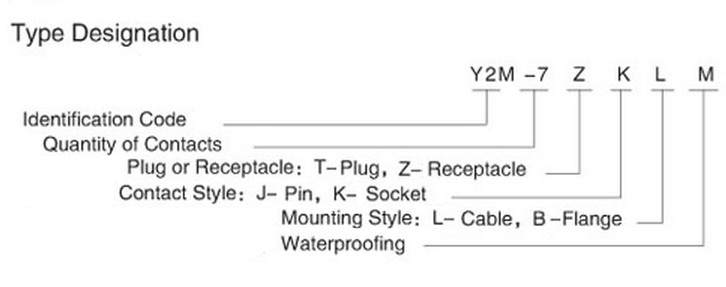

How to order
Model name introduction
| Do not. | type name | type | design |
| 1 | Identifier | circular connector | Y2M |
| 2 | Installation method | cable | large |
| flange | Second | ||

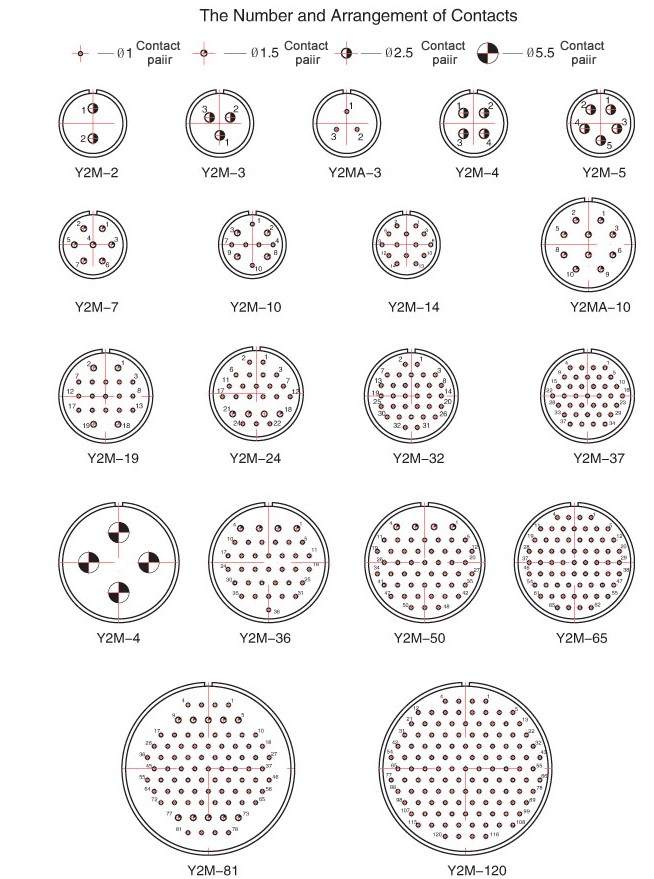

| 4 | Arrange the number of contacts | To "Contact Arrangement" | number |
| 5 | plug or socket | plug | Ton |
| container | Z | ||
| 6 | contact details | pin | J |
| socket | K |
Use environmental conditions
| ambient temperature | -55°C ~ +125°C |
| Relative humidity | At +40°C, 92% ~ 98% |
| atmospheric pressure | 101.33KPa ~ 6.67kpa |
| sinusoidal vibration | 10～2000HZ, acceleration 196m/s2 |
| vibration | 245 m/s2 |
| Shock | 980 m/s2 |
| Dielectric withstand voltage | 1500V |
| Insulation resistance | 5000MΩ |
| life expectancy | Plug 500 |
| water proof | ≥0.3MPa |
