Custom refractory braided aluminum foil ceramic fiber tape
- $5.50 / 1 - 499 kilograms
$3.00 / 500 - 999 kilograms
$1.00 / >=1000 kilograms - 1 kilogram
- Langfang Fangdun Fireproof Sealing Material Co., Ltd.
- Hebei, China
- Mr Qinghe Wang
| port: | Tianjin/Shanghai | Packaging Details: | Bag |
| Ultimate Strength (≥MPa): | 0.09 | supplier: | manufacturer |
| Fiber Diameter: | 2-5um | Shrinkage (1800℉, 3 hours): | 1.5 (1000°C) |
| Thermal Conductivity: | 0.20(1000℃) | Operating temperature: | 1000℃ |
| Certificate: | ISO9001:2008 | length: | 30 meters |
| width: | 1000mm-1500mm | Supply capacity: | 50000 kg per month |
| grade: | ST (Standard) | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| brand: | Shield | chemical composition: | Al2O3+SiO2 |
| product name: | ceramic tape | color: | white |
| application: | insulation | Origin: | Hebei china |

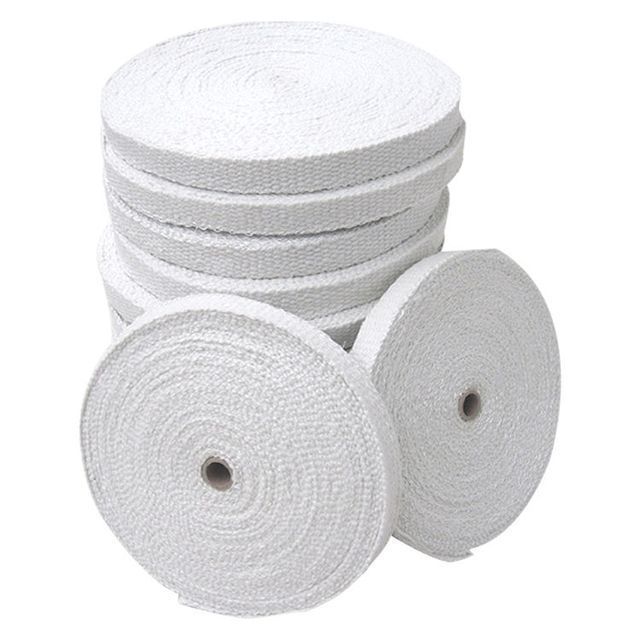

Custom refractory braided aluminum foil ceramic fiber tape
Description: It is a woven fabric made from our premium ceramic fiber yarn. It can be used in high temperature applications up to 1000°C. The cloth is reinforced with fiberglass filaments and optional stainless steel wire. It contains a certain amount of binder material, which usually burns at a lower temperature and does not affect the insulation performance.
Specification
Thickness 1.5~5mm
Width 1~1.5mm
length according to order
HA grade (high aluminum)
Chemical composition Al2O3+SiO2
|
Classification temperature |
1260 |
|||
|
product |
1260 ceramic fiber cloth |
1260 ceramic fiber tape |
1260 ceramic fiber tape |
1260 ceramic fiber tape |
|
basic material |
Ceramic Fiber/Glass Fiber Reinforced |
Ceramic Fiber/Stainless Steel Reinforcement |
Ceramic Fiber/Glass Fiber Reinforced |
Ceramic Fiber/Stainless Steel Reinforcement |
|
theoretically Density (kg/m3) |
400-500 |
550-630 |
550 |
550 |
|
Specification |
3000×1000/1500*2/3 |
3000×1000/1500*2/3 |
3000*20/50/75/100*2/3 |
3000*20/50/75/100*2/3 |
|
Moisture content (%) |
≤2 |
≤2 |
≤2 |
≤2 |
|
Warp density |
56-60picc/10cm |
56-60picc/10cm |
56-60picc/10cm |
56-60picc/10cm |
|
Weft density |
24-30pcs/10cm |
24-30pcs/10cm |
24-30pcs/10cm |
24-30pcs/10cm |
|
Organic matter content (%) |
≤15 |
≤15 |
≤15 |
≤15 |
