Oven Insulation Fabric Coating Applicator Ceramic Fiber Cloth

PRODUCT DETAIL
chemical composition:Al2O3+SiO2brand:Shield
color:whiteCertificate:ISO9001:2008
application:insulationpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
model:ceramic fiber clothsupplier:manufacturer
port:Tianjin/ShanghaiShrinkage (1800℉, 3 hours):1.5 (1000°C)
Fiber Diameter:2-5umgrade:ST (Standard)
length:30 metersPackaging Details:Bag
Thermal Conductivity:0.20(1000℃)Ultimate Strength (≥MPa):0.09
width:1000mm-1500mmOperating temperature:1000℃
place of origin; place of origin:Hebei chinaSupply capacity:50000 kg per month

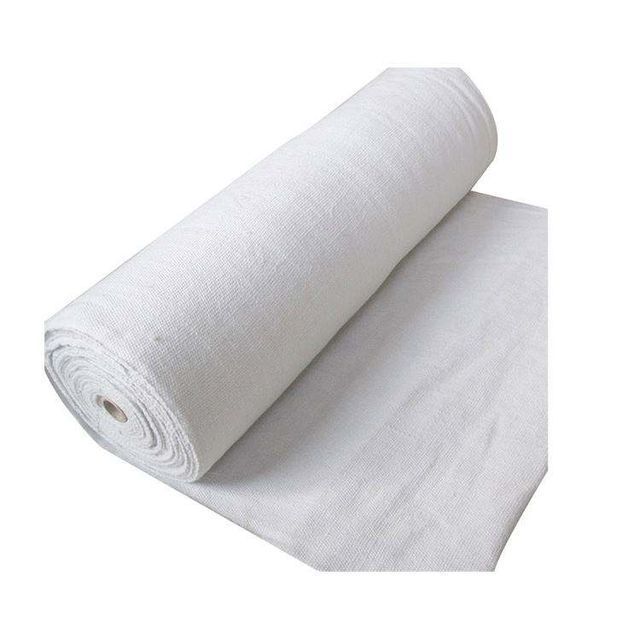

Oven Insulation Fabric Coating Applicator Ceramic Fiber Cloth


Description: It is a woven fabric made from our premium ceramic fiber yarn. It can be used in high temperature applications up to 1000°C. The cloth is reinforced with fiberglass filaments and optional stainless steel wire. It contains a certain amount of binder material, which usually burns at a lower temperature and does not affect the insulation performance.

Specification

Thickness 1.5~5mm
Width 1~1.5mm
length according to order
HA grade (high aluminum)
Chemical composition Al2O3+SiO2

Classification

temperature

1260

product

1260 ceramic fiber cloth

1260 ceramic fiber tape

1260 ceramic fiber tape

1260 ceramic fiber tape

basic material

Ceramic Fiber/Glass Fiber Reinforced

Ceramic Fiber/Stainless Steel Reinforcement

Ceramic Fiber/Glass Fiber Reinforced

Ceramic Fiber/Stainless Steel Reinforcement

theoretically

Density (kg/m3)

400-500

550-630

550

550

Specification

3000×1000/1500*2/3

3000×1000/1500*2/3

3000*20/50/75/100*2/3

3000*20/50/75/100*2/3

Moisture content (%)

≤2

≤2

≤2

≤2

Warp density

56-60picc/10cm

56-60picc/10cm

56-60picc/10cm

56-60picc/10cm

Weft density

24-30pcs/10cm

24-30pcs/10cm

24-30pcs/10cm

24-30pcs/10cm

Organic matter content (%)

≤15

≤15

≤15

≤15
