Cutting Pipe Saw for Orbital Welded Joint Preparation - ORS 115, Orbitec
- $1.03 /piece
- 1 piece
- Orbitec GmbH
- Hesse, Germany
- Mr Osswald
| Marketing Type: | normal product | 4. Electric drive: | Single-phase AC motor |
| Warranty: | unavailable | place of origin; place of origin: | Germany |
| Core components: | other | 2. Size range (inches): | 0.196 - 4.724 |
| Local service location: | Germany | Material/Metal Finishing: | other |
| automation: | automatic | Weight (kg): | 30 |
| 3. Wall thickness: | 0.5 - 5mm | After Warranty Service: | Video technical support, online support, on-site maintenance and repair services |
| 7. Protection level: | two | port: | seligenstadt |
| 5. Supply voltage (input): | 220/230VAC (50/60Hz) or 115V | Core Components Warranty: | 2 years |
| Showroom location: | Germany | Video external inspection: | Not available |
| 6. Power supply: | 1100W / 5.1A | Main selling point: | easy to operate |
| Health status: | new | Mechanical test report: | Not available |
| Applicable industries: | manufacturing plant | 8. Built-in electrical appliances. variant. Cutting speed: | 20 - 360 rpm |
| Packaging Details: | 1. Our products are packed by sea according to international export packing standards: carton, plastic bag, wooden pallet or iron/steel pallet or container. 2. We can also provide carefully packaged products according to customer requirements. Please contact us for more details. 3. The package includes a complete set of documents and (if necessary) the operation and maintenance and engine operating manual, spare parts list and a set of inspection certificates issued by the manufacturer. | 9. Weight: | 30kg |
| brand: | Orbital Technology | 1. Size range mm: | Outer diameter 5 - 120mm |
Precise 90-degree cuts are essential for the preparation of orbital welded joints.
- Portable light unit
- No glitter square cut
- 2 cast aluminium jaws
- Multiple clamping points on the outer diameter of the tube provide deformation-free clamping
- For cutting thin-walled pipes and elbows
- Saw blade close to jig provides optimal cutting even with small pipe diameters
- Blade position indicator
- Precise scale for correct cutting depth
Technical data:
Size range (mm): OD 5 - 120mm
Inch size range: 0.196'' - 4.724''
Wall Thickness: 0.5 - 5mm
Electric drive: single-phase AC motor
Power supply voltage (input): 220/230VAC (50/60Hz)
Power: 1100W/5.1A
Protection class: II
Built-in electronic variable cutting speed: 20 - 360rpm
Weight: 30kg
The package includes:
- Track saw and drive unit
- 1 saw blade
- Tool wallet and tools
- 1 bottle of lubricating oil
- Shipping case with inlay (600 x 800 x 600mm)
Optional:
- Cutting Saw ORS 115, 115V (Article No. 1.1.4503) | Other sizes on request
- stands for ORS dicing saw (article number 1.2.4510)
- Saw blade for wall thickness 1 - 3mm, diameter 68mm, 72 teeth (article number 1.3.4520)
- Saw blade with wall thickness 2.5 - 7 mm, diameter 68 mm, 44 teeth (article number 1.3.4521)
- Saw Blades and Lubricant, 250ml Bottle (Article No. 1.3.4525)
- cutting block
feature:
| Size range (mm) | Outer diameter 5 - 120mm |
| Size range (inches) | 0.196 - 4.724 |
| wall thickness | 0.5 - 5mm |
| Electric drive | Single-phase AC motor |
| Supply voltage (input) | 220/230VAC (50/60Hz) or 115V |
| strength | 1100W / 5.1A |
| Protection class | two |
| Built-in appliances. variant. cutting speed | 20 - 360 rpm |
| weight | 30kg |

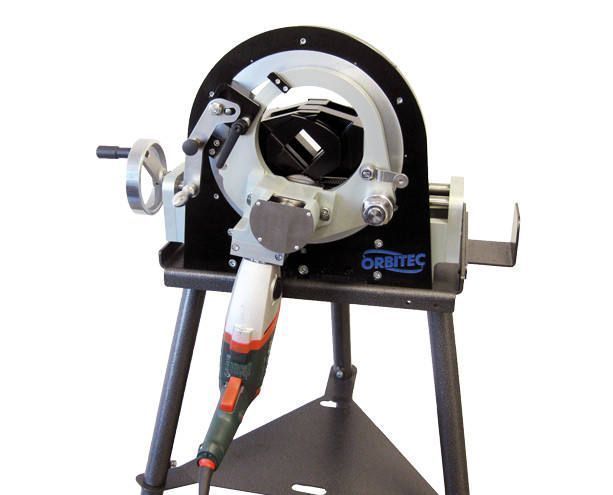

picture:
