Open Weld Heads for Orbital Welding - OSW, Orbitec
- $1.03 /piece
- 1 piece
- Orbitec GmbH
- Hesse, Germany
- Mr Osswald
| 4. OSW 170 Tube Size Range mm/inch: | Outer Diameter 40 - 168.3mm / 1.575'' - 6.626'' | brand: | Orbital Technology |
| port: | seligenstadt | Packaging Details: | 1. Our products are packed by sea according to international export packing standards: carton, plastic bag, wooden pallet or iron/steel pallet or container. 2. We can also provide carefully packaged products according to customer requirements. Please contact us for more details. 3. The package includes a full set of documentation and (if necessary) the operation and maintenance and engine operating manual, spare parts list and a set of inspection certificates issued by the manufacturer. |
| 2. OSW 80 Tube Size Range mm/inch: | Outer Diameter 10 - 76.2mm / 0.394'' - 3.000'' | 3. OSW 115 Tube Size Range mm/inch: | OD 20 - 114.3mm / 0.787'' - 4.500'' |
| 1. OSW 40 Tube Size Range mm/inch: | Outer Diameter 8 - 40mm / 0.394'' - 1.575'' | place of origin; place of origin: | Germany |
describe:
The open weld head is located on one side of the weld joint. During the welding process, the air- or water-cooled torch and cable assembly rotates around the tube or pipe.
Some advantages of open welding heads:
- sturdy construction
- easy to handle
- Added wire feed option
- No "size specific" collets required, each weld head will accommodate the full range of tube/tube OD sizes it provides
- 90 degree tilt torch holder
Weld Tip | Tube Size Range mm | Inches | Weight | Item Number

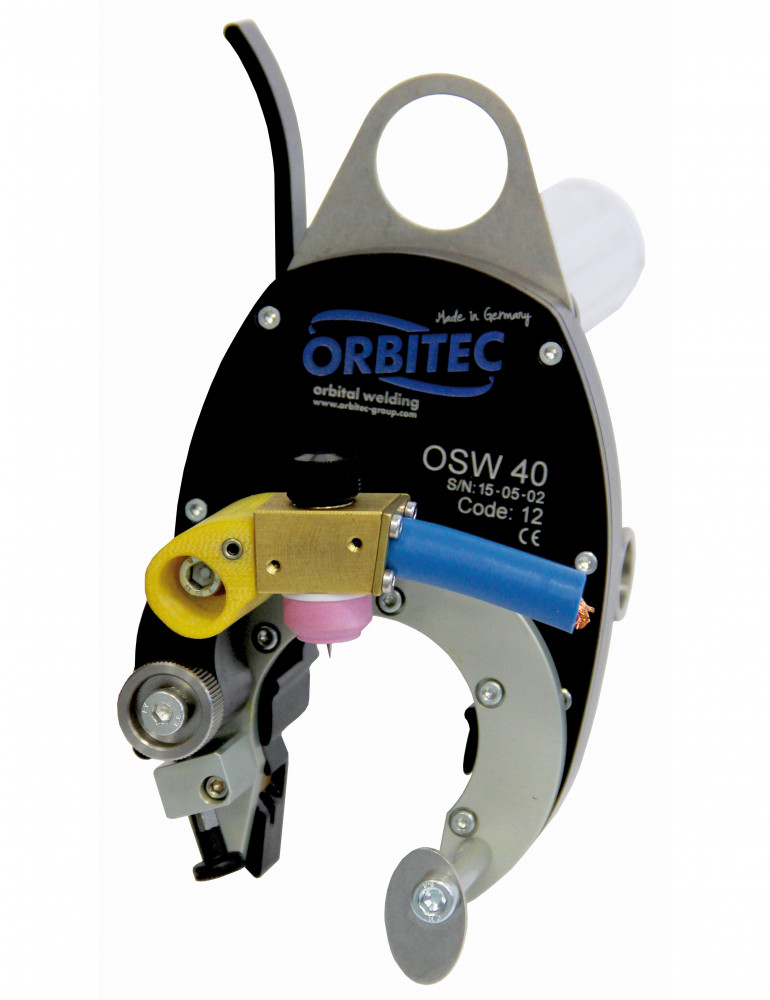

OSW 40 | OD 8 - 40mm | 0.394" - 1.575" | 2kg | 1.3.1001

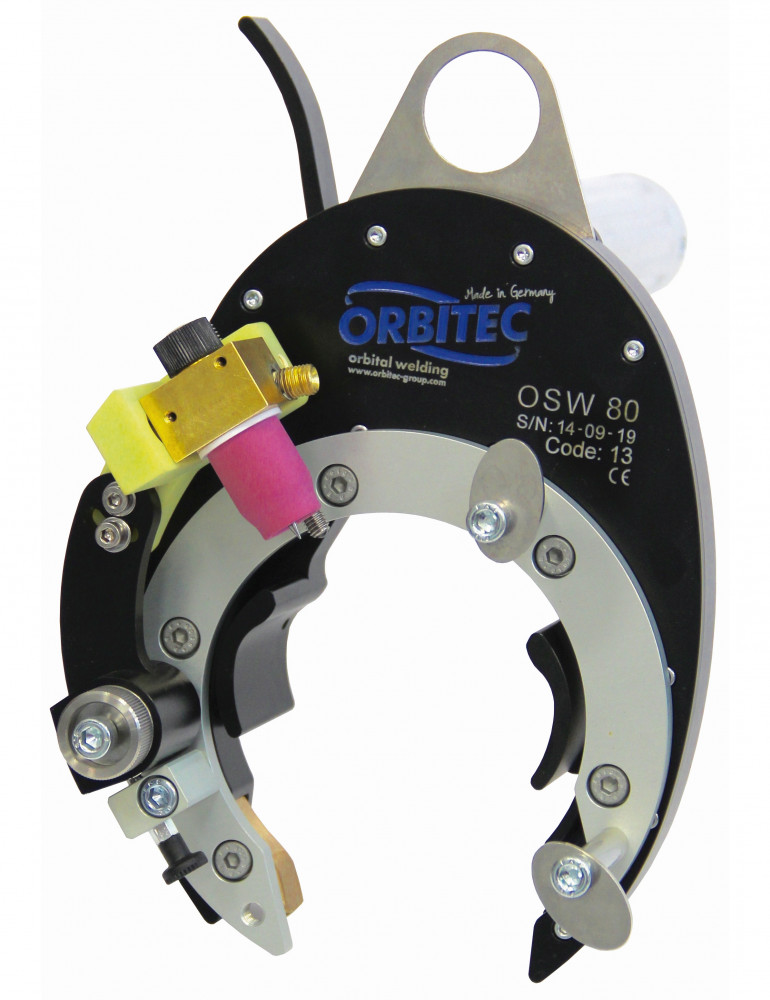

OSW 80 | OD 10 - 76.2mm | 0.394" - 3.000" | 3kg | 1.3.1101

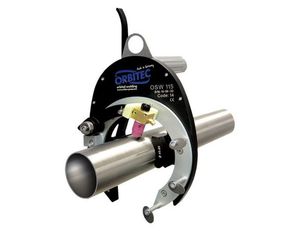

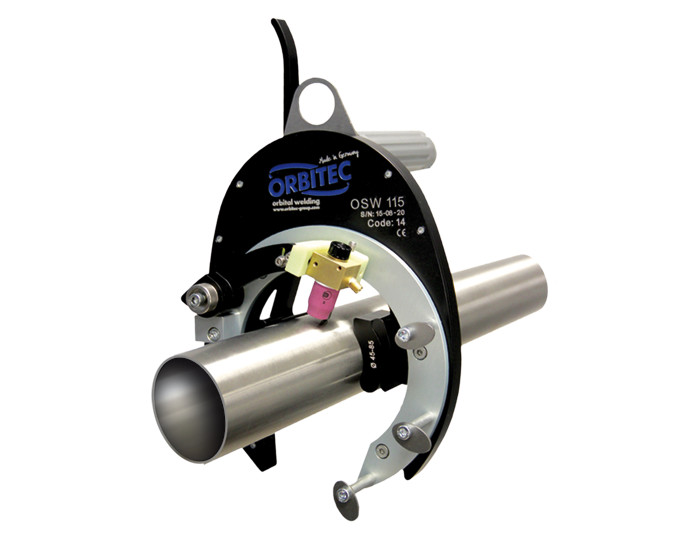

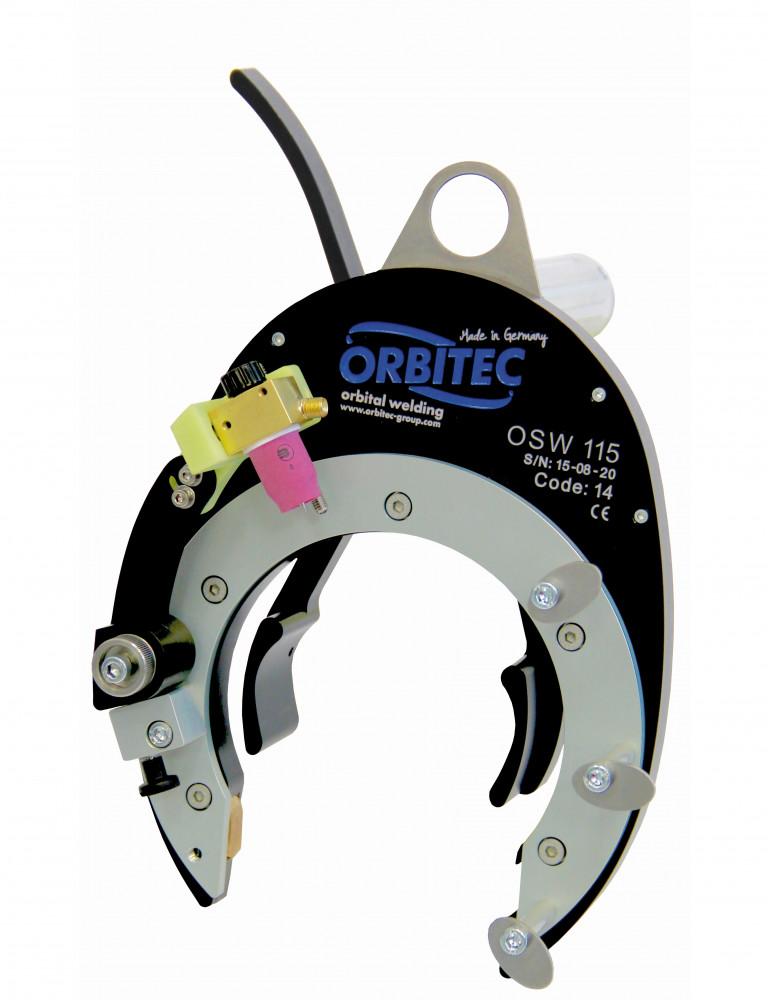

OSW 115 | OD 20 - 114.3 mm | 0.787" - 4.500" | 4.5 kg | 1.3.1201

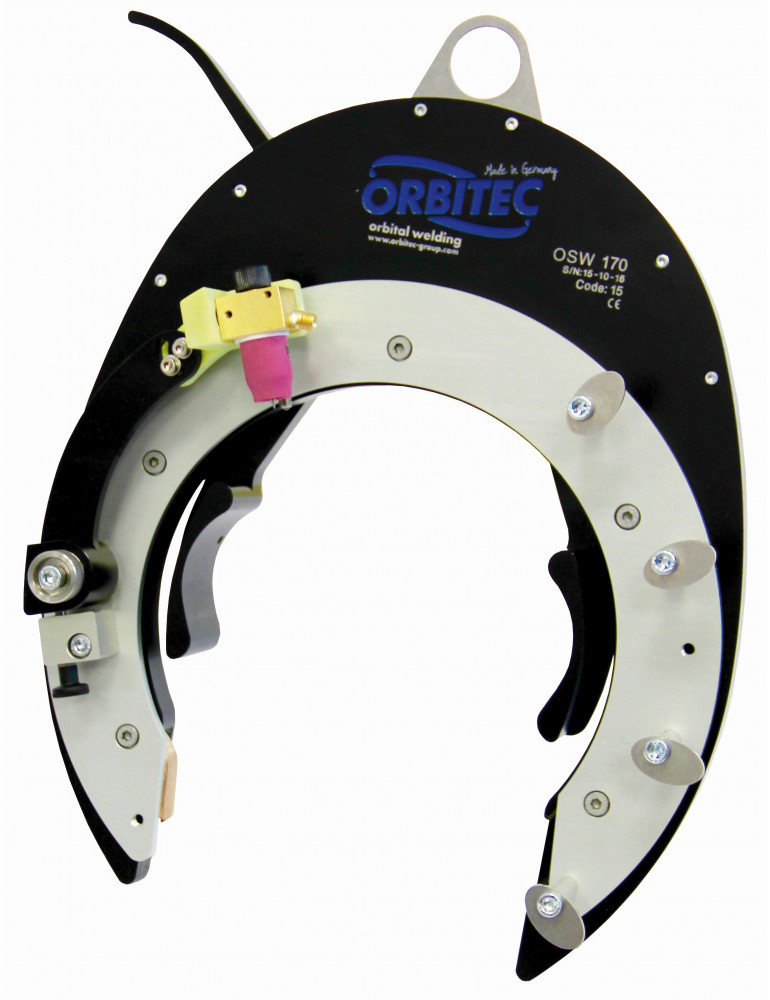

OSW 170 | OD 40 - 168.3 mm | 1.575" - 6.626" | 6.5 kg | 1.3.1301
The package includes:
- Welding head
- Integrated start/stop button on handle
- clip "shoes"
- Flashlight holder
- Mechanical arc gap adjustment screw
Optional: Complete angle gear for OSW on request
feature:
| OSW 40 Tube Size Range mm/inch | Outer Diameter 8 - 40mm / 0.394'' - 1.575'' |
| OSW 80 Tube Size Range mm/inch | Outer Diameter 10 - 76.2mm / 0.394'' - 3.000'' |
| OSW 115 Tube Size Range mm/inch | OD 20 - 114.3mm / 0.787'' - 4.500'' |
| OSW 170 Tube Size Range mm/inch | Outer Diameter 40 - 168.3mm / 1.575'' - 6.626'' |
picture:
