Cylinder Boring &Honing Machine HOT SALE TM807B
- $1532.00 /set
- 1 set
- Xian Amco Machine Tools Co., Ltd.
- Shaanxi, China
- Ms Yang Li
Brand Name: | AMCO; | Video outgoing-inspection: | Provided; |
Supply Ability: | 1000 Sets per Month; | Packaging Detail: | Plywood-case; |
Applicable Industries: | Machinery Repair Shops,Manufacturing Plant,Retail; | Package Preview: | ; |
Key Selling Points: | High Safety Level; | Warranty: | 1 Year; |
Machinery Test Report: | Provided; | Payment Terms: | L/C,T/T; |
Place of Origin: | China; | After-sales Service Provided: | Online support,Video technical support; |
Certification: | ISO9001; | After Warranty Service: | Video technical support,Online support; |
Voltage: | 220V/380V; | Marketing Type: | Hot Product 2021; |
Core Components: | Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump; | Warranty of core components: | 1 Year; |
Condition: | New; | Weight (KG): | 280; |
Machine Type: | Chamfering Machine; | Port: | China Port; |
Power (kW): | 0.75; | Showroom Location: | None; |
Dimension(L*W*H): | 680*480*1160mm; | CNC or Not: | Normal; |
Local Service Location: | None; |

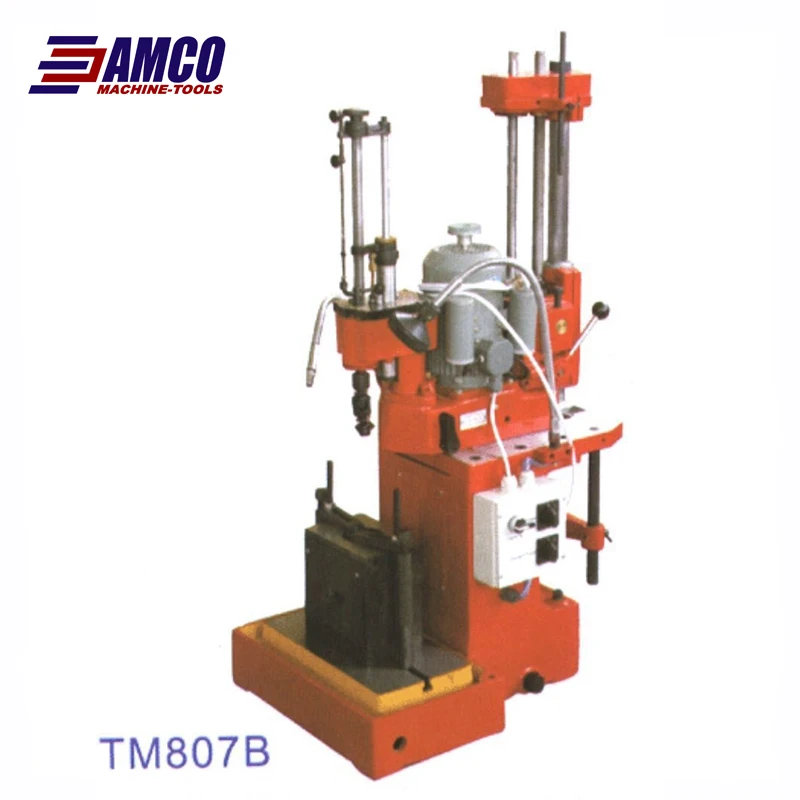

Cylinder Boring &Honing Machine HOT SALE TM807B
Model TM807A/B Cylinder Boring & Honing machine is mainly used for maintaining the cylinder of motorcycle etc. Place the cylinder to be bored under the base plate or on the plane of the base of the machine after the center of the cylinder hole is determined,and the cylinder is fixed,maintenance of boring and honing can be carried out.the cylinder of the motorcycles with diameters ยข39-72mm and depths within 160mm can all be bored and honed.if the suitable fixtures are fitted,other cylinder bodies with corresponding requirements can also be bored and honed.
Main Specifications
Model |
TM807A |
TM807B |
|
Diameter of boring &honing hole |
39-72mm |
39-72mm |
|
Max. Boring & honing depth |
160mm |
160mm |
|
Rotational speed of boring &spindle |
480r/min |
480r/min |
|
Steps of variable speed of boring honing spindle |
1step |
1step |
|
Feed of boring spindle |
0.09mm/r |
0.09mm/r |
|
Return and rise mode of boring spindle |
Hand operated |
Hand operated |
|
Rotational speed of honing spindle |
300r/min |
300r/min |
|
Honing spindle feeding speed |
6.5m/min |
6.5m/min |
|
Electric motor |
Power |
0.75.kw |
0.75.kw |
Rotational |
1400r/min |
1400r/min |
|
Voltage |
220v or 380v |
220v or 380v |
|
Frequency |
50HZ |
50HZ |
|
Overall dimensions(L*W*H) mm |
680*480*1160 |
680*480*1160 |
|
Packing(L*W*H) mm |
820*600*1275 |
820*600*1275 |
|
Weight of main machine(approx) |
N.W 230kg G.W280kg |
N.W 230kg G.W280kg |
