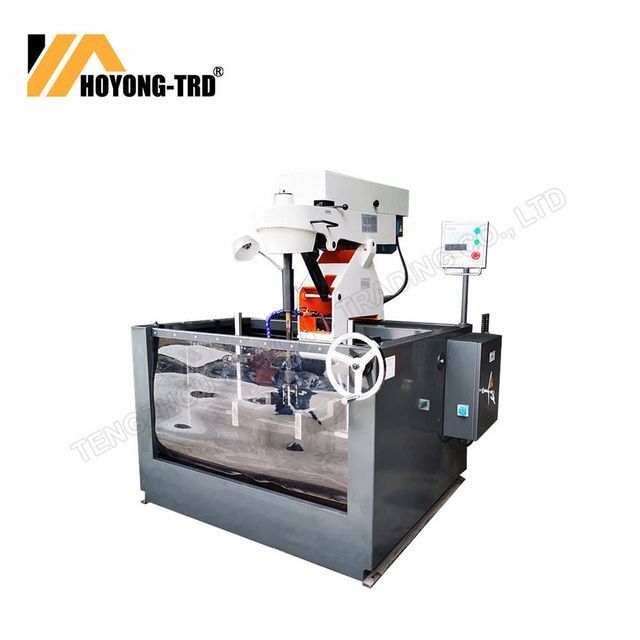

Cylindrical honing machine 3MB9817

PRODUCT DETAIL
Core components:PLC, engine, bearing, motorPlace of origin:China
brand:Huo YongdeMechanical test report:if
Showroom location:not anypayment terms:Letter of credit, wire transfer
Weight (kg):1000Marketing type:normal product
Health status:newPower (kW):1.5
Core component warranty:1 yearDimensions (length*width*height):1640*1670*1920
Applicable industries:Machine repair shops, manufacturing plants, retailMain selling points:competitive price
port:QingdaoVideo outbound inspection:if
Warranty:1 yearWhether CNC:normal
Vertical cylinder honing machine 3MB9817Features 3MB9817 vertical honing machine is mainly used for honing single-row engine cylinders, V-type engine cylinders and other mechanical component holes in automobiles, motorcycles, tractors and other vehicles. 1. The machine can achieve 0°, 30°, and 45° translation for fixture replacement. 2. The machine can be easily raised and lowered by 0-180mm manually. 3. Reverse accuracy 0-0.4mm. 4. Choose mesh angle 0°-90° or no mesh. 5. Up and down reciprocating speed 0-30m/min. 6. The machine has reliable performance, wide range of honing uses, easy operation and high productivity. 7. Good rigidity and large cutting capacity.

Model
Portable boring machine and honing machine sbm100 for repairing motorcycle cylinders
Maximum diameter of honing hole
Φ25-Φ170mm
Maximum honing hole depth
320mm
Spindle speed (level 4)
120, 160, 225,290 mm
Stork (3 steps)
35, 44, 65 seconds/minute
main motor power
1.5kW
Cooling pump motor power
0.125kW
Dimensions inside the machine working chamber (length × width)
1400×870mm
Overall dimensions (length × width × height)
1640×1670×1920mm
Packaging size (length × width × height)
1850×1850×2150mm
Net weight/net weight
1000/1200kg
