D-160 Drawell Handheld Homogenizer Price Instant Homogenizer Blender

PRODUCT DETAIL
Video external inspection:ifplace of origin; place of origin:Chongqing, China
Dimensions (L*W*H):10*8*25cmCore components:motor
Speed ​​Control Knob:Level 10brand:Ravel
Dispersion shaft material:SS 316L Stainless Steel, PTFEnoise:72dB(A)
Applicable industries:Manufacturing Plants, Food and Beverage Plants, Restaurants, Households, Food Stores, Energy and Mining, Food and Beverage StoresPackaging Details:Standard export packaging (safe plain English)
Motor Type Universal Motor:160 W AC Carbon Brush Motormodel:D-160
Packaging Preview:Marketing Type:New Products 2020
weight:0.54kg, 2kgstrength:160
payment terms:Western Union, D/P, D/A, T/T, MoneyGram, PaypalProcessing Type:Carbonated drinks
maximum. Viscosity:5,000mPasSupply capacity:150 pieces per month
Speed ​​range:8000-32000 rpmpower supply:110-120V/60Hz 220-240V/50-60Hz
Workload [H2O]:0.1-50mL (dispersion shaft DS-160/5)Processing:Homogenizer
Operating environment:0-40o C, 85% relative. humidityHealth status:new
Warranty:1 yearMechanical test report:if
Showroom location:not anyCore Components Warranty:1 year
port:Shanghai/Guangzhou/Chongqing/Shenzhen/Xiamen/YiwuVoltage:110-120V/220-240V
Product Description
D-160 Drawell Handheld Homogenizer Price Instant Homogenizer Blender

D-160 Handheld Homogenizer and D-500 Homogenizer

D-160 Handheld Homogenizer Features• Lightweight and ergonomic design ideal for manual operation; • Handling range: 0.1-50mL or 1-250mL; • 316L stainless steel shafts are fully autoclavable and inert to highly corrosive solutions; • All shafts are fully autoclavable Interchangeable for easy disassembly and cleaning; • Speeds from 8,000 to 32,000 rpm.D-500 Homogenizer Features• Viscosity up to 10,000 mPas; • 6 motor speed modes, from 10,000 to 30,000 rpm; • All-round safety for motor drive, overload protection, smooth operation; • 316L stainless steel shaft is fully autoclavable and resistant to highly corrosive solutions Inert; • Easy disassembly for quick preparation; • All shafts are interchangeable for easy disassembly and cleaning.
Specification
D-160
D-500
power supply
110-120V/60Hz 220-240V/50-60Hz
110-120V/60Hz 220-240V/50-60Hz
Motor Type Universal Motor
160 W AC Carbon Brush Motor
500W AC carbon brush motor
speed range
8000-32000 rpm
10000-30000 rpm
maximum. PI. speed
6.3-14m/sec
22.7-36m/s
speed control knob
Level 10
6 stages
Working volume [H2O]
0.1-50mL (dispersion shaft DS-160/5)
10-40000mL (optional)
1-250mL (dispersion shaft DS-160/10)
maximum. Viscosity
5,000mPas
10000mPas
Dispersion shaft material
SS 316L Stainless Steel, PTFE
SS 316L Stainless Steel, PTFE
weight
0.54 kg
1.3 kg
Dimensions [LxWxH]
45mm x 55mm x 190mm
70mm x 70mm x 255mm
noise
72dB(A)
79 dB(A)
Operating environment
0-40o C, 85% relative. humidity
0-40o C, 85% relative. humidity
Protection class
IP20
IP20

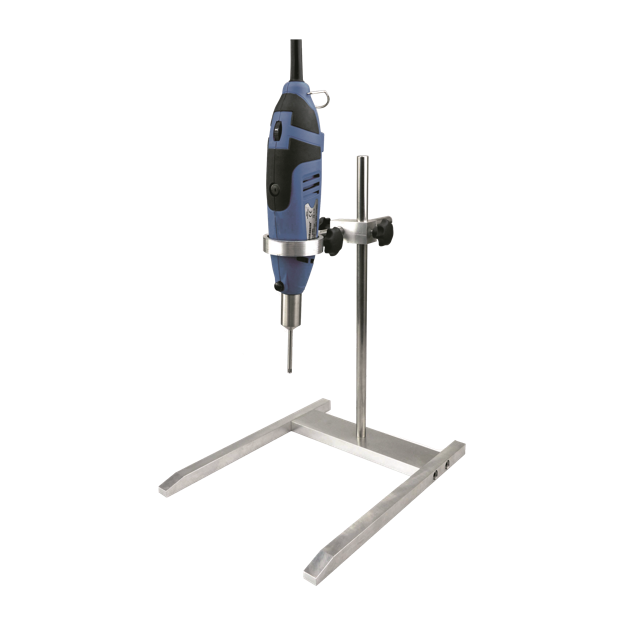

D-160 Handheld Homogenizer
DS-160/5
DS-160/10
Volume 0.1-50ml
maximum. PI. Speed ​​6.3m/s
Material: 316L
Application: a small amount of solid-liquid mixing
Volume 1-250mL
maximum. PI. Speed ​​14m/s
Material: 316L
Application: a small amount of solid-liquid mixing

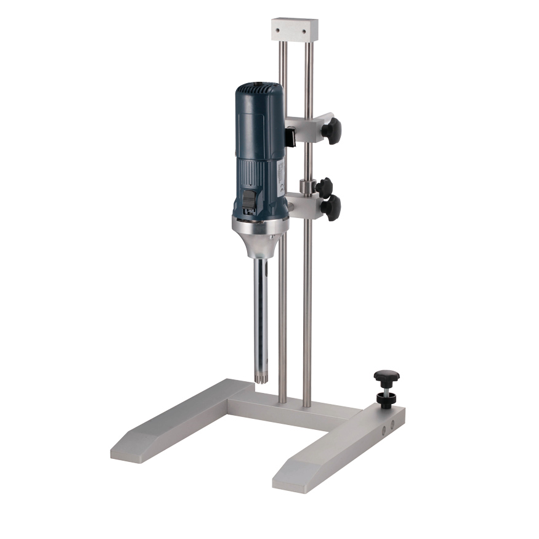

D-500 Homogenizer
DS-500/1
DS-500/2
DS-500/5
SS20CSR20
Volume 10-5000mL
maximum. PI. Speed ​​22.7m/s
Material: 316L
Application: For solid/liquid media
SS20FER20
Volume 10-5000mL
maximum. PI. Speed ​​22.7m/s
Material: 316L
Application: For water and oil mixing
SS5CSR5
Volume 10-5000mL
maximum. PI. Speed ​​5,8m/sec
Material: 316L
Applications: Suitable for all homogenization applications such as tissue homogenization, cell disruption, suspensions and clinical and
medical diagnosis
