Laboratory high pressure milk homogenizer small homogenizer 1000L
- $3300.00 /set
- 1 set
- Shanghai Kaiquan Machine Valve Co., Ltd.
- Shanghai, China
- Ms Crystal Cui
| Voltage: | 110V/220V/380V/400V/415V | weight: | 500 kg |
| Core component warranty: | 1 year | Local service locations: | Egypt, USA, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Colombia, Algeria, Sri Lanka, Romania |
| After Warranty Service: | Video technical support, online support | Certification: | CE |
| Name: | Laboratory high pressure milk homogenizer small homogenizer | Number of pistons: | two pistons |
| Certificate: | CE | Supply capacity: | 1000 laboratory high pressure homogenizers per month small homogenizers |
| Material: | Stainless steel 304/316 | Dimensions (L*W*H): | 1.16*0.9*1.24M |

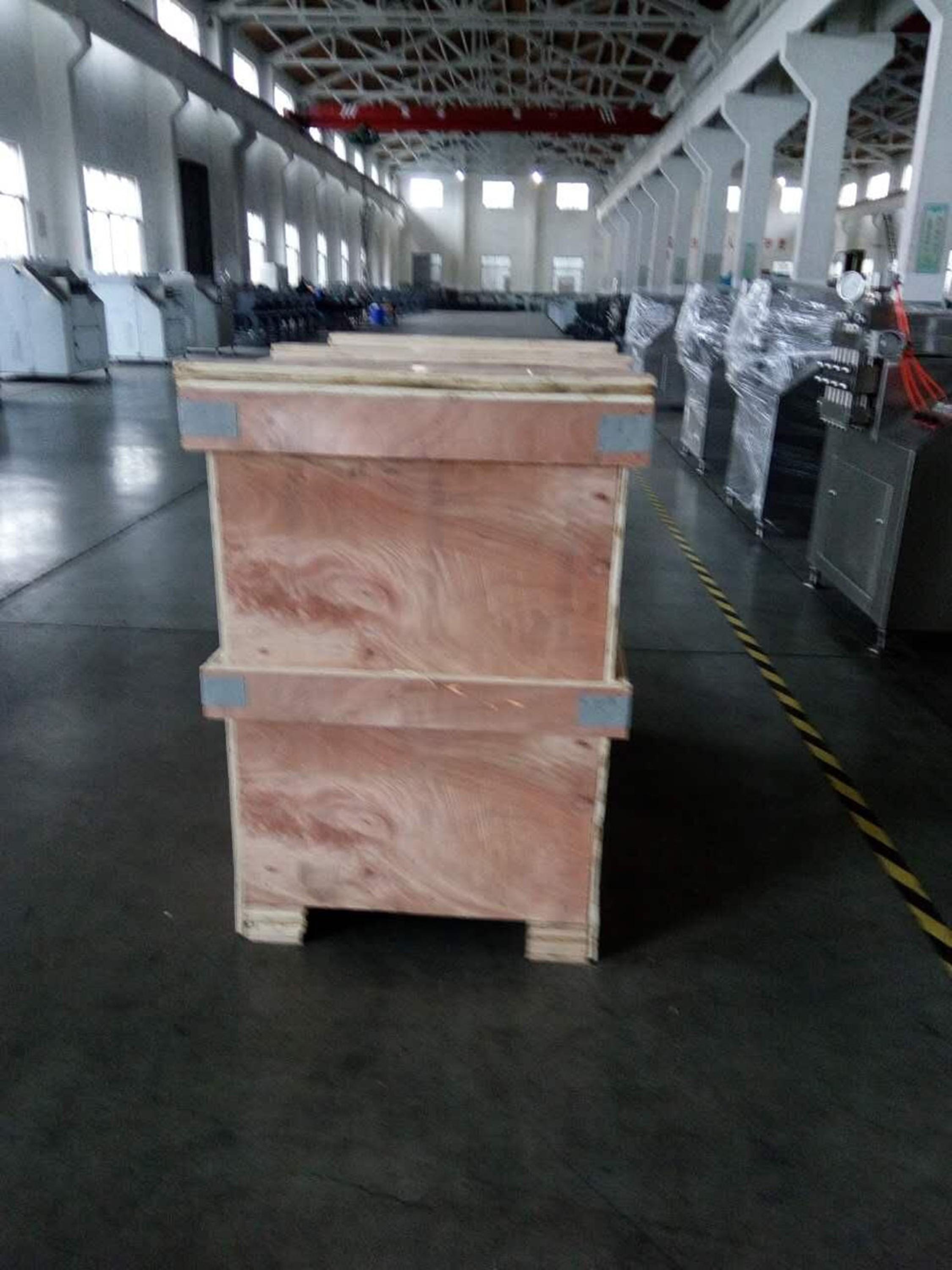

| engine: | Chinese brand/Siemens/ABB | Packaging Details: | Fix it well and put it into a plywood box for laboratory high pressure milk homogenizer small homogenizer 1000L. |
| Work pressure: | 95°C | Hourly traffic: | 500L/hour to 10000L/hour |
| Applicable industries: | Hotels, Machinery Repair Shops, Manufacturing Plants, Food and Beverage Plants, Farms, Restaurants, Food Stores, Printing Shops, Food and Beverage Stores | Video outbound inspection: | if |
| Showroom location: | Egypt, Canada, Turkey, Italy, France, Germany, Brazil, Peru, Saudi Arabia, Indonesia, Mexico, Russia, Chile, UAE, Colombia | Origin: | China Shanghai |
| Mechanical test report: | if | Warranty: | 1 year |
| Package preview: | After-sales service provided: | Engineers available to repair machinery overseas | |
| Processing: | Homogenizer | pressure: | 20Mpa to 100Mpa |
| port: | Shanghai/Ningbo/Guangzhou | payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Marketing Type: | 2020 New Products | Health status: | new |
| Core components: | engine, motor | strength: | 5.5KW to 75KW |
| Processing type: | juice | application: | Juice, Tea, Dairy |
| model: | Guojie B | brand: | Kaiquan |
Laboratory high pressure milk homogenizer small homogenizer 1000L

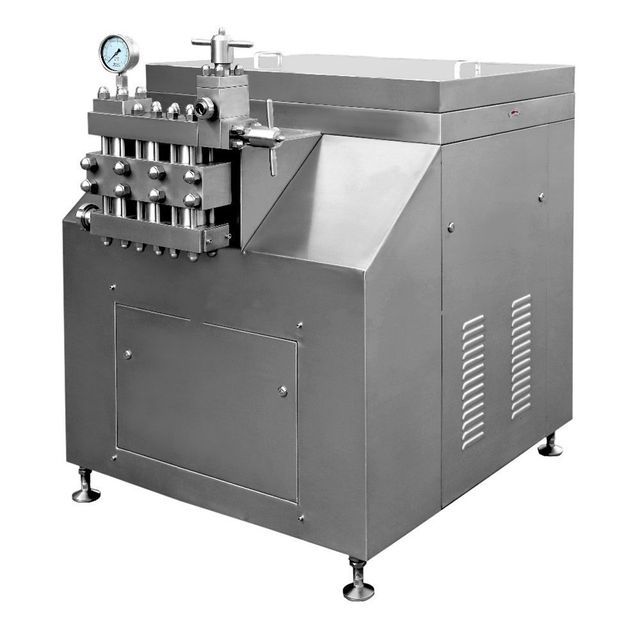

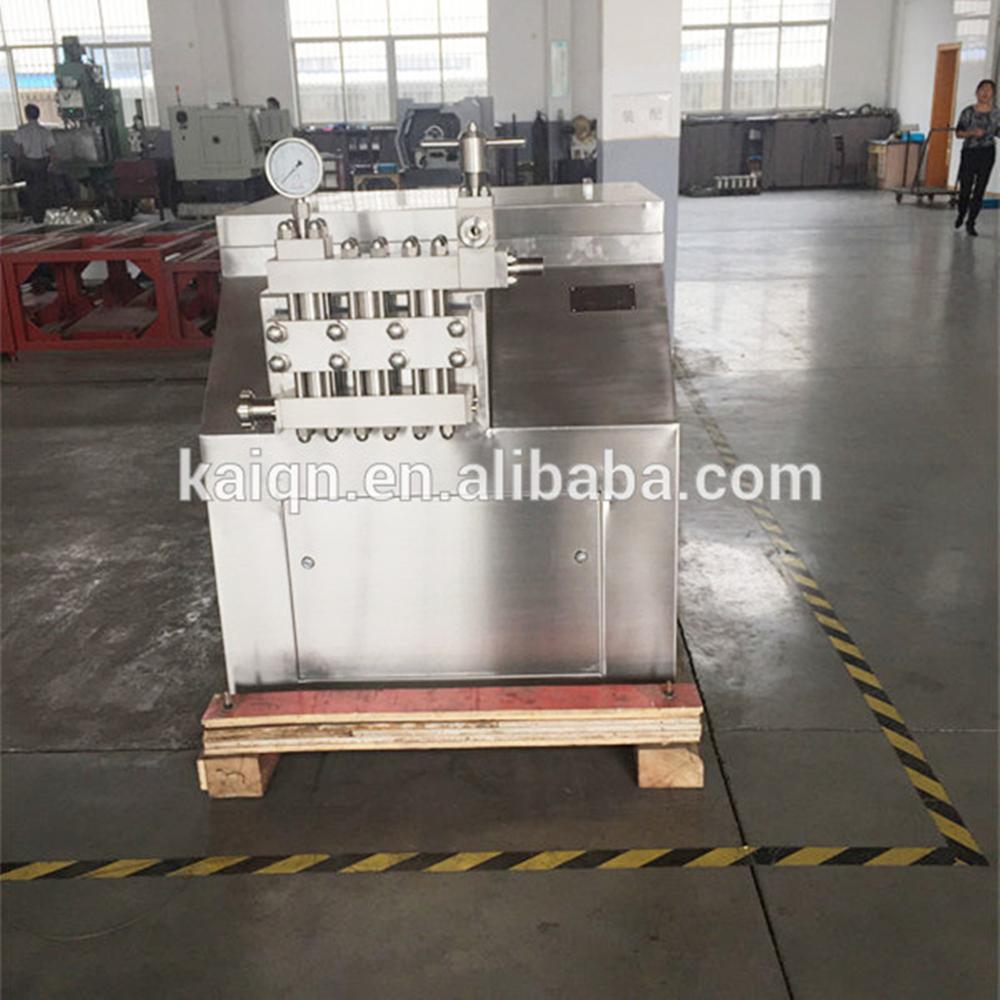

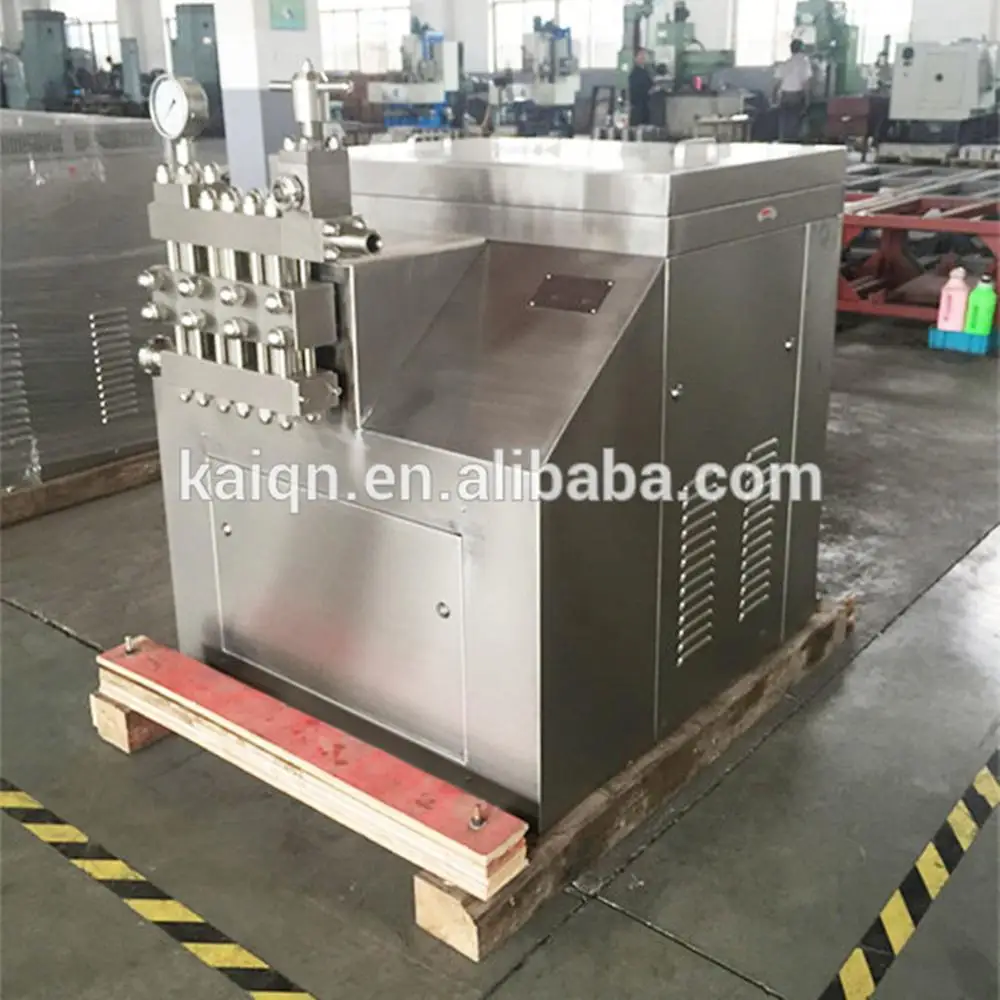

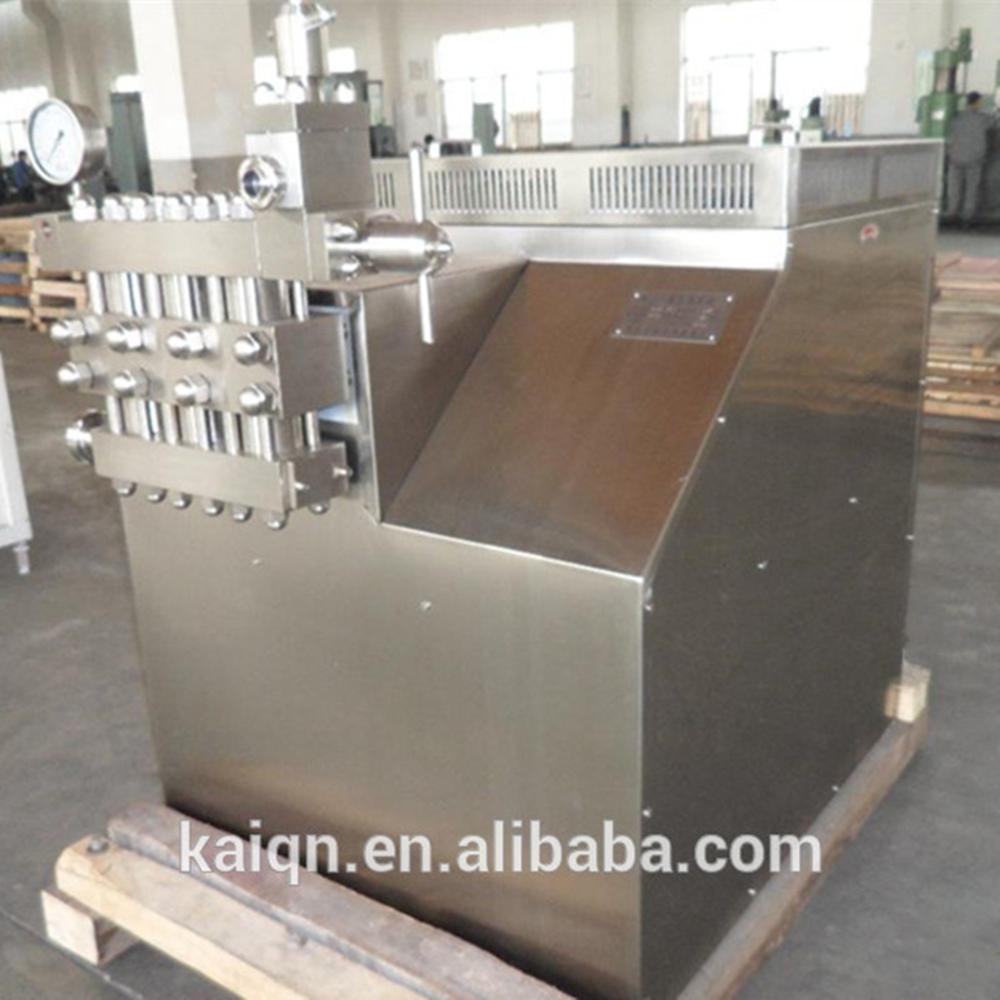

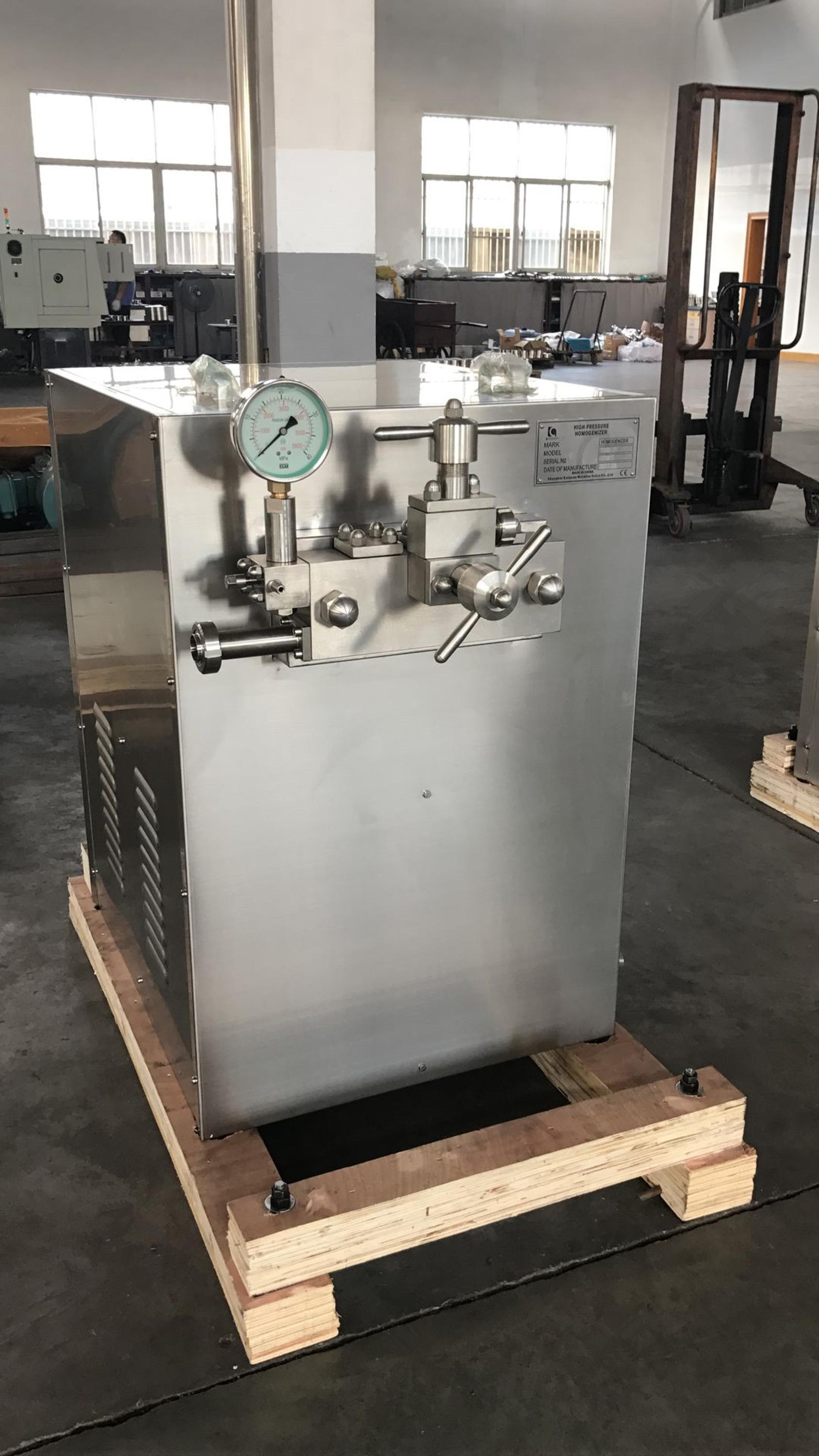

1. Picture of high pressure homogenizer

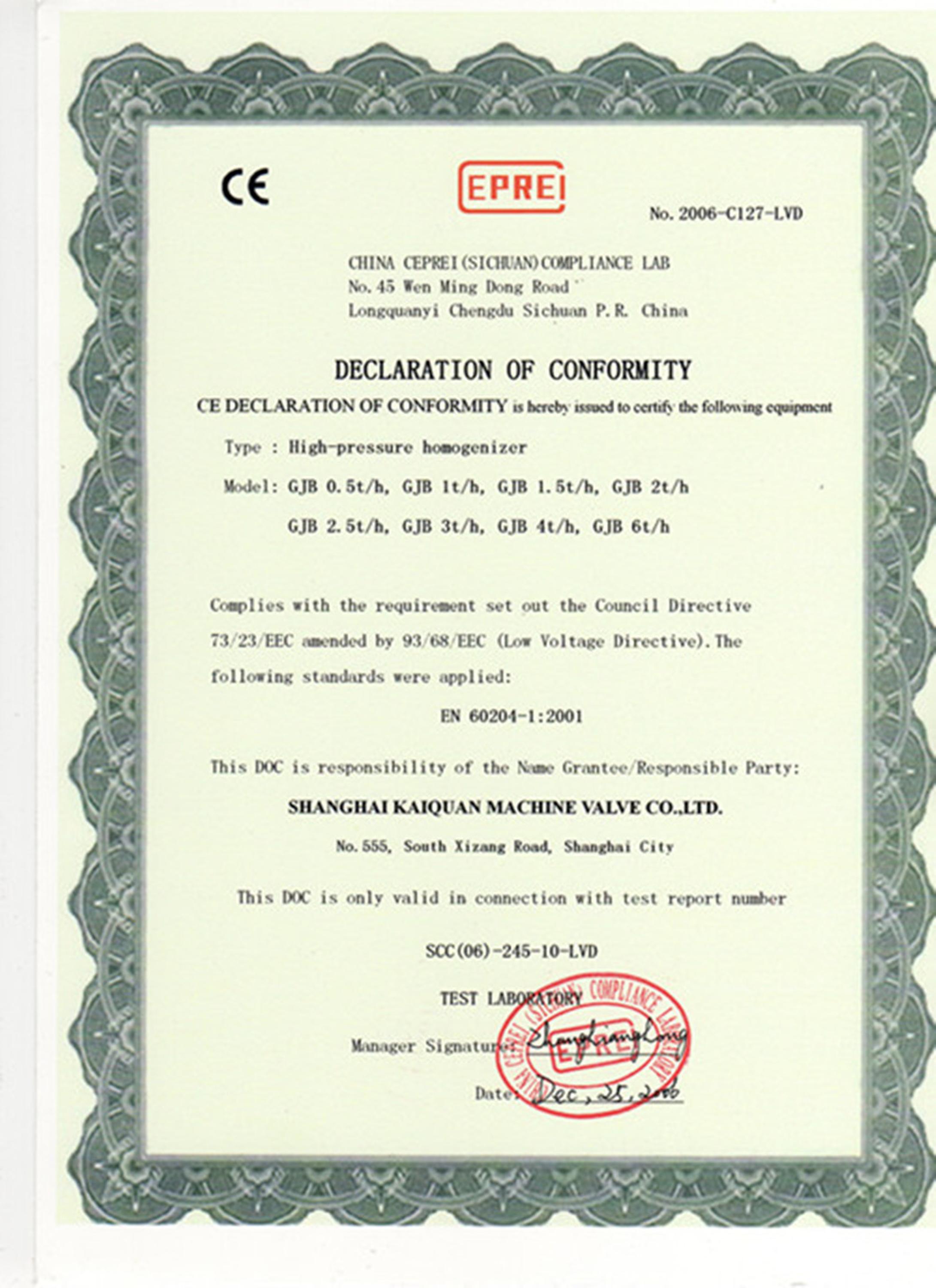

2. Certificate:
3. Technical data:
CE Industrial Small Homogenizer Food High Pressure Homogenizer
|
model. technical scope |
GJB0.5-25 |
GJB1-25 |
GJB1.5-25 |
GJB2-25 |
GJB2.5-25 |
GJB3000-25
|
GJB5-25 |
|
preset pressure(MPa) |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
|
Limited Data(L/h) |
500 |
1000 |
1500 |
2000 |
2500 |
3000 |
5000 |
|
Medium temperature(℃) |
≤85 |
≤85 |
≤85 |
≤85 |
≤85 |
≤85 |
≤85 |
|
Feed pipe diameter(mm) |
25 |
25 |
25 |
25 |
25 |
32 |
40 |
|
Discharge pipe diameter(mm) |
15 |
15 |
20 |
20 |
20 |
20 |
25 |
|
Motor Power(kilowatt) |
5.5 |
7.5 |
11 |
15 |
18.5 |
twenty two |
45
|
|
voltage and current |
380V, 50HZ, 3PH |
380V, 50HZ, 3PH |
380V, 50Hz |
380V, 50Hz |
220V, 60HZ, 3PH |
380V, 50Hz |
380V, 50Hz |
|
Dimensions(rice) length width height |
1.16×0.9×1.24 |
1.16×0.9×1.24
|
1.16×0.9×1.24
|
1.4×1.1×1.42 |
1.4×1.1×1.42 |
1.4×1.1×1.42 |
2.2×1.45×1.1
|
|
Weight (tonsthe s) |
0.4 |
0.5 |
0.5 |
1.25 |
1.25 |
1.25 |
1.7 |

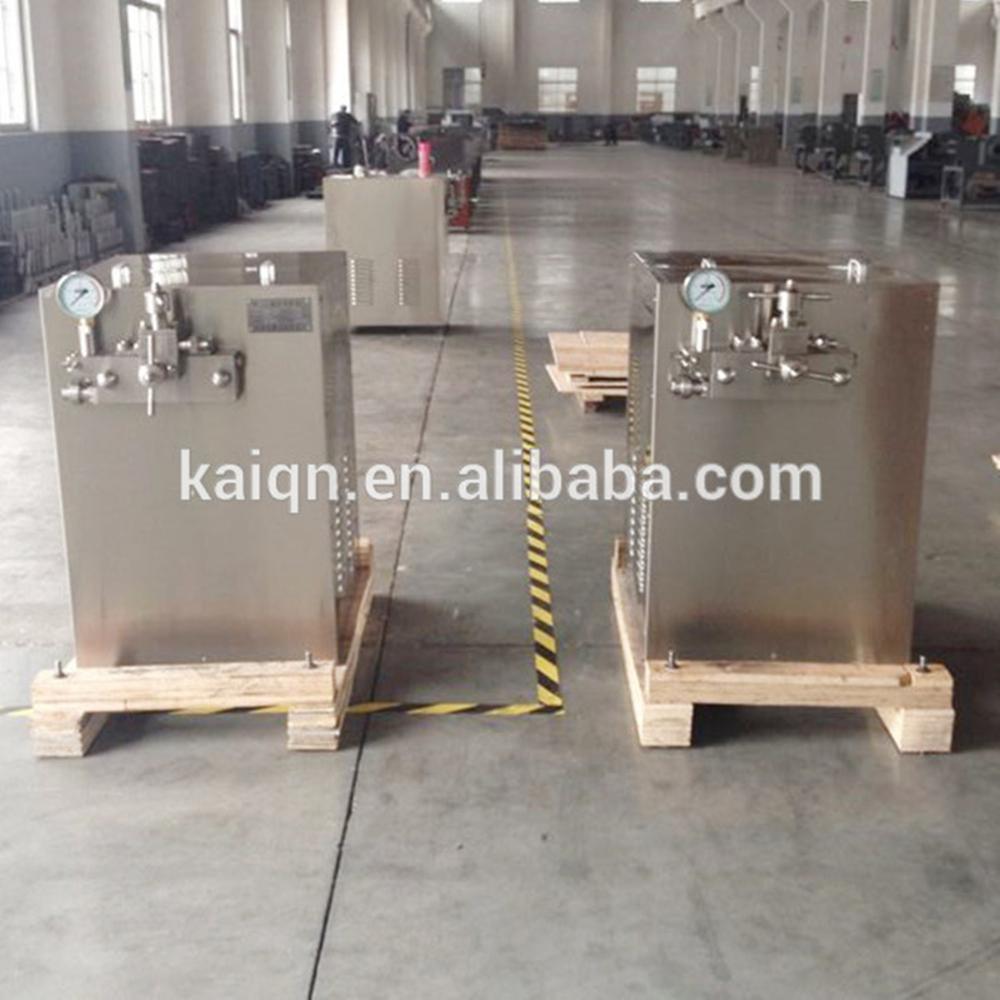

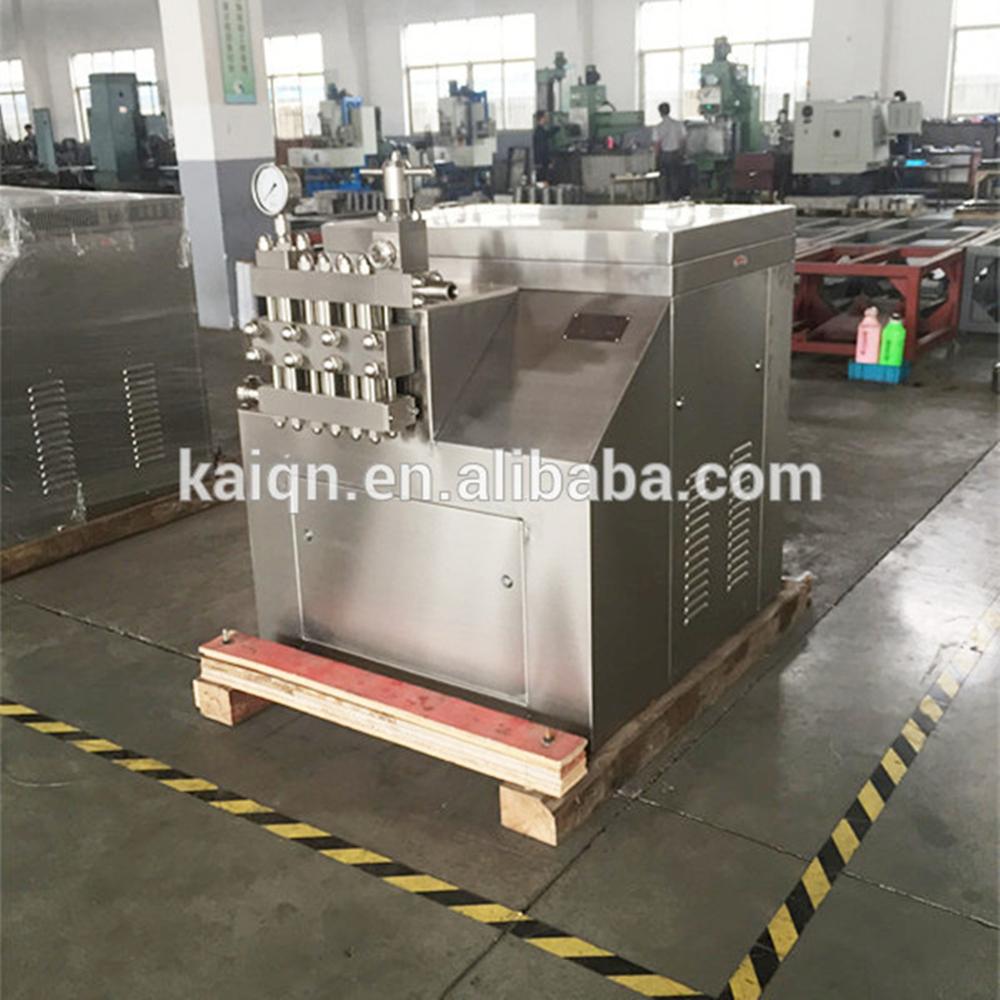

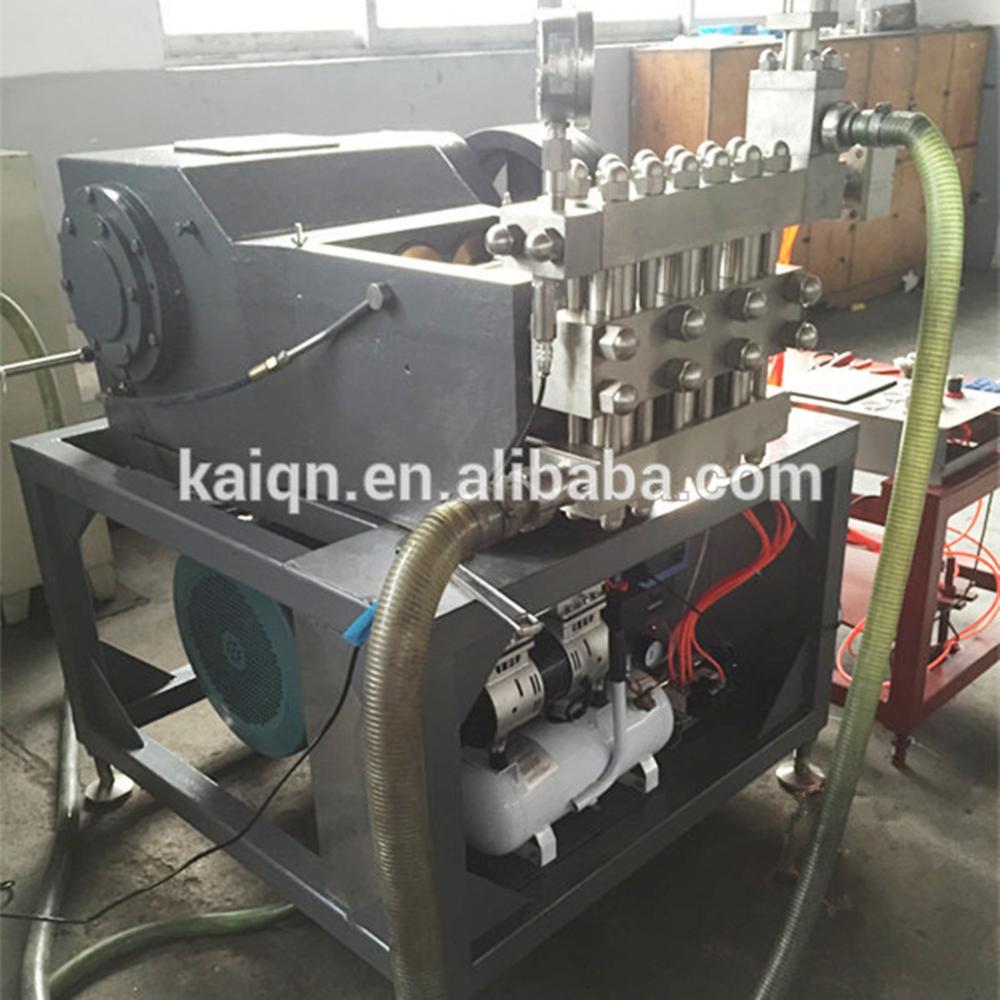

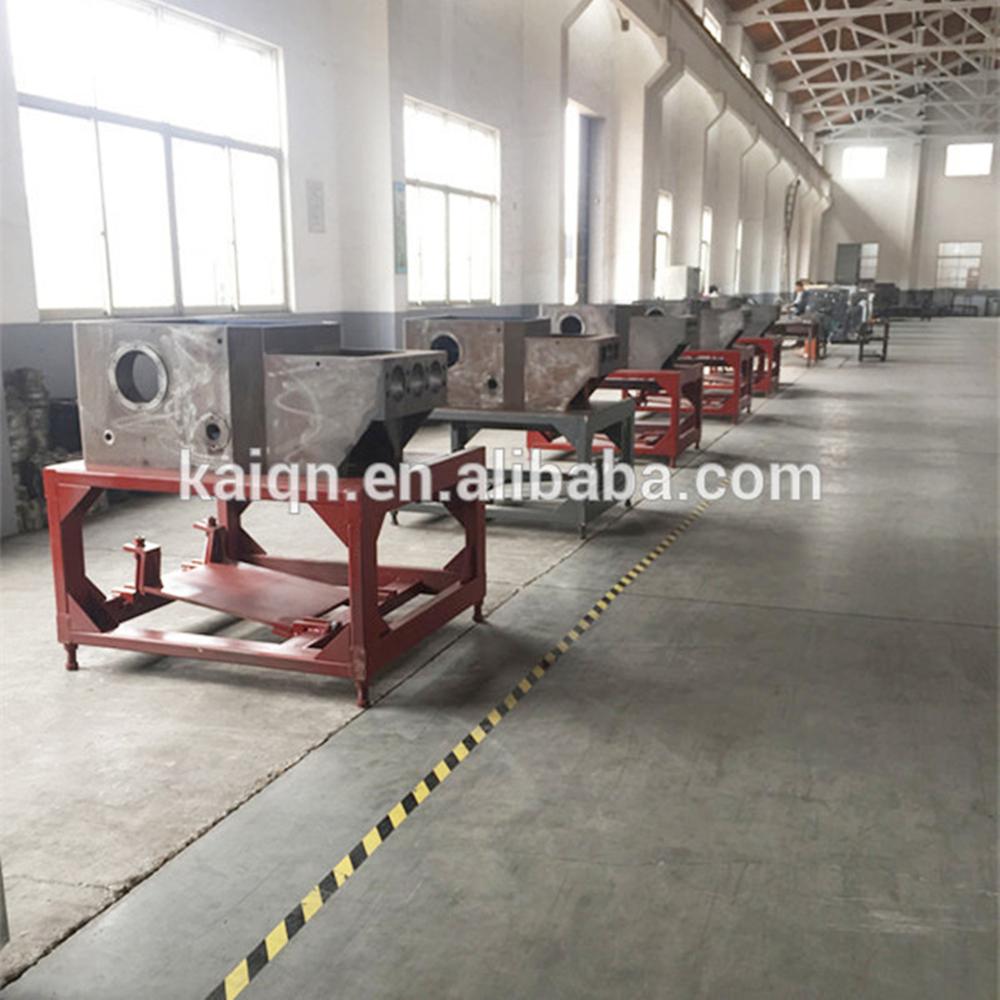

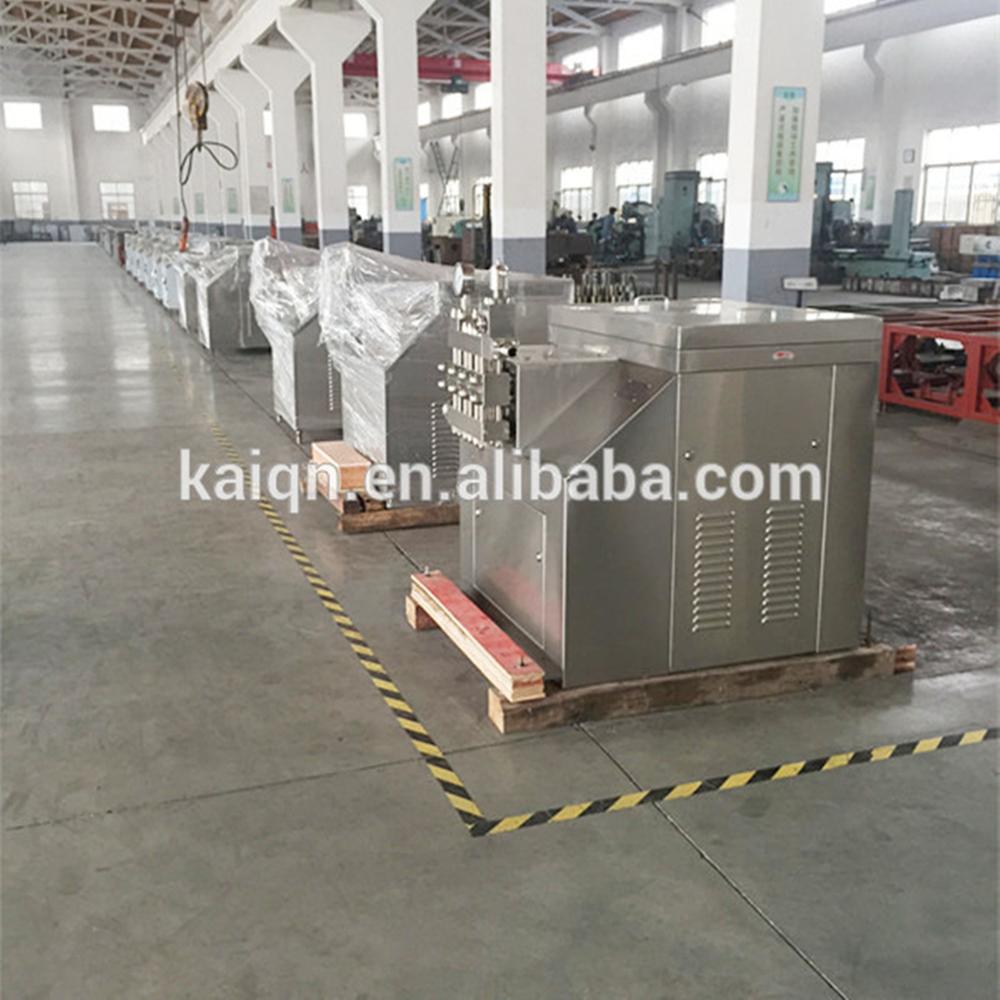

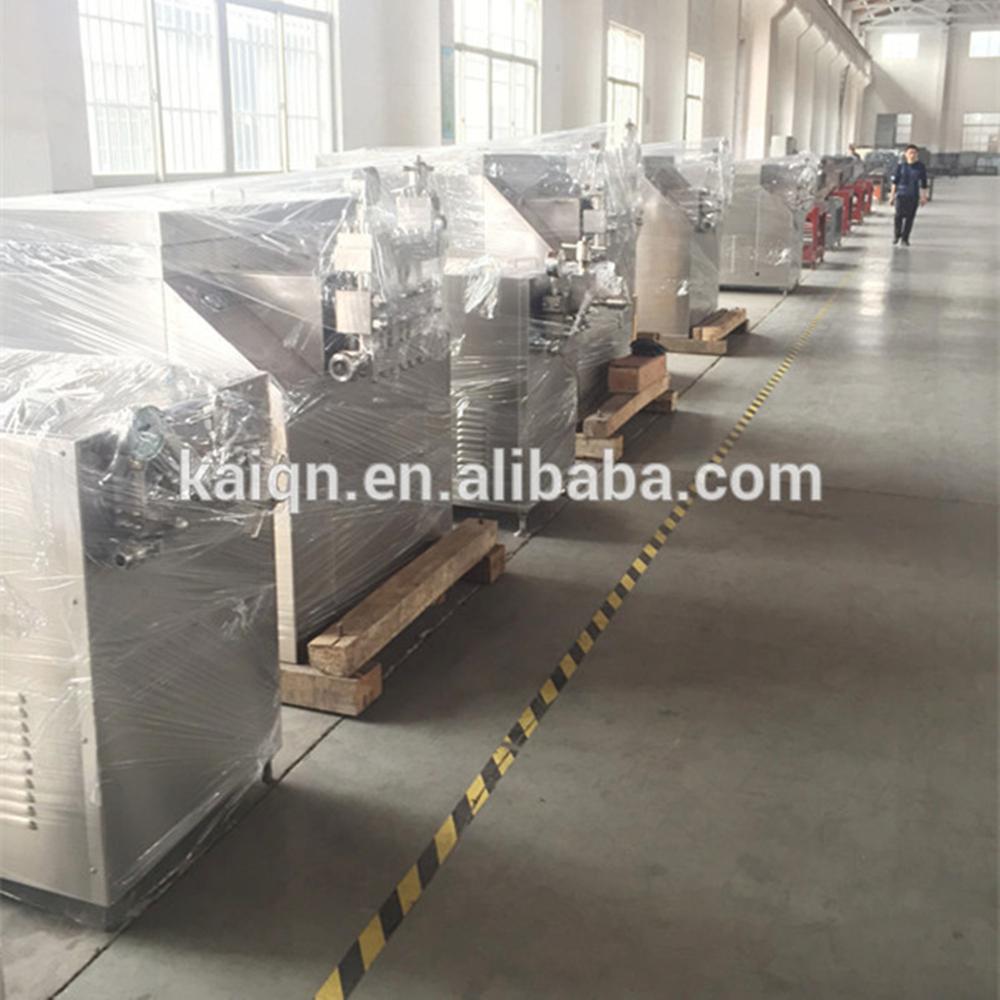

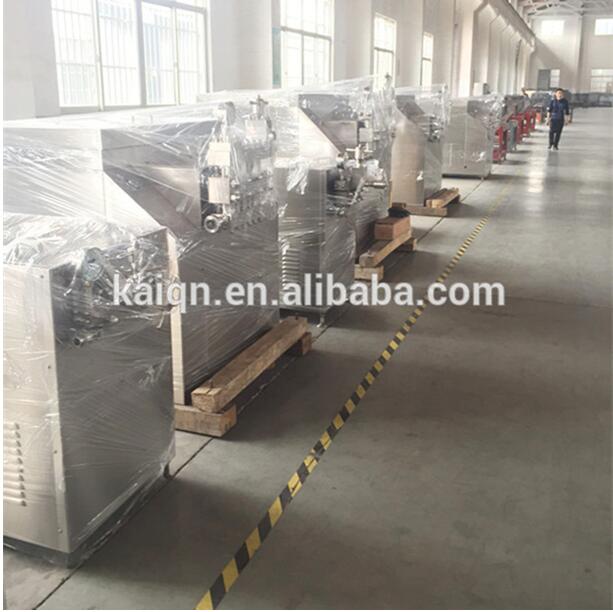

4. Factory:
5. Our customers:
