DFUN Telecommunication Smart Real-time Energy Monitoring with Energy Meter BTS Monitoring Solution
- $0.10 /unit
- 1 unit
- Dfun (zhuhai) Co., Ltd.
- Guangdong, China
- Mr Jackey Zhou
PRODUCT DETAIL
| Package Preview: | ; | Model Number: | DFun Energy Monitoring Solution; |
| Product name: | Real-time Energy Monitoring; | Keywords: | BTS Monitoring Solution; |
| Type: | Telecommunication Tower; | Display Type: | Digital Only; |
| DFPM91: | AC Single Phase Energy Meter; | Communication: | RS485 port, MODBUS-RTU communication protocol; |
| Brand Name: | DFUN; | Place of Origin: | Guangdong China; |
| Payment Terms: | L/C,Western Union,T/T; | Accuracy Class: | Class 1.0; |
| Output Voltage: | 110V,120V,220V, 230V, 240V AC; | Supply Ability: | 150000 Unit/Units per Month Energy Monitoring System; |
| DFPM93: | AC Three Phase Energy Meter; | Rated current: | Direct: 5(63)A, 5(6)A/ CT; |
| Application: | BTS solution; |
DFUN Telecommunication Smart Real-time Energy Monitoring with Energy Meter BTS Monitoring Solution

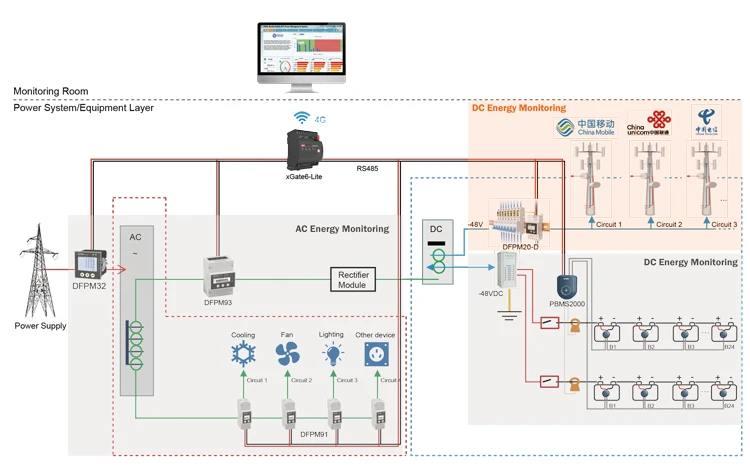

▸AC Side
For Incoming Circuit Monitoring:
- DFPM32 for Three Phase AC Monitoring
For Outgoing Circuit Monitoring:
- DFPM93 and DFPM91 for each circuit AC Monitoring (Like Light, Fan, Cooling etc.)
▸DC Side
For Outgoing Circuit Monitoring:
- DFPM20D for each circuit DC Monitoring (Like different operator DC devices)
For Back-up Battery Monitorng
- PBMS2000 BTS Battery Monitoring Solution
Product Description

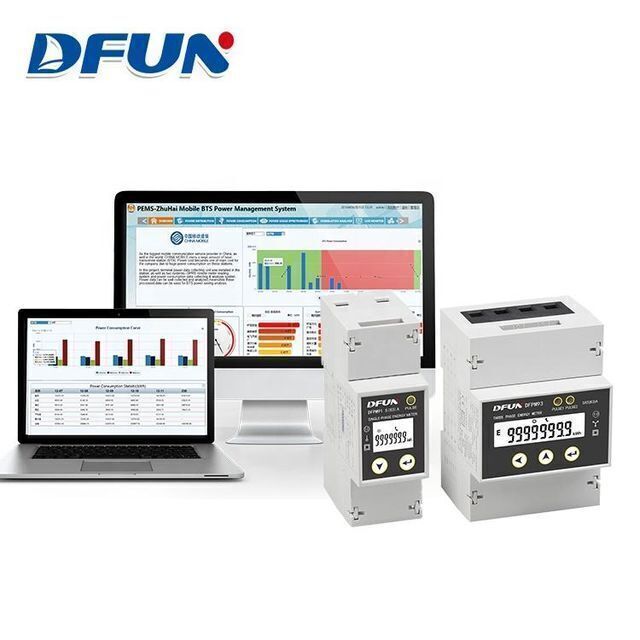

DFPM91 AC Single Phase Din-Rail Energy Meter
➤ Suit for 110v, 120V, 220v, 230v, 240V AC low voltage system
➤ Measure U, I, P, Q, S, PF, kWh, kvarh, LCD display U, I, P, kWh
➤ 6 +1 digits LCD display (999999.9 kWh)
➤ LED indicates pulse output
➤ Password protection
➤ One key for up/down page, one key for programming
➤ Small size: 100*36*65mm
➤ RS485 port , MODBUS-RTU or DLT645 protocol (selectable)
➤ 35mm DIN rail installin, standard DIN ED5002
➤ Standard: IEC62053-21
DFPM93 AC Three Phase Din-Rail Energy Meter
➤ Suit for 110V, 120V, 220V, 230V, 240V AC low voltage system
➤ 7 +1 digits LCD display (999999.9 kWh)
➤ Measure U, l, P, Q, s, PF, F, kWh, kvarh, Multi-tariff energy value
➤ Record freeze energy for per 15 min/day
➤ kWh accuracy: 5(6)A class 0.5s, 5(63)A class 1.0
➤ Support over-voltage timing, under-voltage timing, over-loadtiming
➤ 2 LED indicate pulse (Settable for kWh or kvarh)
➤ LCD display prompt for phase sequence error
➤ 3 keys for programming, 35mm DIN rail installing, standard DIN ED5002
➤ One RS485 port, MODBUS or DL/T645 protocol (selectable)
➤ Record historical energy for latest 31 days, latest 12 months
