DONGYI 1kg 2kg 3kg 6kg 12kg 15kg 20kg coffee roaster with artisan control coffee roaster with quick delivery

PRODUCT DETAIL
Model Number:BY-2;Power (W):215;
Heating power:4.2kw;Drum Material:dual wall stainless steel;
Packaging Detail:1. Standards Ocean shipment wooden case package 2. machine wrap by Bubble bag and fixed on the floor by rubber belt .;Package Preview:;
Brand Name:Dongyi;Power Source:Electric,Gas;
Place of Origin:Henan, China;Time Consumption:10 minutes for light baking , 15 minutes for deep baking;
Type:Commercial,Household,coffee shop;Material:Stainless Steel;
Batch Capacity:2kg /batch 8-12kg /hour;Heating type:Half hot blast & Half direct fire;
Motors:ADDKA;Gas consumption:0.2KG/H;
Single gross weight:80.000 KG;Application:Outdoor,Hotel,Garage,Commercial,Household;
Function:temperature control;Selling Units:Single item;
Private Mold:Yes;Housing Material:Stainless Steel;
Warranty:free parts for one year,1 Year;Single package size:114X71X103 cm;
Roaster size:1100*700*1030mm;Voltage (V):220;
App-Controlled:Yes;After-sales Service Provided:Free spare parts,Onsite Installation,Field maintenance and repair service,Overseas Call Centers;
Heating source:LPG, LNG gas or electric;
Technical Data
Model
BY-1kg
BY-2kg




Basic Parameters
Batch Capacity
200G-1500G/batch
300-2500G/batch
Roasting Time
12-15 minutes/ drum (after preheat)
Heating Type
LPG gas, N-Gas/Complete electric
Temperature Range
0-499℃
Drum Construction
Heat-resistant double layer 304 food grade stainless steel
Cooling Time
1-2 minutes
Gas Consumption
0.13kg/hour
0.2kg/hour



Power
Drum Motor
60W
90W
Cooling Tray Fan Motor
50W
50W
Hot Air Fan Motor
45W
45W
Cooling Mixing Motor
15W
15W
Electric Heating Power
3000W
4200W
Gas Heating Power
210W
210W





Description
Machine Weight
125KG
145KG
Chaff Cyclone Weight
20KG
20KG
Machine Dimension
950*650*980mm(W*D*H)
1100*700*1030mm(W*D*H)
Body Color

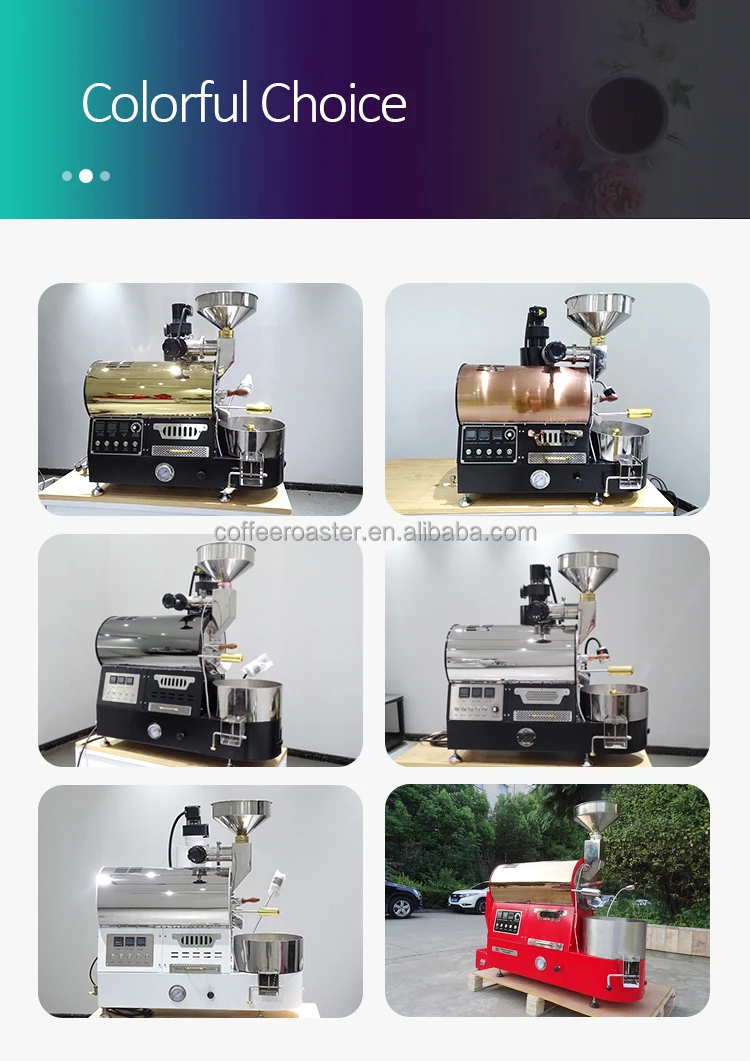

Red/Black/White/Blue/Green/Pink
Drum Housing color
Stainless steel/Gold/Rose gold/Brass
Package
Film plastic&wooden case
Packing Size
114*71*103cm(W*D*H)
Gross Weight
155KG
176KG

Others
Certificate
CE/RoHS/ISO9001
Warranty
1 year limited
1.Capacity can be 1.5kg/batch 6kg/hour

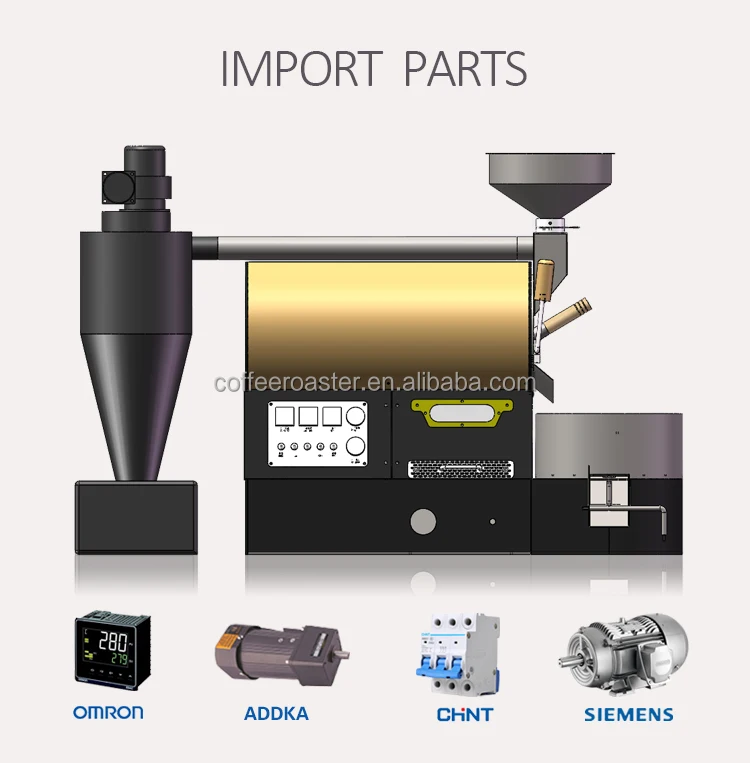

2.OMRON dual temperature PID PLC control, precise and long using life
3.Adjustable hot air speed Electronic speed governor for HOT AIR [JMC TOP BRAND]

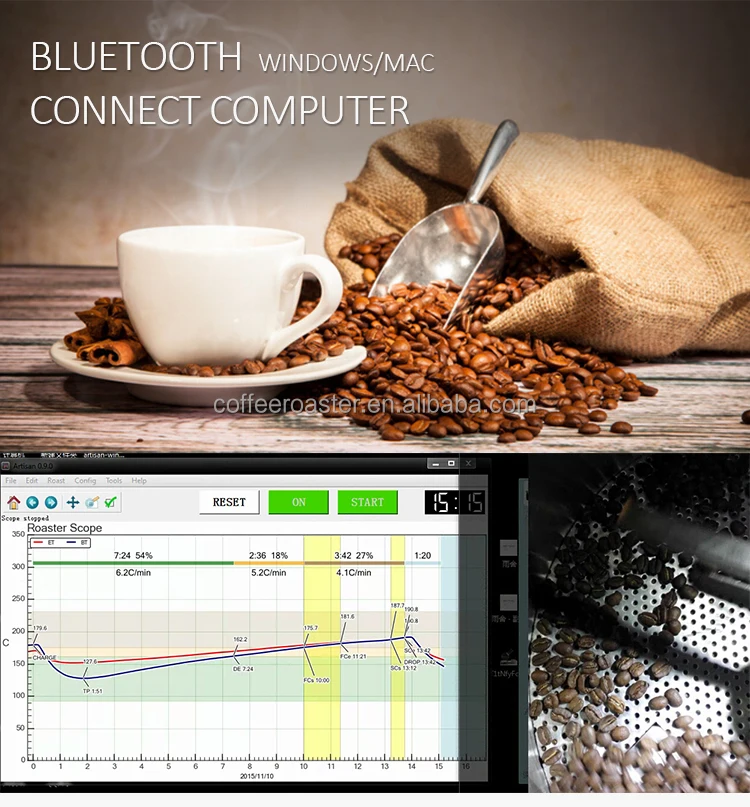

4.Bluetooth connect the computer and Artisan data logger and record temperature change curve
5.25℃+ warm up temperature rate per minute
6.Carbon fiber heating tube
7.Including cyclone dust collector and exhaust pipe

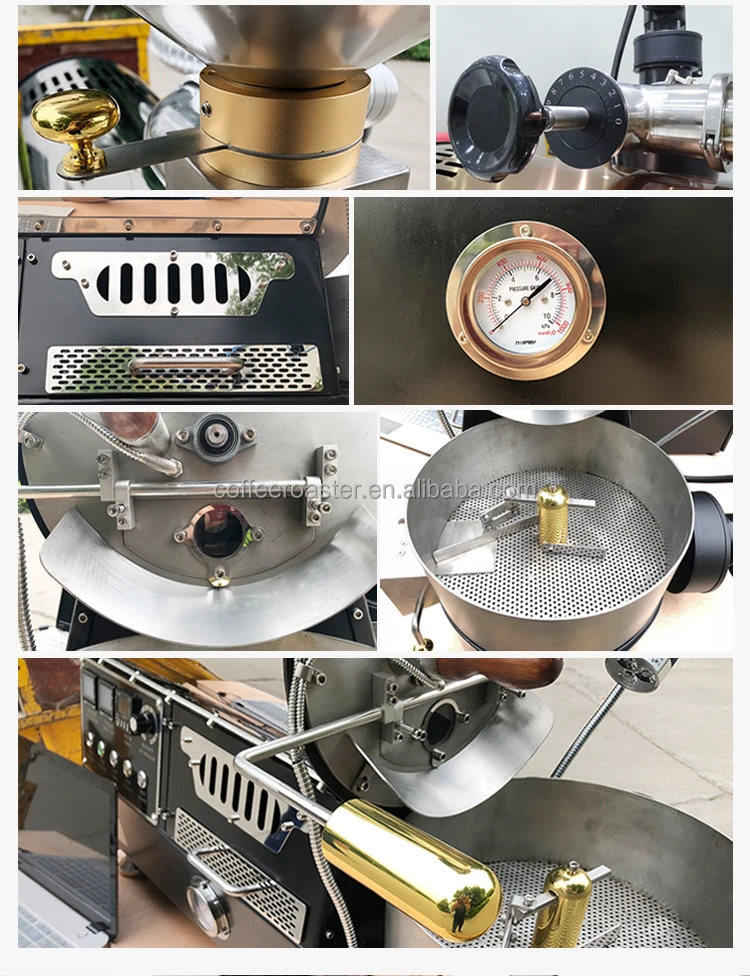

8.Equipped with observation window and sampling stick
9.Electric igniter
10.Taiwan cast iron burn
11.ADDKA Japan motor drum speed adjustable
12.Fuse and leakage protector on application
13.Import rosewood bean sampling handler
14.LED lamp

the price in page shows is only for deposit.

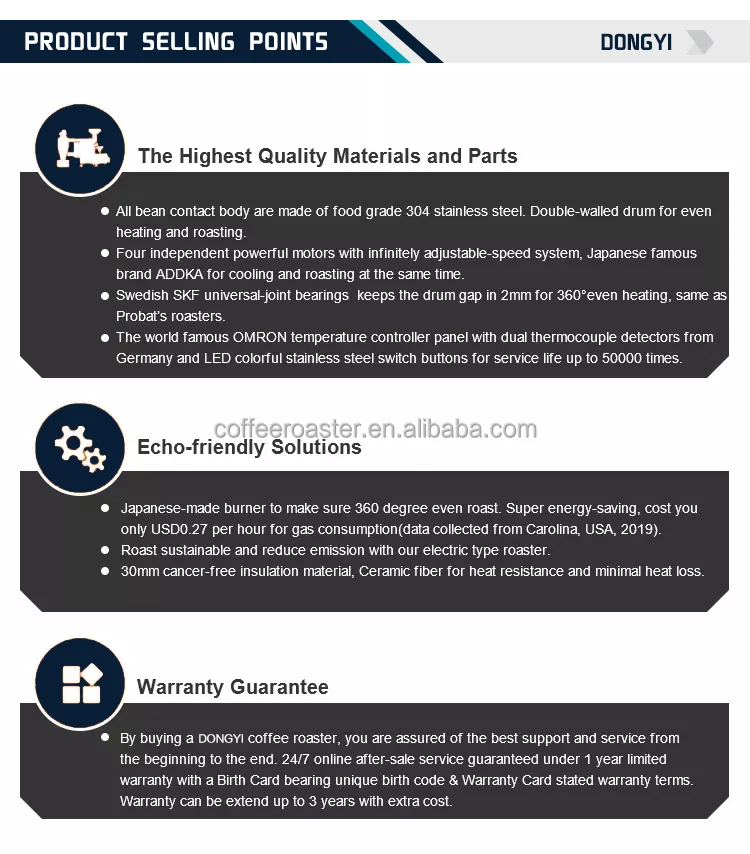

1.Colorful stainless steel switch button, service life of up to 50000 times
2.Large independent mixing cooling pan, cooling rapidly (1-2 minutes),continuous roasting
3.All bean contact body are made of high temperature resistant stainless steel
4.Quality 310SUS stainless steel double drum safety and healthy
5.304 stainless steel made gas valve regulator you can adjust fire volume precise...

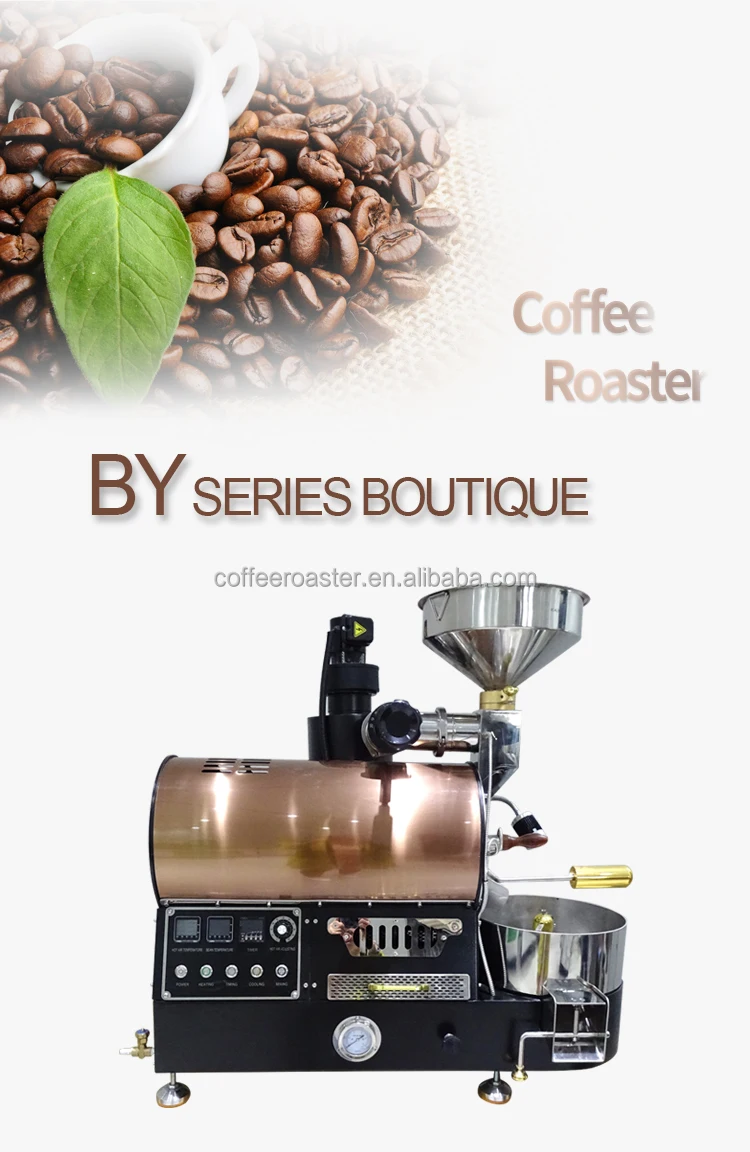

Features For BY Boutique coffee bean roasters
Standout Features of Small-sized Stainless Steel Coffee Roasting Machine/ Household Coffee Roaster For Green Bean
* Heat-resistant body is made of food grade 304 stainless steel,making it safe to roast.
* Double layers drum and insulation, perfect homogeneous roasting.
* Omron dual thermometer temperature PID controller
* Long-lasting, low-maintenance.quick access to common cleaning area.
* One key for warming up machine automatically.
* Accurate Germany brand thermocouples to detect real-time roasting.
* Variable drum and fan speeds.
* Precise hot air volume control.
* High power ADDKA motors for roasting and cooling at the same time.
* Computer USB and Bluetooth work with Artisan software for data logger.
Your Roaster, Your Style
1.Every machine, we attached the care tool box for your easy clean and maintain, this is cost free
2.Logo, we can make your company logo on the machine to create your own brand.

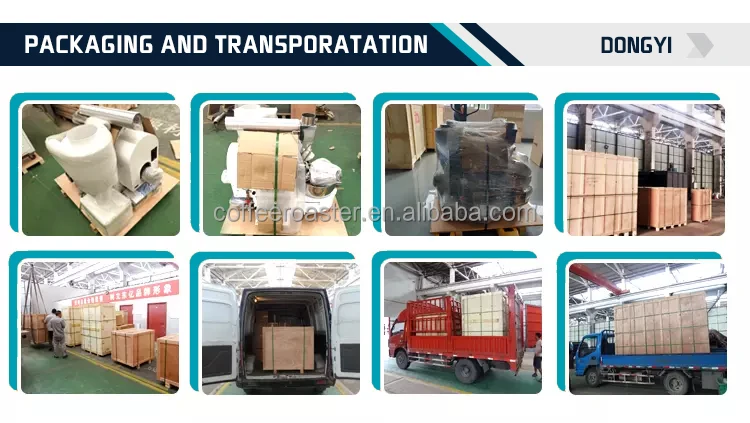

*Fumigation free wooden box with standard export packing.
*Nylon belt and screws fixing the roaster with wooden crates to prevent the roaster shaking.
*Steel belt fixing the wooden crates.
*All of the productions are inspected carefully by QC before delivery.
As a professional coffee roaster manufacturer in China, we are able to provide OEM&ODM
1.Prompt shipment : complete production and assembly lines to ensure customers prompt shipment for each order.
2.Cargoes photo : strict QC quality control and inspect before shipment. Cargoes photo will be provided to customers before and after loading.
3.Packing : machine packed in sturdy and strong wooden case, nailed and secured by overall nylon strapping; or packed as
customers' special request.
4.Best service after shipment with email: 24/7 lifetime phone & online tech support to offer our customers the best service after shipment.
5.Feedback email after end-users received the cargo
6.Trade Assurance service as a trade safe guards
1. Are you the manufacturer factory or trading company?
We are the manufacturer with professional produce experience on roaster machines more than 15 years. We have both Domestic and international sales department.

2. Where is your factory located? How can I visit there?
Our factory is located in Nanyang City, Henan Province, China,
Airport : Nanyang airport.
Rail Station: Nanyang Station
We will pick you up by car from above.

3. What are your main products?
Our main products include: 1kg-6kg small commercial coffee roaster/6-120kg industrials automatic coffee roasting machine/electric nuts roasting machine / grain seeds gas roaster/ Nuts and grain continuous electric roasting dryer/coffee bean feeding machine /de-stone conveyor / grinder

4. What payment types do you accept?
We accept T/T in advance (30% of deposit before production and 70% balance before delivery), bank transfer, Paypal or credit card under Alibaba online trade assurance or offline payment. We also accept L/C.

5. How to distribute your products? If you are dealing coffee business and have interests in us.
if you want to be our wholesaler or distributor in your place,we are very willing to share profits together with you and we
promise here you will get

A: Min order quantity up to 5 units (can be mixing color and model ), we can offer best distributor price again
B: free DIY color and customer logo on roasters ( I have indicated some done color before, also welcome new color require by Pantone color lists)
C: factory costs price supply spare parts for distributor stock
D: distributor markets Special protection policies
E: quick delivery and other more priority NEW products share items

6. How do your quality control systems operate?
We have professional designer team and experienced engineers to strictly guarantee the production from beginning to shipment.

7. What is your delivery time and cost?
For goods in stock, can arrange fast delivery around 5-10 working days after collect the full payment. In the case of out of
stock and large quantity, production time varies about 15-30 working days depending on the situation.
We have customized special delivery package for certain markets, such like US, UK, Australia, Southeast Asia, Europe, South America etc. Contact sales to get further information.

8. How long is your warranty and after-sale service?
One-year limited warranty. Additionally, all of our roasters come with guaranteed personal support for the roaster’s entire
lifetime. While it is rare for our machines to face problems, our teams is always available to troubleshoot and answer
questions. Simple call or email us and a member of our support team will provide the necessary assistance in a quick, succinct manner.

9. Does your company offer worldwide distribution?
Yes, we are proud to be a global company. We ship our products all around the world.

Welcome to contact us any time and welcome to our company!
