Wintop sample Santoker coffee roaster 3kg coffee roasting machine
- $1000.00 /set
- 1 set
- Henan Wintop Machinery Technology Co., Ltd.
- Henan, China
- Ms Alice Wong
| Motor: | 4 ADDKA Motors; | Material: | Stainless Steel; |
| Control Mode: | Fully Automatic Control; | Power Source: | Electric,Gas; |
| Temperature control: | PID programmable control; | App-Controlled: | No; |
| Product name: | 3kg barista Specialty coffee roaster machine with double walled drum; | Supply Ability: | 50 Sets per Month; |
| After-sales Service Provided: | Free spare parts,Onsite Installation; | Place of Origin: | Henan, China; |
| Voltage (V): | 220; | Type: | Commercial,Drum Coffee Roaster; |
| Roaster Drum: | Double Carbon Steel walled roaster drum; | Power (W): | 8000; |
| Port: | Qingdao Shanghai; | Roasting Time: | 10-15min/batch; |
| Heating Source: | LPG - LNG - Naturel Gas or electric; | Capacity: | 3kg/batch Maximum; |
| Model Number: | WS-R3; | Payment Terms: | L/C,Western Union,D/A,T/T,MoneyGram; |
| Packaging Detail: | Standard wooden case 2 Carton Boxes Gross Weight: 210 Kgs; | Application: | Commercial,Household; |
| Warranty: | 1 Year; | Function: | Heat Adjustment; |
| Housing Material: | Stainless Steel; | Color: | Red Black, White; |
| Heating Mode: | Half Hot Air Heating; | Brand Name: | WINTOP; |
| Package Preview: | ; |
Note :The Alibaba show the price only as the deposit ,the details quotation need consult Doris .

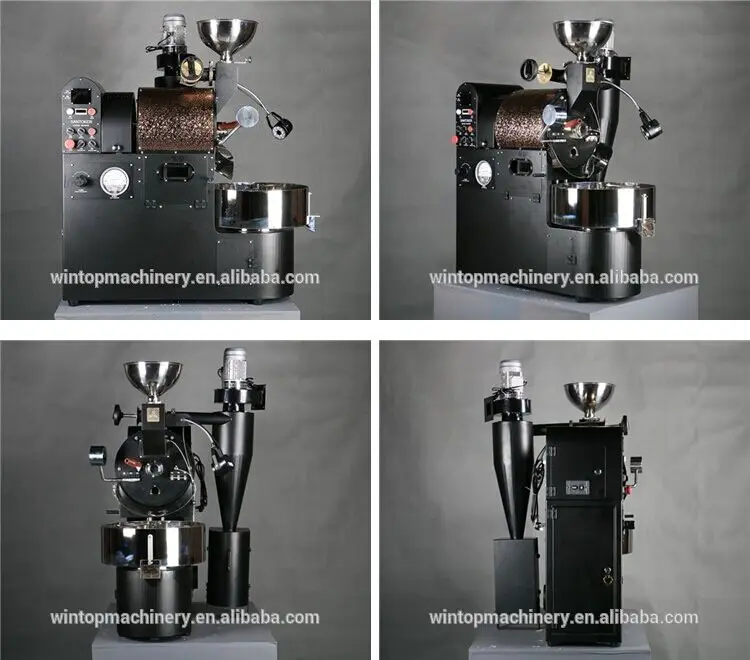

WS-R3 3kg Double - layer inner pot Specialty Coffee Roaster machine.
If you compared coffee roasters (2-3kg) with several suppliers already, but still don't know how to select a coffee roaster in high performance but an affordable price?
WS series 3 kg coffee roaster is your answer, it is built with first-class craftsmanship and best drum carbon steel materials from around the world, also with highest technology. It is the most popular item selected by coffee shop owners. It can evenly roast coffee beans from 500g to 3200g, meet the need of cafes ,coffee shop ,coffee roastery.
Here are the Features for your reference :
1.WS-R3 Pro adopts the double-wall drum totally avoiding inner pot overheat problem.Achieve the perfect roasting results.
2.Fully automatic control from loading beans to outlet.
3.Special blades design inside the pot makes coffee beans better even heating.
4.And the roaster adopts industrial grade temperature control system, zero delay of temperature output.
5.Adjustable pot drum speed function help to master your roasting skills;
6.Carton Iron inner pot materials, not stainless steel.
7.PC-USB data logging and Mobile Phone APP application keep your roasting profiles more easily.
WS-R3 Specialty Coffee Roaster Specifications | ||||
Model | WS-R3 | |||
Capacity | Max 3200g | Max 3200g | ||
Heating Source | Electric | LPG-NG-Propane | ||
Heating Mode | Direct Fire & Semi hot air heating | |||
Voltage | Single Phase 220 V, 50/60 Hz | |||
Power | 8000 W | 700 W | ||
Motor | 4 | 4 | ||
Roasting Time/ batch | 10-15 mins | 10-15 mins | ||
Cooling Time / batch | 1-2 mins | 1-2 mins | ||
Gas consumption | 2 KW.h/roast | 0.6 Kg/Hr | ||
Dimensions | 112*73*125cm | |||
Weight | 175 Kgs | |||
Data Logger | Mobile phone Bluetooth & PC-USB connection | |||
Why Double-walled Drum?
Wintop WS-R3 the outer and inner layer made of carbon steel. When gas is ignited, hot air fills full in gap between the outer and inner layers, the hot air is around the inner drum, avoiding roasting beans direct touching fire, harm beans by over heat, or Inhomogeneous heat.
Smoke Exhaust System
Hot air volume adjust in precision by hand operation; The chaff cyclone connects to the coffee roaster unit simply by a hoop, the exhaust smoke pipe is parallel to ground and shortest between the chaff cyclone and main unit, that greatly improve the hot air working efficiency. Easy to clean Mainyain, Install and unistall.
Precise Thermocouples
Germany PT 100 thermocouples with Japan Fuji temperature controller to get the real time temperature of coffee beans and exhaust air inside the drum.
Sampler spoon and sight glass window help to control the roast degree easily
High Performance Burner
Santoker team work hard for developing the high performance heating burner. it is achieved gentle and evenly heating to the drum, plus the durable insulation layer around the drum, you can maximum use the heat only for beans which saves the fuel.

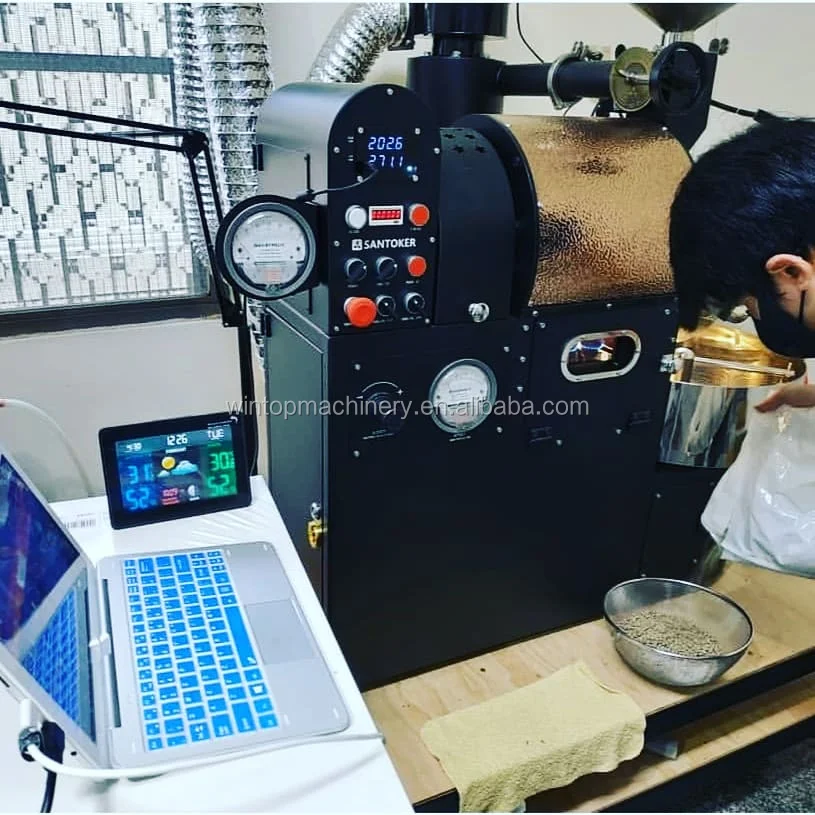

We can connect the ARTISAN ,CROPSTER software and our WS series self software called "go roaster". all can record the temperature well .
