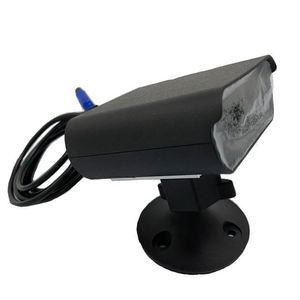

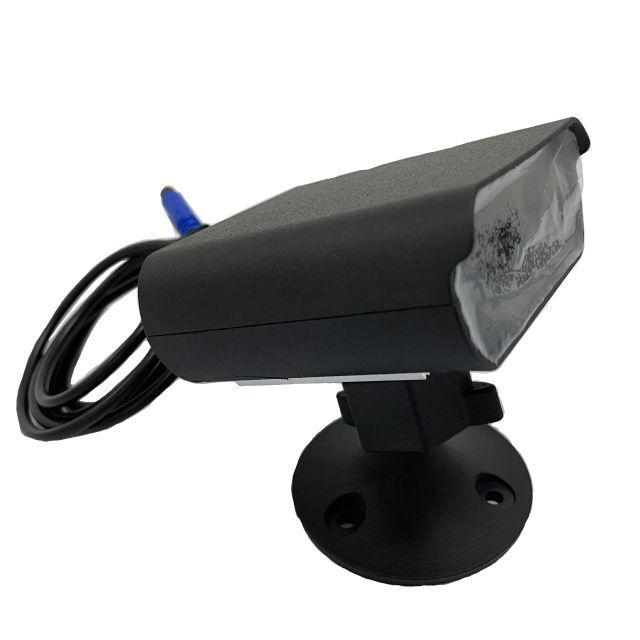

DSM System Anti Nap Distraction Smoking Calling Audio Alarm in Spanish Portuguese Turkish Fatigue Sensor for Driver Safety Eye

PRODUCT DETAIL
Supply Ability:10000 Boxes per Month;Warranty:12 Months;
Voltages:DC 9-36V;Packaging Detail:PACKAGES;
Power Consumption(W):10W;Certification:CE FCC RoSH;
Accuracy Distance:50-100CM;Function:Audio warning;
Frequency Band:BAND 1/2/3/4/5/7/8/18/28/38;Port:Shanghai;
Brand Name:Joyroad;Payment Terms:L/C,T/T,PAYPAL;

Product Composition

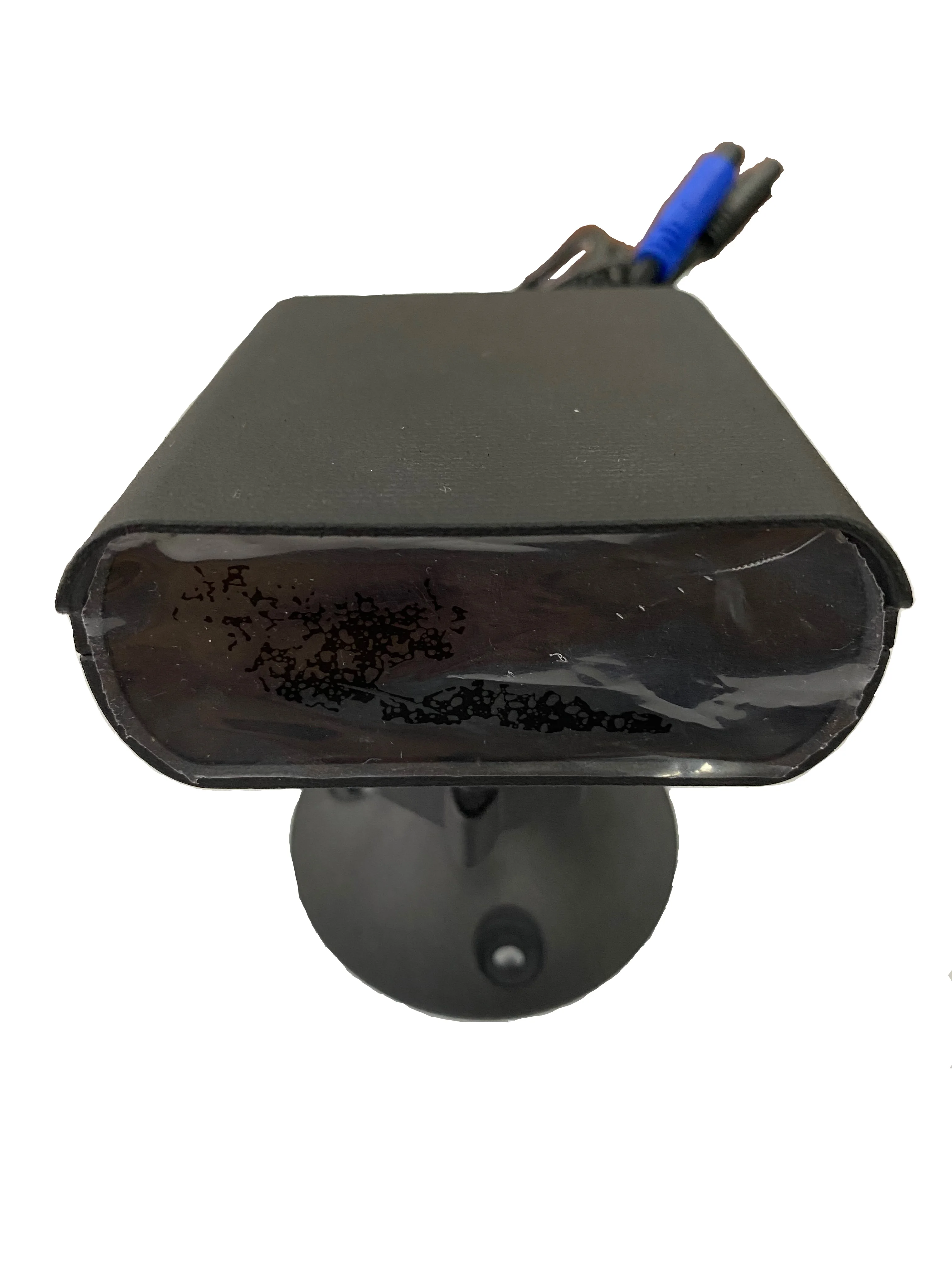

n  Device:Including Baseband Unites,RF Unites,Memory,RTC,DMS Camera,4G Data Communication ,Uart/RS232 Communication,Power Protection and other devices.

n  GPS,Gyroscope .

n  Car Accumulator(Support 12V Or 24V)

n  Support DVR Cameras

n  Power Control Circuit Modules

n  Data Analysis:Such As  Third APP and Server.

n  Specification as below:

Specification

CPU

MTK MT8665(Special CPU For Car)

WIFI

2.4G  802.1 b/g/n

Memory

8GB+1GB/16GB+2GB

LCD

NA

Main Camera

720P,Support IR LED

Second Camera



720P,support

Sensor

Gyroscope

Uart/RS232

Support

BT

BT 4.0,2.4G

GPS

GPS+Beidou or Glonass

Wifi Hotspot

Support

RF Band

GSM,WCDMA,TDD,FDD

T-Flash

MicroSD card,the speed Must be class 10

Working Voltage

12V or 24V

Working Temperature

-20℃-70℃

Storage Temperature

-30℃-80℃

Smart DVR Procuct Funcation

n  DVR (Optional)

n  Collision Self-locking

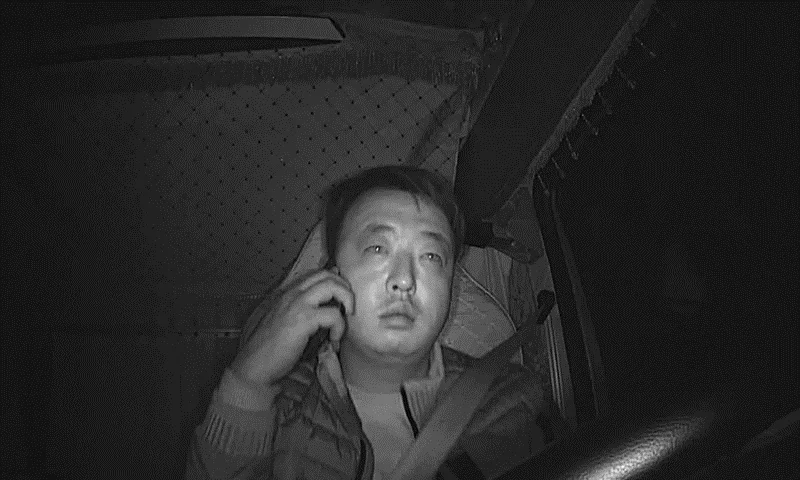

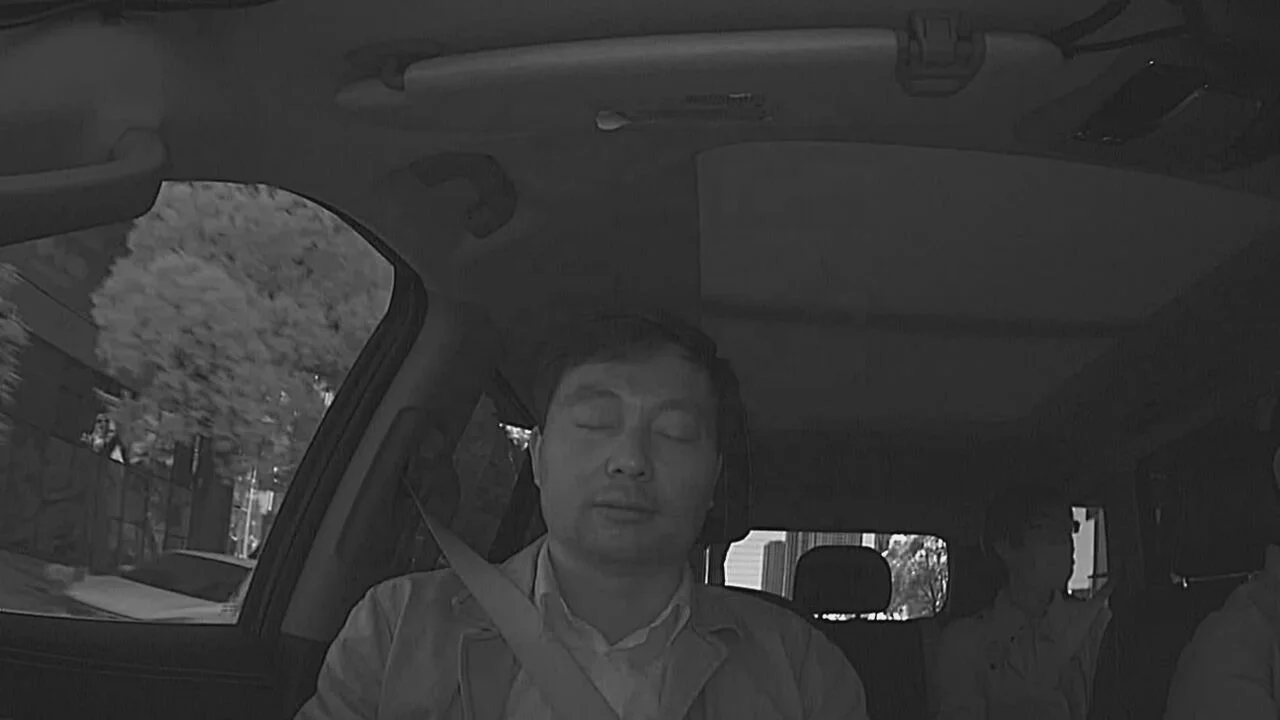

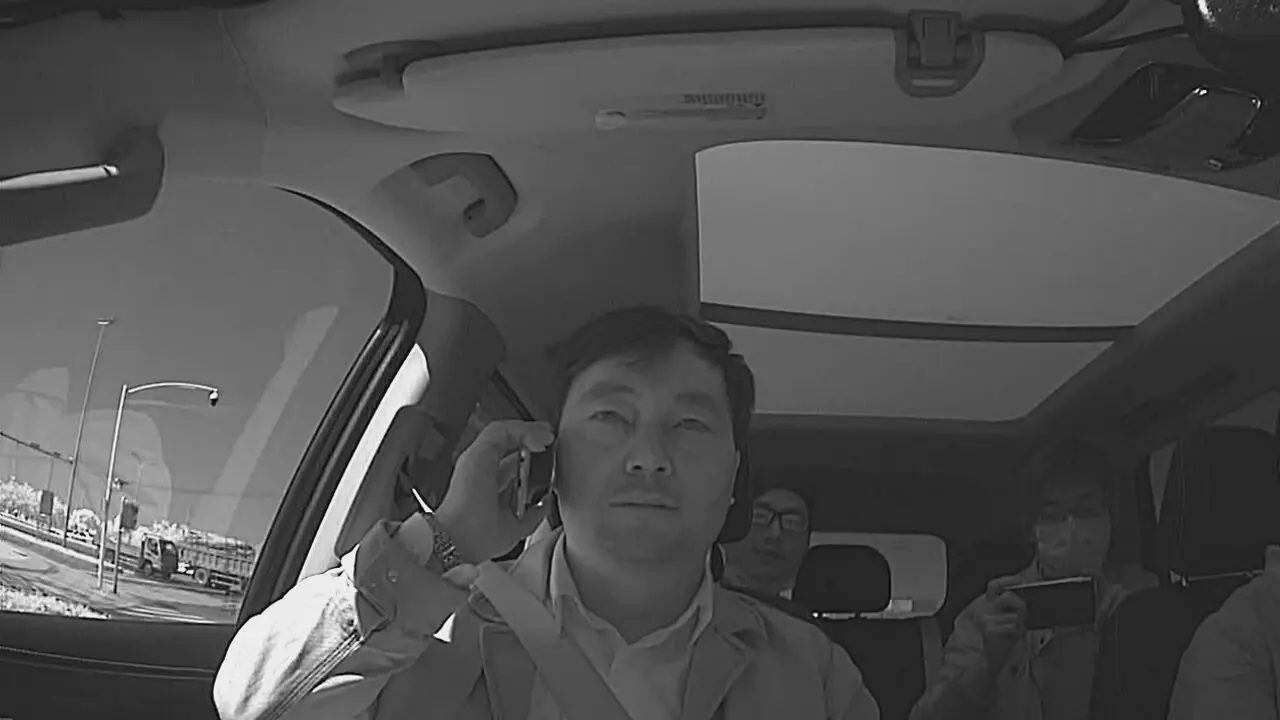

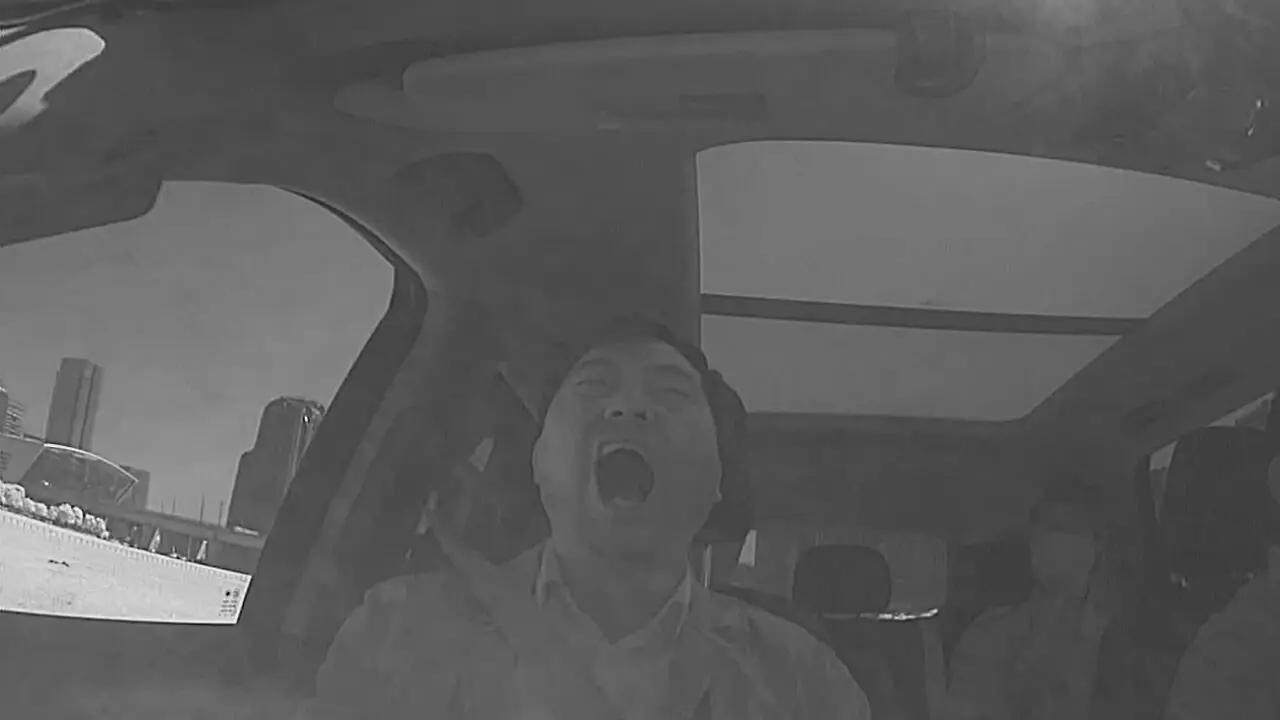

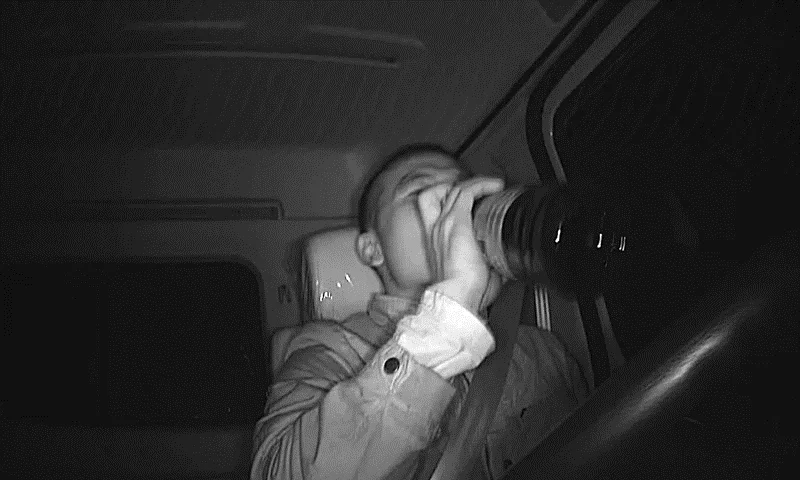

n  DMS

n  Parking Monitoring

n  WIFI Hotspot

n  Uart/RS232 Communication

n  Face ID (Optional)

n  OTA

n  APP Funcations: Realize remote viewing, Track Query, Online Video, etc.

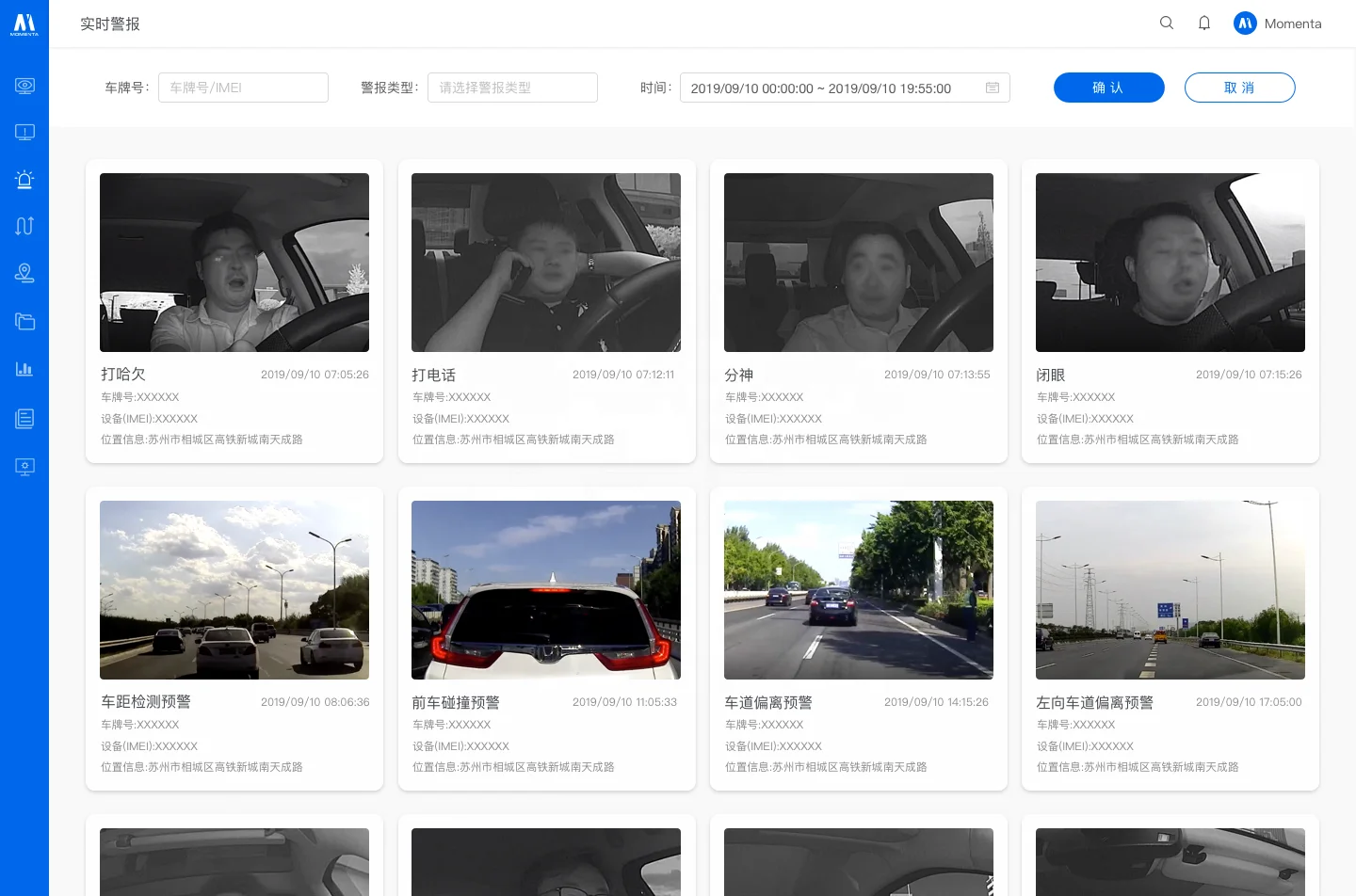

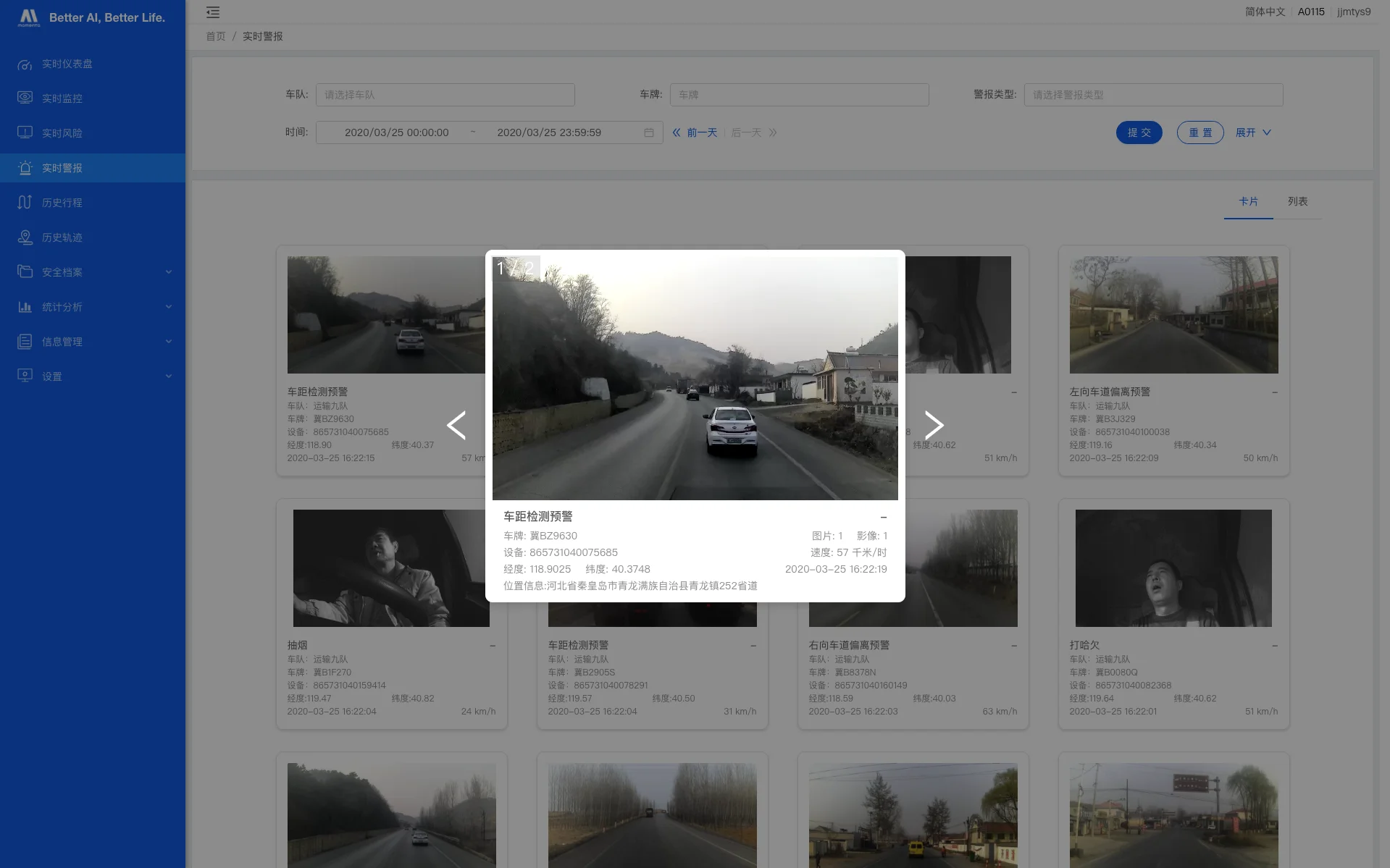

Device system and Server

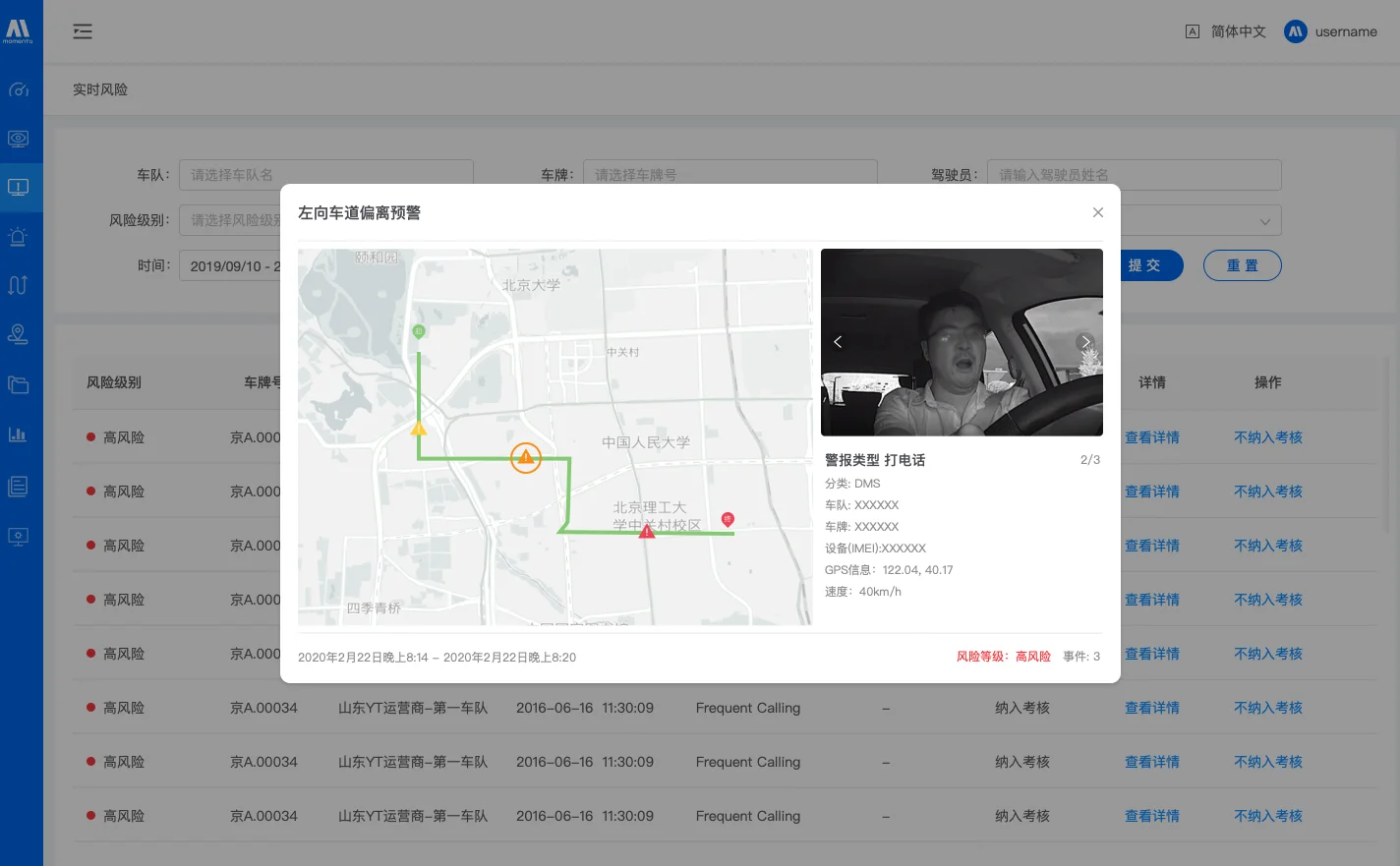

The device can be linked with server. So users can view, locate and track cars remotely .

Joyroad have completed the design for server and APP,the customers can cooperate with Joyroad.
