Shenzhen Manufacturer New Driving Safety Alerting Anti fatigue alarm

PRODUCT DETAIL
Pixel:AHD720P;Year:2015-,2017-,1983-1987,2020-,2008-2013,2006-2015,2020-,2019-,2019-,2017-,2010-,2015-,2019-,2003-2006,2005-2010,2020-,2019-,2008-2013,2011-,1993-1995,2019-,2009-,2019-,2019-,2007-2017,2009-2015,2004-2007,2014-,2019-,2001-2008,2020-,1969-1988,2005-2010,2019-,2011-,2020-,2013-,2014-;
Function 3:Smoking Warning;Angle:67°;
Model:REIZ,HIGHLANDER (ASU5_, GSU5_),AVALON (_XA5_, _XH5_),YARIS,CAMRY (_V7_, _VA7_, _VH7_),CROWN ROYAL (S210),IZOA (_XA1_, _X10_),COROLLA (E120),CROWN ROYAL (S180),CROWN ROYAL (S200),COROLLA (_E8_),LEVIN (ZRE18_, ZWE18_),RAV4 (_A5_, _H5_),1000 (KP3_),Camry,COROLLA EX (E120),CAMRY (ACV4_),YARIS L,DARIO TERIOS (J100),VERSO (ZGR2_),VIOS (_P15_),C-HR (MAXA1_),4-Runner,COROLLA (_E21_),WILDLANDER (_XA_),VIOS,LEVIN (_E18_),VIOS FS Hatchback (_P15_),HIGHLANDER (ASU4_, GSU4_),IA5,LEVIN (_E21_);Single package size:15X15X10 cm;
Single gross weight:0.500 KG;Function 4:Calling Warning;
Product Name:Anti fatigue alarm;Power Consumption(W):16W;
Accuracy Distance:10M;Selling Units:Single item;
Car Fitment:TOYOTA (GAC),Toyota (FAW),Toyota - Europe,Toyota;Brand Name:Tensor;
Focal length:3.49mm;Voltages:9-36V;
Function 2:Distaction Warning;Warranty:1 year;
Function:Driver status monitoring;Support:4G/WiFi/Gensor;
Function 1:Fatigue Warning;
Shenzhen Manufacturer New Driving Safety Alerting Anti fatigue alarm
Product Description
Product Name
Anti Fatigue alarm
Pixel
AHD720P
Storage medium
Micro SD card supports up to 256GB
Support 4G
LTE-FDD, LTE-TDD, WCDMA, TD-SCDMA, EVDO/CDMA, GSM
Built-in WiFi
2.4GHz
Built-in GNSS
GPS/GLONASS/BEIDOU
Camera
DSM cam *1,  ADAS *1,   2 *  video monitoring
Angle
67°
Focal length
3.49mm
Infrared lamp
940nm

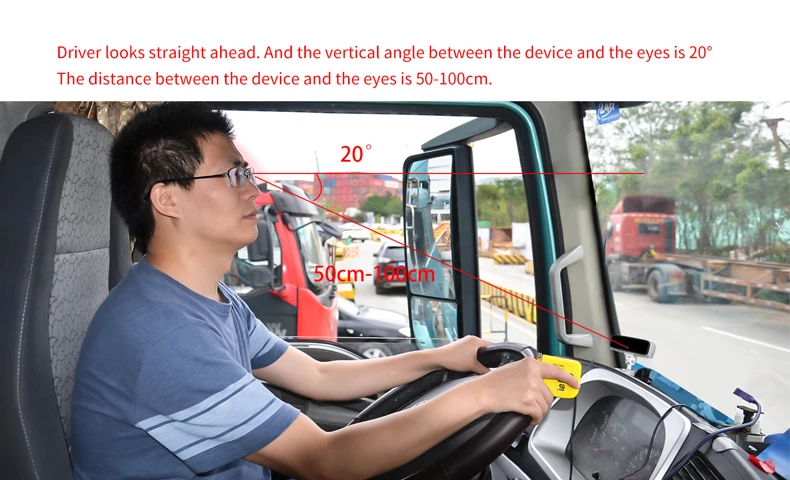

Working distance
50-110cm
Working conditions
Day and night
Detection type
Glasses, Sunglasses
Interface
USB 2.0  & OTG jack,  support dongle
Working voltage
9-36V
Working current
≤500mA@12V
Working temperature
-20℃  ~  + 70℃
Storage temperature
-40℃ ~ + 85℃
IP grade
IP54
Material
Metal
Size
85*61*34mm
Weight
246g
Package
giftbox
Product Usage

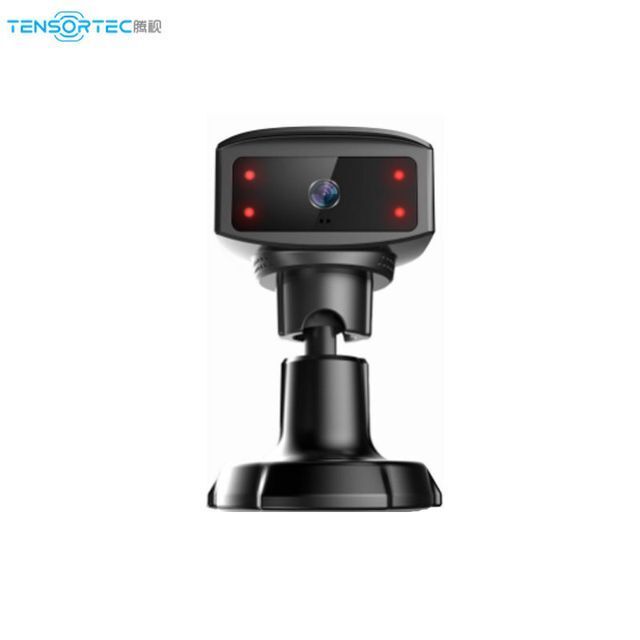

DS03 is a brand new DSM(driver state monitor). It uses professional cameras to real-time monitor drivers' bad driving behaviors such as drowsing, calling, yawning, smoking, distraction. With serial port, it can also connect various types of vehicle terminals to upload drivers bad driving data to monitoring platform.It can be used independently or as an accessory for driver status monitoring of taxi, bus, school bus and other vehicles.
*Can integrate with customer's Mobile DVR via RS232

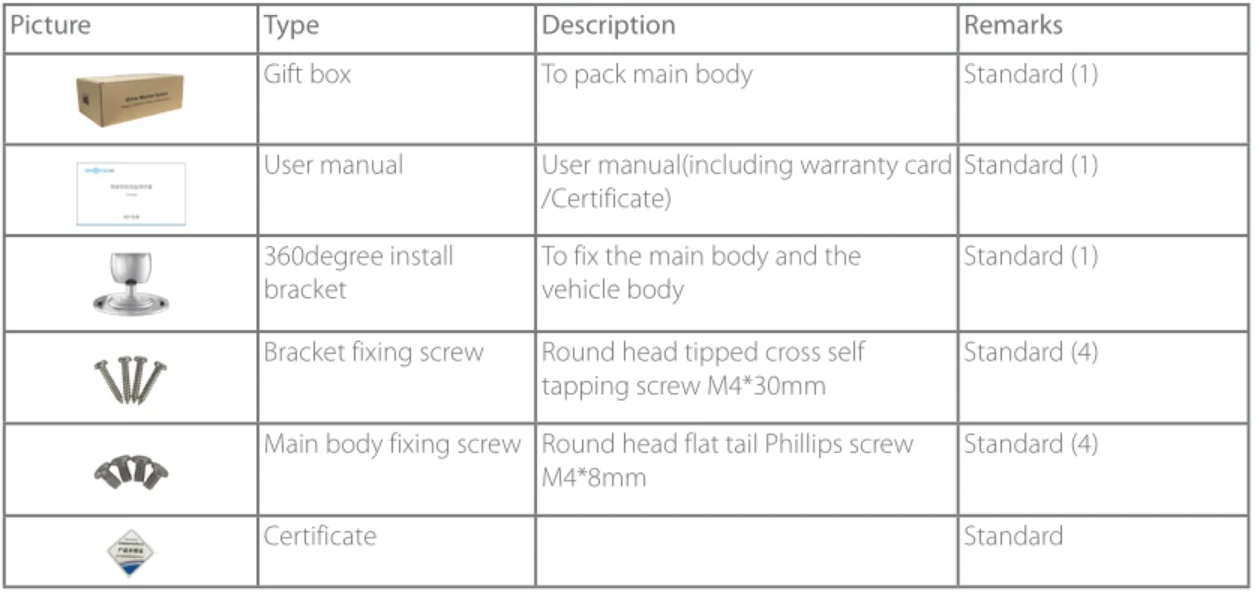

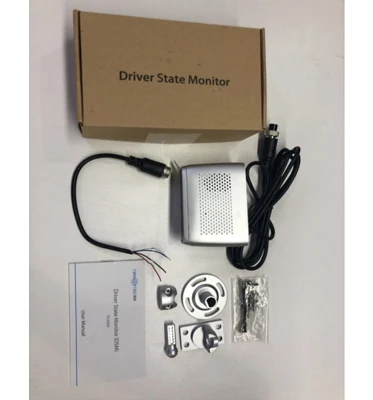

Accessories:

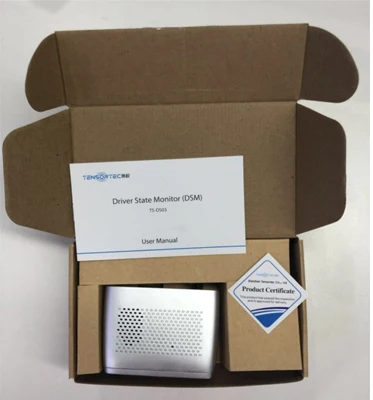

Packing&Shipping
Company Introduction
Shenzhen Tensor Technology Co., Ltd is a supplier of vehicle active safety products and solutions based on AI technology. We offer AI technology algorithm of DMS and ADAS , vehicles safety and intelligent video surveillance devices, platform software and industries solutions.
Our Team
Our core R&D team comes from Huawei and professional vehicle devices companies. We have our own core AI algorithm and product R&D capabilities, and got the national high-tech enterprise certificate.
Main Products

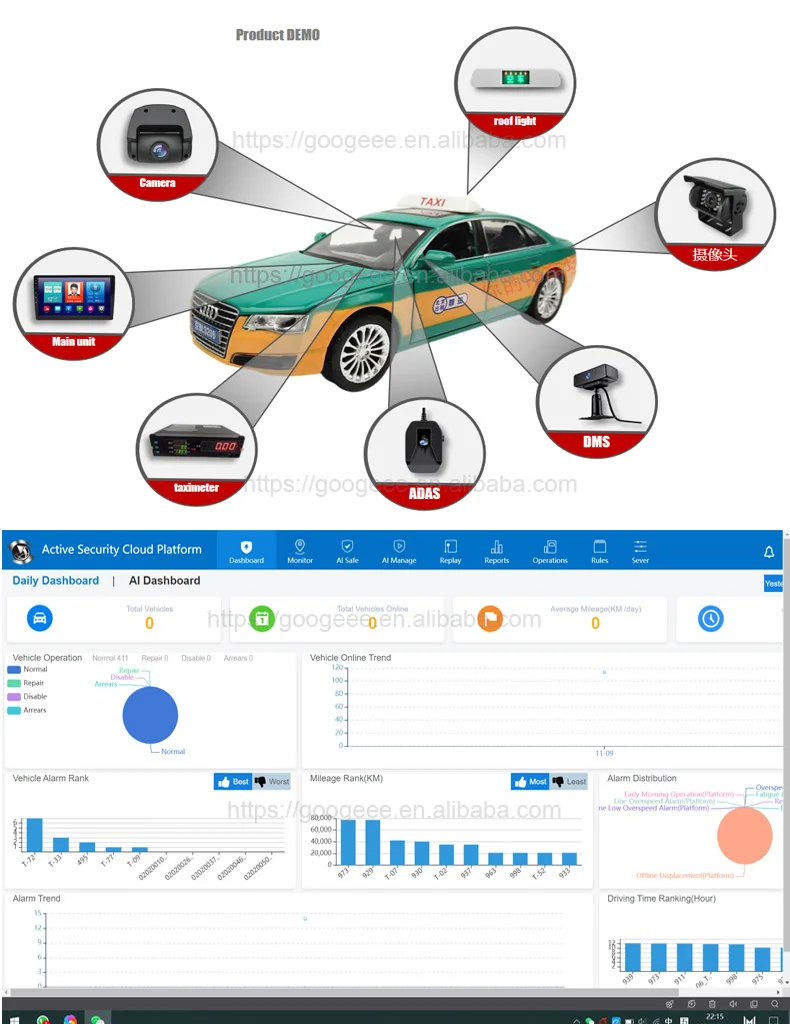

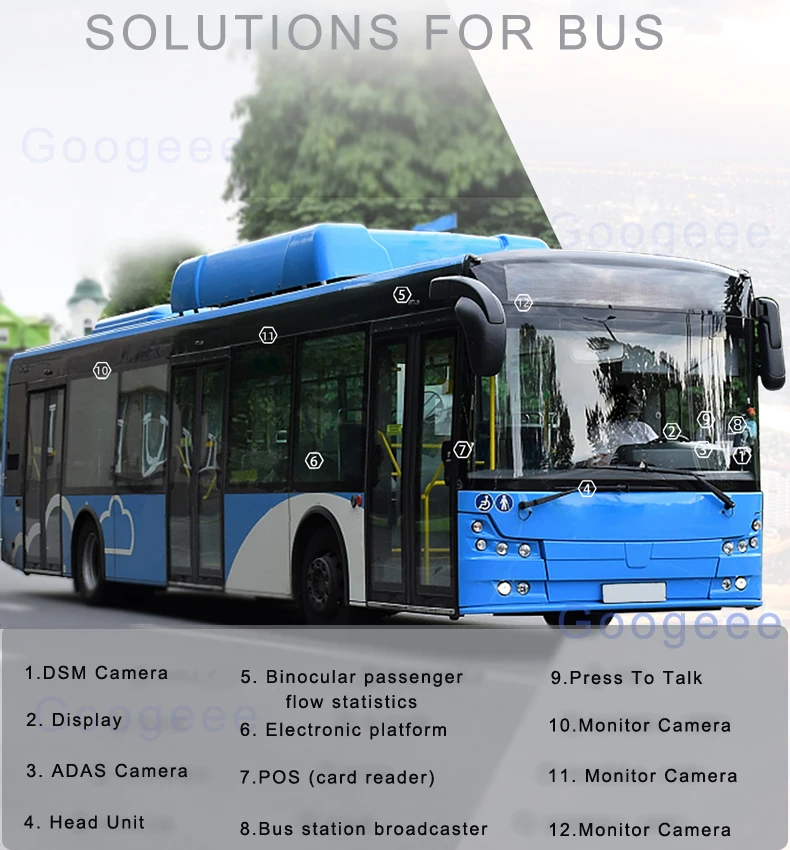

Our main products include DMS, ADAS, Mobile DVR and AI platform, the vehicle activity safety solutions of passengers vehicle , dangerous cargo truck, freight carrier, taxi, school bus, mining truck etc.
