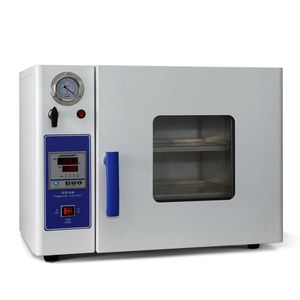

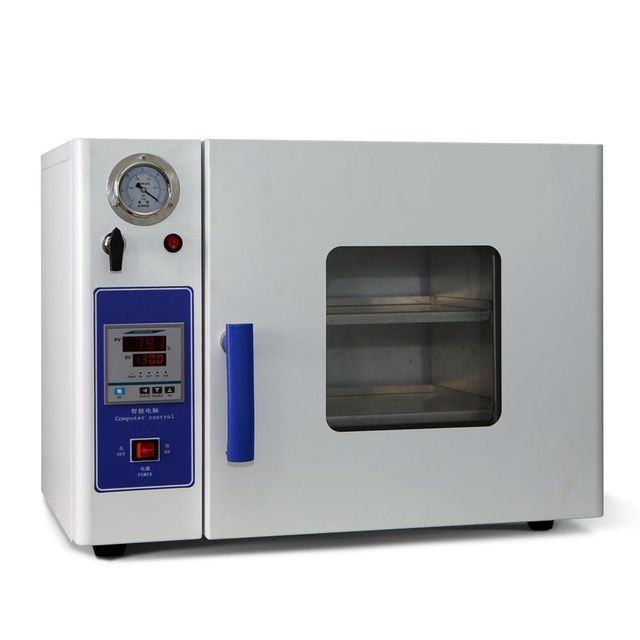

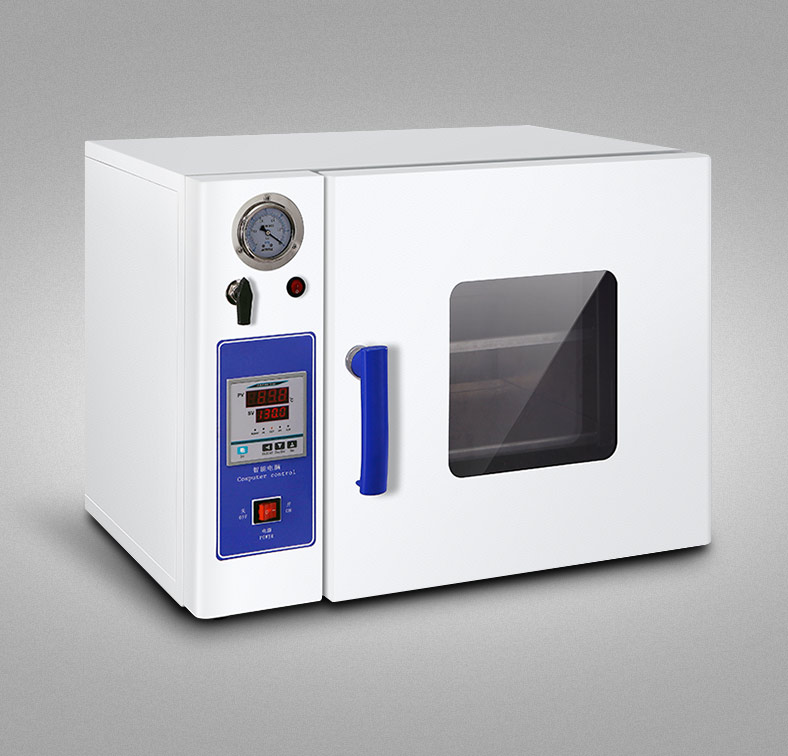

DZF6020 0.9ft Small Laboratory Closed Loop HBO System Vacuum Dryer

PRODUCT DETAIL
Classification:laboratory drying equipmentMaterial:cold rolled steel plate
exhibit:Digital Displaycolor:white
size:smallVoltage:110V/220V/240V
Packaging Details:Wooden packingSupply capacity:100 pieces per week
brand:mtplace of origin; place of origin:Guangdong, China
port:GuangzhouInternal volume:25L
payment terms:Wire Transfer, Western UnionPackage:wooden box
product name:Vacuum drying oventemperature range:Live +10-200
temperature. scope:50-200℃model:dzf6020

0.9 cuft Small Laboratory Closed Loop System Vacuum Oven



DZF series:
Vacuum drying ovens are widely used in powder drying and baking in biochemical, chemical, pharmaceutical, healthcare, agricultural research, environmental protection and other research applications, as well as in the disinfection and sterilization of glass containers used. It is especially suitable for drying heat-sensitive, easily decomposed, and easily oxidized articles with complex components, and achieves fast and efficient drying.
Various complex mechanical parts or other porous samples are cleaned by vacuum drying and then completely dried without leaving any residue.



feature:

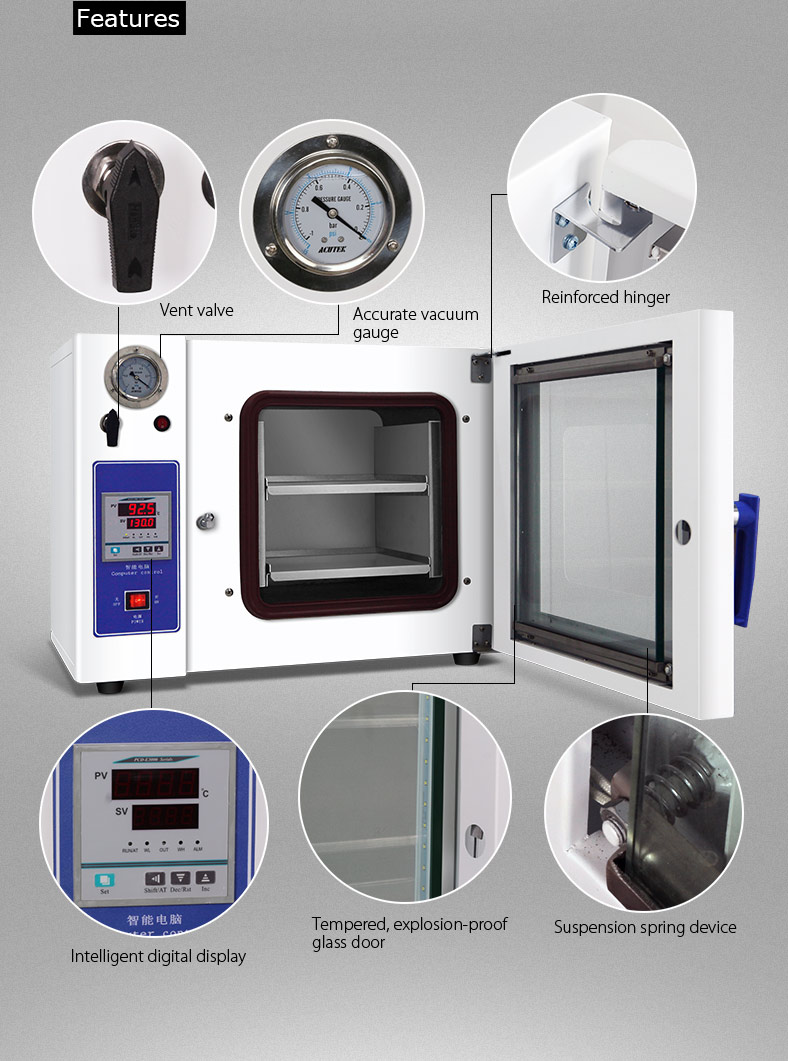

The inner cavity adopts streamline arc design, the outer cavity adopts cold-rolled steel plate, and the surface adopts electrostatic spraying.
The inner pot is made of stainless steel or cold-rolled material, and the corners are semi-circular for easy cleaning.
The tightness of the oven door can be adjusted by the customer.

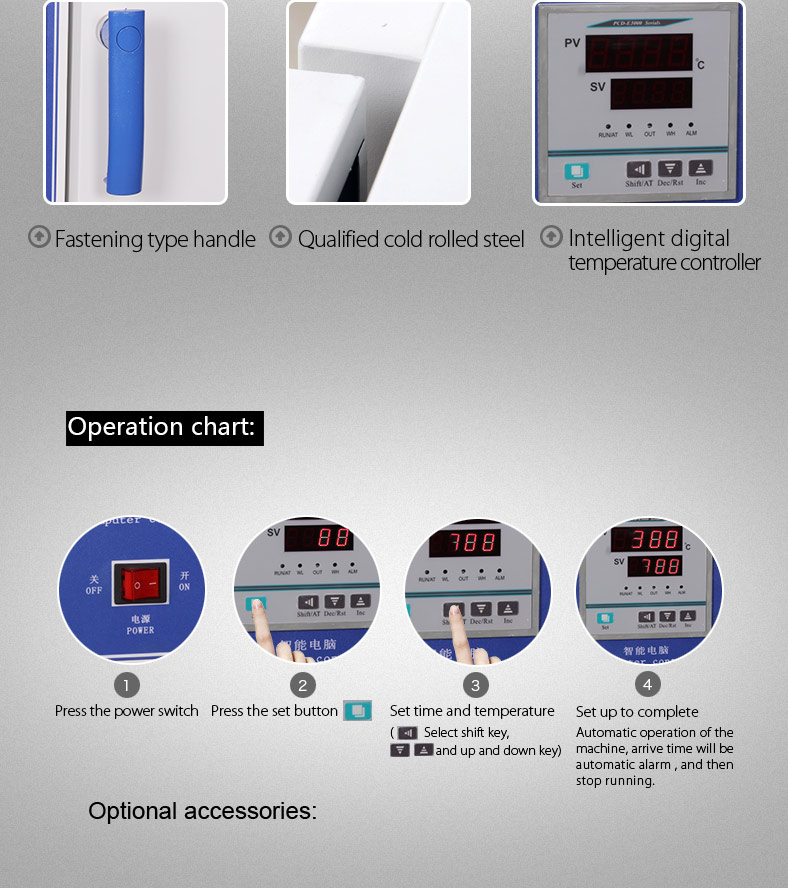

The overall shape of the silicone rubber door seal ensures the high vacuum of the oven, the control panel is controlled by a microcomputer, and the solenoid valve controls the vacuum valve switch.

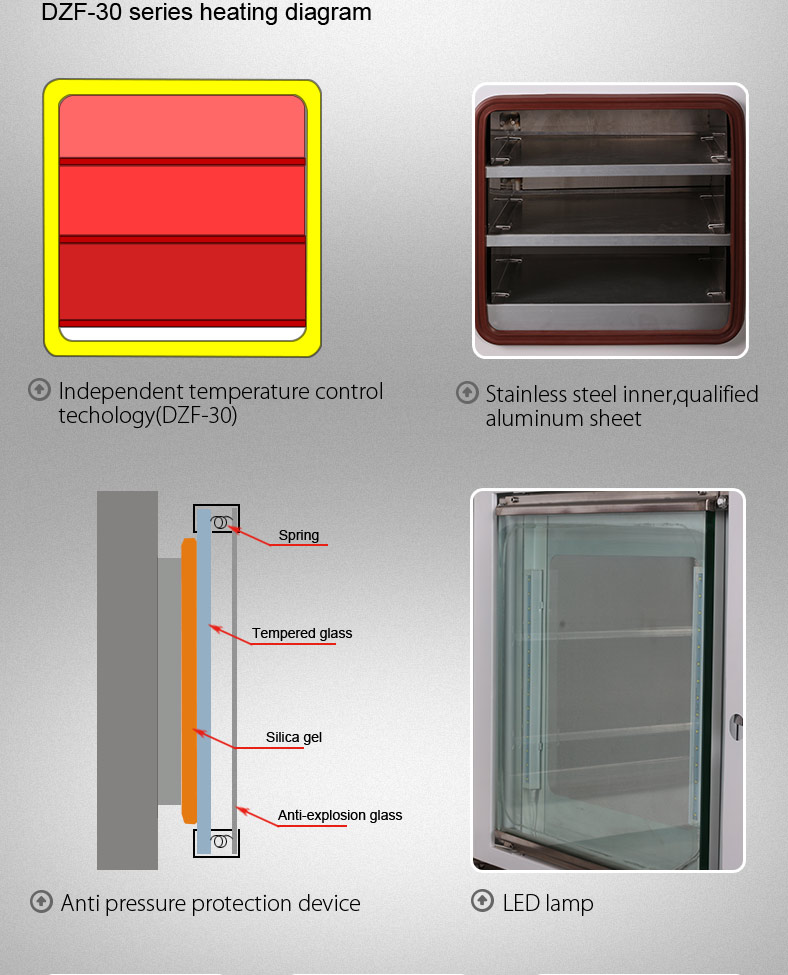

With time and over-temperature alarm function, the door is double-glazed, and the items inside can be seen.



technical parameter:

Model
Voltage
(five)
temperature
scope
(°C)
accuracy
(°C)
degree of vacuum
Power (kW)
Internal dimensions
(mm)
(H*W*D)
Dimensions
(mm)
(H*W*D)
Package dimensions
(mm)
(H*W*D)
net weight
tons (kg)
Shipping weight
(Kilogram)
DZF-6020(S)
220

50~200

±0.5

<133

0.9
280×300×300
450×635×465
570*720*545
42.5
52.5
DZF-6050(S)
1.4
400×415×350
570×750×515
690*830*600
65
75
DZF-6090(S)
2.4
485×440×425
620×780×600

102
112
