HouYuan hot air drying oven for free laboratory use

PRODUCT DETAIL
accuracy:±1°C at 100°CTimer:0~9999min or continuous operation
brand:Houyuan Medicalfluctuation:±1℃

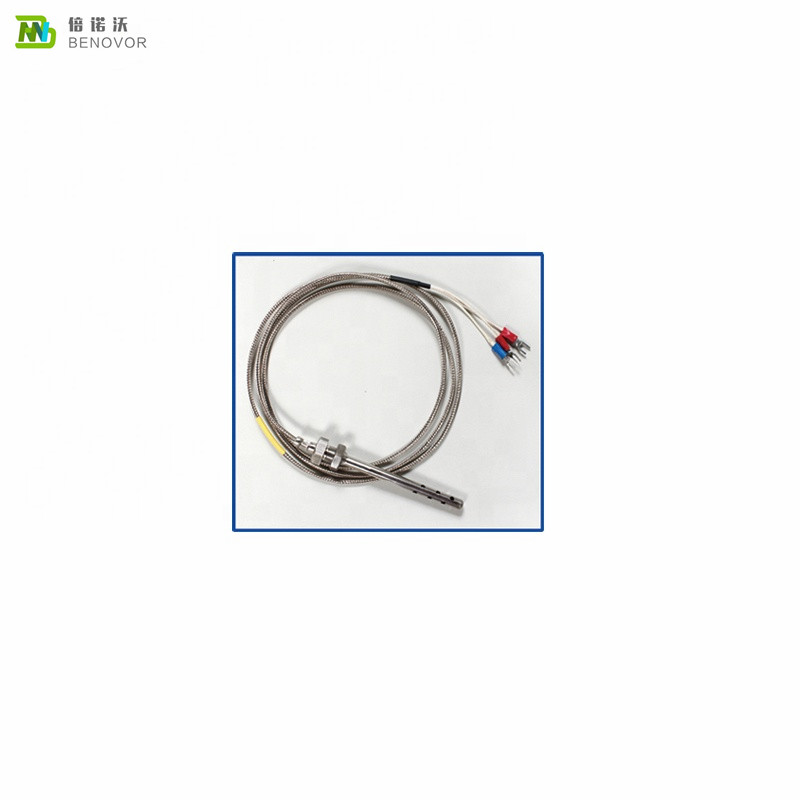

Classification:laboratory drying equipmentHumidity Sensor:PT100

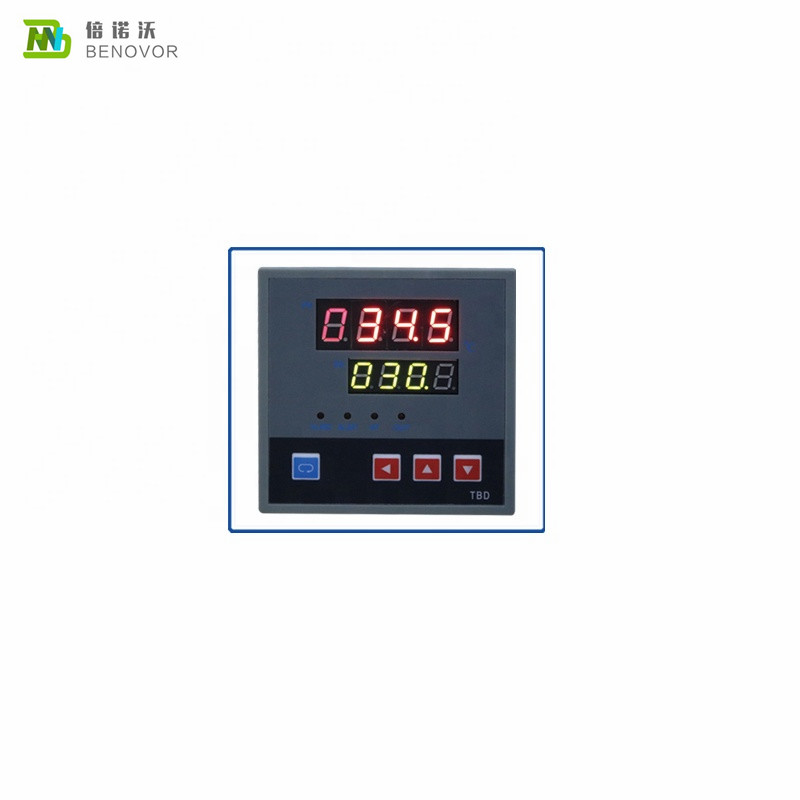

model:HY-B seriesTemperature Controller:PID, LCD screen
Internal material:SUS304payment terms:Western Union,L/C,T/T,Alibaba online transaction
Supply capacity:1000 pieces per weekModel:HY-B series oven
port:SAHGNHAI, NINGBO,GUANGZHOU,XIAMEN, all addresses in ChinaExternal material:cold rolled steel plate
capacity:50/70/140/240/420/620LPackaging Details:Inexpensive laboratory hot air drying box, packed in wooden box.
Packaging Preview:temperature:Room temperature+10~300℃
place of origin; place of origin:Anhui, China

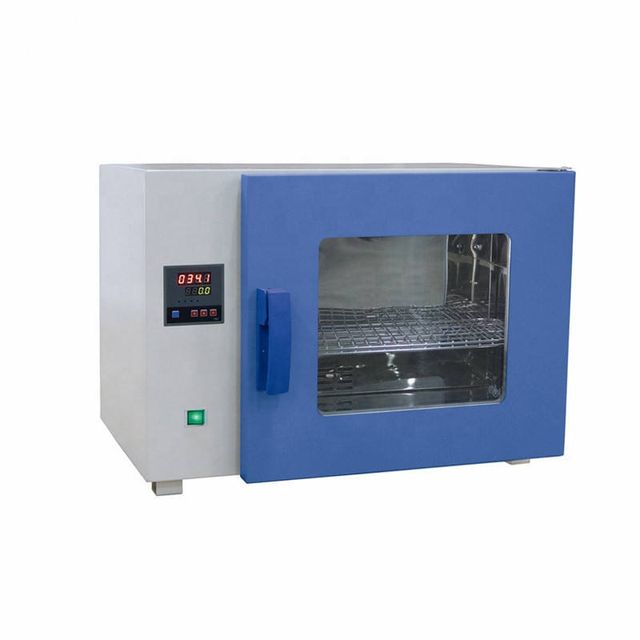

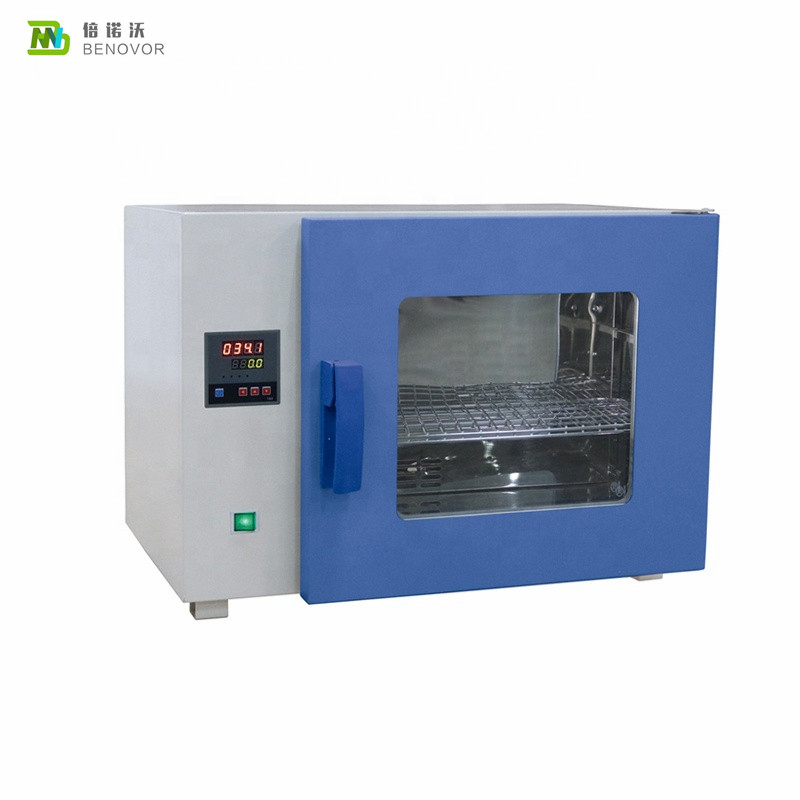

Houyuan cheap laboratory hot air drying oven
The door adopts double-layer tempered glass observation window, adjustable air-tight snap lock, and silicone rubber seal, which has good sealing and effectively prevents heat loss.
main feature:
♦ The box body adopts mirror stainless steel argon arc welding.

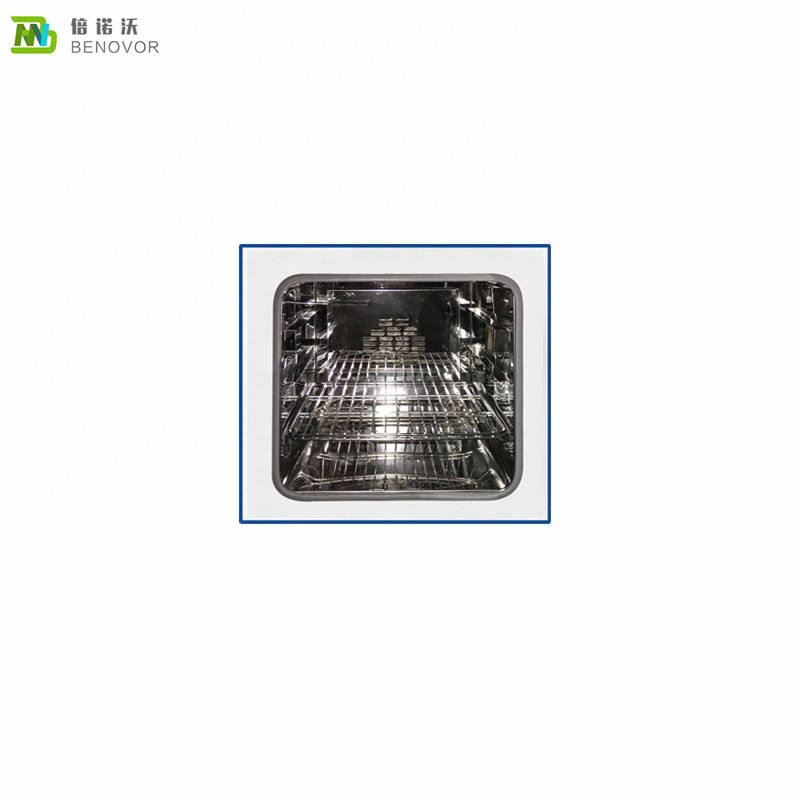

♦ The four corners of the inner tank are semi-circular arcs, which are convenient for cleaning.
♦ The exterior of the box is made of high-quality steel plate, which is beautiful and novel.
♦ Tempered glass door, you can observe the objects in the studio at a glance.
♦ Microcomputer temperature, time controller and thermal cycle diverter consist of low noise fan and proper air
Tube. The temperature in the working room is uniform. Touch keyboard setting adjustment, stable and reliable use.
♦ RS485 interface printer and intelligent multi-segment program controller can be installed as required.
♦ Optional LCD control.
Main Specifications:
Model
HY-9050B
HY-9070B
HY-90140B
HY-90240B
HY-9420B
HY-9620B
capacity
50L
70L
140L
240L
420L
620L
Voltage
AC220V 50Hz or customized upon request.





Temperature control range
Room temperature+10℃-300℃





temperature resolution
0.1℃





temperature fluctuation
±1℃
temperature uniformity
±3% (test point is 100%)





Operating temperature
+5℃-40℃





power input
800W
1500W
2000W
2500W
3500W
4000W
Internal dimension(mm)
350X350X350
450X400X450
550X450X550
600X500X750
590X580
X1300
590X800
X1310
Dimensions (mm)
650x570x540
740x520x630
840x510x730
890x620x930
900x800
x1510
900x102
x1500
operating hours
1-9999 minutes





shelf
2

3
