Degumming, dephosphorization and decolorization of peanut and soybean oil in crude oil refinery

PRODUCT DETAIL
Core component warranty:1 yearVideo shipment inspection:if
Voltage:220v, 380vlife:15-20 years old
Maximum capacity:500 kg/hOrigin:Jiangxi, China
Dimensions (L*W*H):165*85*140cmAfter-sales service provided:Free spare parts, video technical support, online support
After warranty service:Video technical support, online support, spare partsProduction capacity:98%-100%
Warranty:1 yearbrand:converge
Health status:newAutomatic level:automatic
usage:cooking oilCore components:spare parts
type:refineryapplication:Fresh Argan Seed Oil Refined
port:Qingdao, Ningbo, Shanghai, ShenzhenSupply capacity:100 pieces per day
payment terms:L/C, Western Union, T/T, MoneyGram, Alibaba Trade Assurance, PaypalMechanical test report:if
Packaging Details:wooden boxOil type:Flaxseed Oil, Soybean Oil, Rapeseed Oil, Tea Seed Oil, Basil Oil, Sesame Oil, Peanut Oil, Sunflower Oil, Almond Oil, Walnut Oil, Peanut Oil, Coconut Oil, Olive Oil, Palm Oil
weight:140 kgMarketing Type:hot product
Showroom location:not anyMain selling points:automatic
Local service location:not anyCertification:CE certification
Applicable industries:Restaurant, Household, Edible Oil Refiner



Degumming, dephosphorization and decolorization of peanut and soybean oil in crude oil refinery



Product Description

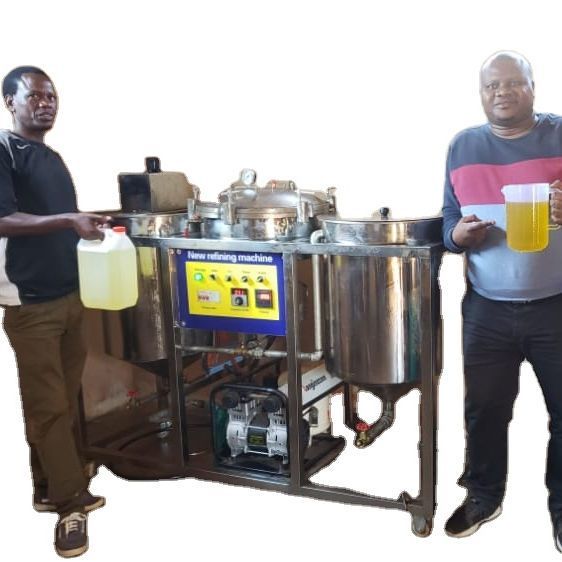

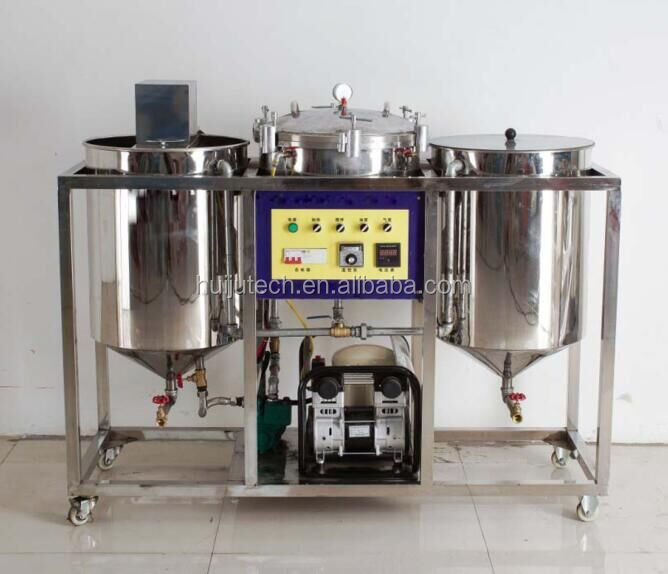

Model: HJ-JLYJ200 Refiner

Machine size: 165*85*140cm

Gross weight: 140kg

Function: degumming, dephosphorization, decolorization

With filter system, 75 kg per barrel, about 500 kg in 24 hours
Air pump power: 1.1kw
Self-priming pump: 2*0.75kw/220v
1*0.37kw/220v
Put 10kg of white clay in 24 hours

Voltage: heating power 4kw/220v/380v



Common parameters of engine oil

crude oil composition

Oil name

Soap content (106)

Phospholipid content

Solid Impurity Content

Rapeseed / Rapeseed

2300

0.63

2%-6%

peanut

1100

0.84

1%-4%

soybean

2700

1.10

3%-7%

sunflower seeds

2200

0.57

2%-8%

cotton seeds

5000

0.70

3%-8%



Composition of Refined Oil

Oil name

Soap content (106)

Phospholipid content

Solid Impurity Content

Rapeseed / Rapeseed

30

0.005

≤0.05%

peanut

20

0.006

≤0.01%

soybean

60

0.006

≤0.03%

sunflower seeds

80

0.15

≤0.04%

cotton seeds

110

0.012

≤0.05%



Function

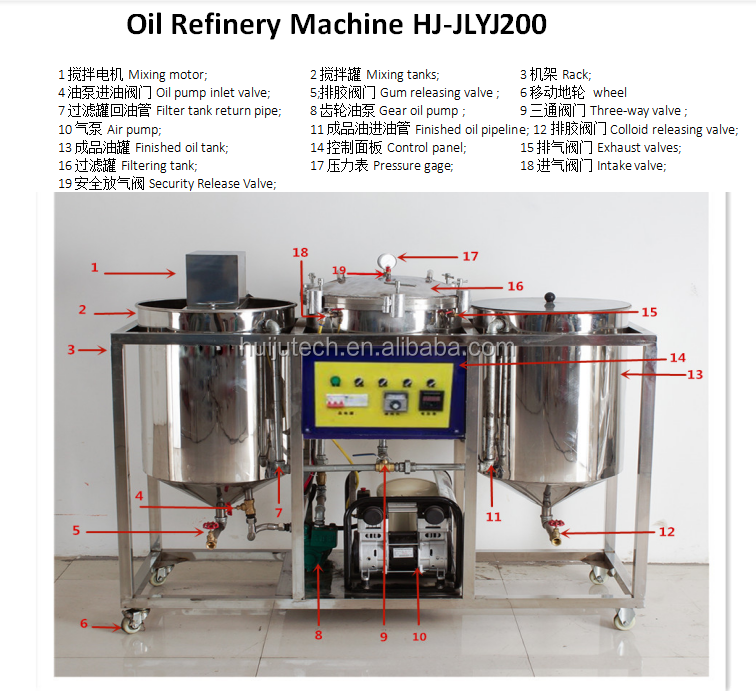

HJ-JLYJ200 operation process

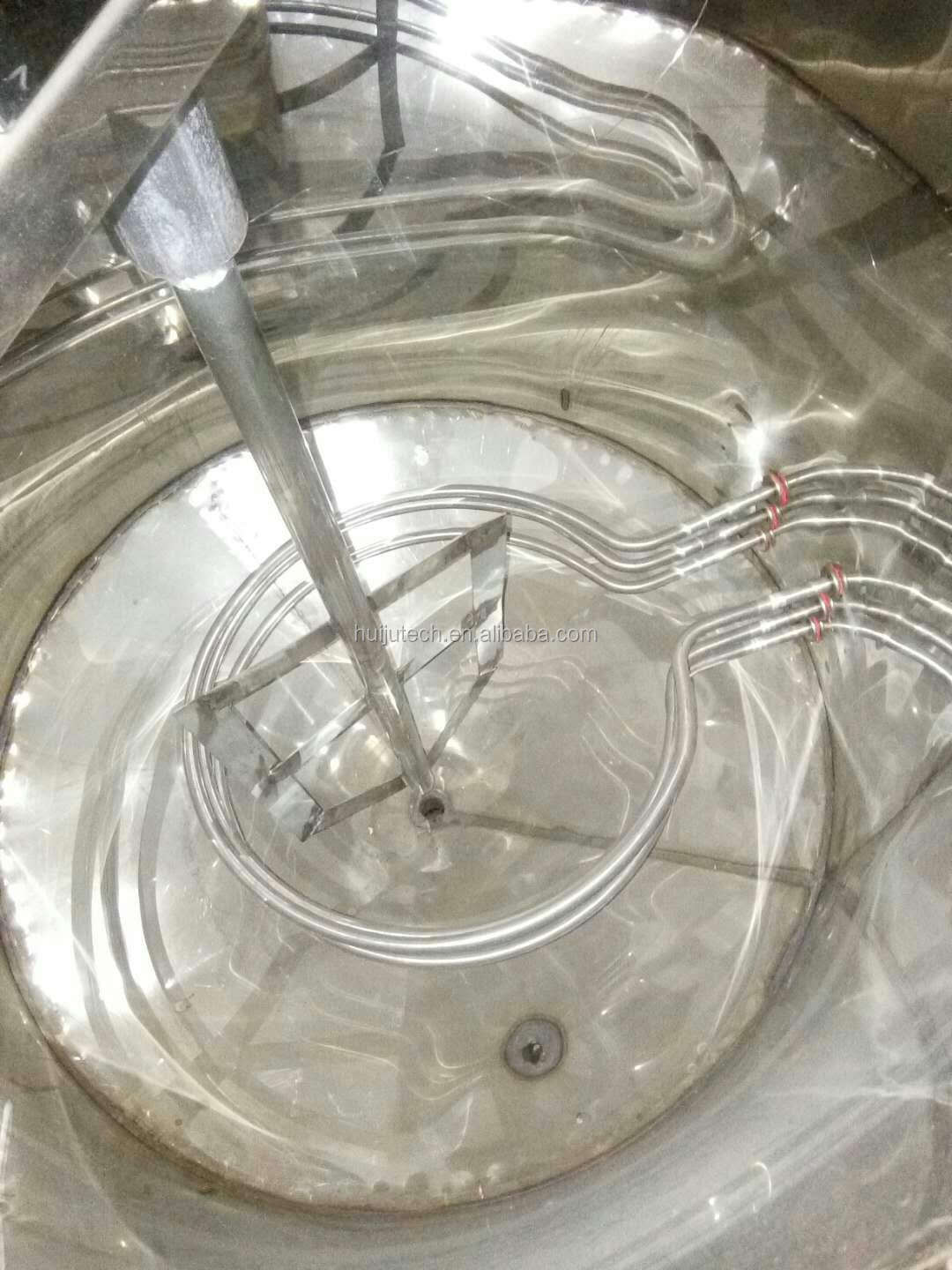

1. Pour the filtered oil into the first mixing tank (note: the height of the oil must exceed the heating tube)

2. Turn on the mixing switch, the speed is 45-55RPM (revolutions per minute) (Note: There is a knob on the side of the electric box to adjust the speed).

3. Turn on the heating switch and set the temperature of the temperature control meter to 62 degrees.

4. When the temperature reaches 62 degrees, slowly pour the prepared citric acid solution into the stirring tank (the ratio of citric acid to water is 50kg water to 2.5kg citric acid, and the ratio of oil to citric acid solution is 50kg oil to 0.5 -1.5kg citric acid solution, the water temperature must be between 80 -100 degrees)

5. Turn off the heating and stirring switch after 30 minutes. After 30-60 minutes of natural precipitation, remove the impurities from the glue outlet until the glue outlet discharges clean oil, and then close the glue outlet.

6. Turn on the stirring and heating switch, and set the temperature to 110 degrees. After the temperature reaches 110 degrees, wait for 30-60 minutes, take a small sample and put it in the pot for testing to confirm whether there is water in the oil. (Note: How to test the water content: Pour refined oil into the pan, then heat the pan. If there is no water in the oil, you cannot hear the sound of water.)

If water remains, continue heating until the sample is free of water. Then turn off the stirring and heating switches.

7. When the oil temperature naturally drops to about 80 degrees, set the oil pump switch to filter the oil into the oil filter tank. (Note: When starting to filter, some mixed oil will flow out. Note that there is a three-way valve under the box. When the wrench is at a ninety-degree angle with the pipe, the oil will flow back to the first mixing tank. Until the mixed oil is clear , put the wrench and the pipe in a straight line and the oil will go into the finished tank).

If the oil needs to be decolorized, add 10 cm thick clay to the filter tank, and it needs to be replaced every day in summer.
