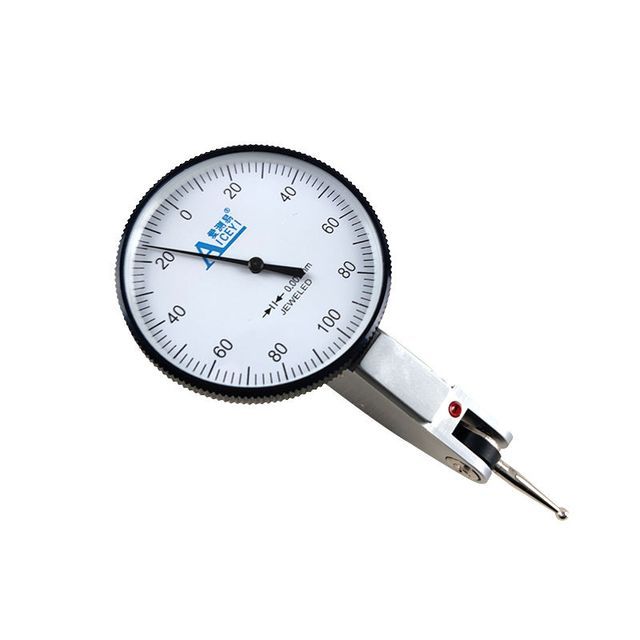

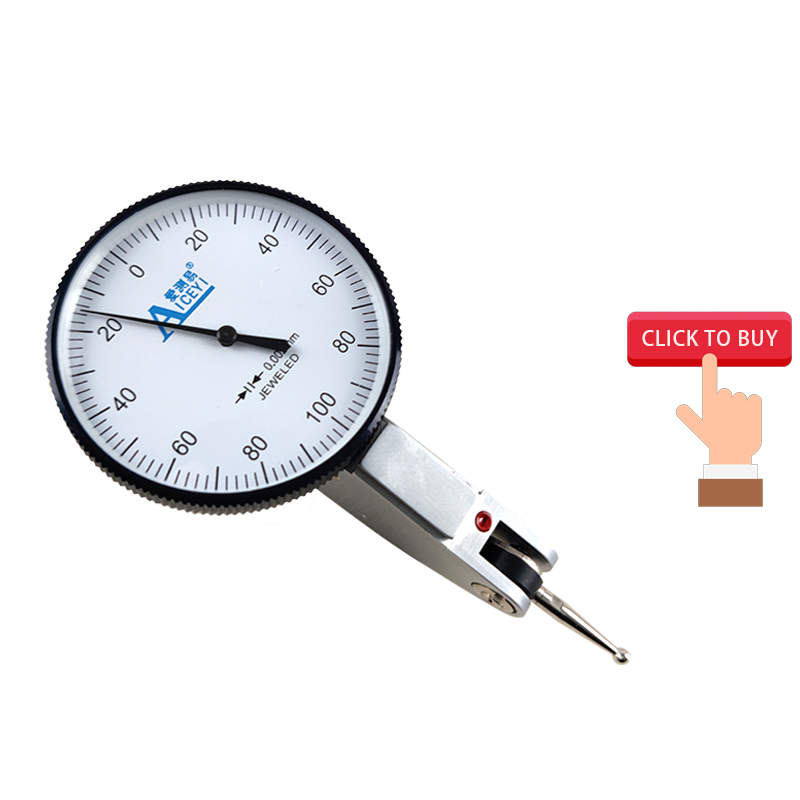

Dial test indicator 0.001mm dial precision dial indicator
- $28.00 /piece
- 1 piece
- Dongguan Kuaijie Measuring Tool & Instrument Co., Ltd.
- Guangdong, China
- Mr Shenglan Pan
PRODUCT DETAIL
| Warranty: | 1 year | product name: | Dial test indicator |
| Dial diameter: | 32mm/38mm | solve: | 0.01mm/0.002 |
| model: | ACE-0001 | Supply capacity: | 500 pieces per month |
| Customization support: | OEM, ODM, OBM | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Credit Card |
| Material: | Stainless steel | Place of origin: | Guangdong, China |
| Measuring range: | 0-0.8mm/0-0.02 | brand: | Ai Siyi |
product description

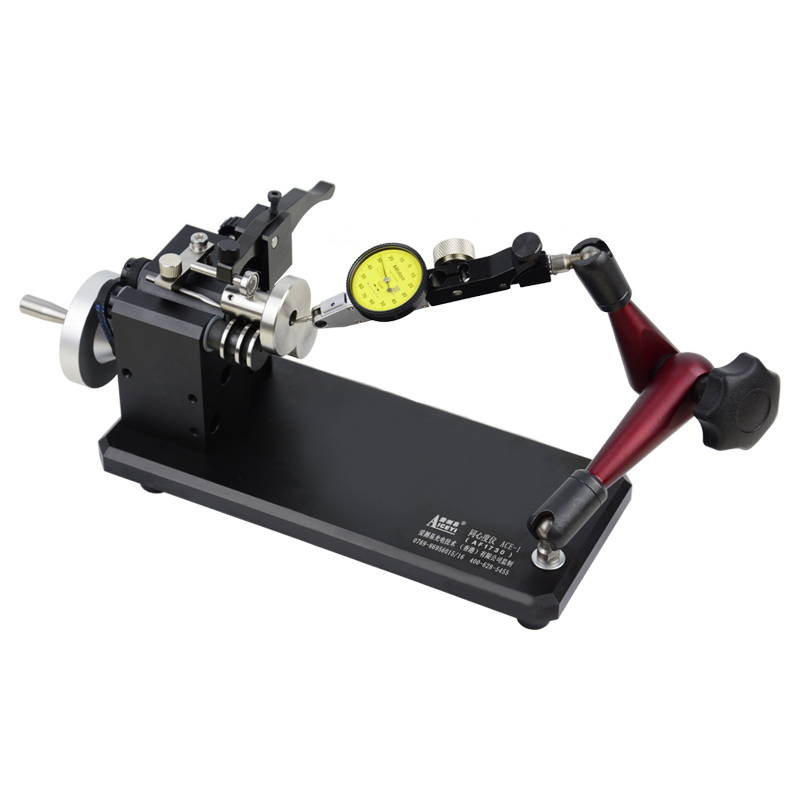

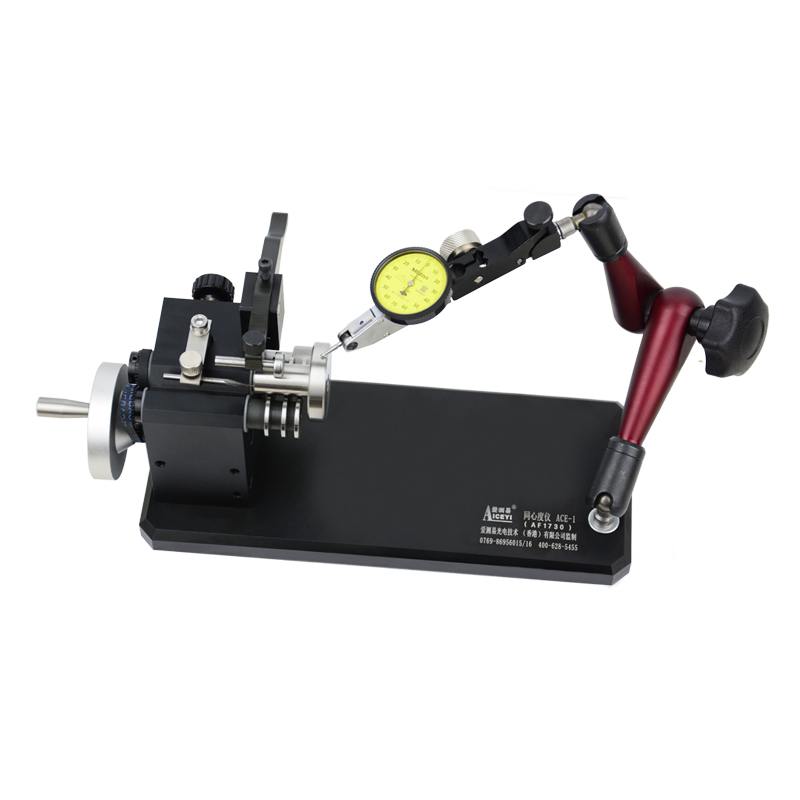

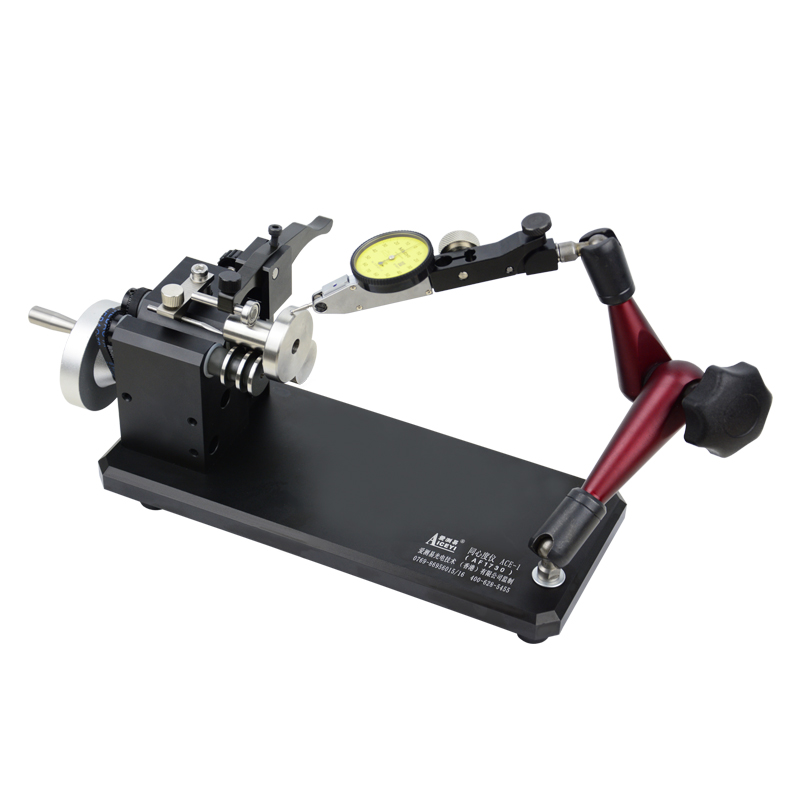

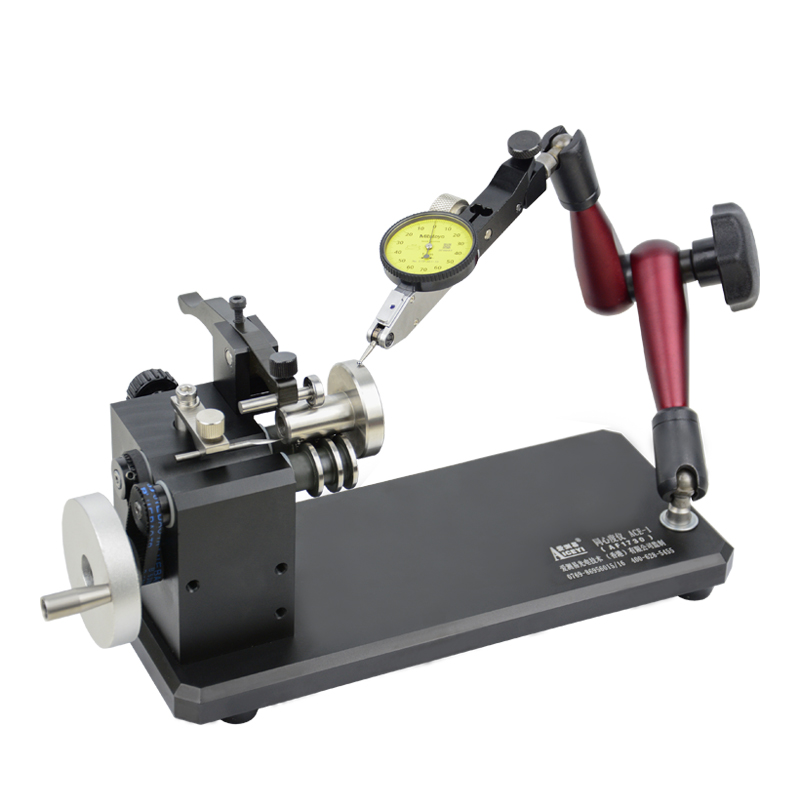

Concentricity measuring instrument
1 Main purpose:
1. Precision measurement of roundness, concentricity, circular runout and cross-section of shaft parts.
2. The outer circle and internal parameters of axial parts are measured accurately at the same time.
3. The measurement speed is fast, the surface is cut, and the inner and outer circles can be measured at the same time.
4. Accurately measure multiple parameters of shaft parts at the same time.
2 Features:
2. The outer circle and internal parameters of axial parts are measured accurately at the same time.
3. The measurement speed is fast, the surface is cut, and the inner and outer circles can be measured at the same time.
4. Accurately measure multiple parameters of shaft parts at the same time.
2 Features:
1. High precision 0.002mm.
2. Quickly measure and save time.
3. Simple operation and common use.
4. Lightweight, easy to move and simple to maintain.
5. The operating environment requirements are not high.
6. The machine can be specially customized for some special workpieces.
3 Operating Instructions:
3 Operating Instructions:
1. Please place the machine in a dry and clean environment and not directly exposed to sunlight.
Exposure to sunlight or moisture. The invoice is hot and vibrating strongly.
Exposure to sunlight or moisture. The invoice is hot and vibrating strongly.
2. The concentricity measuring machine is a high-precision instrument. Please handle it with care during transportation and movement to avoid impact and collision.
3. In order not to affect the accuracy of the instrument, please use a clean soft cloth or absorbent cotton dipped in pure alcohol or special detergent to wipe the "working rotation axis" and "orientation axis". Avoid wiping directly with your hands.
4. The instrument needs to be derusted and maintained regularly to prevent foreign matter from directly contacting the surface of the machine.
5. The instrument should be placed horizontally during use to prevent the workpiece from moving during the measurement of axial movement.
6. It is strictly prohibited to disassemble the instrument by yourself.
7. If you have any questions during use, please call 400-628-5455.6. It is strictly prohibited to disassemble the instrument by yourself.
Product parameters
Model | roller | Applicable diameter (mm) | Applicable length (mm) | Accuracy (mm) | Configuration |
ACE-1 | concave | 1-35 | 102 | 0.002 | Instrument base |
ACE-2 | concave | 10-50 | 152 | 0.002 | Instrument base |
ACE-4 | concave | 20-102 | 203 | 0.002 | Instrument base |
ACE-135 | concave | 1-35 | 102 | 0.002 | Gauge base + fixture slide rail |
ACE-1050 | concave | 10-50 | 152 | 0.002 | Gauge base + fixture slide rail |
ACE-2010 | concave | 20-102 | 203 | 0.002 | Gauge base + fixture slide rail |
B10 | Cylindrical | 3-35 | 100 | 0.002 | Gauge base + fixture slide rail |
B20 | cylindrical | 10-50 | 152 | 0.002 | Gauge base + fixture slide rail |
B40 | cylindrical | 20-102 | 203 | 0.002 | Gauge base + fixture slide rail |
More models
Product display
Source factory welcomes all dealers/sellers to cooperate! ! !
The leverage indicator chart in the picture is for display only. Please purchase separately if necessary. Thanks.
