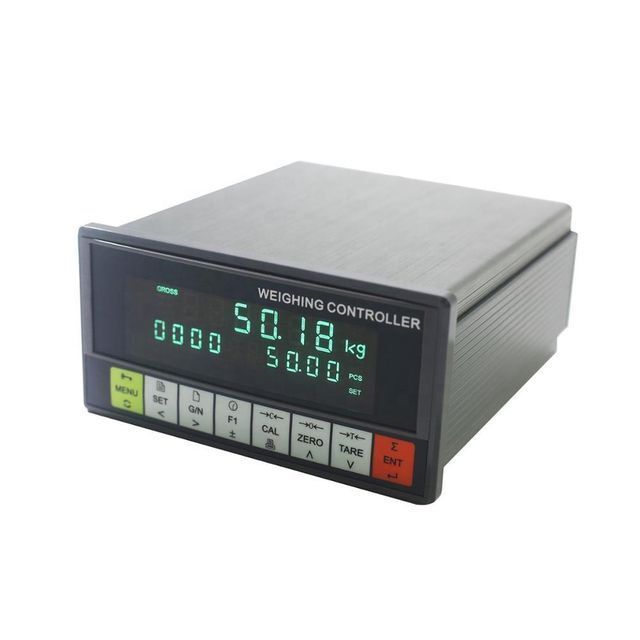

weighing indicator for batching scale with VFD display support MODBUS RTU
- $250.00 / 1 - 49 pieces
$220.00 / >=50 pieces - 1 piece
- Changsha Supmeter Technological Co., Ltd.
- Hunan, China
- Ms Lisa Ho
PRODUCT DETAIL
| Application: | 5 kinds of material batching; | Payment Terms: | Western Union,T/T; |
| Supply Ability: | 10000 Pieces per Month; | Customized support: | OEM; |
| Place of Origin: | Hunan, China; | Certification: | CE; |
| Packaging Detail: | 1 pcs/ box; | Warranty: | 12 months; |
| communication protocol: | MODBUS RTU; | Battery: | Lithium battery; |
| Package: | Carton Box; | Model Number: | BST106-H18[F]; |
| Brand Name: | SUPMETER; |
Product Description
Suitable for Hopper Ration Batching Scale with 5-material, Single-speed or Double-speed Feeding.
| Power Supply | AC220V±15% |
| Display | 16-bit green VFD digit display screen with English character display |
| Kaypad |
8 keys for Menu&Shortcut mode operation with key tone |
| Excitation Voltage Output | DC10V |
| Max. Connect number of Loadcell | 8 Loadcells (350Ω) |
| A/D Convert | 24-bit |
| Sampling Frequency | 800Hz |
| Zero Drift | ±0.1μV/°C RTI (Relative to Input) |
| Gain Drift | ±5ppm/°C |
| Non-linearity | ±0.01%FS |
| AO | 1 AO (4~20mA) for additional option |
| DI | 7 Normally Open Switch Inputs |
| DO | 12 Normally Open Transistor Switch Outputs |
| Communication Port | COM1: RS232; COM2: RS232/RS485/RS422/Profibus-DP/CANBUS/Ethernet modules for additional option |
| Connectable | IPC/PLC, Remote Display&Operation Terminal, Serial Printer and Wireless Module |
| Outline Dimension | 164× 82 × 188 mm (W×H×D) |
| Weight | Approx. 1.5kg |
| Service Temperature | -20°C to +40°C |
| Storage Temperature: | -30°C to +60°C |
| IP Grade | IP50 |
