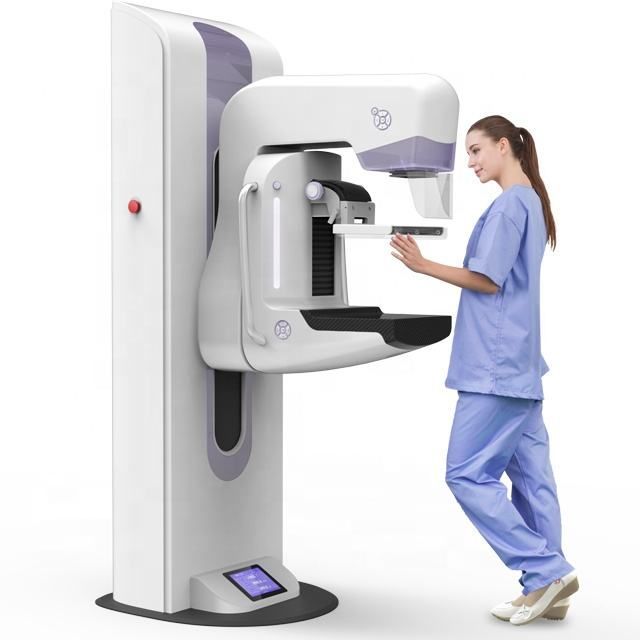

Digital mammography breast diagnostic machine equipment price

  • $4999.00 /unit
  • 1 unit
  • MEDSINGLONG CO LTD
  • Guangdong, China
  • Ms Ling Huang
PRODUCT DETAIL
C-arm:Vertical movement range 630-1400mm, deviation ±5%Packaging Details:Standard export packaging
Minimum mAs:0.5mAs (50ms 10mA)port:Guangzhou
Warranty:2 years, 2 yearsRadiography time:0.005-10 seconds
safety standard:GB/T18830-2009brand:MSL
Origin:Guangdong, Chinacharacteristic:Medical X-ray Equipment and Accessories
Instrument classification:SecondaryExposure Control:manual, semi-automatic, automatic
Heat dissipation method:cross ventilationEnergy source:electrical
Shelf life:15 yearspayment terms:L/C, Western Union, T/T, MoneyGram, Trade Assurance, PayPal, C/C
Material:MetalAfter-sales service:online technical support
model:MSLRX04Supply capacity:1000 units per month
weight:13 kgX-ray tube voltage:20-40kV (step 0.5kV)
product name:digital mammographyQuality Certification:ce,iso
Product Description
feature

Digital mammography breast diagnostic machine equipment price


Digital Mammography System

High Voltage Generator Type High Frequency Inverter Type

X-ray tube voltage 20-40kV (step 0.5kV)

X-ray tube current 10mA-160mA

Maximum output power 5kW (40kV, 125mA)

Nominal power 4.8kW (30kV, 160mA, 0.1s)

Radiography time 0.005-10s

mAs 0.5mAs~560mAs

Minimum mAs 0.5mAs (50ms 10mA)

Maximum mAs 560mAs

Minimum mAs in AEC 6.3mAs

Exposure control manual, semi-automatic, automatic

Radiant Pattern Cross Ventilation



X-ray tube XM15 HMT-113

small focus/big focus small focus/big focus

Focus size 0.1mm/0.3mm 0.1mm/0.3mm

Anode maximum heat capacity 225kJ (300kHU) 225kJ (300kHU)

Maximum heat dissipation 500W 500W

Anode cooling method oil cooling oil cooling

Nominal voltage 40kV 40kV

Target Angle 15° 10°/16°

Target molybdenum molybdenum

Radiation field 18cm-50cm 18cm-50cm

Inherent filter 0.5mmBe 0.5mmBe

Additional filter 0.03mmMo/

Anode speed low speed 3000r/min; high speed 10000r/min low speed 3000r/min; high speed 10000r/min

Anode input power 1.15-2KW / 4.8-9kW 0.7-1.35kW / 2.9-4.9kW

X-ray tube socket (C339v)

Additional filter 0.03mmMo

Weight 13 kg



C-arm

Vertical movement range 630-1400mm, deviation ±5%

Rotation range +195°~-155° Angle division value 1°, deviation ±2%

FID 660mm, deviation ±5%

3D tomographic axis rotation +30°~-30° deviation ±2%

Rotation mode power driven two-speed rotation

Preset angle and memory function

The movable range of the pressure plate is 245mm, and the deviation is ±10%.

1.5 times platform 150mm movement range, deviation ±10%

1.8 times platform 75mm range of motion, deviation ±10%

Operation mode manual/automatic

Pressure range 0-300N (manual) 150-200N (automatic)

FPD AXS-2430 HMD-2430

Pixel unit 85um 85um

Effective pixel size 239.36*304.64mm 239.36*304.64mm

Pixel matrix 2816*3584 pixels 2816*3584 pixels

Spatial resolution ≥7 lp/mm ≥7 lp/mm

Cooling method fan cooling fan cooling

Grayscale≥16bit ≥16bit

DQE ≥50% ≥50%

grid

Grid ratio 5:1

Size 338*264mm

Line pair 36lp/cm

Focus 66cm

Collimator (HMC-915)

Power supply 24V DC, 2A

Radiation field minimum 5*5cm/maximum 24*30cm

Radiographic platform field of view 24*30cm SID 660mm, deviation ±5%

1.5 times photography platform field of view 16*20cm SID 440mm, deviation ±5%

1.8x imaging platform field of view 13.6*16.7cm SID 366.7mm, deviation ±5%

Intrinsic filter 0.02mmAl

Additional filter 0.03mmMo/0.025Rh

Maximum SID illumination>160Lux

Timer button/automatic, 30-second timer

LED indicator

Maximum radiation leakage <40mRh

Light field switch automatic

Weight 3.6 kg

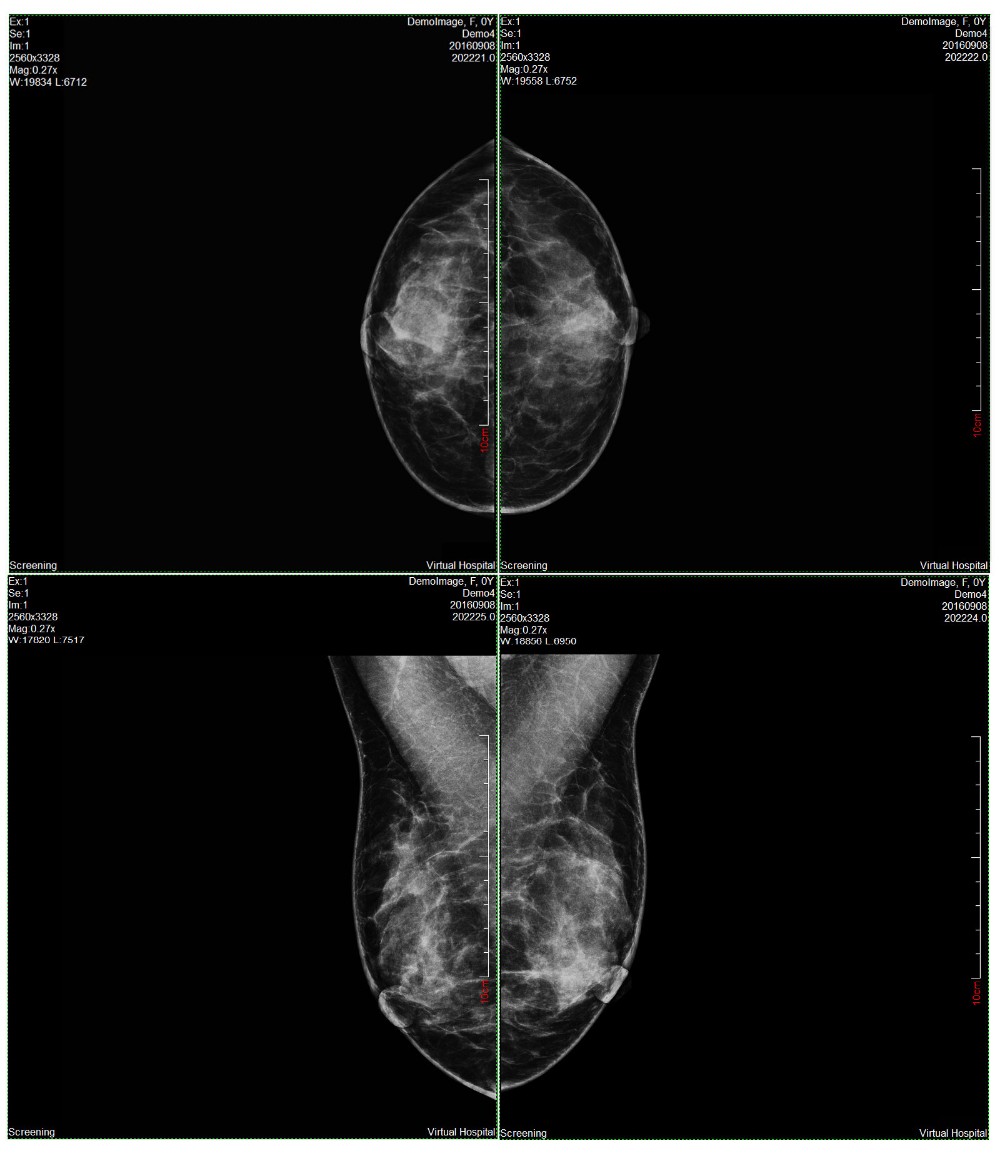

Image acquisition workstation screen size/resolution 19", resolution 1280*1024, contrast ratio 1000:1

Memory≥8G

Hard disk ≥ 320G

Operating system Win7

Image format DICOM3.0 (can be connected with RIS)

Image storage capacity ≥ 20000 images

Manually enter patient dates or download HIS/RIS forms via DICOM Worklist

CD-R recorder (to store images)

Selecting the features of breast implants

Integrated design of high-voltage generator, exposure specifications can be set at the workstation


Technical Parameters
mammography unit
Radiation field minimum 5*5cm/maximum 24*30cm
Timer button/automatic, 30-second timer
