Digital radiography of the X-ray machine

  • $2999.00 / 1 - 99 units
    $1999.00 / 100 - 99999 units
    $999.00 / >=100000 units
  • 1 unit
  • MEDSINGLONG CO LTD
  • Guangdong, China
  • Ms Ling Huang
PRODUCT DETAIL
Current scope:10-400mACurrent time products:0.1-500mAs
Warranty:2 years, 3 yearsSupply capacity:1000 units per month
Packaging Preview:focus:0.6mm/1.2mm
port:Guangzhouplace of origin; place of origin:China
Kvp range:40-150Kvpmodel:MSLDR17
safety standard:GB/T18830-2009characteristic:Medical radiation protection products
Material:otherShelf life:10 years
Inverter frequency:50kHzAfter-sale service:Online technical support
product name:Doctor of Digital X-ray Machinerated power:32kW
Quality Certification:CE, ISOMaximum power:50kW
payment terms:L/C,Western Union,T/T,MoneyGram,Trade insurance,paypal,C/Cbrand:MSL
Packaging Details:Standard export packagingInstrument classification:secondary
Energy source:electrical
Product Description
feature

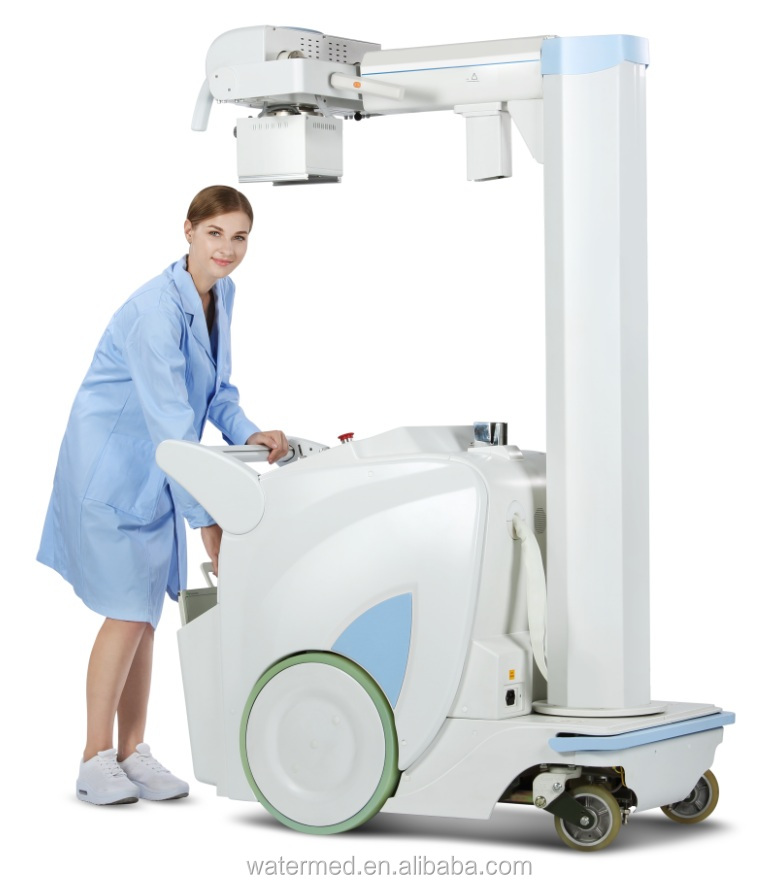

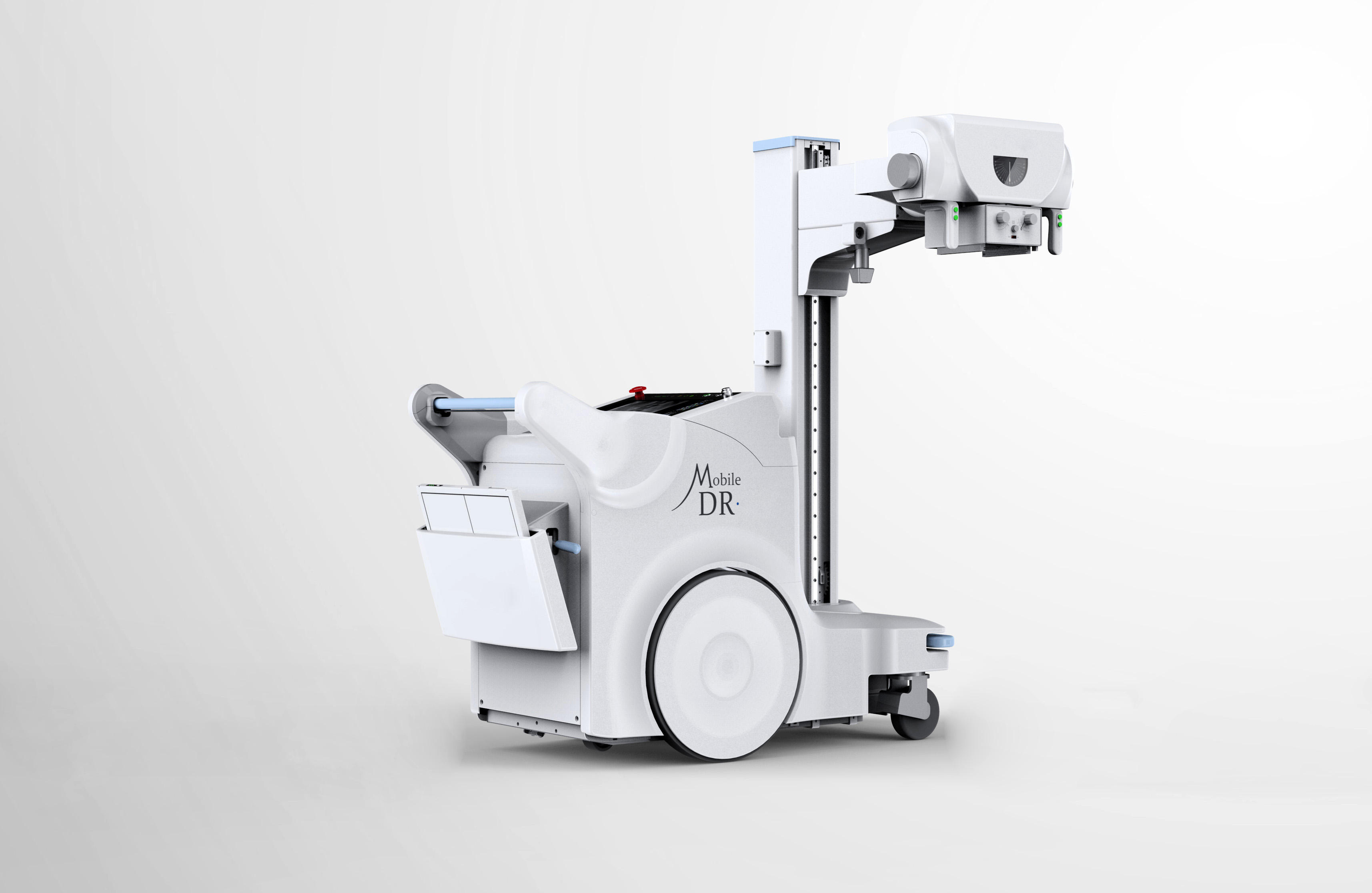

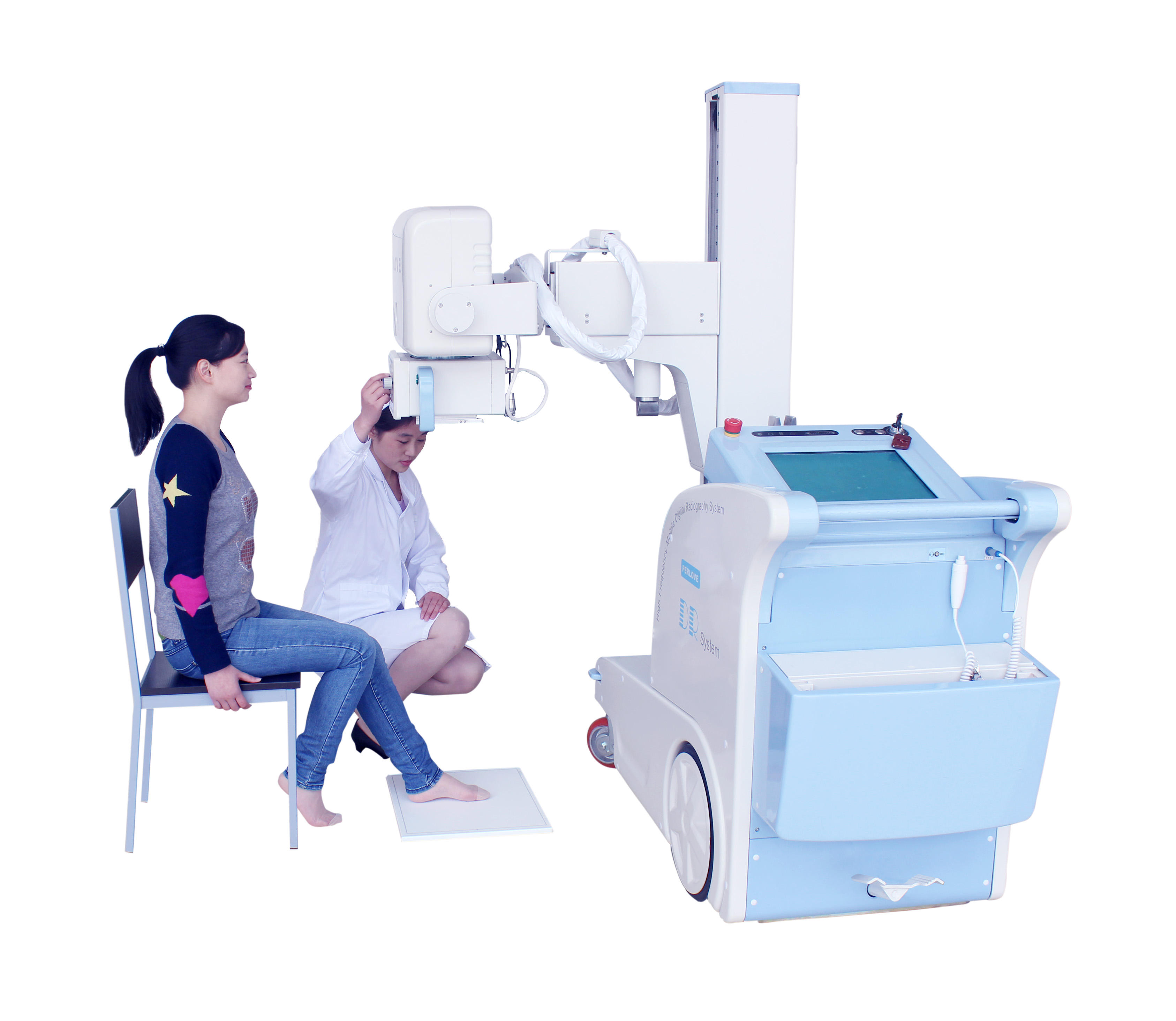

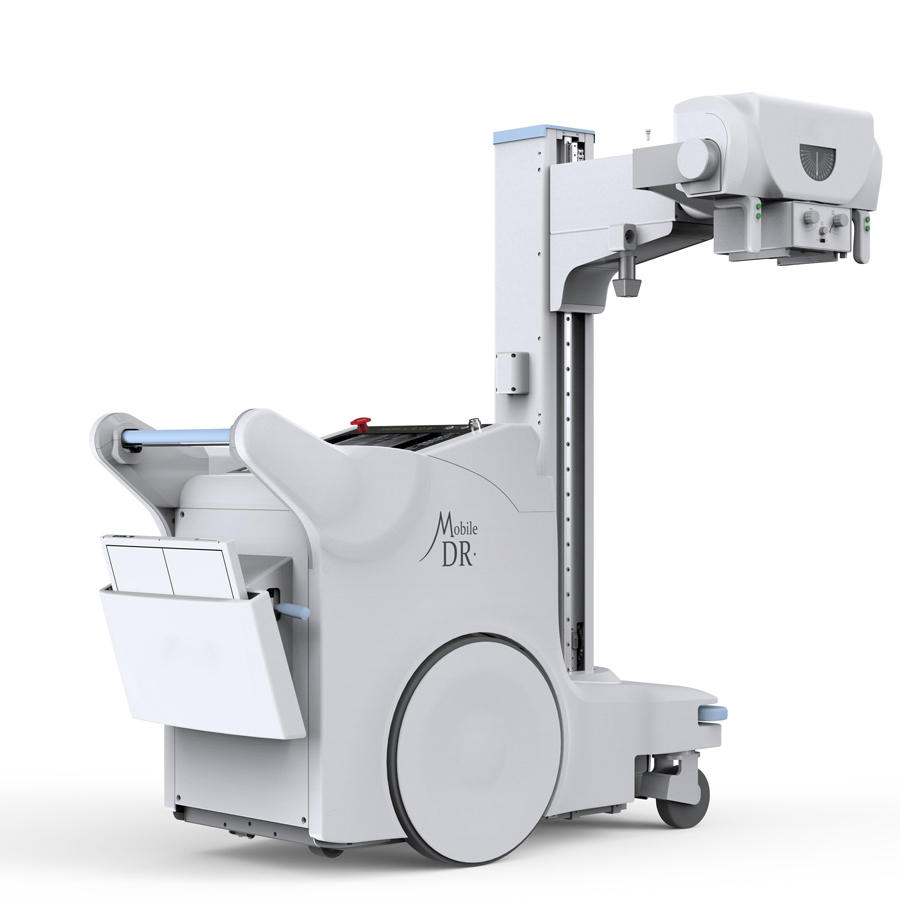

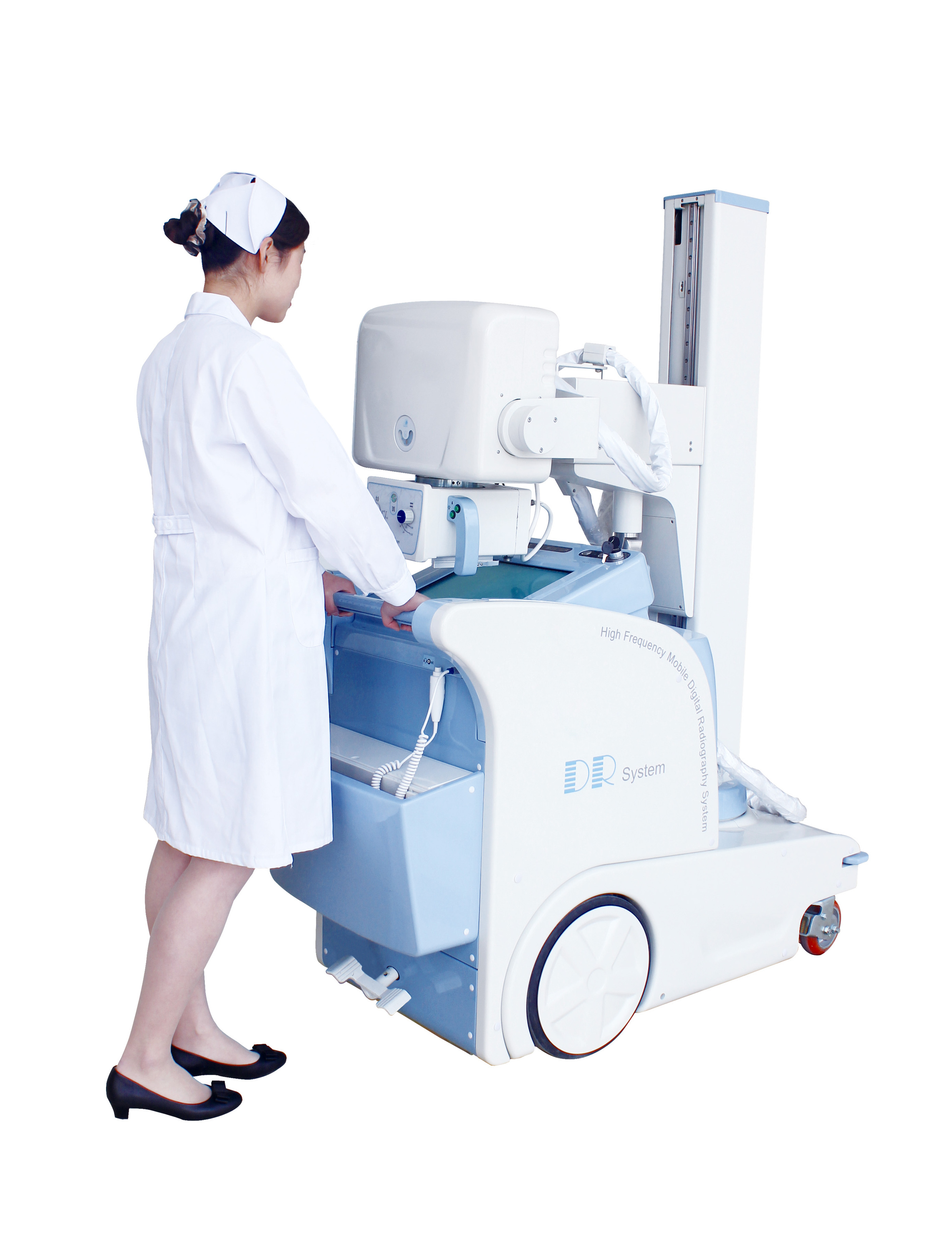

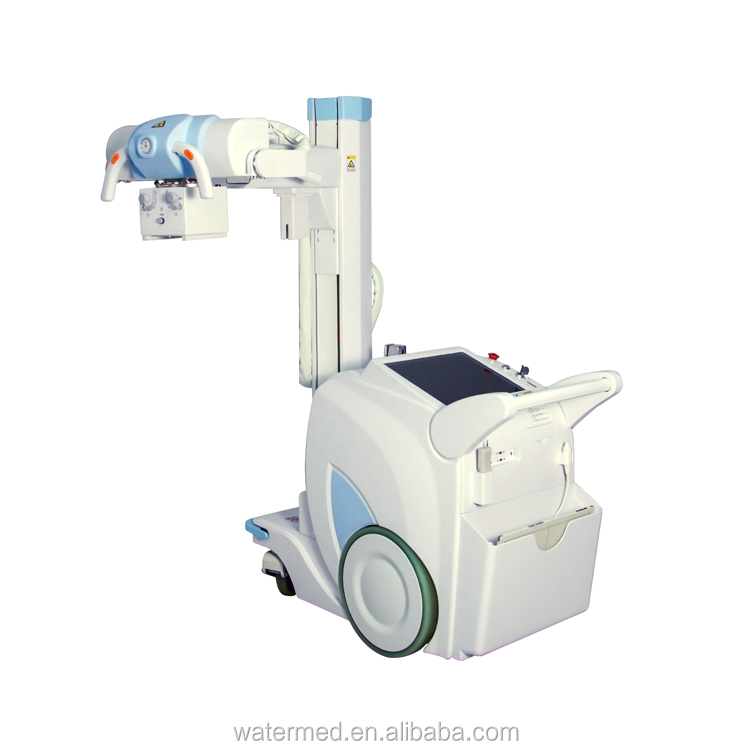

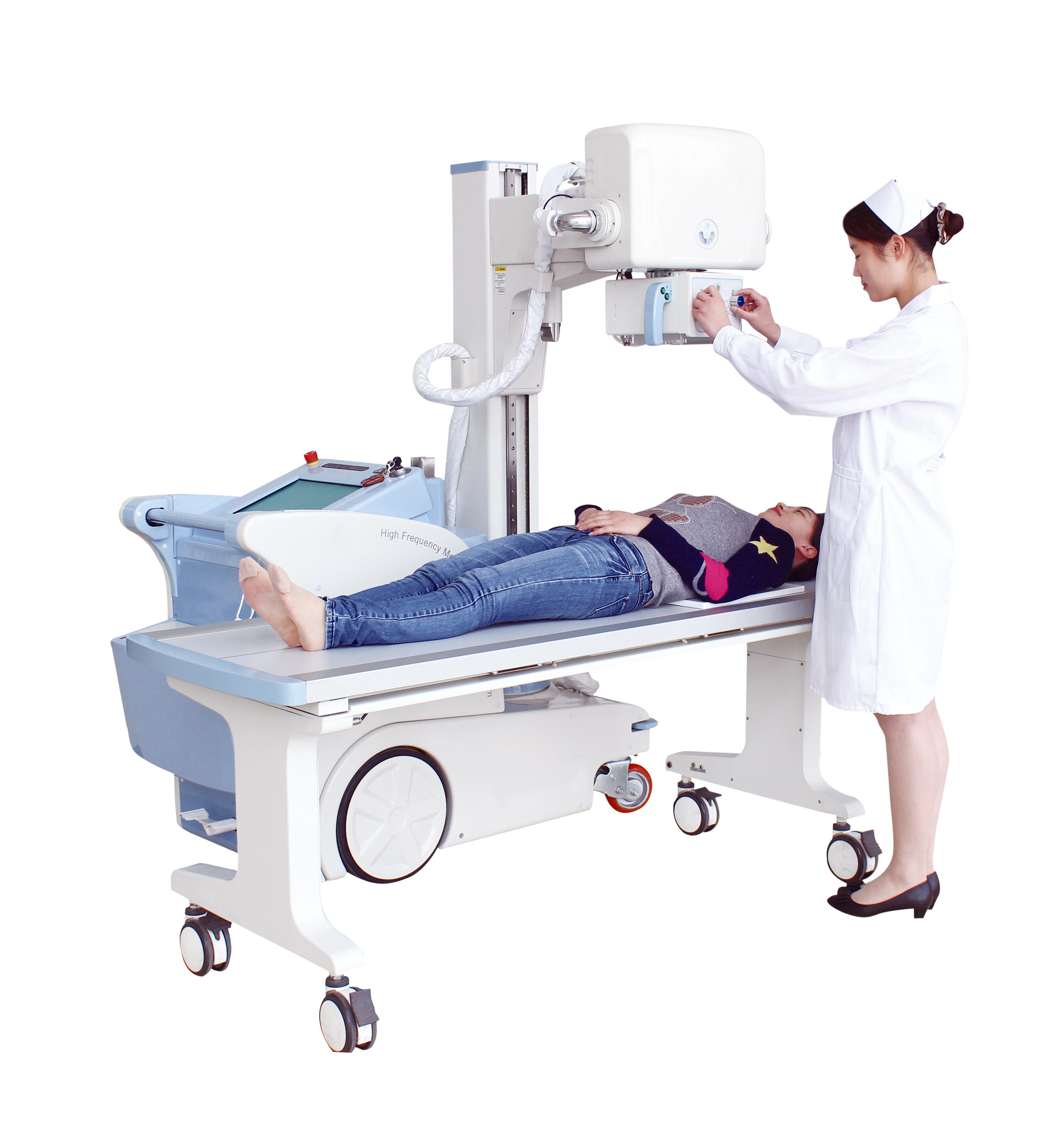

Digital Doctor X-ray Machine Radiography

Product use
MSLDR17 is a high-frequency combined digital X-ray photography medical diagnostic equipment, used in radiology,
Orthopedics, ward, emergency room, operating room, ICU, etc., can meet the needs of head, limbs,
Chest, spine, stomach...


basic configuration:
1. High quality combined high frequency high voltage generator
2. Color graphic touch LCD control system
3. Freely movable panel detector
4. High quality IPC
5. Large size medical LCD monitor
6. New mobile column frame
7. Symmetrically adjustable, wireless ranging rotary collimator with light
8. Electric power drive system
9. Pull wire exposed handbrake
10. Wireless remote control exposure device

X-ray generator
1. 50KW compact X-ray generator;
2. High frequency 40Khz;
3. High technology reduces radiation;

Unique power supply method:
1. The super capacitor is powered for taking pictures and has a long service life;
2. Lithium battery supplies power for mechanical movement;

Mechanical movement:
1. The horizontal arm can be freely retracted;
2. The column has electronic up and down movement; and can rotate 360 ​​degrees;
3. The X-ray tube is rotary and moves 90 degrees left and right;
4. The collimator can be rotated 90 degrees left and right;
5. Integrated integrated control driver
6. Collimator rotation range: ±90 degrees
7. Tube tilt: -10 to +90 degrees
8. Tube rotation: ±180 degrees

software:

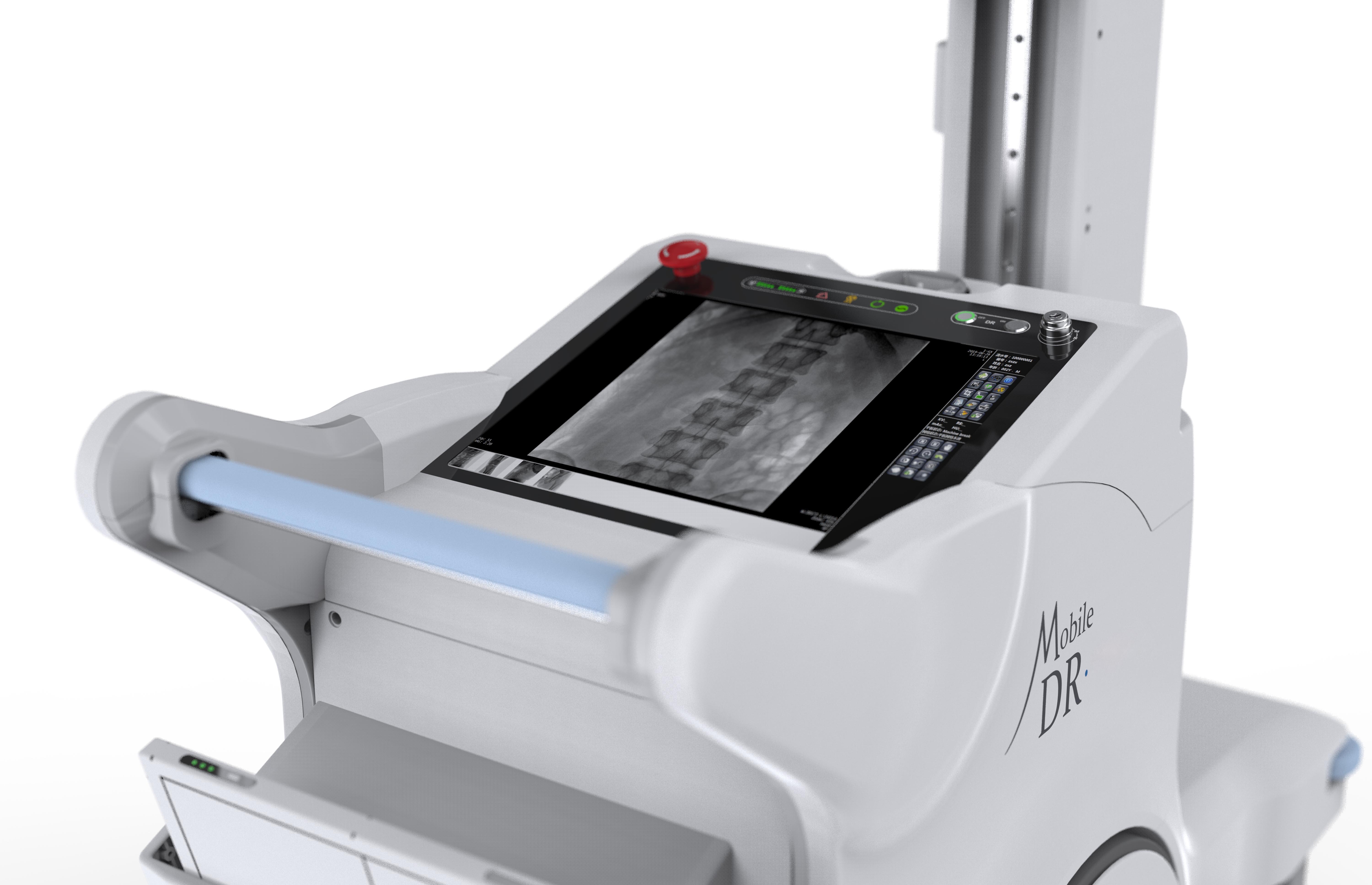

LCD touch screen operation panel, easy to control the machine;
technical parameter
thing
value
place of origin; place of origin
China
Guangdong
brand
MSL
model
MSLDR17
energy source
Electricity
Warranty
1 year
After-sales service
Online technical support
Material
acrylic, metal
Shelf life
1 year
Quality Certification
ce
Instrument classification
secondary
safety standard
not any
maximum output power
50kW
Main inverter frequency
45kHz
Heat capacity
900kJ (1200kHU)
Tube current
10mA- 500mA
Tube voltage
40-150kV
master
1-630mAs
view
14″×17″
pixel size
150 microns
Prop rotation range
±180°
power supply
220V±10% 50Hz
