Digital manual winding machine for coil counting, coil winding machine, manual winding machine
- $35.00 /pair
- 1 pair
- Shanghai Qipang Industrial Co., Ltd.
- Shanghai, China
- Ms Anne Zhao
PRODUCT DETAIL
| weight: | 5kg | Function: | coil winding |
| Center Height (mm): | 20 mm | place of origin; place of origin: | China |
| Shaft length (mm): | 150 mm | Warranty: | 1 year |
| usage: | twine | Available Materials: | copper wire |
| Video external inspection: | if | application: | Cable Manufacturing Industry |
| Core Components Warranty: | 1 year | Health status: | new |
| Packaging Details: | Carton Low Price Manual Digital Coil Counting Winding Machine | Core components: | gear |
| Weight (kg): | 16 | CNC or not: | normal |
| brand: | Chibon | After-sales service provided: | Free spare parts |
| Mechanical test report: | if | Maximum Transformer Capacity (kVA): | 2 kVA |
| Manual digital winding machine: | Winding machine for several turns | Main selling point: | easy to operate |
| Showroom location: | Egypt, Canada | Packaging Preview: | |
| Applicable industries: | Energy and mining, construction engineering, manufacturing plants, metal wire and cable industries | Marketing Type: | normal product |
| Function 1: | wire feed | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| maximum. Load (kg): | 2KG |
title
Low price manual digital coil counting winding machine
Product Description
Adopt manual gear transmission and mechanical digital counting. It can be used for manually winding various small coils and winding various coil tapes.
technical parameter:
* Maximum diameter of the coil that can be wound: 150mm
* Maximum width of the coil that can be wound: 100mm
* Maximum coil length: 100mm
* Counting range: 0-99999 circles
Counting table: 5100 laps
Screw size: 10*130mm
Rocker to spool speed ratio: fast: 1:8 slow: 1:1

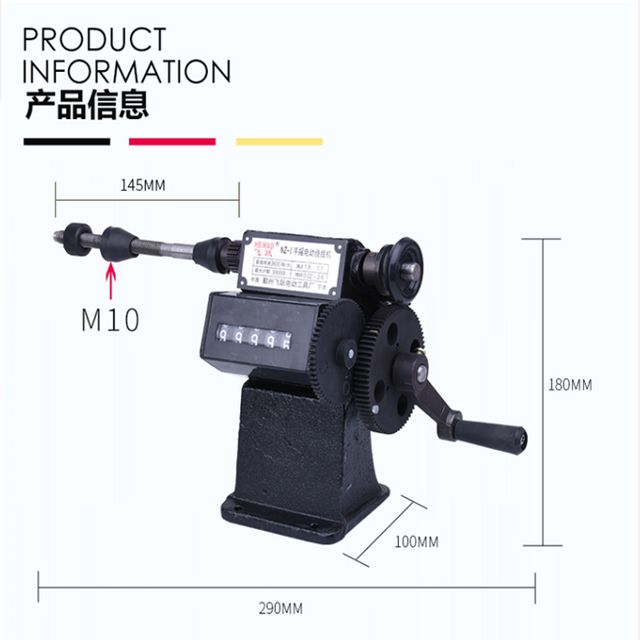

.Dimensions (LxWxH) 350 mm x 100 mm x 180 mm
technical parameter:
* Maximum diameter of the coil that can be wound: 150mm
* Maximum width of the coil that can be wound: 100mm
* Maximum coil length: 100mm
* Counting range: 0-99999 circles
Counting table: 5100 laps
Screw size: 10*130mm
Rocker to spool speed ratio: fast: 1:8 slow: 1:1
.Dimensions (LxWxH) 350 mm x 100 mm x 180 mm

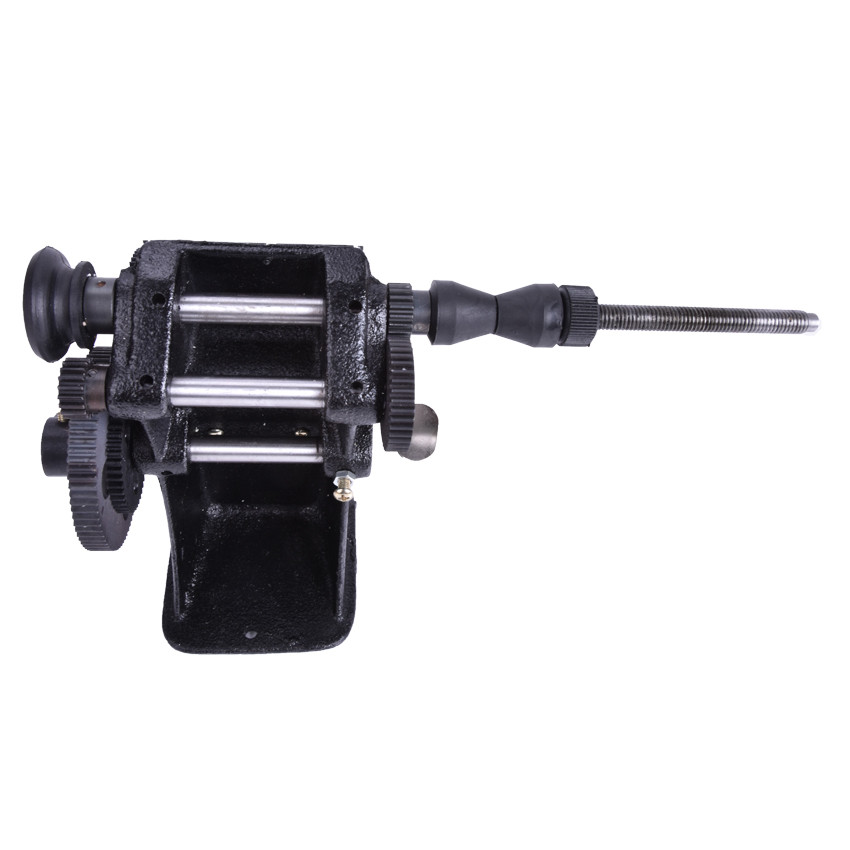

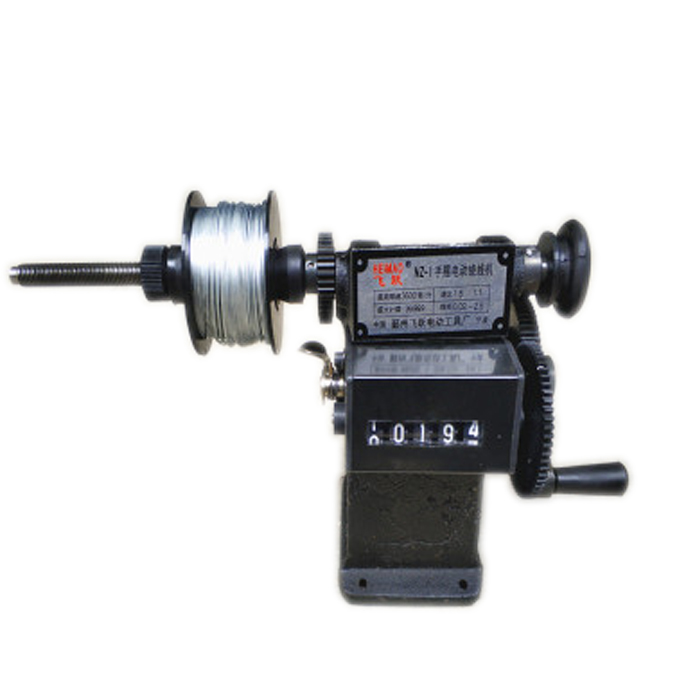

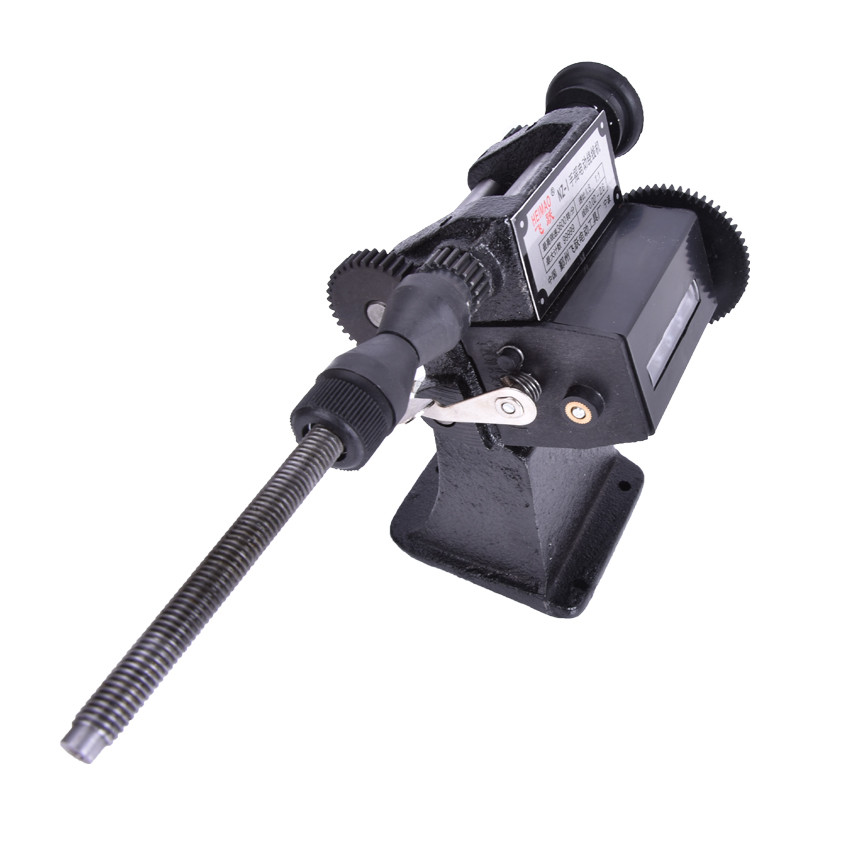

Details picture

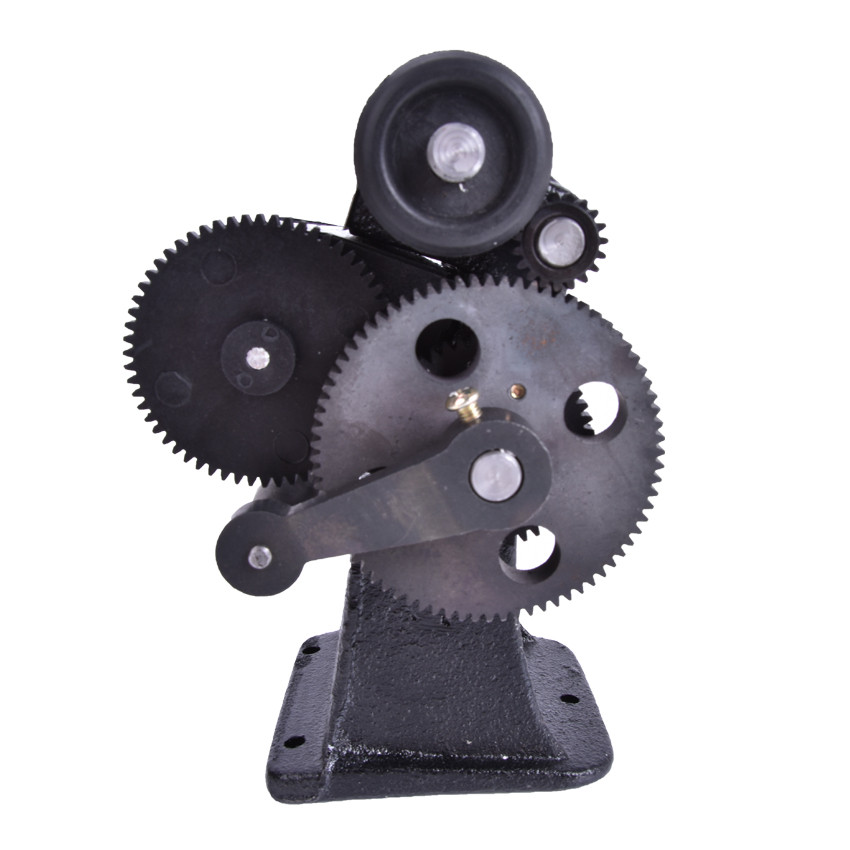

Mechanical principle:
1. The hand-cranked electric counting winding machine is driven by the crank main gear to drive the main shaft, and the counter is driven by the main gear of the headless gear to count. 10 turns, that is, the number of counter letters is 1 turn.
2. The machine is hand-cranked, electric and electric. Remove the handle when electric, so that the maximum speed of the main shaft of the winding machine is 2000 rpm.
3. Add a little oil to the main oil hole normally.
instruct:
1. The machine should be placed on a solid workbench with wooden boards and three holes on the machine floor for fixing and installation between the machine and the workbench.
2. When in use, turn the counter reset lever with your left hand to reset to 00000.
Lever plate twice to reset all count gears. (Otherwise, the gear slip count may be inaccurate) before
Operation can be started. Can be cleared to 0 after operation. It is strictly forbidden to reset to 0 during operation.
1. The hand-cranked electric counting winding machine is driven by the crank main gear to drive the main shaft, and the counter is driven by the main gear of the headless gear to count. 10 turns, that is, the number of counter letters is 1 turn.
2. The machine is hand-cranked, electric and electric. Remove the handle when electric, so that the maximum speed of the main shaft of the winding machine is 2000 rpm.
3. Add a little oil to the main oil hole normally.
instruct:
1. The machine should be placed on a solid workbench with wooden boards and three holes on the machine floor for fixing and installation between the machine and the workbench.
2. When in use, turn the counter reset lever with your left hand to reset to 00000.
Lever plate twice to reset all count gears. (Otherwise, the gear slip count may be inaccurate) before
Operation can be started. Can be cleared to 0 after operation. It is strictly forbidden to reset to 0 during operation.
New Zealand - 5
New Zealand-7

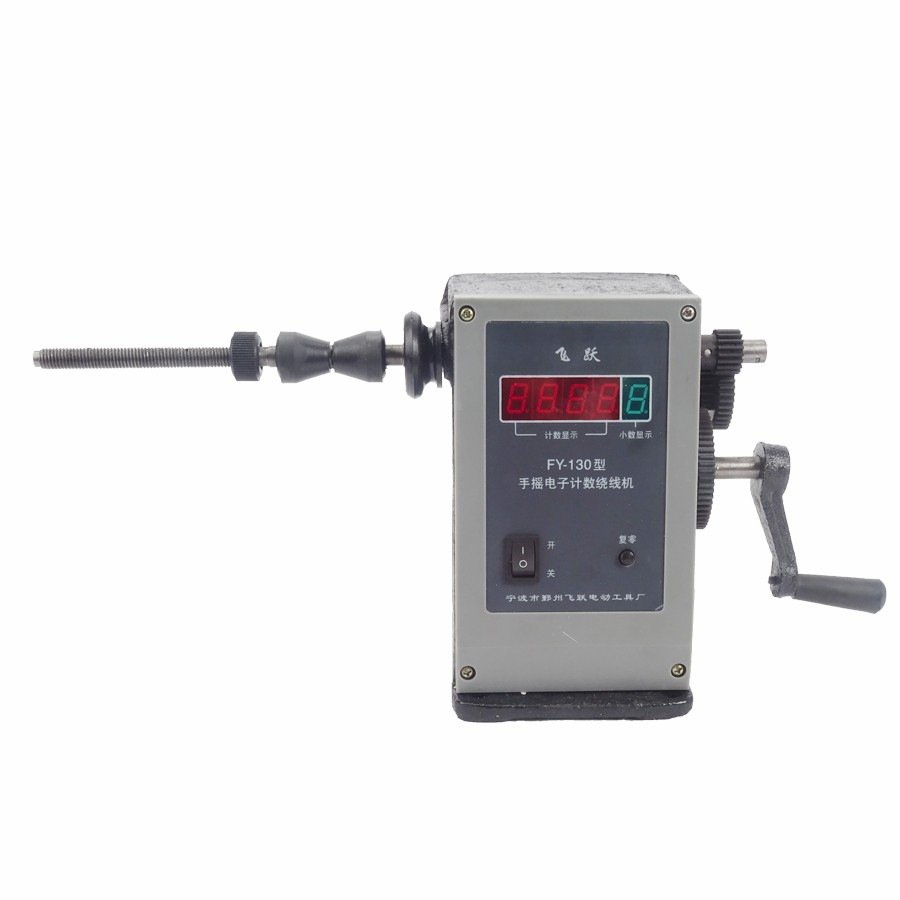

FYââ130 Counting range 0ââ9999.9 circles, counting error <0.1 circles.
Size: 115*115*185mm
Shaft diameter: 10mm Shaft length: 140mm
Size: 115*115*185mm
Shaft diameter: 10mm Shaft length: 140mm
This winding machine adopts manual drive, second-speed speed, electronic counting display, accurate counting, flexible operation,
Stable performance, clear display, easy to use, with power-off data protection function.
