OEM Bar Straightening Pneumatic Puller Straightening Wire Feeder Wire Feed Roller Drive

PRODUCT DETAIL
Single package size:20X20X20 cmWire use:5-8mm
After warranty service:Video Technical SupportMain selling points:easy to operate
weight:25 kgSales unit:single product
Applicable industries:Advertising companyStraightening speed:depends on the motor
Origin:ChinaShowroom location:not any
Key words:Wire straightening machineWarranty:1 year
After-sales service provided:Video technical supportCore components:gearbox
Local service location:not anyproduct name:Wire and cable feeder
Core component warranty:1 yeartotal measurement:350*350*200mm
Gross weight per piece:25.000 kgVideo shipment inspection:if
Model:QF70Mechanical test report:if
Marketing Type:normal productProcessing type:Tractor
Health status:newMaterial:alloy
application:feederPipeline use:12mm
Packaging Details:Carton, crate, wood and foam
Product Description


OEM bar straightening pneumatic straightening steel 4 roller drive wire feeder wire feed roller drive

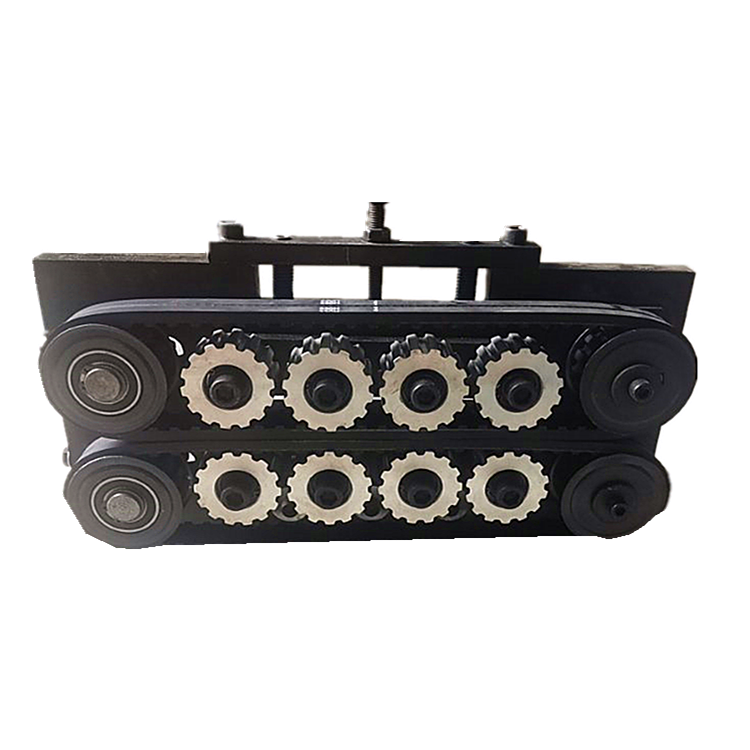

belt traction
It is suitable for pulling copper pipes and soft steel pipes.
There is a groove on the belt.
back tie
Motor and gearbox can be connected
2 sets

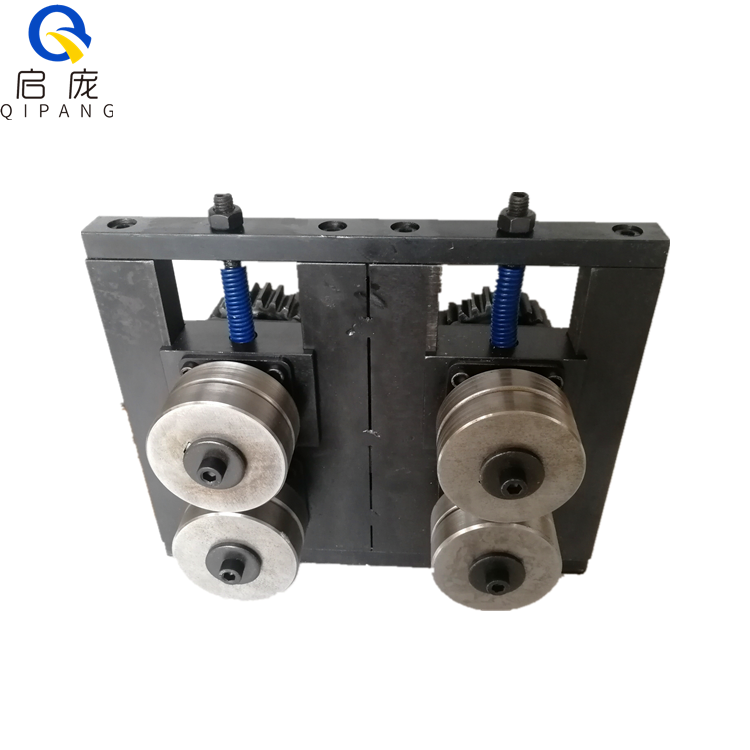

Dual drive unit:
The diameter of the roller is 70mm, and the groove is a U-shaped groove. Suitable for wire pulling.

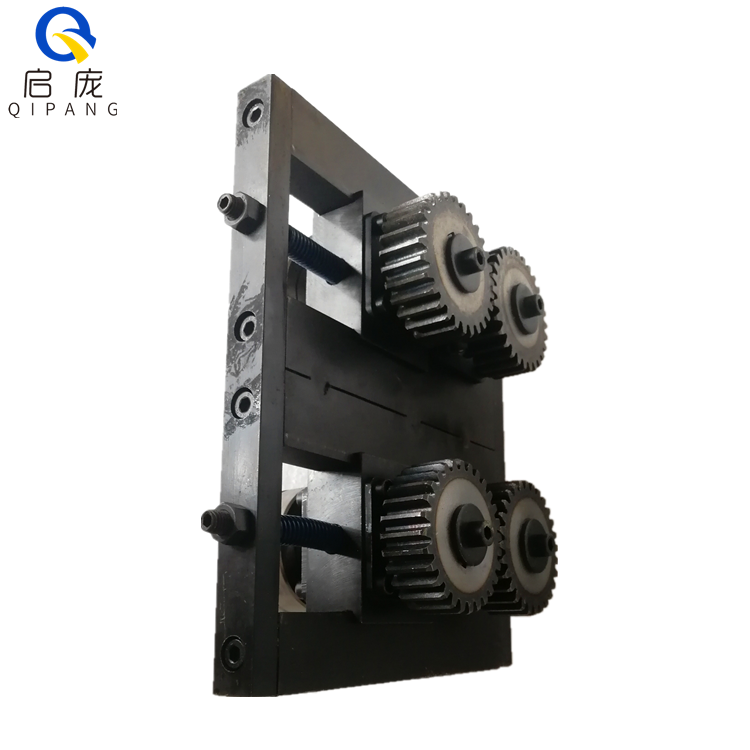

the back of the drum
Includes 4 gears, will have big power.
2 sets of rollers
70mm
gear,
4

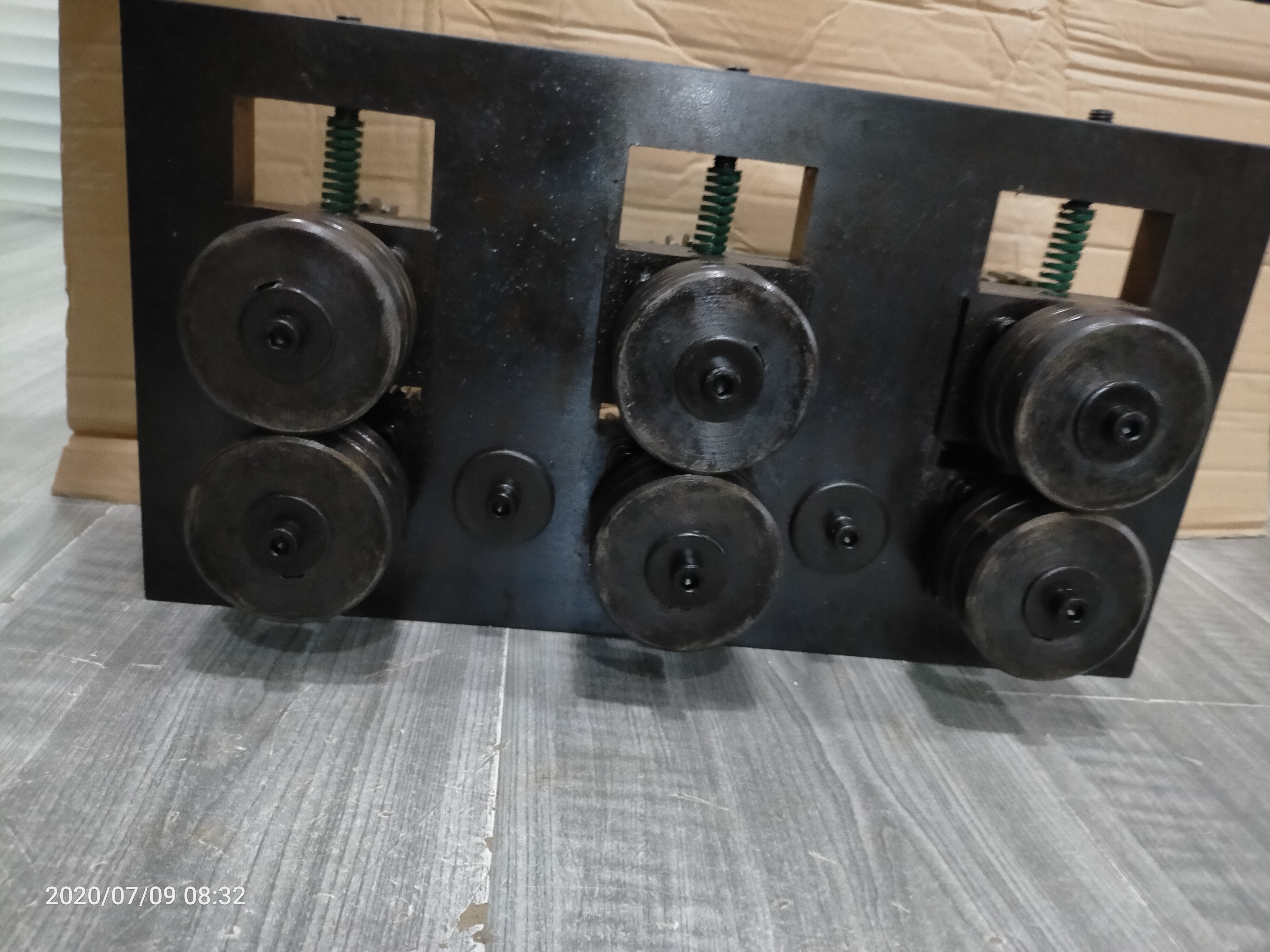

3 sets of rollers
70mm
gear,
4

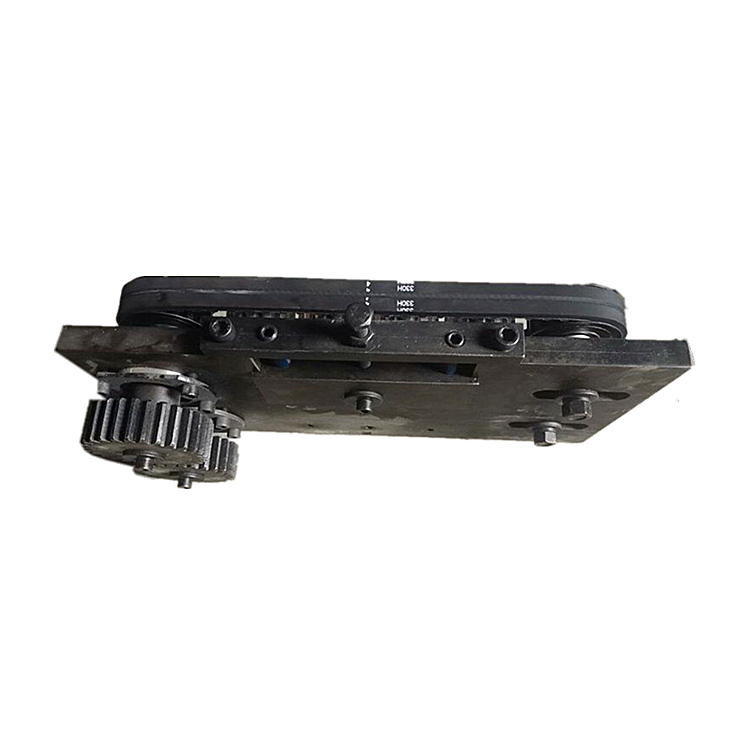

belt traction
belt
gear,
6
pneumatic drive
no electricity

Specification


Copper tube automatic wire straightening machine JZQ18/50, steel wire straightening machine.

Model: JZQ18/50, with guide rail, for pipes between 6-12mm material oh.., we also have more straighteners with more rollers, such as: 10, 14, 18, 22, 26, rollers .
(Note: two pieces: 18 rollers, a total of 18 rollers can be customized according to customer requirements)
Specifications: suitable for 12mm pipe
Wire types: low, medium, high carbon steel wire, copper wire, molybdenum wire, iron wire, iron wire. Welding wire, iron wire, etc.
Straightening wheel diameter: 50/70/100mm
The wheels are smooth with no grooves.
Number of straightening wheels: 18 rounds----50
Straight line material form: single group: horizontal straightening device; combination mode: vertical or horizontal or pneumatic straightening.
The straightening wheel can be adjusted independently, making it easy to find the center.
Total mass of the straightener: 200KG bare metal, about 250kg with packaging.
Straightener size: 18 rounds: 1*0.6*0.5m

Model stands for:

Straightening machine model letter description: for example: JZ Q---18/50
JZQ---Straightening machine (initial letter).
18------The number of positioning wheels is 18;
Diameter 50------Straightening wheel.
A------point: Type A straightening device is in the form of integral opening and closing;

B-------- is adjusted independently for the monotone straight wheel; T is a special straightening device.
V----------is straightening wheel groove; V, R, U and custom.


Besides that, we have different hair straighteners: 7+7 rollers, 9+9 rollers, 11+11 rollers, 13+13 rollers. We can customize the machine according to your diameter and material.

parameter list:


Product number



Wire diameter/mm
Number of rolls
Drum diameter/mm
JZQ0.1-0.3/24.AV
0.1-0.3
24 rollers
7
JZQ0.3-0.5/34.AV
0.3-0.5
34 rollers
12
JZQ0.5-0.8/26.AV
0.5-0.8
26 rollers
16
JZQ0.8-2.0/18.BV
0.8-2.0
26 (14, 18, 22 rollers)
twenty three
JZQ2.0-4.0/18.AV
2.0-4.0
18(14, 22 rollers)
30
JZQ4.0-7.0/18.AV
4.0-7.0
18 (10, 14, 22, 26 rollers)
44/50
JZQ7.0-12.0/18.AV
7.0-12
18 (10, 14, 22, 26 rollers)
47/70
JZQ12.0-20.0/18.AV
12-20
18 (10, 14, 22, 26 rollers)
70
JZQ0.8-4.0/5.AV
0.8-4
5
twenty three
JZQ 4.0-10.0/5.AV
4-10
5
42
JZQ 4.0-10.0/18.BV
4-10
18 (10,14,22 rollers)
42
