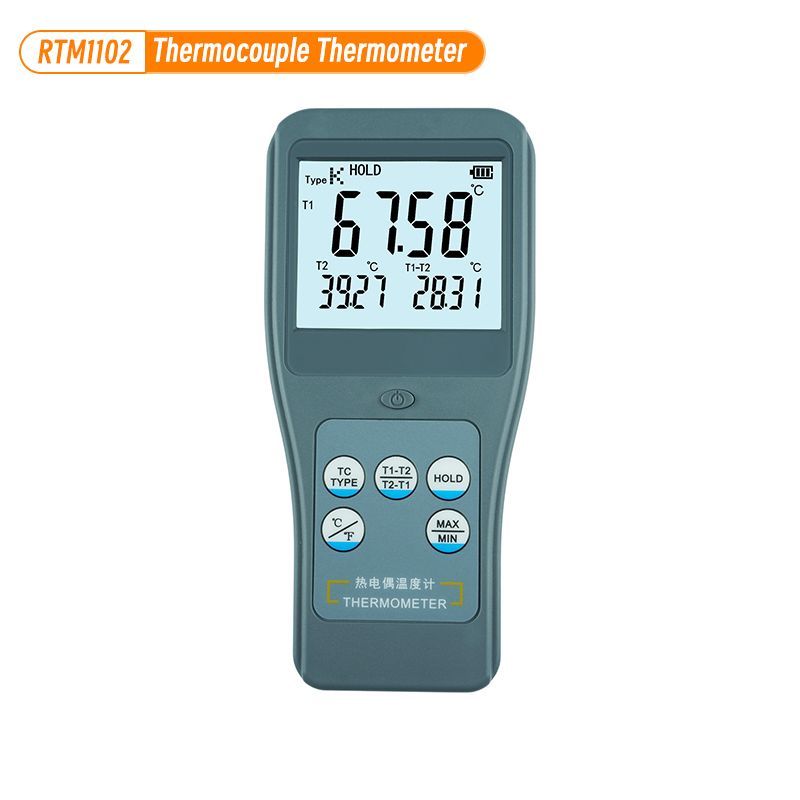

Dual-Channel Thermocouple Thermometer RTM-1102

Thermocouple Thermometer RTM-1102

1.Introduction:

RTM1102 is a high-precision of dual-channel digital thermocouple thermometer, which uses thermocouples as sensors to measure temperature signals, can meet the needs of different industries. Used to measure the temperature of liquids, gases, solids and surface temperature. And there are a variety of thermocouple types to choose from, which are widely used in industrial production, research and development experiments, quality control, refrigerated storage, automobile manufacturing and other occasions.

2.Features:

•  Large LCD with display. It can display three values at the same time.

•  Thermocouple(K/J/E/T/R/S/N) temperature measurement.

•  The types of dual-channel thermocouple are switched imultaneously.

•  The measured values of 2 channels and T1-T2/T2-T1 value difference are displayed at the same time.

•  Temperature unit (°C/°F).

•  0.01 resolution.

•  High accuracy.

•  Maximum and minimum values display.

•  With the displayed values hold function.

•  Battery indication function.

•  Automatically power off.

3.Specifications:

Display: Backlit LCD

Range: E-type: -238~1832°F (-150~1000°C);

            J-type: -346~2192°F (-210~1200°C);

            K-type: -328~2501°F (-200~1372°C);

            N-type: -328~2372°F (-200~1300°C);

            R-type: 32~3212°F (0~1767°C);

            S-type: 32~3212°F (0~1767°C);

            T-type: -418~752°F (-250~400°C)

Resolution: -100~+100, 0.01; Other, 0.1

Temperature Unit: °F/°C

Sampling Channel: 2 Channels

Display Value Hold: √

Open Thermocouple Indication: √

Maximum and Minimum: √

Automatically Power Off: √

Operating Conditions: Temperature: 32°F~122°F (0°C~50°C); Humidity: <80%RH

Storage Conditions: Temperature: 14°F~140°F (-10°C~60°C); Humidity: <90%RH

Power Supply: 4×1.5V AAA(UM-4) Battery

Size: 170×80×31mm

Weight: 186g(Not Including Batteries)

Standard Accessories: Main Unit ×1, TP-02 Thermocouple ×2, Manual ×1, Carrying Case ×1
