RTM1511 High-precision Resistance Thermometer 0.01 Resolution

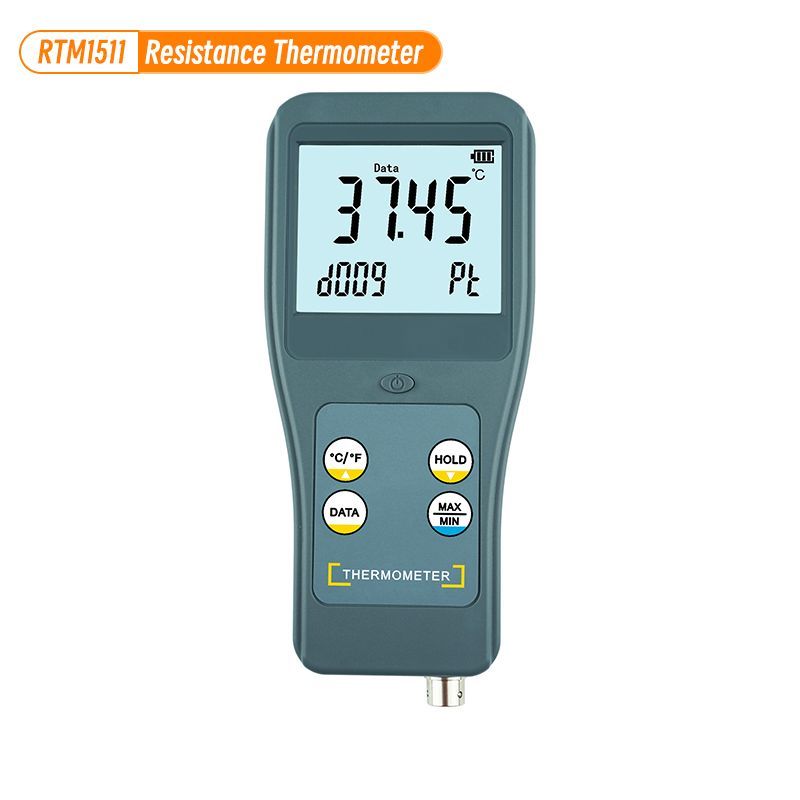

RTM1511 High-precision Resistance Thermometer

1.Introduction:

RTM1511 is a high-precision RTD thermometer that uses PT1000 platinum thermal resistance as a sensor to measure temperature signals. Large LCD screen display, 0.01 Resolution, refresh once per second, accuracy up to ±0.1°C. With data memory and view functions. Widely used in industrial production, research and development experiments, quality control, refrigerated storage, automobile manufacturing and other occasions.

2.Features:

* Large LCD with display.

* High-precision PT1000 platinum thermal resistance is used for temperature measurement.

* Temperature unit (°C/°F).

* 0.01 resolution.

* Accuracy up to ±0.1°C.

* With data memory and view functions (99 Groups).

* With the displayed values hold function.

* Maximum and minimum values display.

* Battery indication function.

* Automatically power off function.

3.Specifications:

Display: LCD

Sensor: PT1000 (Four Lines)

Range: -200~500°C (-328~932°F)

            (Depend on Probe)

Accuracy: ±0.1°C

Resolution: 0.01

Sampling Channel: 1 Channel

Unit: °C/°F

Data Memorized: 99 Groups (Can be Customized)

Operating Conditions: Temperature: 0~50°C; Humidity: 0~80%RH (No Condensation)

Storage Conditions: Temperature: -10~60°C;Humidity: 0~90%RH (No Condensation)

Power Supply: 4×1.5V AAA(UM-4)Battery

Size: 170*80*31mm

Weight: 176g (Not Including Batteries)

4.Standard Accessories:

Main Unit

PT-01A Probe (Range: -50~200℃ (-58~392℉))

Manual

Carrying Case
