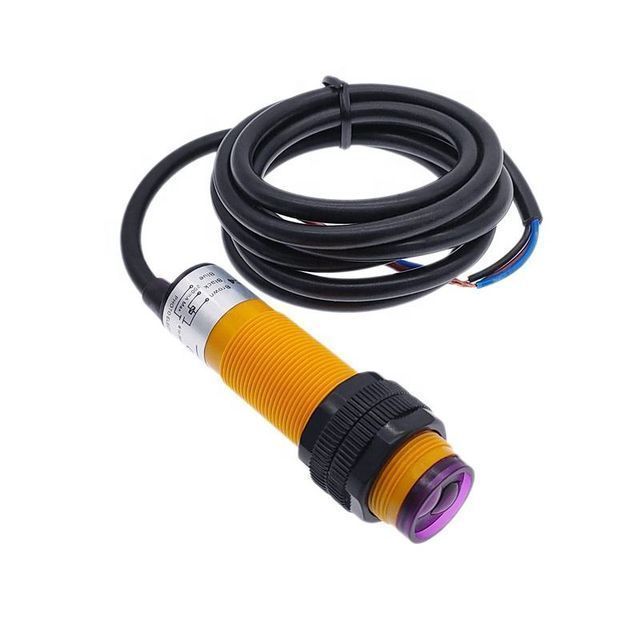

E3F-DS30C2 M18 Long Distance Optical Infrared Proximity Switch Electronic Sensor NPN NC Photoelectric Switch
- $1.43 /piece
- 1 piece
- Yueqing Manhua Electric Co., Ltd.
- Zhejiang, China
- Mr Yixi Li
PRODUCT DETAIL
| Single package size: | 8X8X4 cm | type: | Inductive Proximity Sensors |
| output: | Proximity sensor | brand: | cnmaway |
| theory: | Proximity sensor | model: | E3F-DS30C2 |
| describe: | proximity switch | Sales unit: | single product |
| usage: | Proximity sensor | place of origin; place of origin: | Zhejiang, China |
| Gross weight per piece: | 0.080 kg |
Product Description
【Product name】: Photoelectric switch

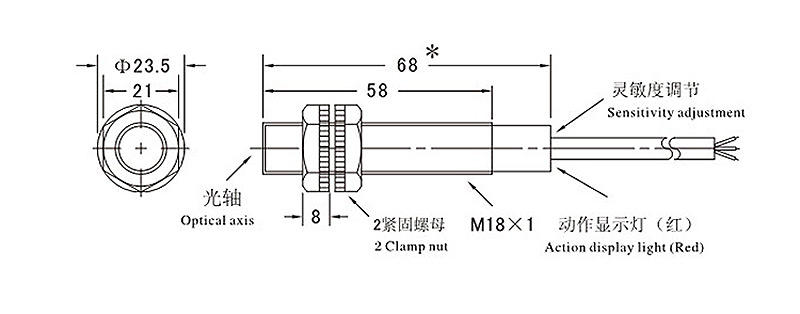

【Size】: 18mm
[Detection method]: diffuse reflection
[Detection range]: 30cm
【Working voltage】: 6-36V DC
[Output form]: three-wire type
【Size】: 18mm
[Detection method]: diffuse reflection
[Detection range]: 30cm
【Working voltage】: 6-36V DC
[Output form]: three-wire type
[Line length]: 1.2m
The diffuse reflection photoelectric switch consists of a light emitter and a light receiver, which is one of the standard configurations. When the beam comes from the projector, the target produces diffuse reflection; when enough combined light returns to the receiver, the switch state changes; the effective operating distance depends on the reflective ability of the target, as well as the surface characteristics and color. The variable capacity with sensitivity adjuster can assume a compensatory role; the device has low consumption. When the optical sensor consists of a single element, a rough localization is usually possible; The measurement distance is adjusted with a background suppression function; It is sensitive to dust on the target and to changes in the reflection performance of the target.
The diffuse reflection photoelectric switch consists of a light emitter and a light receiver, which is one of the standard configurations. When the beam comes from the projector, the target produces diffuse reflection; when enough combined light returns to the receiver, the switch state changes; the effective operating distance depends on the reflective ability of the target, as well as the surface characteristics and color. The variable capacity with sensitivity adjuster can assume a compensatory role; the device has low consumption. When the optical sensor consists of a single element, a rough localization is usually possible; The measurement distance is adjusted with a background suppression function; It is sensitive to dust on the target and to changes in the reflection performance of the target.

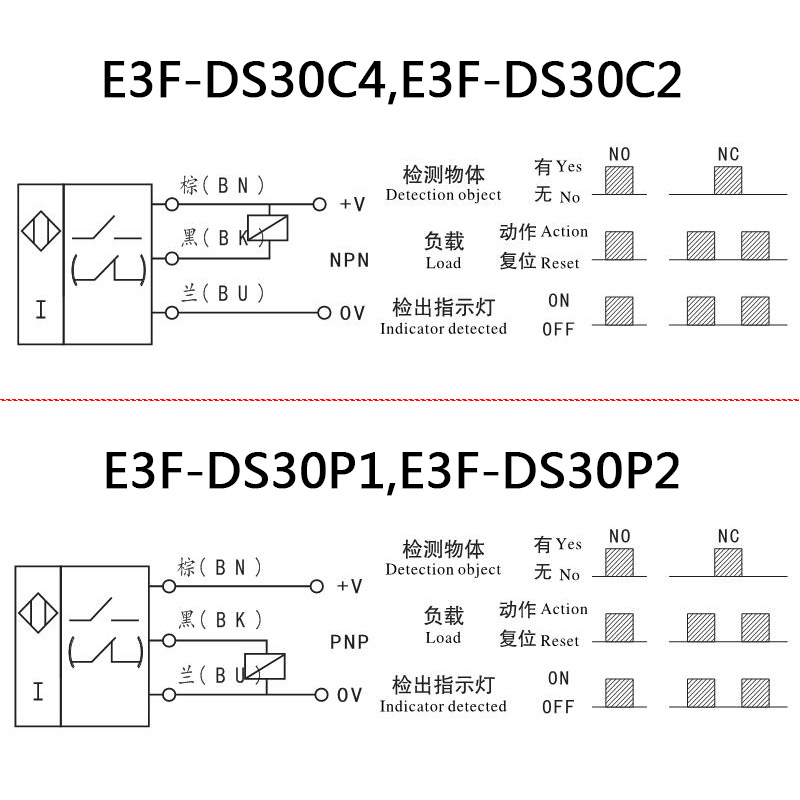

This link isE3F-DS30C2
If you need other models, pleaseClick on the model in the tablebuy it
type | DC | NPN | Do not | E3F-DS30C4 |
CNC | E3F-DS30C2 | |||
Plug and Play | Do not | E3F-DS30P1 | ||
CNC | E3F-DS30P2 |

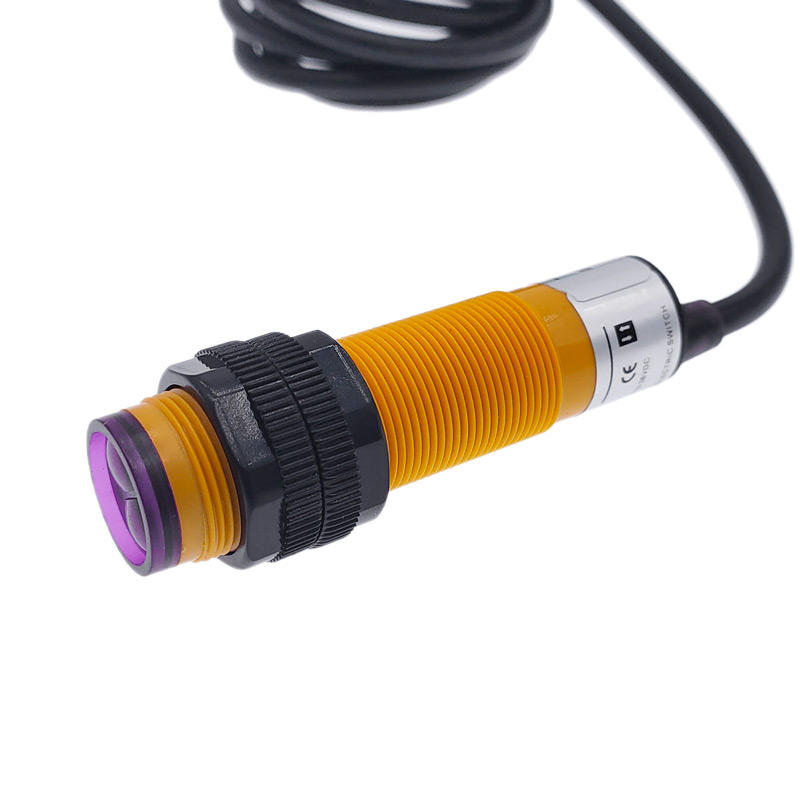

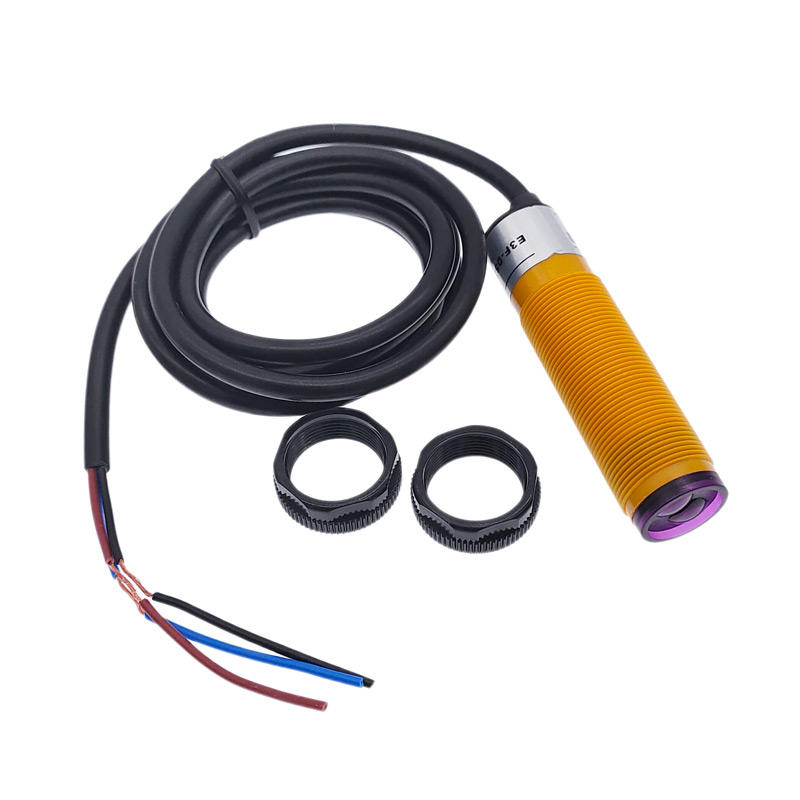

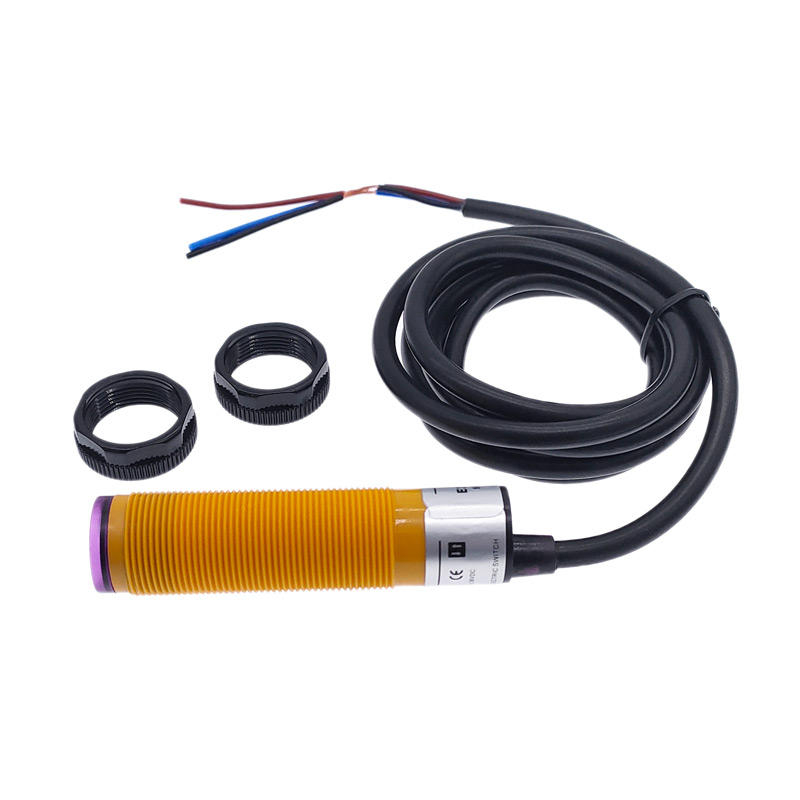

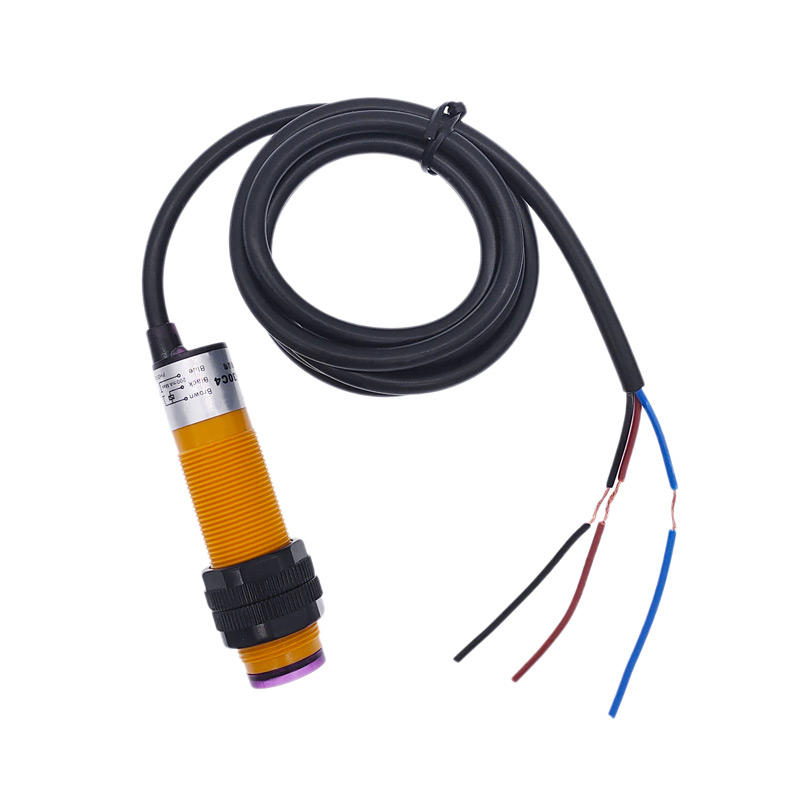

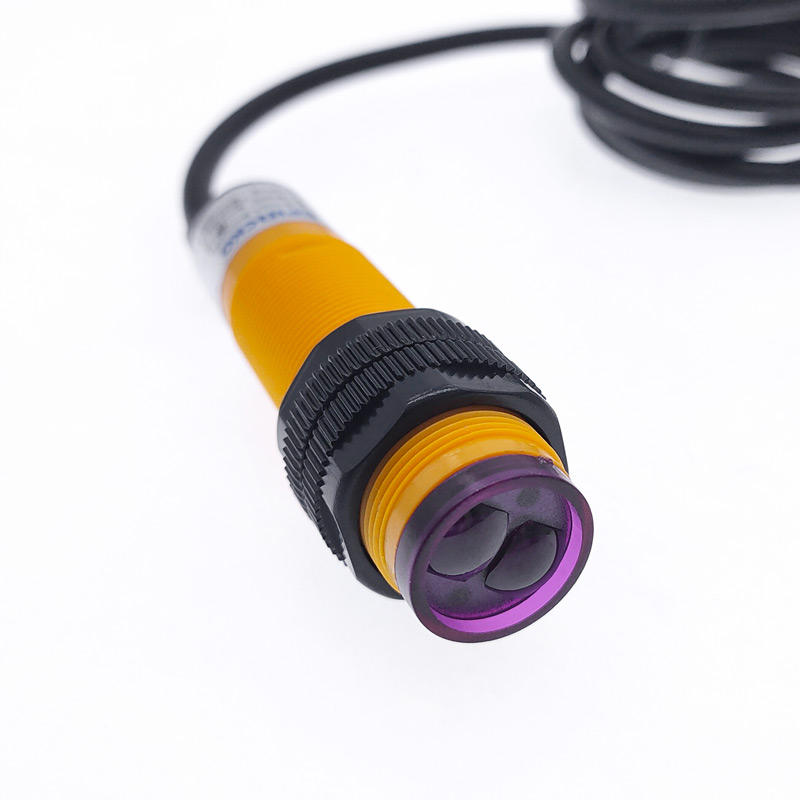

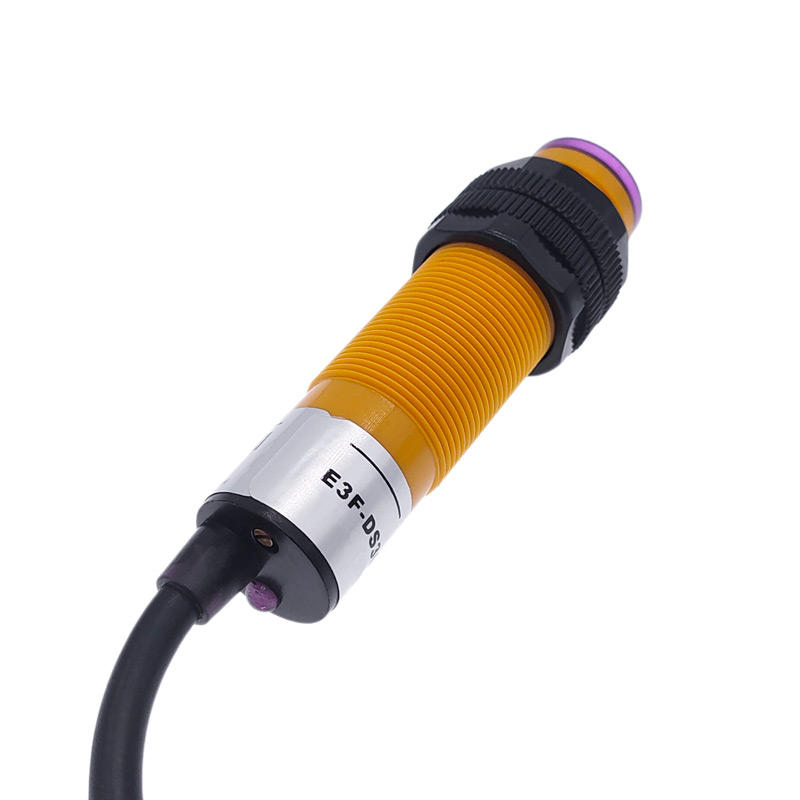

detailed picture
Specification
thing | value |
place of origin; place of origin | China |
Zhejiang | |
brand | cnmaway |
usage | position sensor |
microscope theory | Optical sensor |
output | switch sensor |
Product name | proximity switch |
Amplifier type | standard |
Voltage - Power | DC6-36V |
output type | switch sensor |
powered by | 200 mA |
