LED Mirror Touch Switch PCB Bare Board LED Proximity Switch

PRODUCT DETAIL
brand:a shieldInput voltage:12V-24V
type:LED mirror touch switch PCB, optical proximity sensorLoad power:60W
Dimmable:Yestheory:Capacitive sensor
port:GuangzhouSupply capacity:5000 pieces per week
Packaging Details:Neutral fillersize:41*43*3.5mm
place of origin; place of origin:Guangdong, Chinamodel:YD-LB01,YD-LB01
Load current:5Aplace of origin; place of origin:Guangdong, China (Mainland)
payment terms:L/C,Western Union,T/T,PaypalThe output voltage:12V-24V







describe:

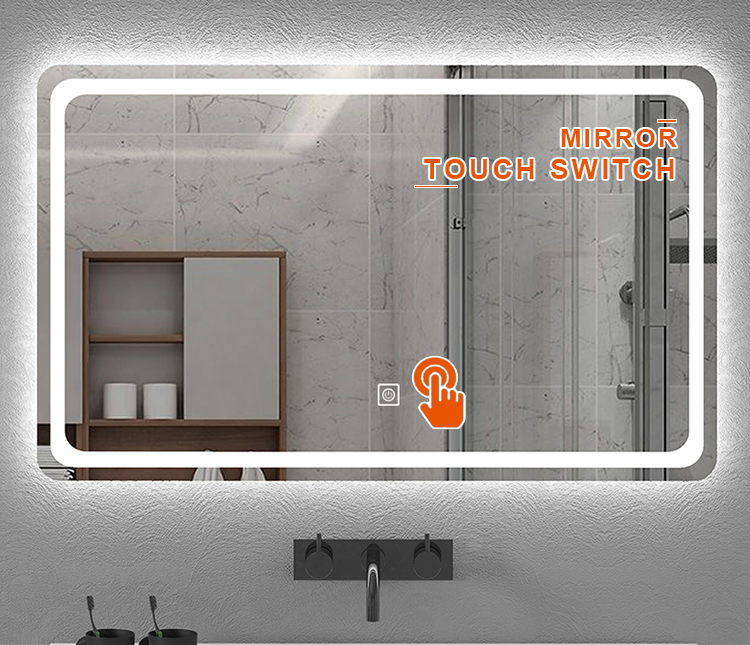

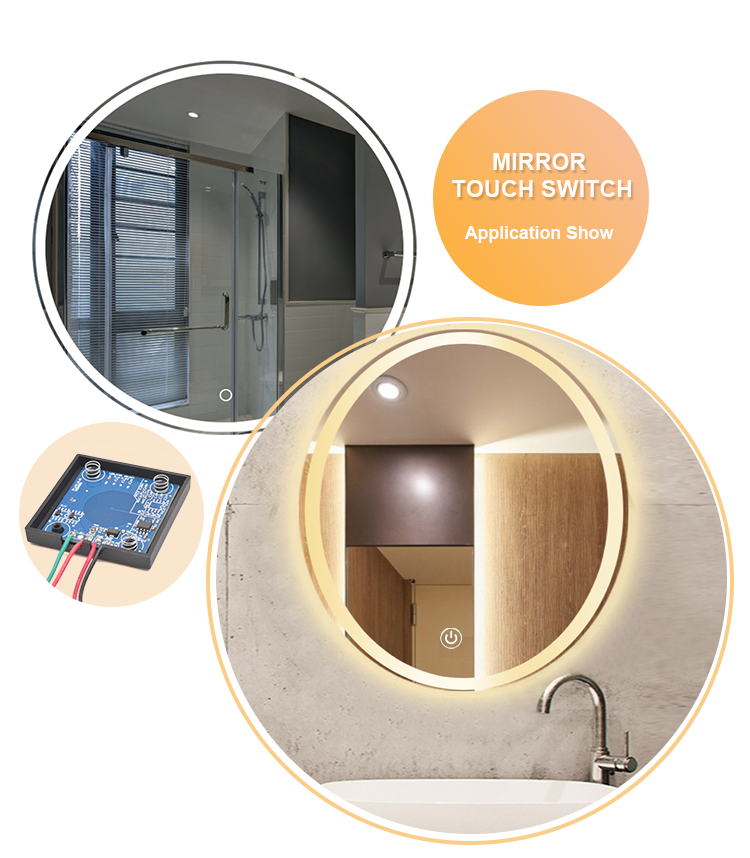

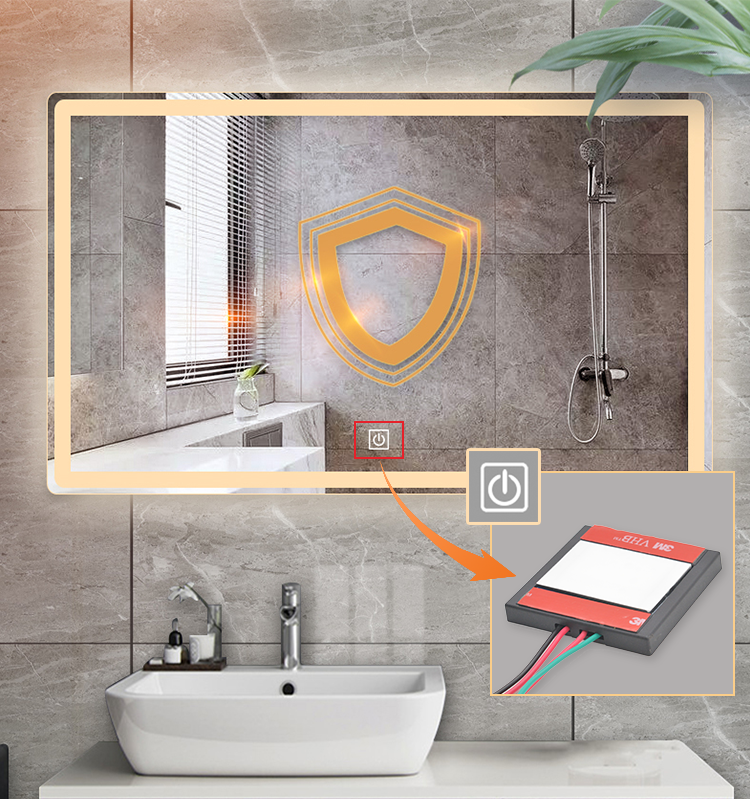

Input/Output DC12V 24V LED Mirror Touch Switch Smart mirror touch sensor switch, behind the LED bathroom mirror, the main functions are: touch sensor switch / human body sensor switch / hand scan sensor switch

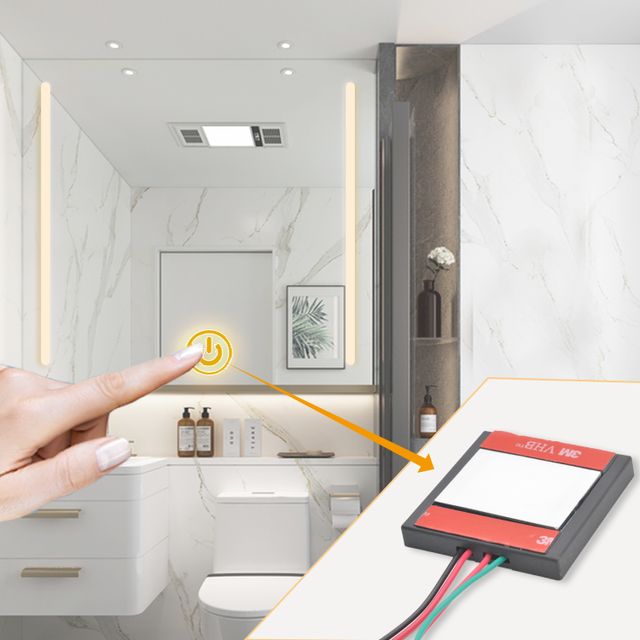

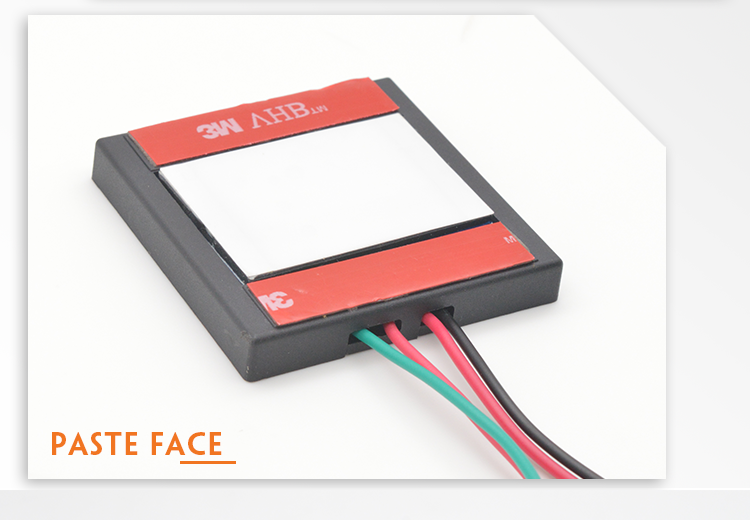

Smart touch-sensitive switches are SELV touch-sensitive switches. It can be triggered without touching metal parts through glass. After the switch is installed, the switch accessories cannot be seen on the front of the mirror, but the touch keys exposed through the backlight are simple and stylish.
When powered on and switched on, the backlight on the power strip will turn on and the backlight will stay on when the power is turned on. If you don't want the light to stay on, press and hold to turn off the backlight.
Main features:
1. Smart touch sensor switch
2. Human body infrared motion sensor switch
3. Gesture motion sensor switch
4. Long service life test > 10000 times, laboratory approved
5. LED backlight color customization

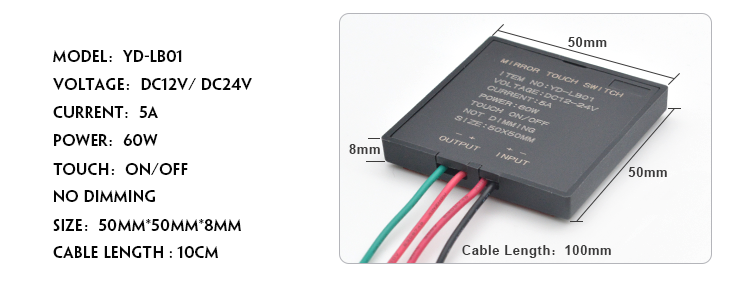

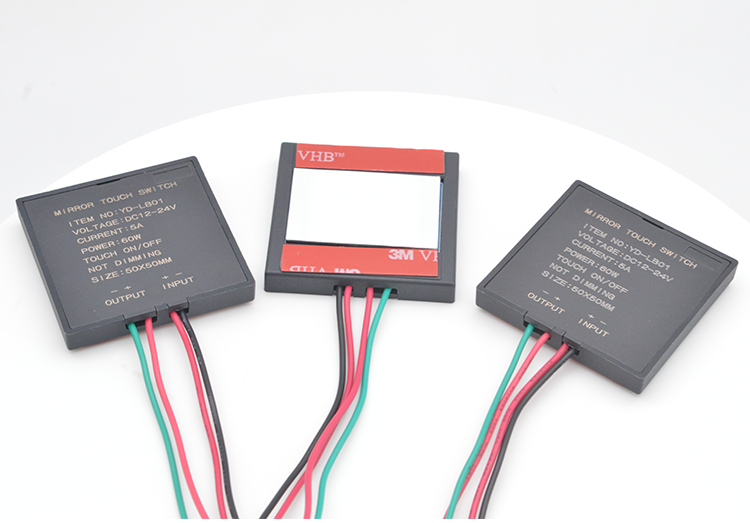

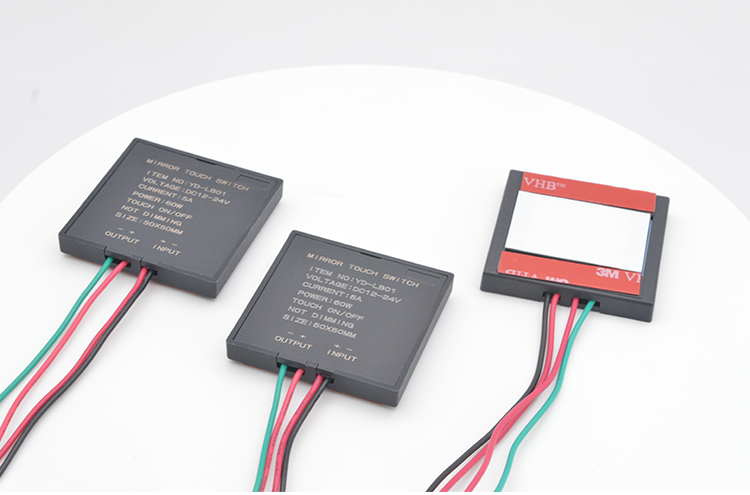

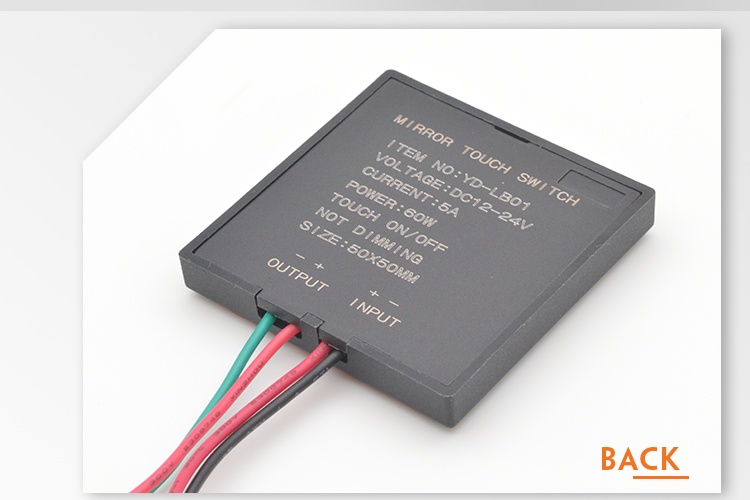

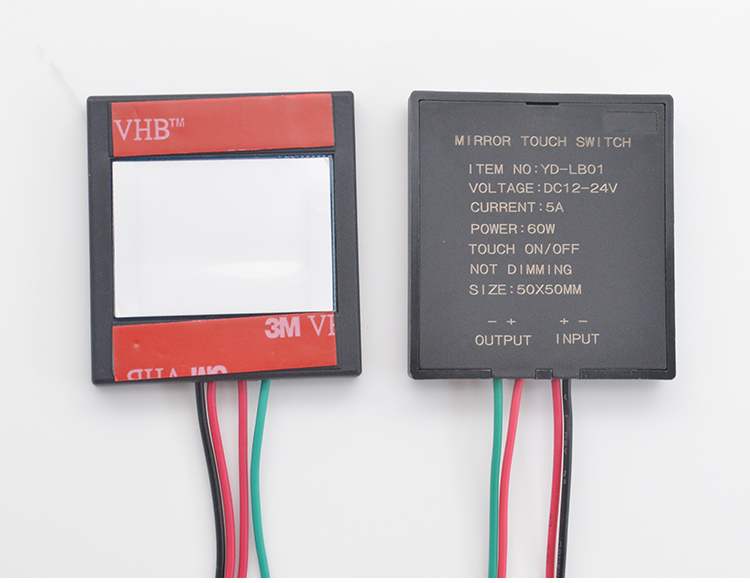

Mirror touch switch
Model: YD-LB01
Voltage: DC12V/ DC24V
current: 5A
strength: 60W
touch switch
Dimming: No/stepless dimming
size: 50mm*50mm*8mm
cable length: 10 cm
Number of control lights: 1

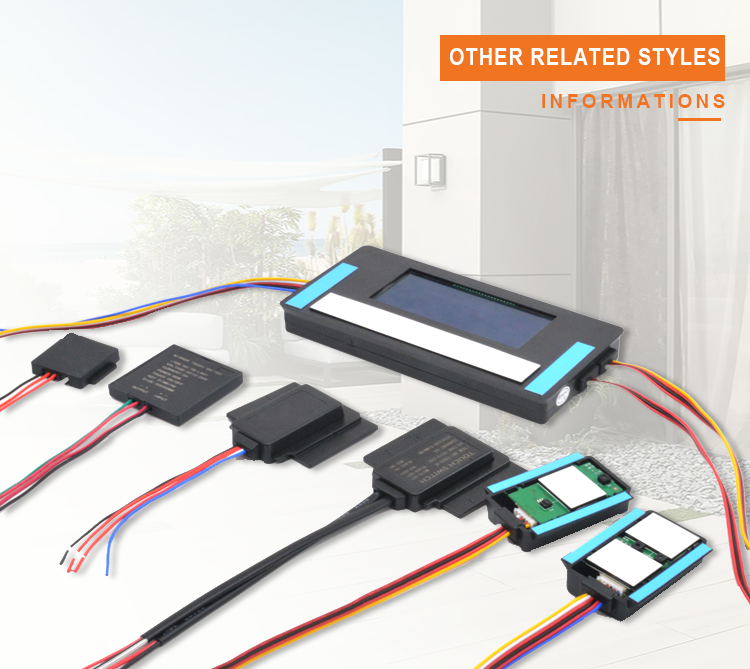

Name   mirror touch switch Name   mirror touch switch Name    mirror touch switch
model TS04-R model TSS04 model YD-LB01
Voltage DC12V/DC24V Voltage DC12V/DC24V Voltage DC12V/DC24V
current 5A current 5A current 5A
strength 60w strength: 60w strength 60w
size: 68mm*68mm*11mm size: 65mm*65mm*13mm size: 50mm*50mm*8mm
cable length 18 cm cable length 10 cm cable length 10 cm
Stepless dimming Stepless dimming Stepless dimming







Name mirror touch switch Name Mirror Hand Scan Sensor Name touch body sensor
model TSS01-3A model YMS-701/702/711/712 model YMS-713
Voltage DC12V/DC24V Voltage DC12V/DC24V Voltage DC12V/DC24V
current 3A current 5A current 5A
strength 36w strength: 60w strength 60w
size: 35mm*43mm*7mm size: 46mm*62mm*13mm size: 46mm*62mm*13mm
cable length 10 cm cable length 30 cm cable length 30 cm
Stepless dimming Stepless dimming Stepless dimming

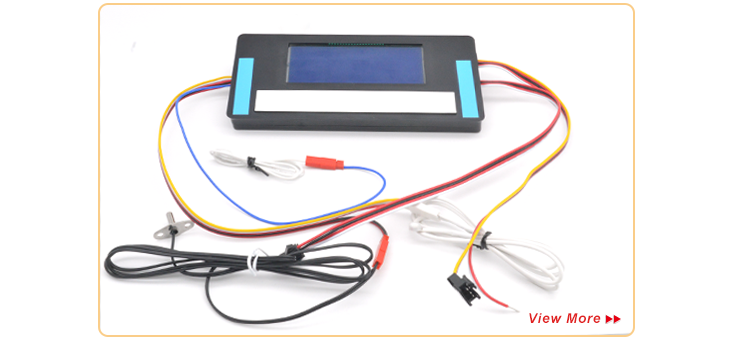

Name 6-button mirror touch controller
Model YD-MTCS006
Voltage DC12V/DC24V
current 5A (max)
light energy DC12V/60W; DC24V/100W
main size 168.4*82*17.5mm
Speaker size 107*51.5*25.5mm
