EX V5.0OBD ECU Kits CNG/LPG Indirect Injection OBD ECU 48 pin

PRODUCT DETAIL
Input voltage:8-16V DCcar brand:3,4 cylinder
product name:V5.0 OBD Gas ECUtype:cng auto parts for gasoline engine cars
Packaging Details:CNG/LPG ECU Packaging: Carton: 30cm x 30cm x 25cm Weight: 7.5KGProtection class:IP54
Warranty:one yearpayment terms:L/C, Western Union, T/T, MoneyGram, PayPal
Work Temptation:-40℃-125℃port:any port
Certification:ECE, ISO15500, UK...Memory:128KB
car model:gasoline locomotiveSupply capacity:100,000 sets of gas ECU per month
weight:450 gramsEngine type:3-4 cylinders. Gas ECU
Working current:10Aplace of origin; place of origin:China
Package preview:

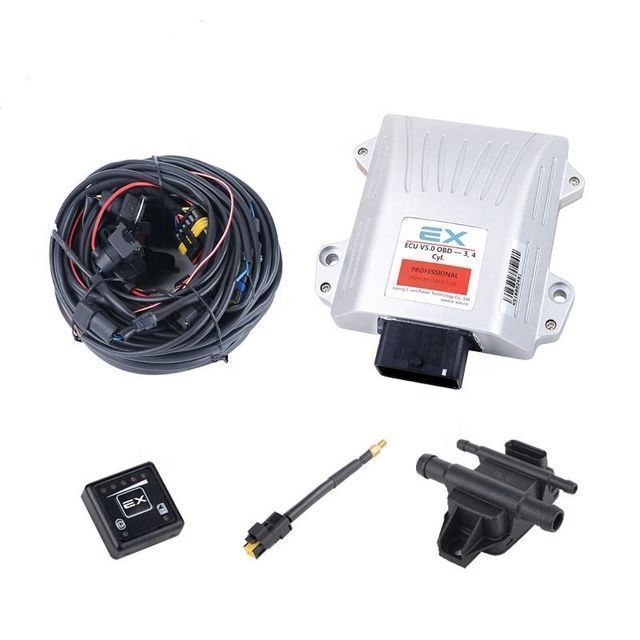

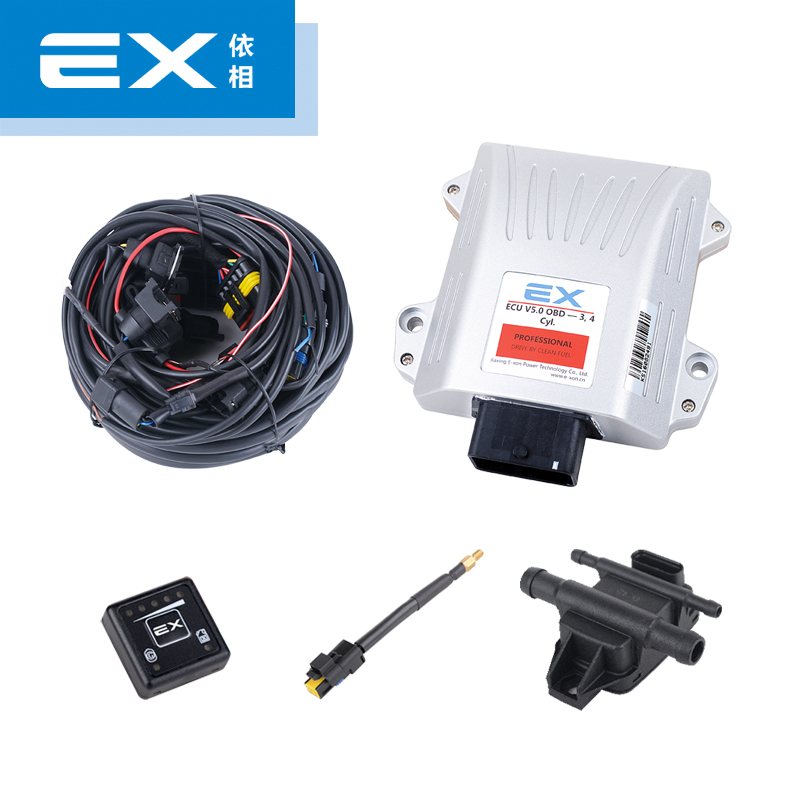

E-XON V5.0OBD Auto Gas Kit CNG/LPG Original Gas ECU

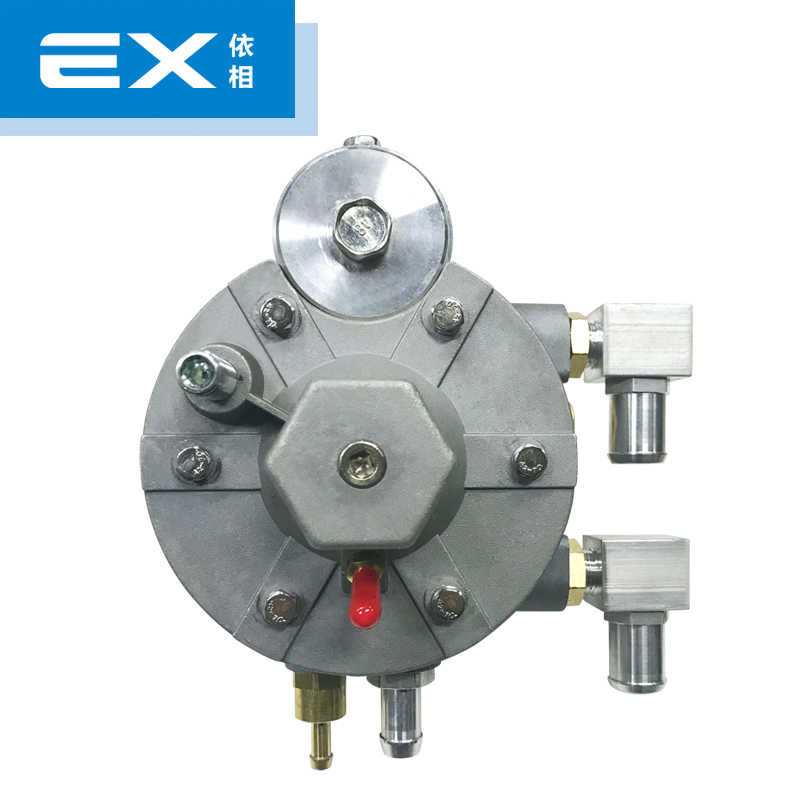

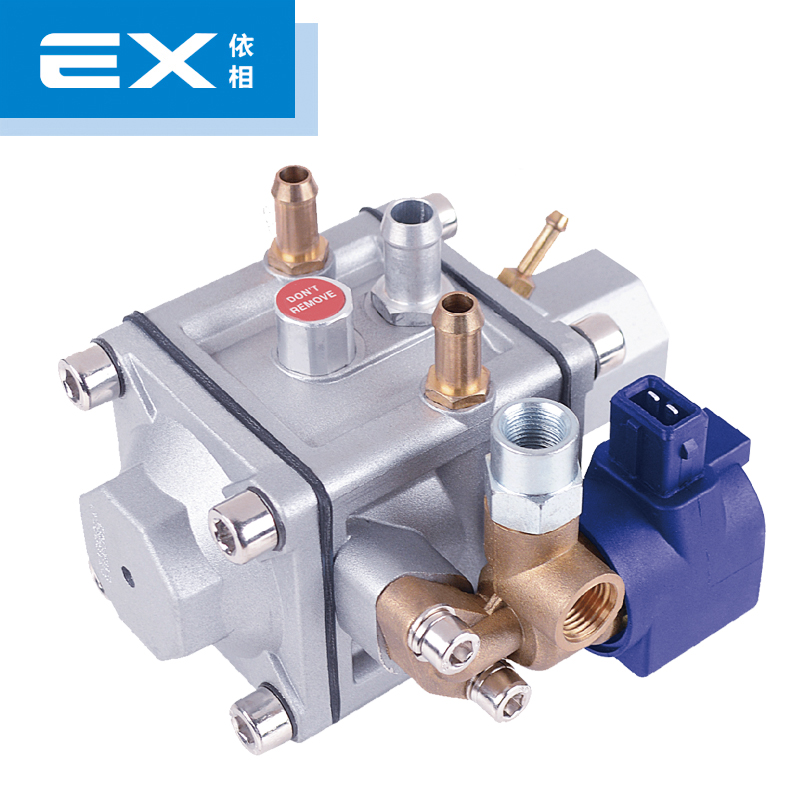

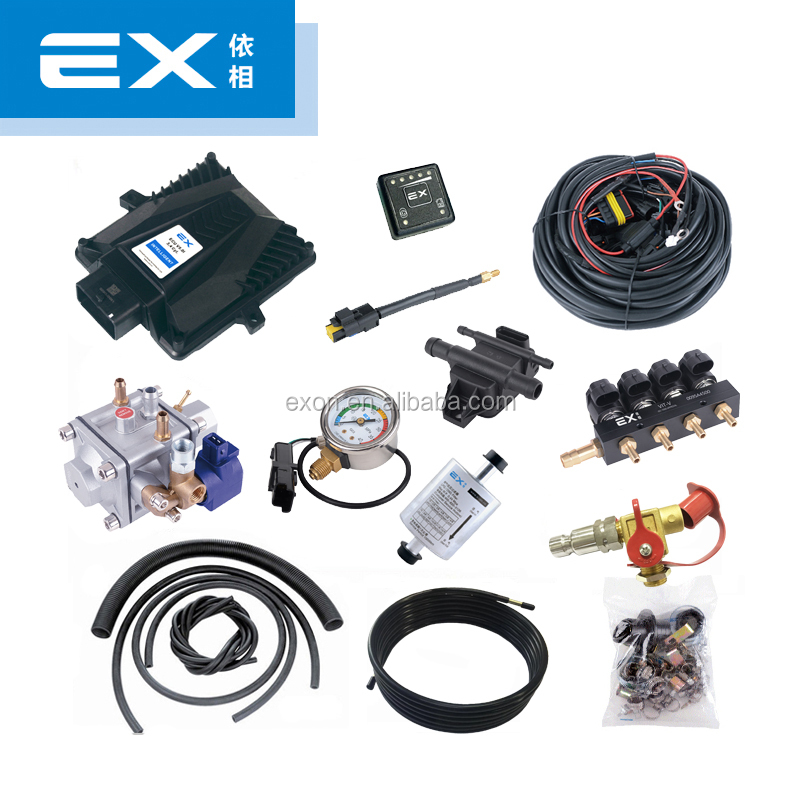

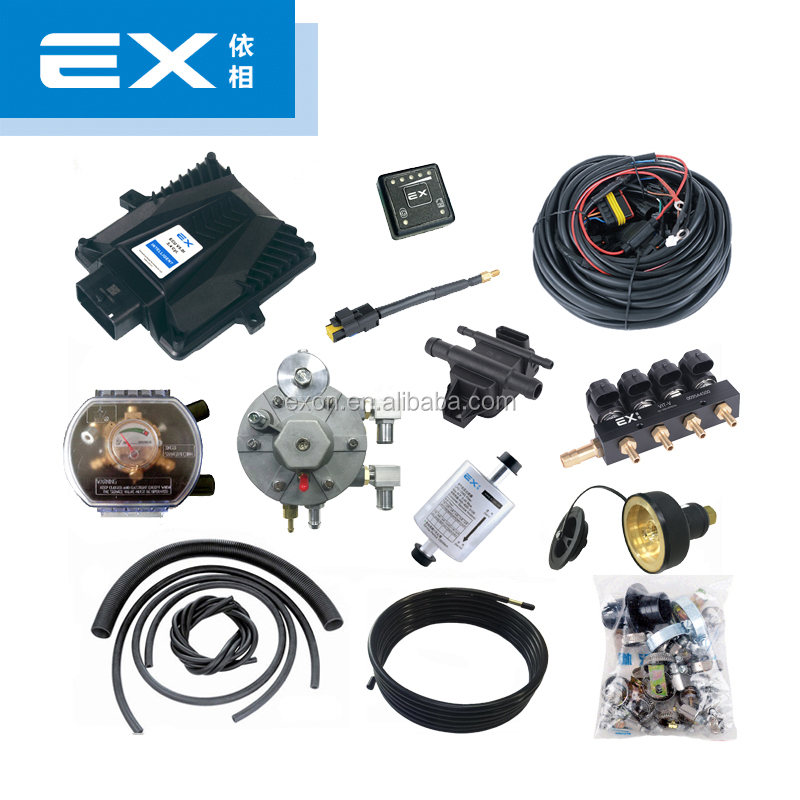

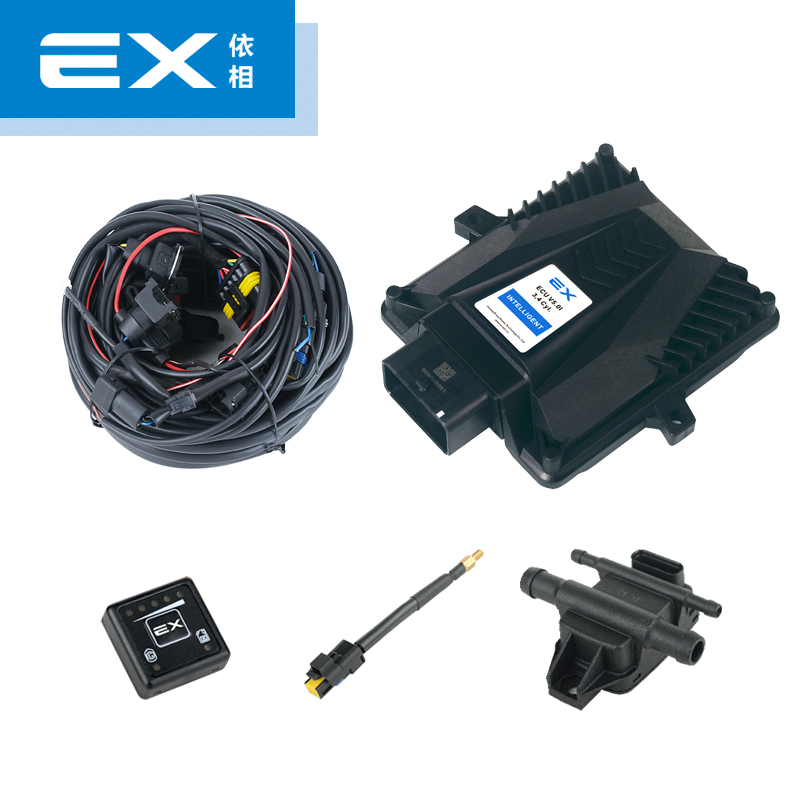

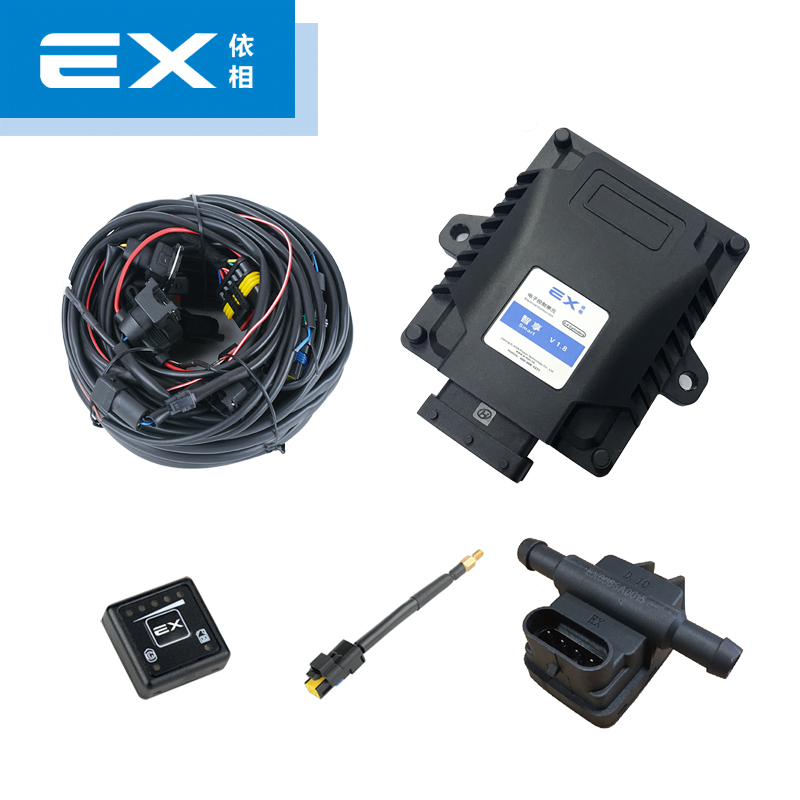

More other products



Product Description



system introduction

V5.0OBD Professional System is a gas sequential injection gas supply system. When the system is working, the gas ECU takes the original fuel injection signal as the basic signal, and at the same time collects parameters such as engine cooling water temperature and gas pressure to determine the final gas injection time and gas volume. The rail injectors supply gas to the corresponding engine cylinders.



Within the range allowed by the engine cylinder volume, the system will provide gas equal to the energy of gasoline. When the switch is in the gas position, the gas ECU will automatically detect the switching conditions already stored in the ECU. When the conditions are met, the system will switch to gas. At this time, the gasoline injector is cut off, and the air system ECU drives the air rail injector to start working.



The gas ECU reads the real-time data of the original vehicle from the OBD, injects gas accurately and quantitatively, and the gas system automatically learns the operating conditions of the vehicle.



V5.0 Gas Injection System - OBD Professional for 3cyl /4cyl. engine.

The hardware is developed and manufactured according to the high quality standard TS16949 with ECE R110 and ECE R97 certification.

Function V5.0 is specially designed for OEM "0km" cars. Advanced OBD II functions and real-time calibration keep gas cars in perfect condition in different driving environments and mileages, while meeting EURO V displacement standards.

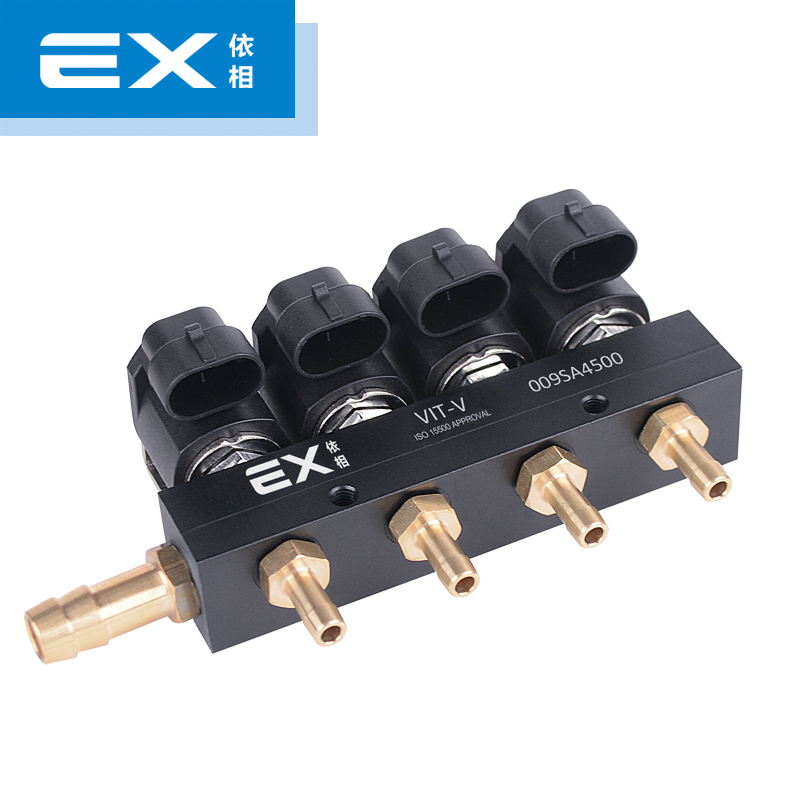

————Noiseless rail injector VIT-V and large-capacity voltage regulator provide more powerful power and quiet driving experience.

———— Very professional PC interface, which saves a lot of time for users.



System Advantages (Main Functions)

1. OBD self-study

2. Read data, diagnose and clear errors

3. Air leakage alarm automatically switches gasoline; air leakage alarm protection after parking is an optional function.

4. Digital switch/LED switch optional

5. Gas temperature calibration and manifold absolute pressure calibration

6. Automatic calibration function

7. Gas transient adjustment function

8. Gasoline mode, gas mode and gas start mode

9. Predicting the Injection Sequence



scope:

Engine Type: 3-4 Cylinder

Input voltage: DC 8-16V

Working temperature: -40℃~125℃

maximum. Working current: 10A

Protection class: IP54

Flash memory: 128KB

Connector pin: Molex 48pin
