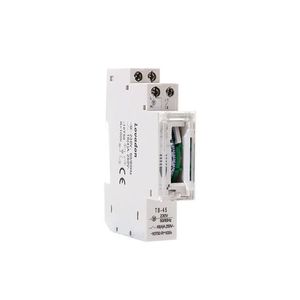

Easy Assemble Programmable Time Switch Ac 250v 16a Mechanical Timer
- $4.20 /piece
- 1 piece
- Yueqing Lovadon Electric Co., Ltd.
- Zhejiang, China
- Mr Richard Zhou
PRODUCT DETAIL
| Contact Load: | Low Power; | Port: | Ningbo; |
| Standard: | CE; | Usage: | PROTECTIVE; |
| Mechanical Life: | 10^7 times; | Packaging Detail: | Standard export packing or packing as your requirements; |
| insulation resistance: | ≥100mΩ; | Size: | Miniature; |
| contact resistance: | ≤50mΩ; | Product name: | Timer switch; |
| Brand Name: | LOVADON,OEM; | Place of Origin: | Zhejiang, China; |
| Rated frequency: | 50/60 Hz; | Model Number: | TB-45; |
| Protect Feature: | Epoxy; | set up times: | 15m/per times 96times; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal; | storage battery (working reserve: | 150H; |
| Supply Ability: | 20000 Pieces per Day Mechanical Timer; | minimum setting unit: | 15Minutes; |
| contact capacity: | AC250v, 16A; | Theory: | Time Relay; |
Product Paramenters
TB-45 Mechanical Timer is suit for water heater, Water dispenser, Street lamp, Staircase lamp,Advertising lamp box,Breed aquatics,Irrigation, office power auto control, anywhere need time control in civilian, home or industrial, etc. It can set 8 programs to control ON or OFF of electric appliance in 24 hours or set 48 programs in one week. It can be programmed to avoid the peak of power, and distribute power in time limit to save energy.This timer is a kind of module for DIN guide rail,easy to installation in illmination box, and is so compact size with pretty form. Its time base component is adopt synch pulse motor and it is strong
anti-jamming, small consume with performance stability.
anti-jamming, small consume with performance stability.
Model number | TB-45 |
Movement Type | AC type |
Frequency | 50~60Hz |
Contact Capacity | AC250V 16A |
Contact Resistance | ≤50 mΩ |
Insulation Resistance | ≥100 mΩ |
Life/Electrical | 10ntimes (n=5) |
Mechanical | 10ntimes (n=7) |
Minimum setting unit | 15 minutes |
Minimum setting interval | 15 minutes |
Full Timing Range | 24h |
Operating Temperature | -40℃~+55℃ |
Storage battery(working reserve) | 150h/without battery |
Set up times | 15m/per times 96 times |

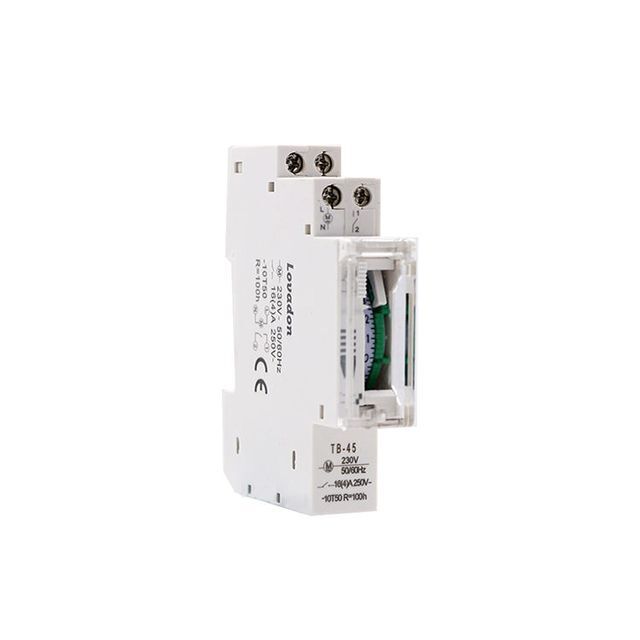

Product Display
Applications
Relate Products
Company Profile
Certifications
Praise
Product packaging
