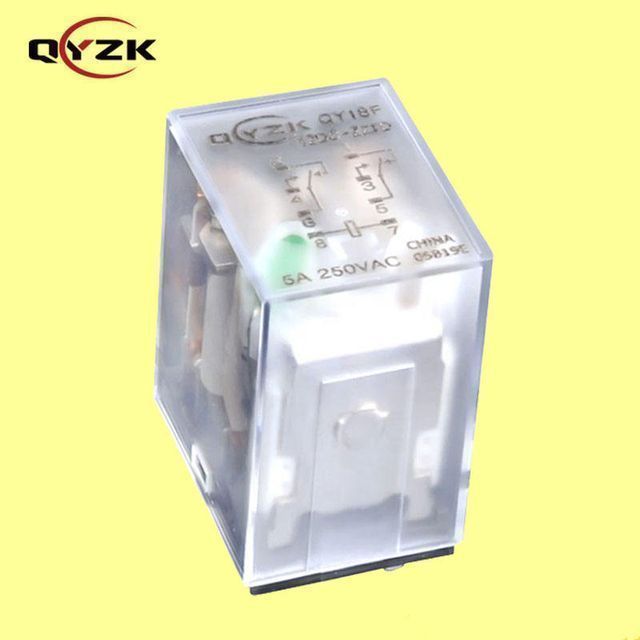

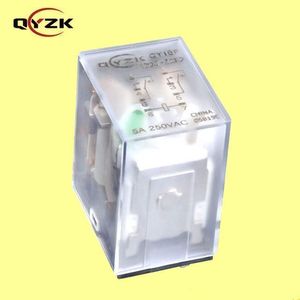

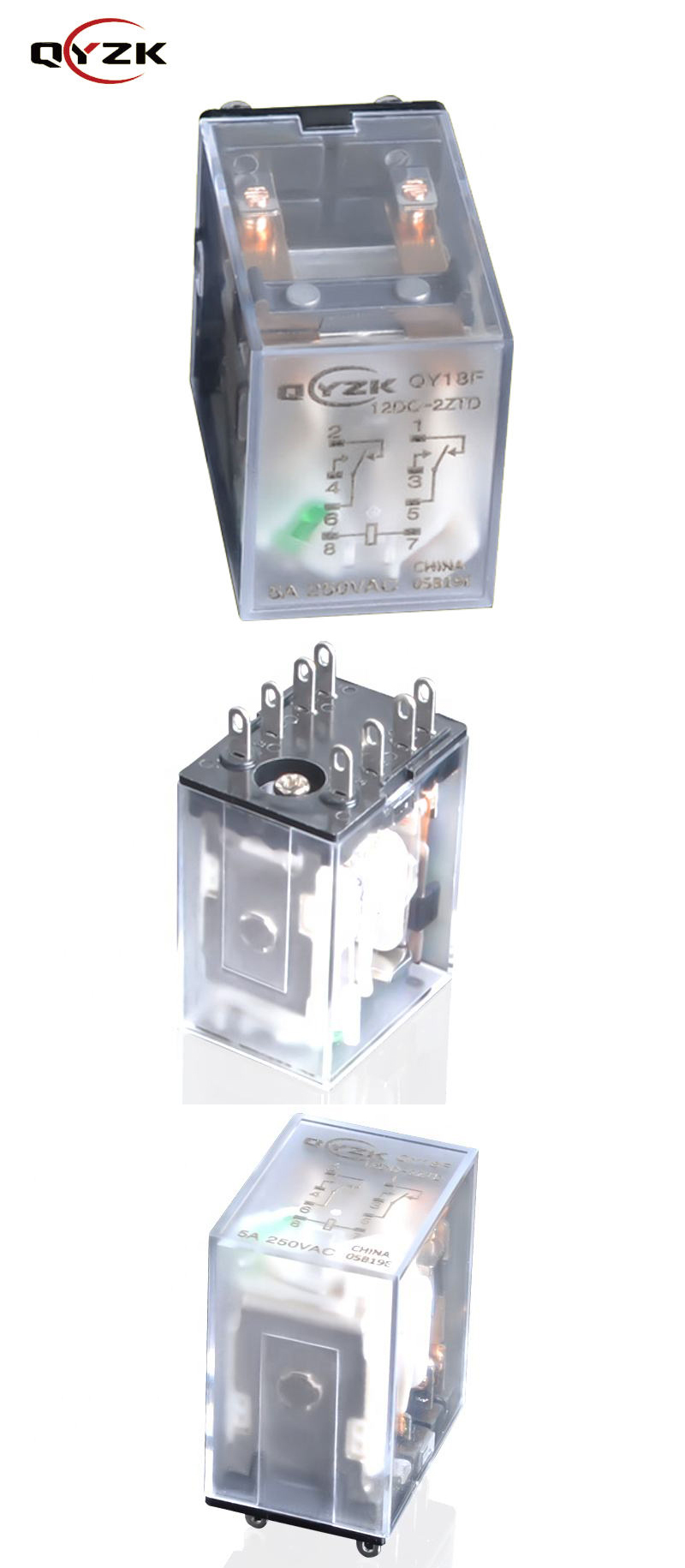

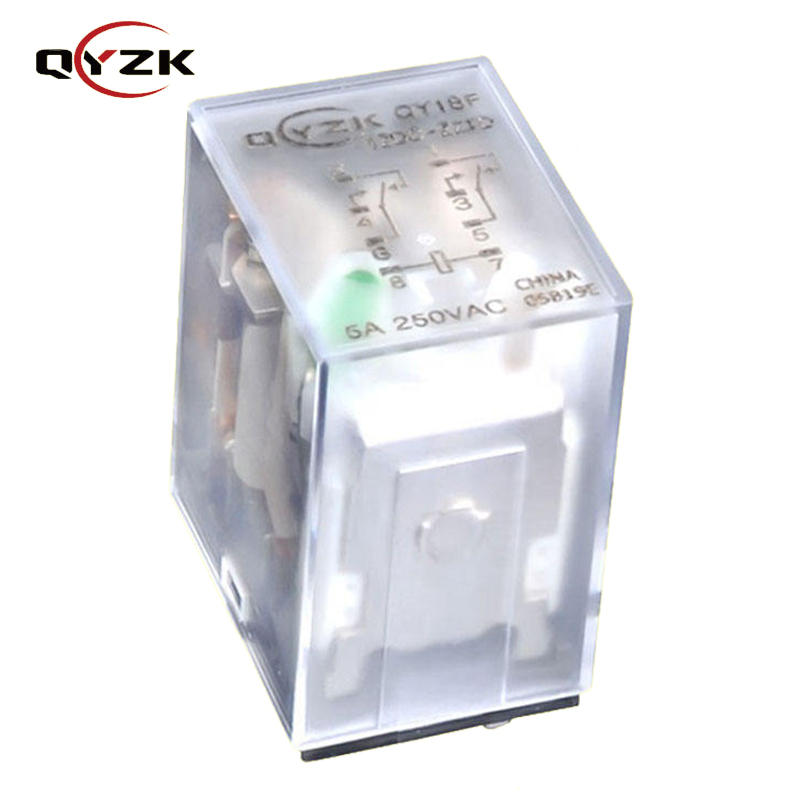

Jzx 18ff 5A 250VAC 8 pin relay replace MY2 MY4 220 volt coil 12V DC general industrial use intermediate relay
- $1.01 / 1 - 999 pieces
$0.96 / 1000 - 4999 pieces
$0.94 / 5000 - 99999 pieces
$0.92 / >=100000 pieces - 1 piece
- Dongguan Qunying Intelligent Control Electronics Co., Ltd.
- Guangdong, China
- Ms Spring Jang
PRODUCT DETAIL
theory: | Intermediate relay | usage: | circuit board |
sample: | support | Certificate: | CQC, TUV, UL |
Delivery methods: | By sea, by air | model: | QY18F-12DC-2ZTD |
color: | transparent | Shipping place: | Dongguan, China |
Contact Load: | 10A250VAC | Package preview: | |
voltage: | 12V | Warranty: | two years |
Gross weight per piece: | 0.093 kg | Lead-free status: | ROHS Directive |
Protective function: | seal | brand: | Qingyuan Think Tank |
size: | 27.3*21.0*35.2(mm) | Packaging Details: | 50pcs/foam box*10foam box/carton*500pcs/carton*Shockproof packing: packing packing corrugated cardboard*Size: 44.0*30.0*37.5cm*GW: 15.3KGS*NW: 14.5KGS |
Sales unit: | single product | Material: | silver alloy |
terminal type: | 8DIP | place of origin; place of origin: | Guangdong, China |
Single package size: | 4.5X3X8 cm |
Jzx 18ff 5A 250VAC 8 pin relay replace MY2 MY4 220 volt coil 12V DC universal
Application Industrial Intermediate Relay
Product Description
model | QY18F-012DC-2ZTD |

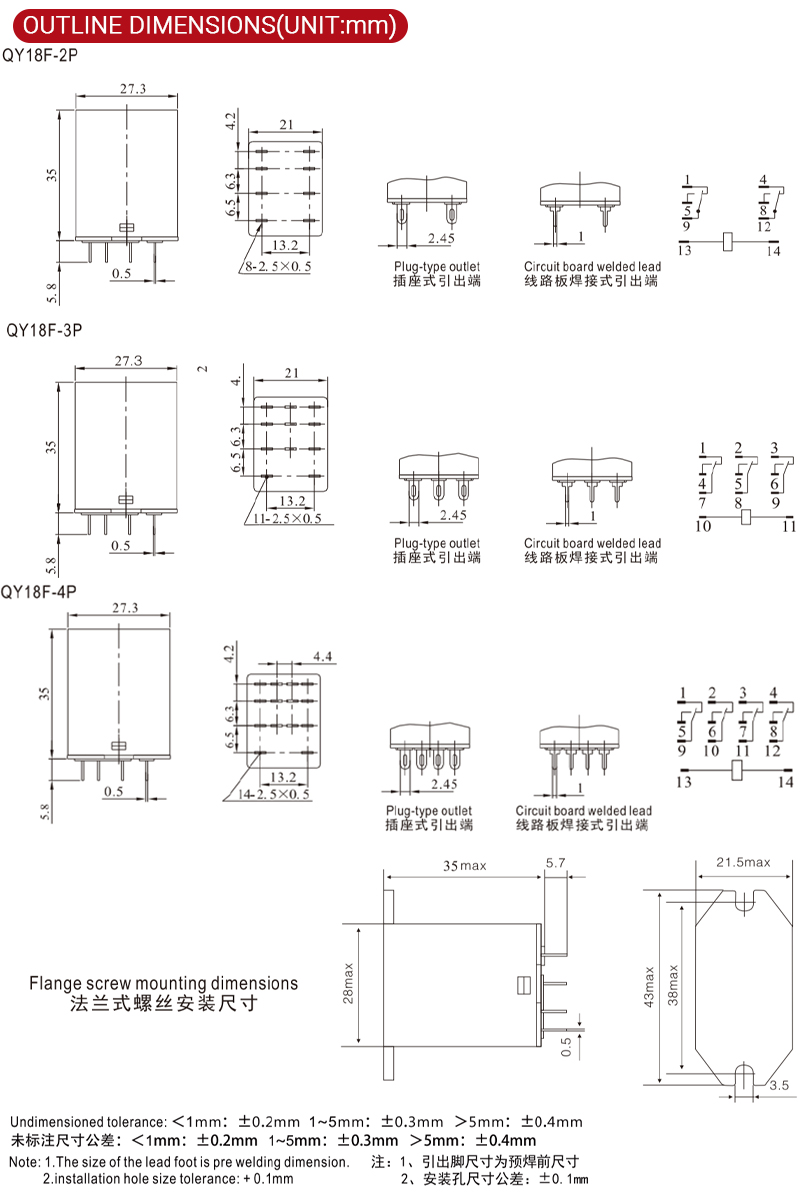

size | 27.3*21.0*35.2(mm) |
coil voltage | 12v 24v 48v 110v 220v 380v |
contact load | 5A 250VAC |
Contact list | double pole double throw |
polish | 2 poles |
Coil power | 0.9W |
contact material | silver alloy |
Mechanical life | ≥10 million times |
electrical life | ≥100000 times |
Relay related parameters (different parameters) | ||||||||
Relay model | Relay parameter | |||||||
QY880-110AC-2ZP-W | 110AC, 80A 240VAC/28VDC, DPDT (2 Form C), 8pins, 10.5VA, 1P 120A | |||||||
QY880-024DC-H | 024DC,100A/120A 240VAC/28VDC,SPST-NO(1 Form A),4pins,2.00W,1P 100A | |||||||
QY880-012AC-Z | 012AC,100A/120A 240VAC/28VDC,SPDT(1 Form C),5pins,2.00W,1P 100A | |||||||
QY880-220DC-2Z | 220DC,80A 240VAC/28VDC DPDT(2 Form C),8pins,2.00W,1P 100A |
