Easy to handle in tight spots use threaded and smooth shaft accessories for a wide variety of tasks w/this grinder

PRODUCT DETAIL

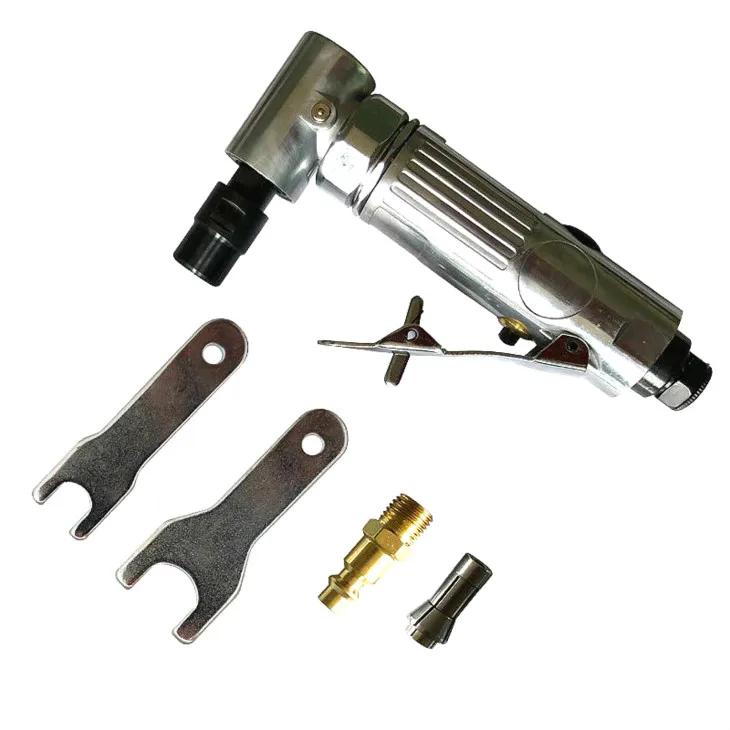

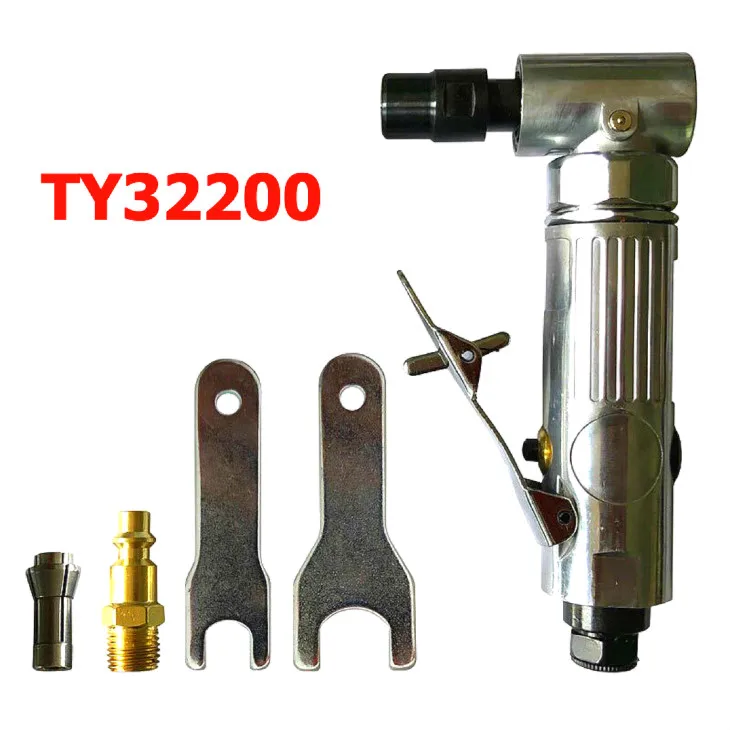

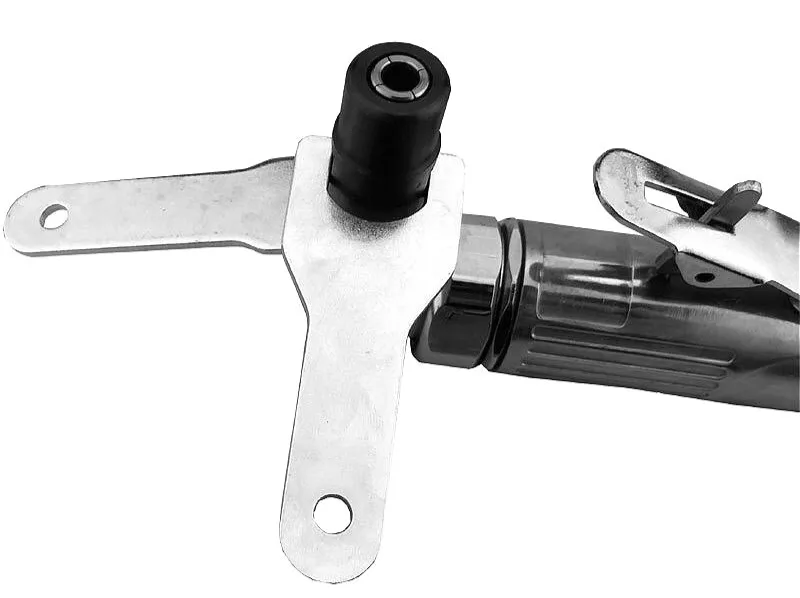

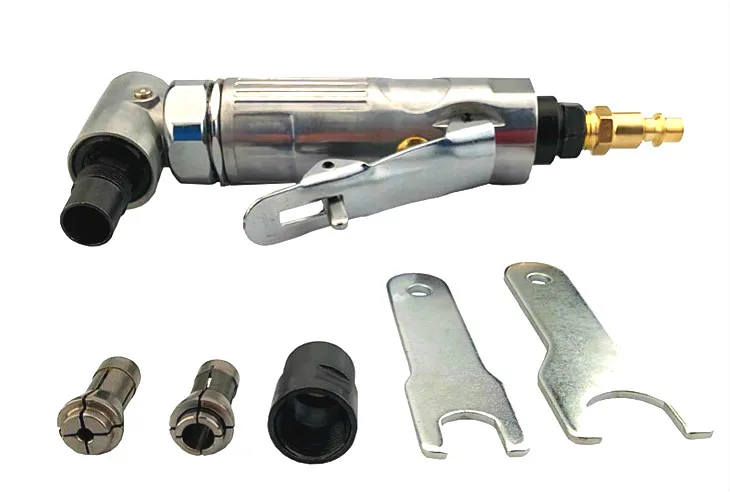

Place of Origin:Shandong, China;Packaging Detail:Scope of Delivery 1*TY32200 1* 3mm Collet 1*Male Nipple 1* 6mm Collet 2*Collet Wrenches 1*Technical Passport(#9940006);
Voltage:Pneumatic;Current:Pneumatic;
Package Preview:;Single package size:1X1X1 cm;
Power Source:Pneumatic;Weight:0.49kg (1.1lbs);
SKU:353124;Air consumption:4.8CFM;
Single gross weight:2.500 KG;Grade:DIY;
Collet Capacity:3mm/6mm (1/8"/1/4");Selling Units:Single item;
Working pressure:6-10kg/cm2;



MODEL

TY32200

MODEL NUMBERING DESIGNATION

3: GRINDING TOOLS

2: ANGLE COLLET GRINDERS

200: SPEED(20,000 RPM)

VELOCITY

20,000 RPM

COLLET CAPACITY

6.35mm ( 1/4 in.) OR 3.18mm(1/8 in.)

AIR CONSUMPTION

3 CFM

WEIGHT

0.49 kg(1.1 lbs)

AIR INLET

1/4” PT

AIR HOSE

3/8” ID

AIR PRESSURE

90PSI

LENGTH

157mm

CURRENT

Pneumatic

SKU

353124

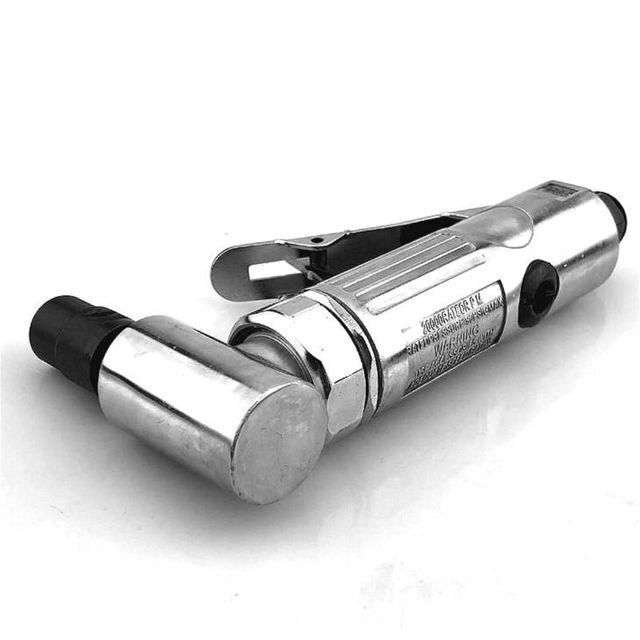

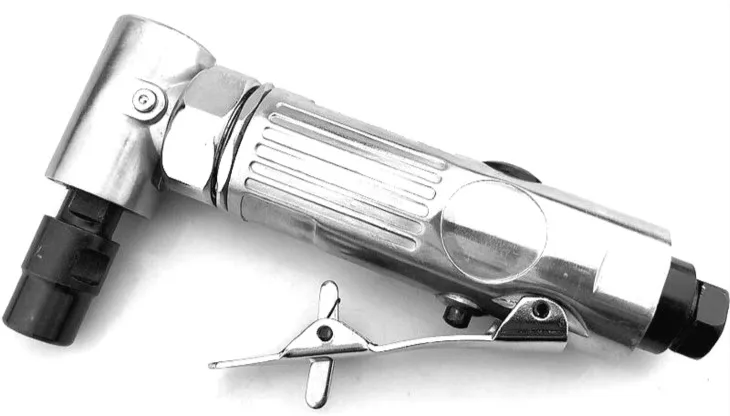

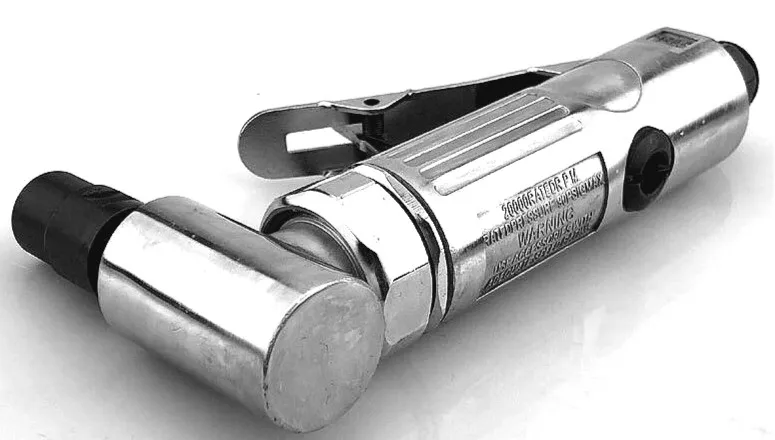

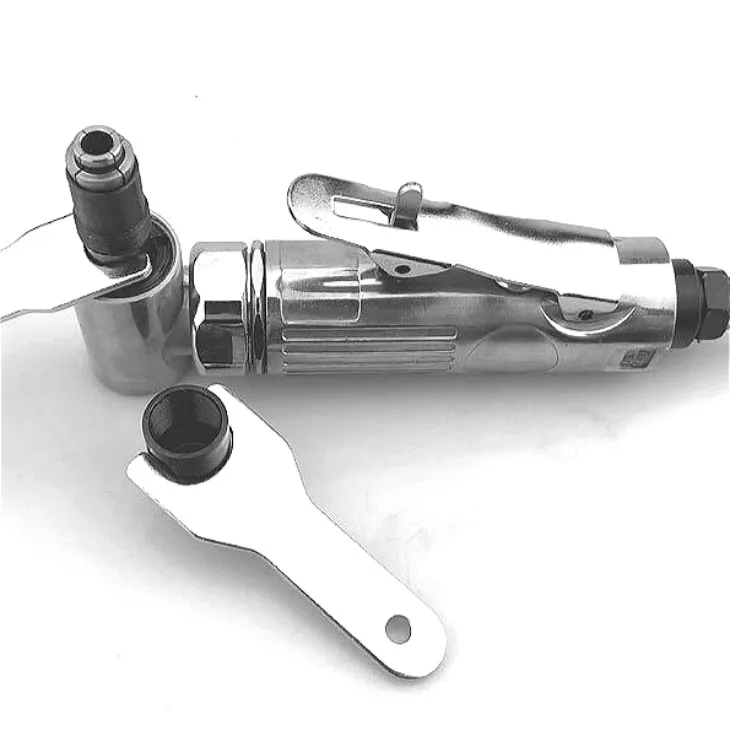

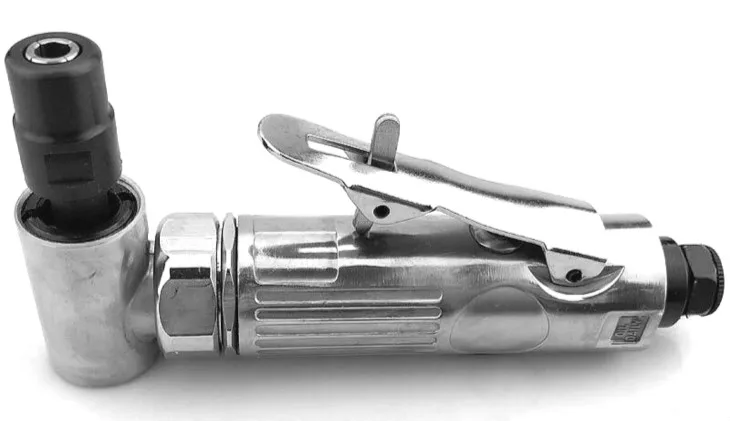

 This angle die grinder reaches spots that an inline die grinder can't. Paddle throttle lever provides smooth control with less hand fatigue. This pneumatic angle die grinder has a front exhaust to help keep a clear line-of-sight while you work.

  • Paddle lever for smooth control
  • Lightweight aluminum body
  • Front exhaust
  • Durable ball-bearing motor
  • 1/4" (6.35 mm) or 1/8"(3.18mm) collet holder

Tarboya Grinding Tools Brochure could be downloaded from www.tarboya.com

At Tarboya, we bring you only two things: great products and exceptional service. Whenever you are using your pneumatic tools , we make sure you have the technology you need to be safe and efficient. Tarboya supplies both Russia pneumatics and ordinary air tools. Our team, capable of designing, developing, CNC modification and production, supports multiple industries with innovative, high quality air tools and accessories for the most demanding applications. Tarboya’s export starts in Mid 2018, our Alibaba shop was incepted in 2019 but we   a-r-e   d-i-f-f-e-r-e-n-t !

Wait.. Are you kidding me? What the f**k Tarboya, you are only 2 years old and even do not know the ABCs of air tools.

Before 2018, we are doing inland sales. That is the point. Our production and marketing team have been in air tools line for more than 10 years. These backbones have in-depth knowledge and knows air tools very well.

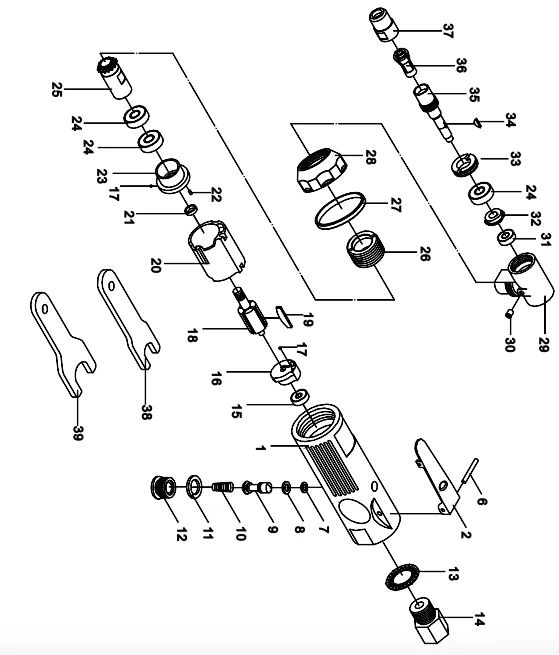

You will find Tarboya owner’s manual, here in Tarboya we name it Passport, is not the simply exploded view or general safety rules translated by Google, but the detailed technical description and operating instructions accurately written.

We assure you only the best designs, materials and production methods are used to make the tools that carry the Tarboya Name.

Quality tool, favorable price, professional papers, swift after-sale service. These are the very four Tarboya wanna to put in your hand.

Tarboya warrants TY32200 Pneumatic angle die grinder will not have any material or manufacturing defects for the period of 6 months from the date of delivery. The warranty for flawless function of the goods and the materials used is granted for the period of 6 months from the date of delivery of the goods.

Tarboya undertakes to remove any possible defects covered by the warranty free of charge and without undue delay, so that the buyer of the goods can use the product properly. Should the buyer exercise rights arising form the liability for the defects which are not covered by the warranty, he/she shall pay all related costs.

Tarboya’s  warranty shall be deemed void in the event of:

  • Improper use of the machine,
  • Use contrary to national or international standards,
  • Incorrect installation,
  • Faulty supply of compressed air or its poor quality
  • Serious deficiencies in maintenance,
  • Unauthorized modifications and/or interventions,
  • Total or partial non-compliance with the instructions included in the manual
  • Exceptional events, natural disasters and others.
