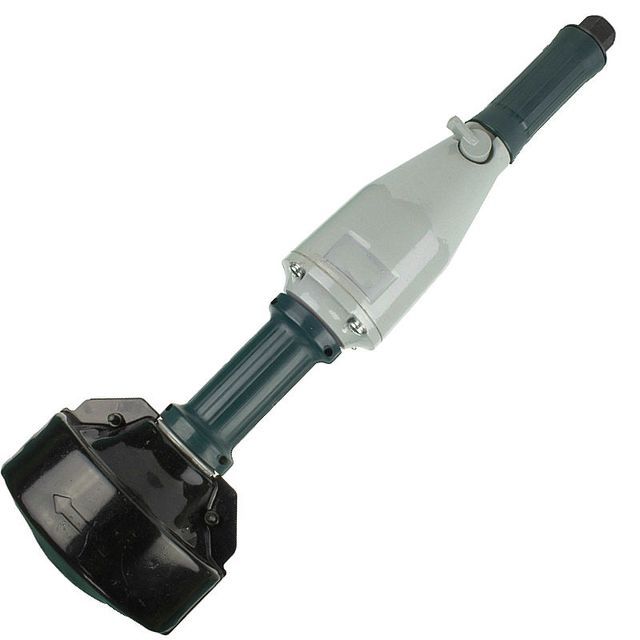

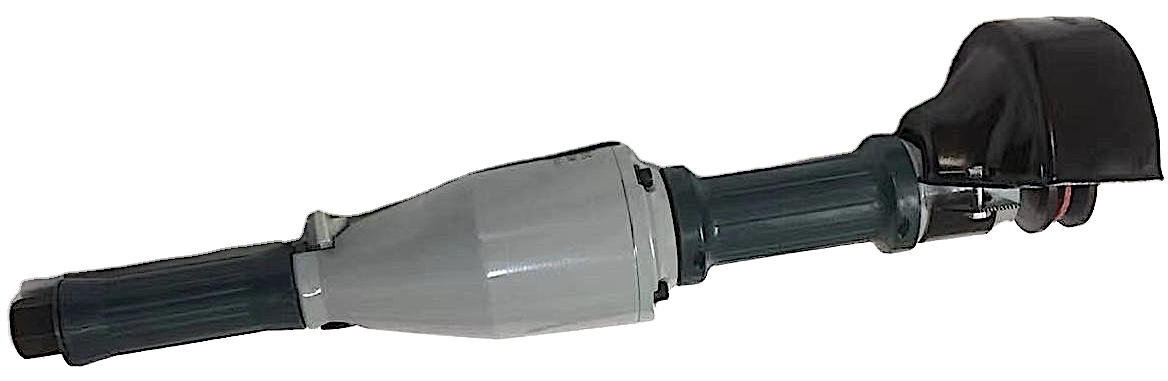

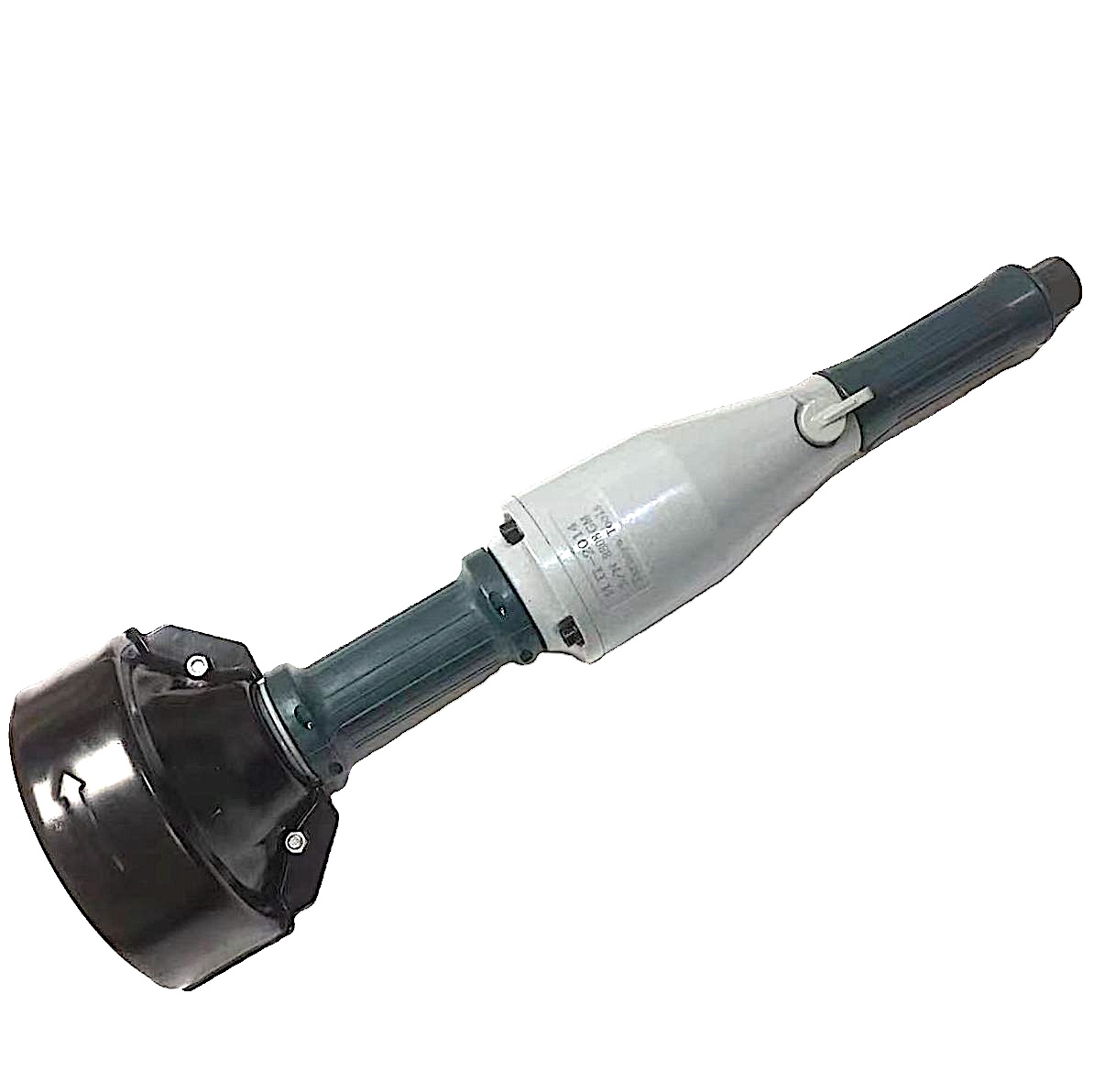

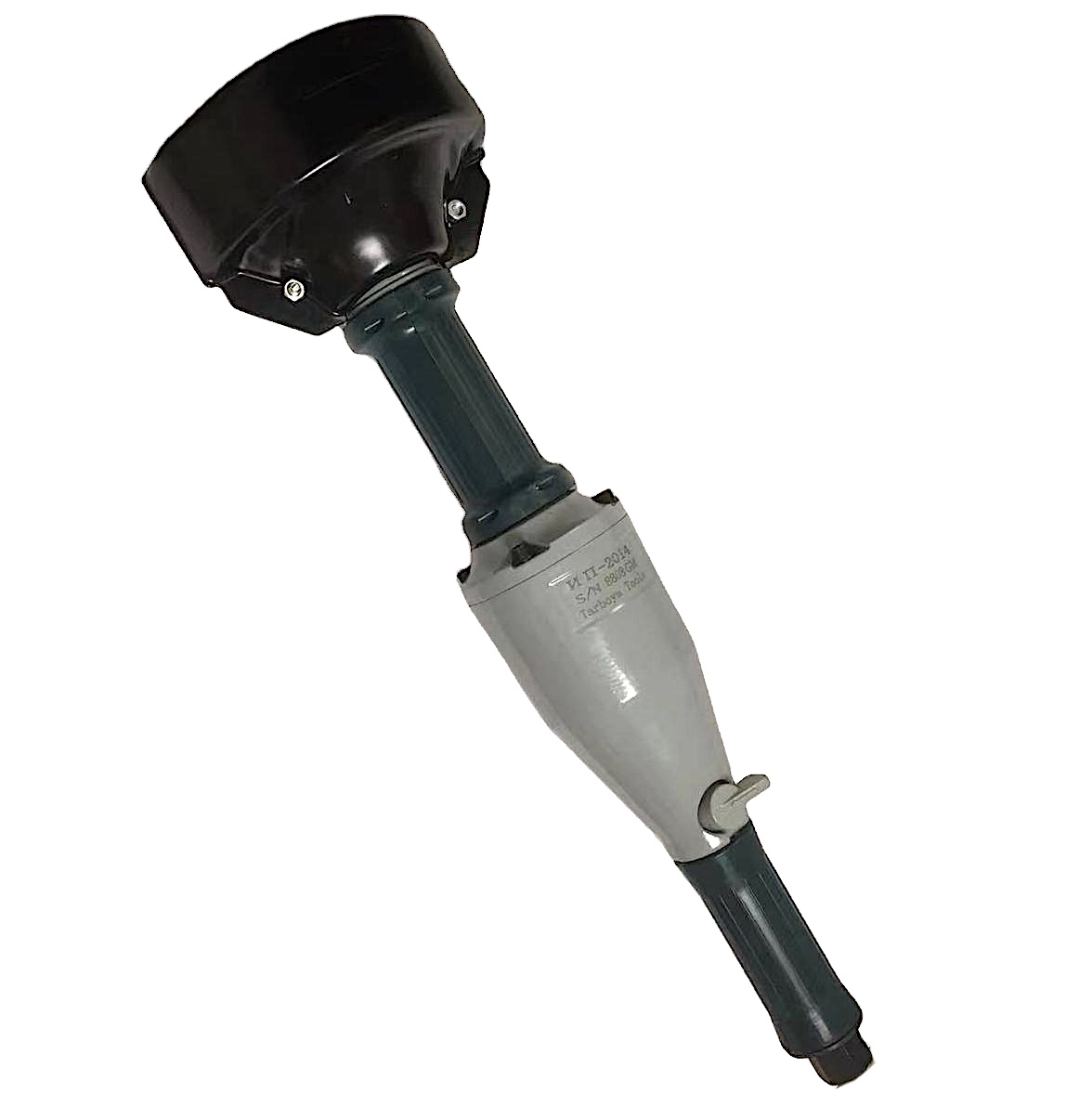

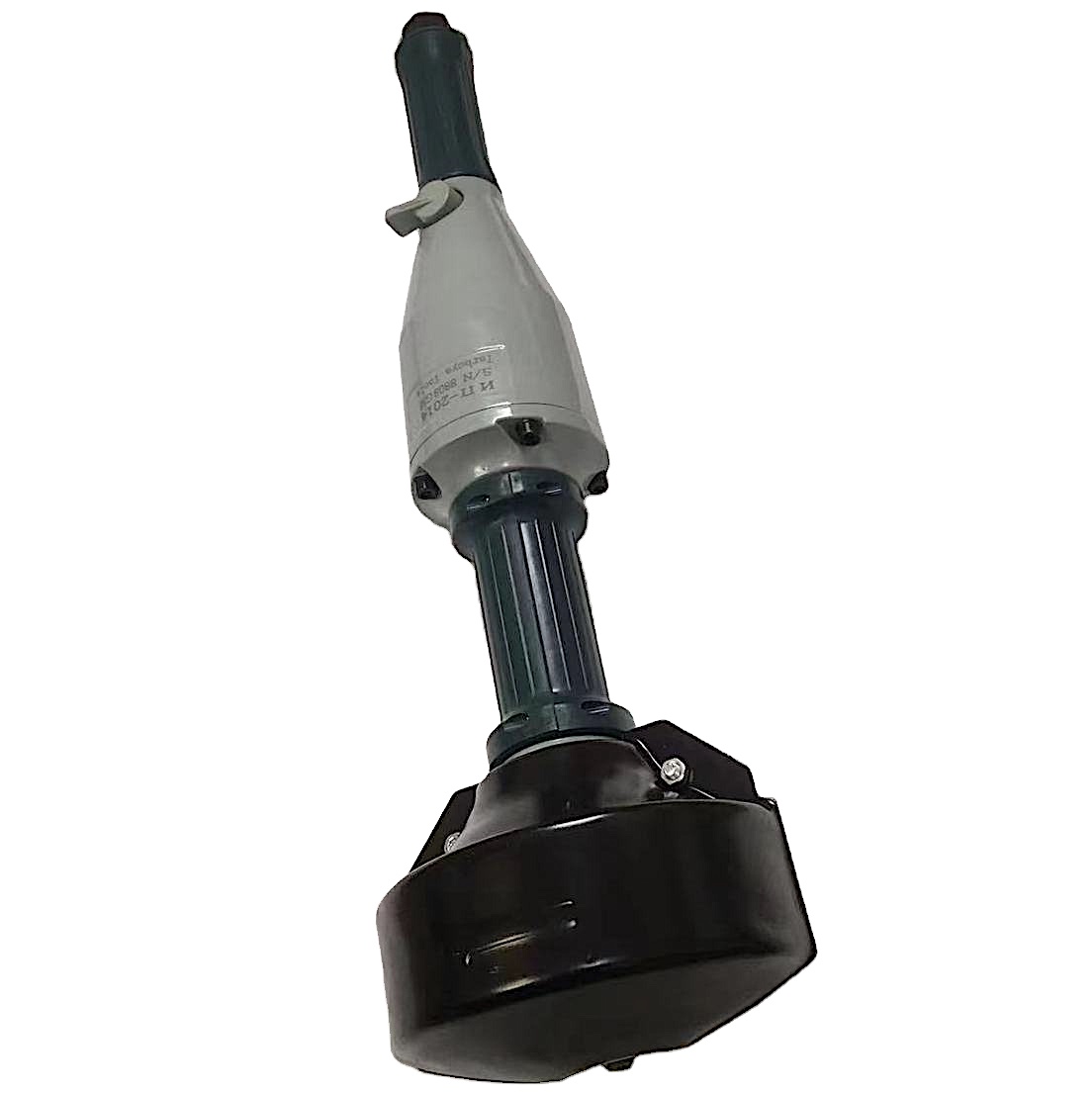

IP-2014 Straight Wheel Grinder for Industrial Maintenance and Production Applications 6" X 1-1/4" X 5/8" Maximum Grinding Wheel Capacity

PRODUCT DETAIL
exhaust vent:frontPackaging details:Scope of supply 1* IP-2014 1* Male connector 4* Blade 1* Technology Passport (#9940045)
Warranty:6 monthsaspect:590*164*130mm
Air consumption:46 CFM @ 90 PSIItem number:569002
current:pneumaticGross weight of single piece:6.000kg
strength:1275 wattsMaximum wheel capacity:6*1-1/4*5/8 inches
weight:4.2 kg (9.2 lbs)Engraving machine type:6 inch pneumatic grinder
Energy source:pneumaticAir duct:3/4 inch
Cutting edge material:carbideair pressure:0.49 MPa (5 bar)
Sales unit:Single productgrade:industrial
Single piece packaging size:1X1X1cmapplication:Metal

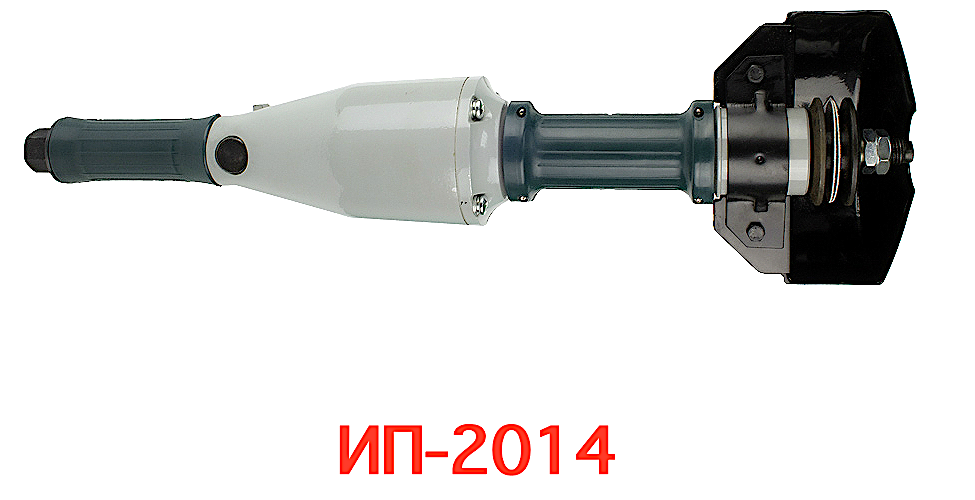

Model

IP-2014

speed

5,100 rpm

Air consumption

46 CFM @ 90 PSI

weight

4.2 kg (9.2 lbs)

strength

1,275 watts (1.7 hp)

exhaust vent

front

air inlet

1/2”

REC air hose

3/4”

length

23-1/4 inches (590 mm)

Maximum wheel capacity

6"X 1-1/4"X 5/8"

(150mm*32mm*16mm)

current

pneumatic

stock keeping unit

569002





  • feature
    - 6 in. (150 mm) wheel capacity
    - 1,275W control motor
    - 5,100 rpm free speed

  • benefit
    - Straight wheel grinders for industrial maintenance and production applications

    - High productivity

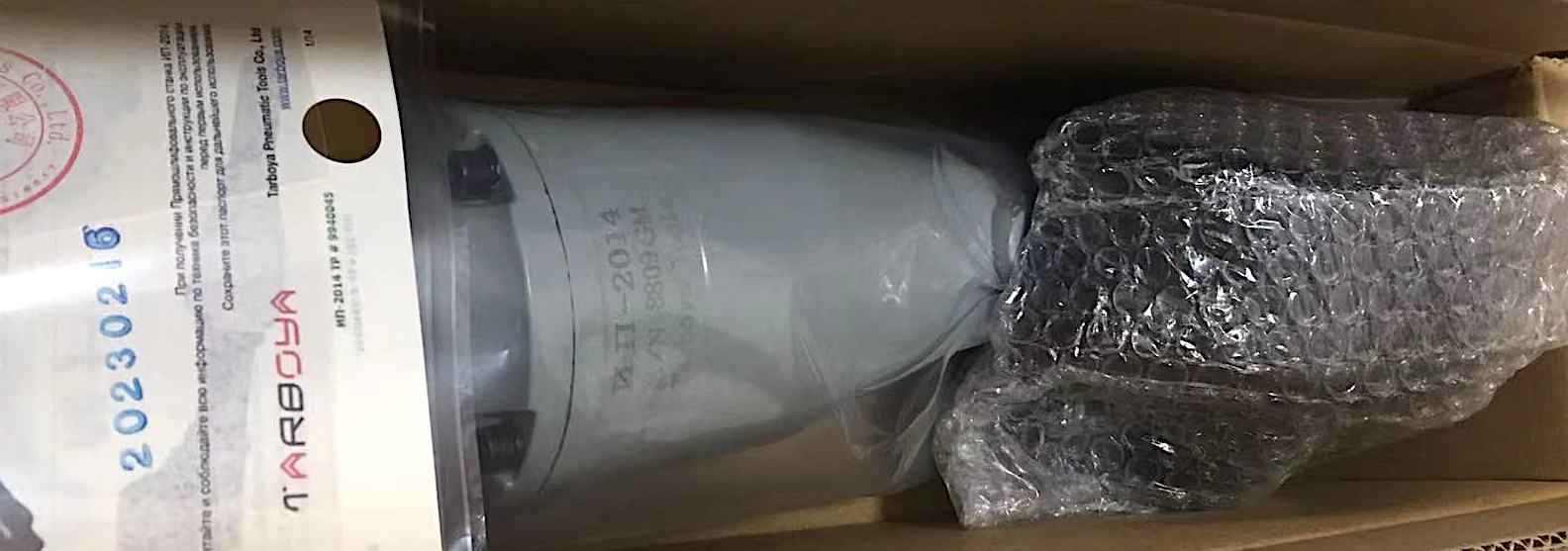

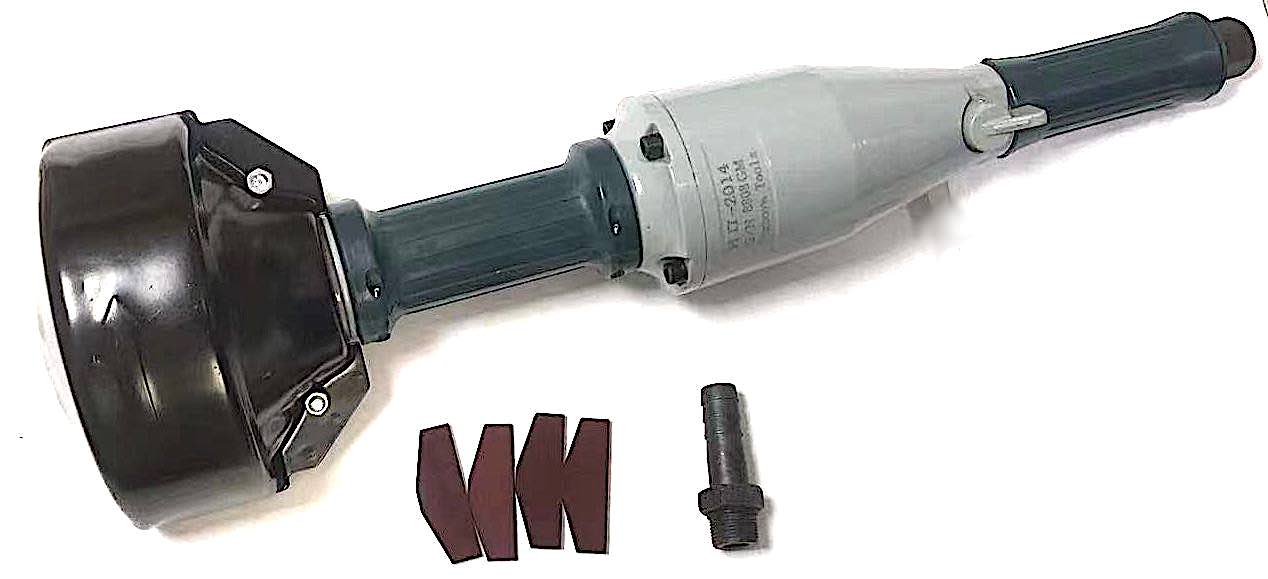

Scope of supply

1*IP-2014

1*External thread connector
4*wind vane

1*Technical Passport (#9940045)



The Tarboya Grinding Tool Manual can be downloaded from www.tarboya.com





At Tarboya, we only bring you two things: quality products and exceptional service. Every time you use air tools, we'll make sure you have the technology you need to be safe and efficient. Tarboya supplies Russian pneumatic equipment and general pneumatic tools. Our team is able to design, develop, CNC retrofit and produce innovative, high quality pneumatic tools and accessories for multiple industries that meet the most demanding application needs. Tarboya's exports started in mid-2018, and our Alibaba store was established in 2019, but we are different!

Wait..are you kidding me? Damn it Tarboya, you are only 2 years old and you don’t even know the basics of air tools.

Before 2018, we were doing inland sales. That's what I want to say. Our production and marketing team have more than 10 years of experience in the pneumatic tool industry. These cadre are very knowledgeable and know a lot about air tools.

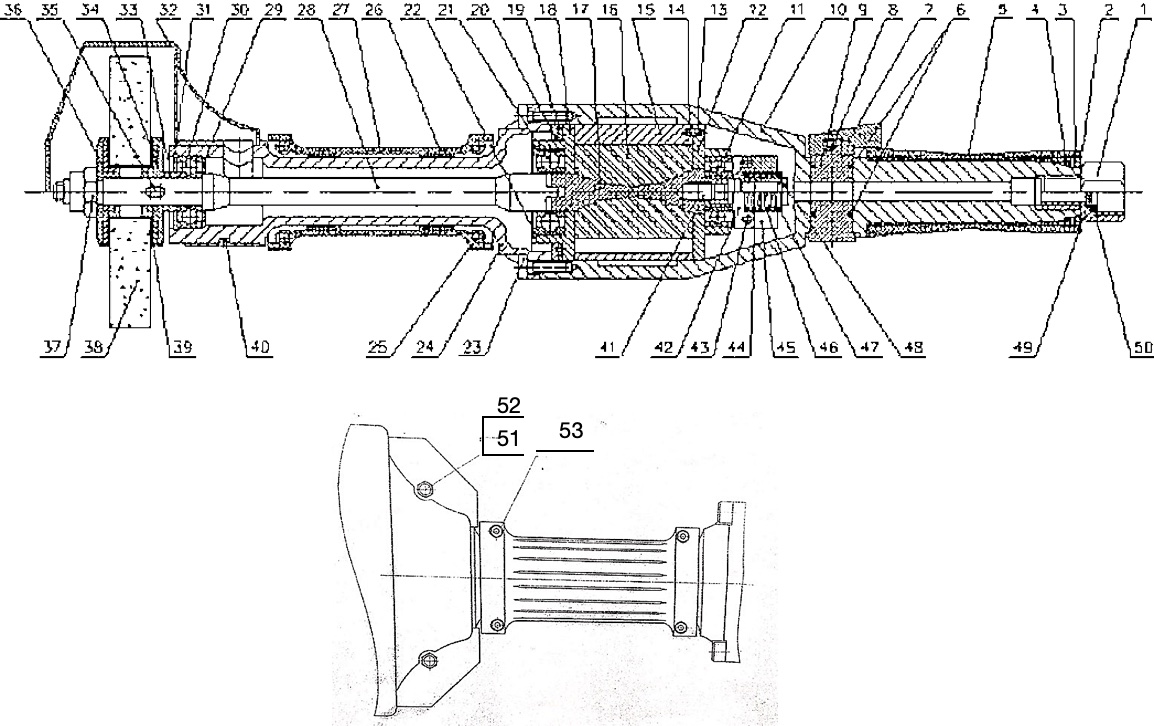

You'll find that the Tarboya's user manual, which we call a Passport at Tarboya, is not a simple exploded diagram or Google-translated general safety rules, but accurately written, detailed technical instructions and operating instructions.

We assure you that only the best designs, materials and production methods are used to manufacture tools bearing the Tarboya name.

High-quality tools, favorable prices, professional papers, and fast after-sales service. These are the four that Taboa wants to put in your hands.

Tarboya warrants the IP-2014 Pneumatic Straight Wheel Grinder to be free from any material or manufacturing defects for a period of 6 months from the date of delivery. The warranty period for perfect functionality of the goods and materials used is 6 months from the date of delivery of the goods.

Tarboya undertakes to eliminate any possible defects covered by the warranty free of charge and without undue delay so that the purchaser of the goods can use the products correctly. If the Buyer exercises its rights arising from liability for defects not covered by the warranty, the Buyer shall pay all related costs.

Tarboya's warranty will be void if:

  • Improper use of the machine,
  • Use in violation of national or international standards,
  • Incorrect installation,
  • Compressed air supply failure or poor quality
  • Serious deficiencies in maintenance,
  • Unauthorized modification and/or intervention,
  • Total or partial failure to follow the instructions in the manual
  • Abnormal events, natural disasters, etc.
