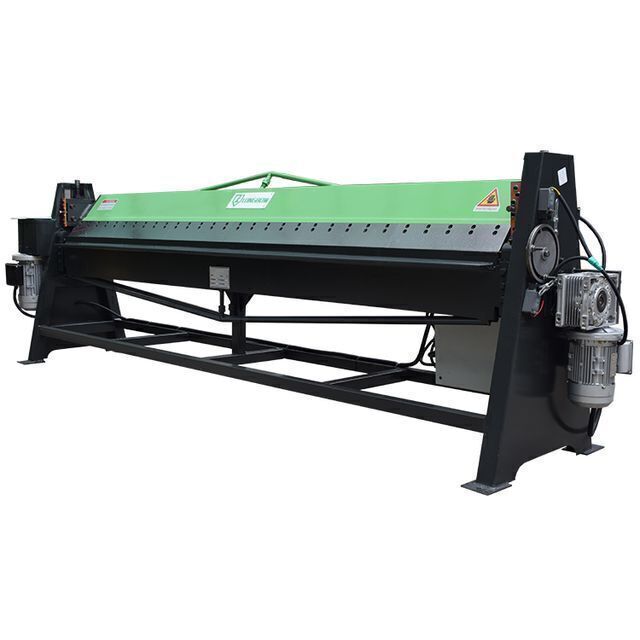

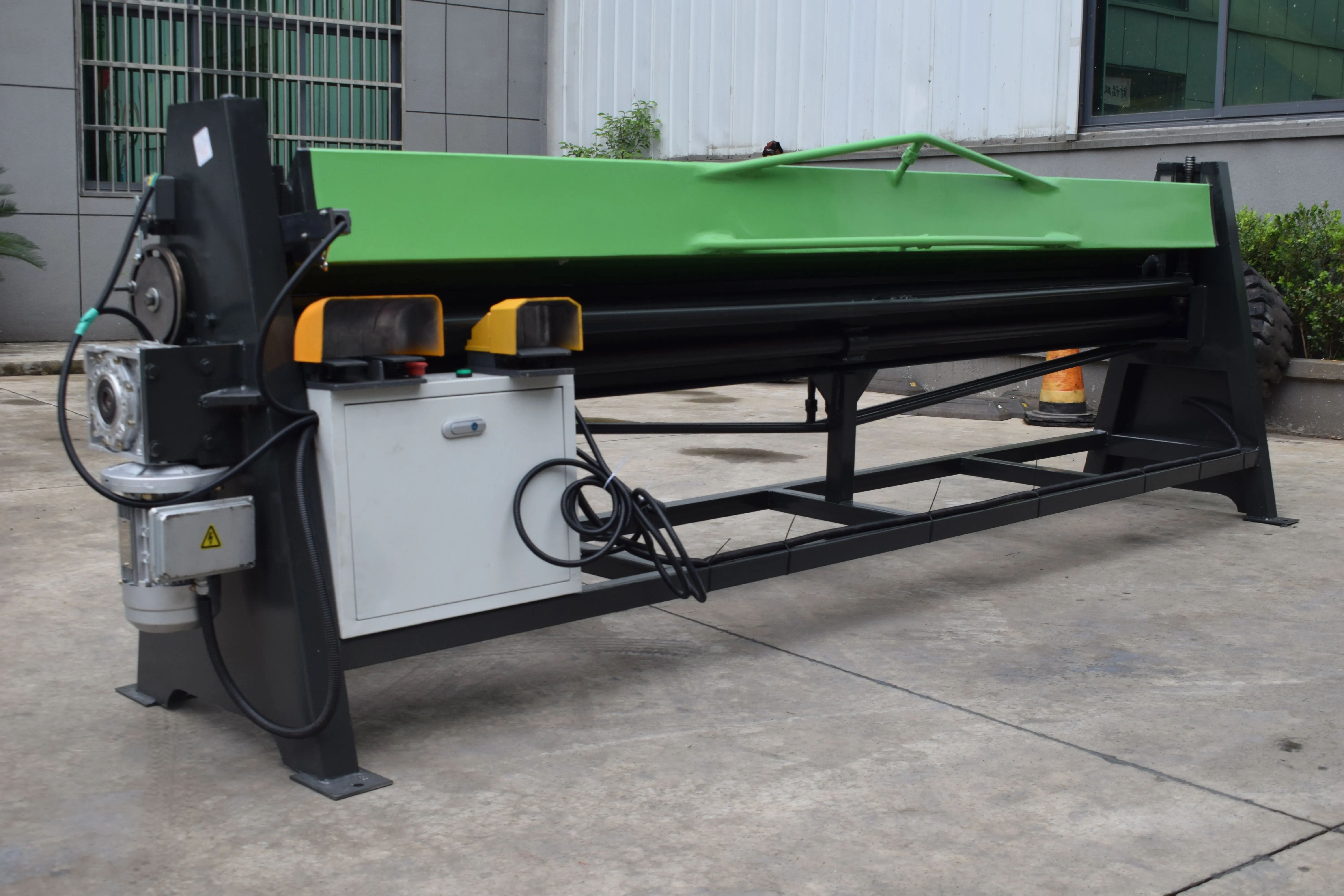

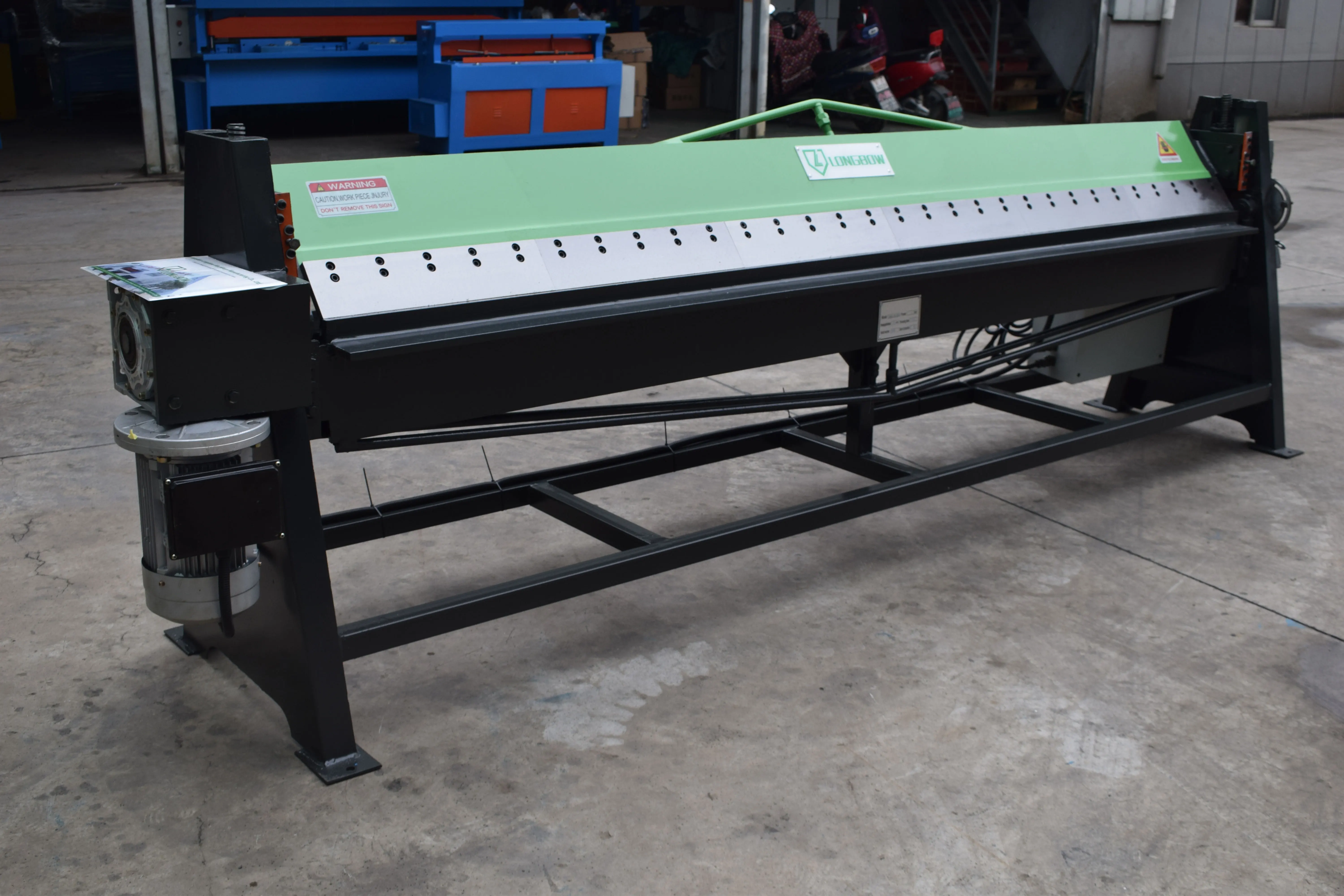

Electric sheet metal bending machine electric folder for steel plate folding machine
- $1800.00 / 1 - 2 sets
$1600.00 / >=3 sets - 1 set
- Maanshan Longbow Machinery Manufacturing Co., Ltd.
- Anhui, China
- Mr longbow zhang
PRODUCT DETAIL
| Material / Metal Processed: | Stainless Steel,Carbon Steel,Aluminum; | Extra Services: | End Forming; |
| Packaging Detail: | 1.5*2000 stainless steel metal electric sheet folding machine; | Stroke adjustable: | electric; |
| Throat Depth (mm): | 50; | Sheet width: | 2500mm; |
| Port: | shanghai; | Width of Working Table (mm): | 100; |
| Slider Stroke (mm): | 50; | Warranty: | 2 years; |
| Tool material: | 42CrMo; | Dimension: | 3100*800*1550mm,3100*800*1550mm; |
| Brand Name: | LONGBOW; | Machinery Test Report: | Provided; |
| Sheet thickness: | 0.5-1.5mm; | Key Selling Points: | Easy to Operate; |
| Weight (KG): | 900; | Place of Origin: | Anhui China; |
| Showroom Location: | None; | Automatic Level: | Semi-automatic; |
| Supply Ability: | 20 Set/Sets per Month; | Condition: | New; |
| Material: | steel/galvanized sheet/stainless steel etc; | Machine Type: | Torsion Bar; |
| Local Service Location: | None; | Applicable Industries: | Manufacturing Plant,Construction works ; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; | Power: | 4kw; |
| Core Components: | Motor,Gearbox; | Model: | DWS-1.5*2500; |
| After Warranty Service: | Video technical support,Online support; | Weight: | 900kg; |
| Motor Power (kw): | 4; | Warranty of core components: | 2 years; |
| Marketing Type: | New Product 2020; | Video outgoing-inspection: | Provided; |
| Angle range: | 60-130 degree; | After-sales Service Provided: | Video technical support,Online support; |
| Certification: | CE SGS BV CQC; | Year: | 2019; |
| Length of Working Table (mm): | 2500 mm; | Automation: | Automatic; |
Products Description
Performance Features
electric folding machine is of all -steel welded construction. Simple construction with good appearance. It is easy to operate,with low energy consumption. Our electric folding machine are of many types and incorporate with all the outstanding features. The advantage is that both its up and down movements can be adjusted.They can process workpieces according to the customer's requirement, and can fold sheet into a box/pan with four sides. electric folding machine are suitable for duct making, metal box forming and pan processing and can be used on the site.
Main Features
1.The machine body is solid and durable by integral welding of steel plate.

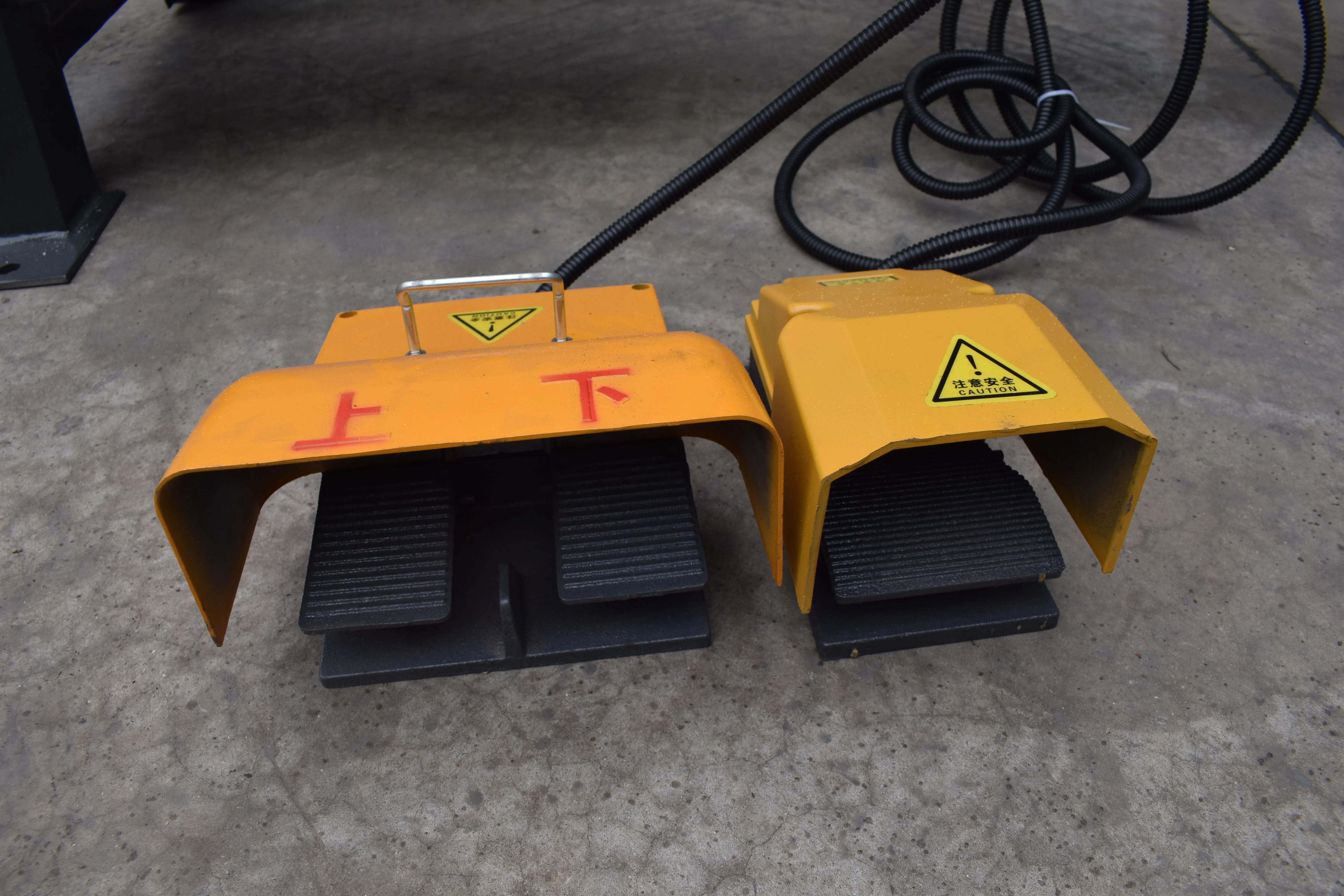

2.Motors are installed on both sides of the machine, which are controlled by two pedal switches.Easy to operate.
3.Double screw design is adopted to adjust the up and down motion of the slider so as to achieve better synchronization.
Model | Max thickness (mm) | Max width (mm) | Folding angle（°） | Weight (kg) | dimensions(mm) |
DWS-1.5*1300 | 1.5 | 1300 | 45° | 600 | 2000*800*1550 |
DWS-1.5*1500 | 1.5 | 1500 | 45° | 650 | 2260*800*1550 |
DWS-1.5*2000 | 1.5 | 2000 | 45° | 800 | 2800*800*1550 |
DWS-1.5*2500 | 1.5 | 2500 | 45° | 900 | 3100*800*1550 |
Our Campany
Certifications
Packing & Delivery
Packaging | ||
Dimensions (mm) | 3180(L)*880(W)*1630(H) | |
Weight | 980kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Dimensions (mm) | 3180(L)*880(W)*1630(H) | |
Weight | 980kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Related Products
FAQ
1. Are you manufacturer or trading company?
We are manufacturer.
2. What shall we do if don't know how to operate your machine?
We can dispatch our engineers to your country and you can also send your engineers to our factory for learning operation. Besides, there are detailed installation and operating instructions attached, it is very simple. We have telephone and email support at 24 hours per day.
3.How about your machine quality?
LONGBOW company is a mature brand in CHINA,through our 12 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry And where there are our machines,there are good reputation and terminal user satisfaction.
4. What are your payment terms?
3.How about your machine quality?
LONGBOW company is a mature brand in CHINA,through our 12 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry And where there are our machines,there are good reputation and terminal user satisfaction.
4. What are your payment terms?
We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance before the shipment.
