Electromagnetic permanent holding force lifting magnet miniature electromagnetic
- $3.15 / 1 - 99 pieces
$3.00 / 100 - 999 pieces
$2.80 / >=1000 pieces - 1 piece
- Guangzhou Sary Electronics Co., Ltd.
- Guangdong, China
- Mr wenzhao
PRODUCT DETAIL
| Warranty: | 6 months; | Core Components: | Motor; |
| Video outgoing-inspection: | Not Available; | Machinery Test Report: | Not Available; |
| Installation method: | screw; | Holding Force (N): | 25N; |
| size: | W20mm*H15mm; | Local Service Location: | None; |
| After Warranty Service: | Online support; | Brand Name: | SARY; |
| Marketing Type: | New Product 2020; | Single gross weight: | 0.060 KG; |
| Showroom Location: | None; | Operating temperature: | -20~+70°; |
| Single package size: | 13X8X6 cm; | Material: | iron; |
| Use voltage: | DC12V; | Service life: | 500,000 times; |
| Condition: | New; | Way of working: | Power on to hold; |
| Warranty of core components: | 1 Year; | Place of Origin: | Guangdong, China; |
| Selling Units: | Single item; |
Product display

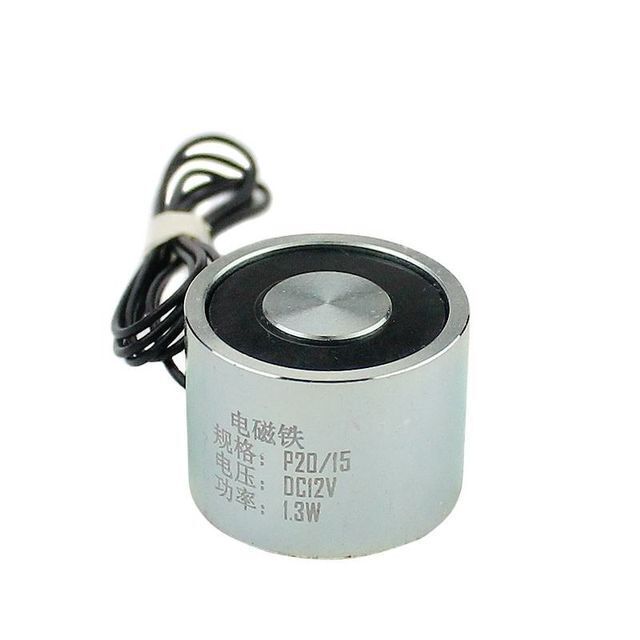

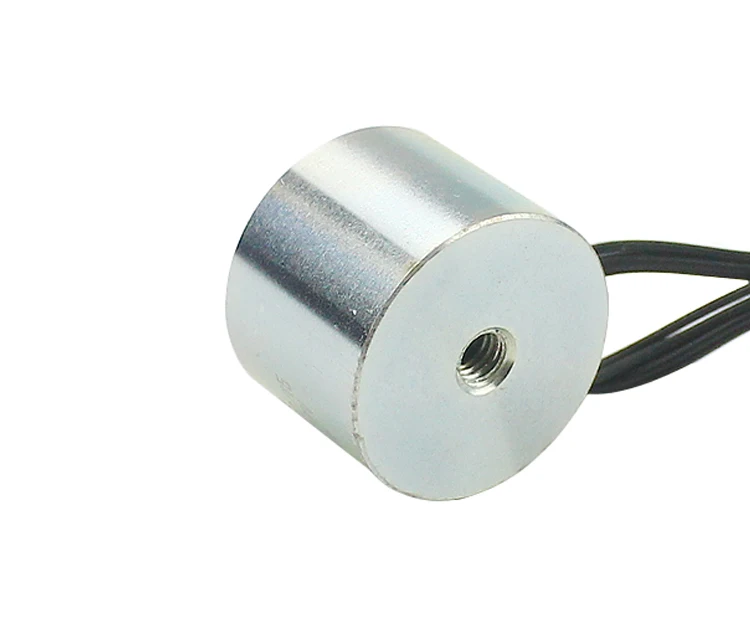

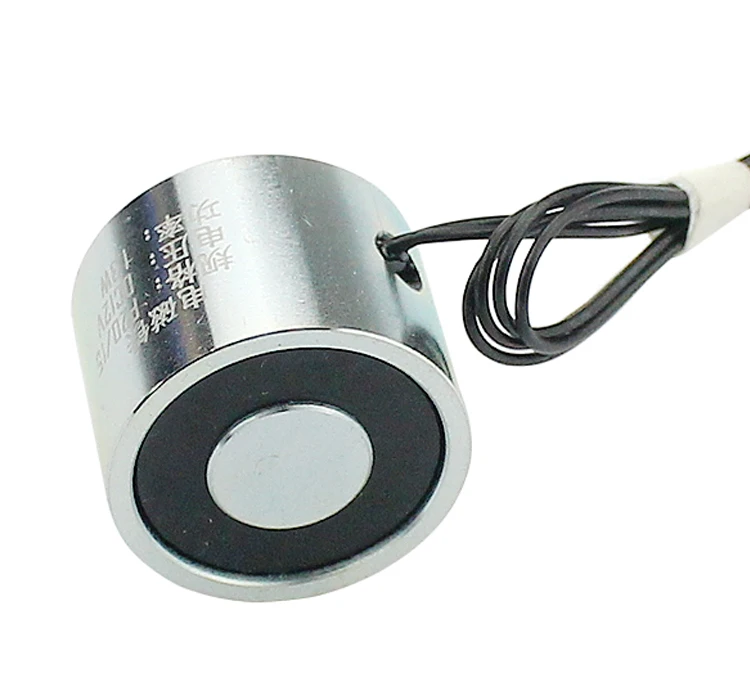

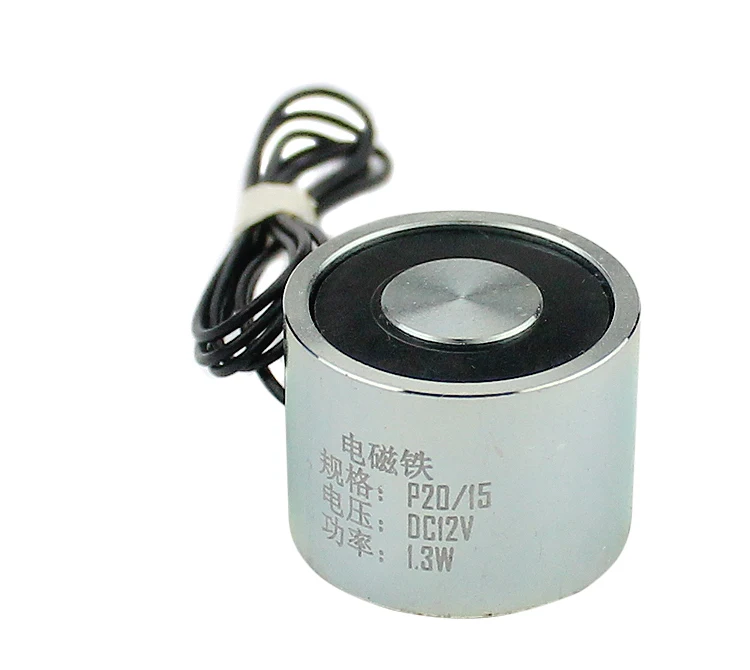

LY-2015 DC12V small lifting electromagnet holding force 25N
Product number: LY-2015
Use voltage: DC12V Working current: 100mA Product power consumption:1.3W Way of working: Power on to hold Holding force: 25N(2.5kg) Product life: 500,000 times product weight: 0.03KG
Why Choose Us
Electromagnet instructions
The normal use of the electromagnet must meet the following conditions to reach the maximum suction value 1. Magnetically conductive objects must be good magnetically conductive materials 2. Use the correct power supply and voltage 3. The surface of magnetically conductive objects must be kept flat and clean 4. The contact area of the magnetically conductive object must be greater than or equal to the outer diameter of the electromagnet 5. The thickness of the magnetically permeable object must be greater than 8mm to achieve the standard pull-in force, and the pull-in force will decrease when the thickness is reduced. 6. There can be no distance between the contact object and the electromagnet, and no object can be isolated
+
|
SARY Circular Holding Electromagnet
|
||||||||||||
|
Model
|
Height(H)
|
Outer diameter(D)
|
Inner diameter(d)
|
Thread size(M)
|
Thread depth
|
Holding force
|
||||||
|
LY-1809
|
8.6mm
|
18mm
|
8mm
|
3-M2
|
1.6mm
|
1.2kgs
|
||||||
|
LY-2015
|
15mm
|
20mm
|
8mm
|
M3
|
6mm
|
2.5kgs
|
||||||
|
LY-2510
|
10mm
|
25mm
|
12mm
|
M4
|
/
|
6kgs
|
||||||
|
LY-2525
|
25mm
|
25mm
|
10mm
|
M6
|
10mm
|
8kgs
|
||||||
|
LY-2825
|
25mm
|
28mm
|
12mm
|
M6
|
8mm
|
10kgs
|
||||||
|
LY-3530
|
30mm
|
35mm
|
15mm
|
M6
|
12mm
|
25kgs
|
||||||
|
LY-4020
|
20mm
|
40mm
|
25mm
|
M6
|
12mm
|
35kgs
|
||||||
|
LY-4027
|
27mm
|
40mm
|
19mm
|
M6
|
12mm
|
38kgs
|
||||||
|
LY-5042
|
42mm
|
50mm
|
25mm
|
M6
|
12mm
|
55kgs
|
||||||
FAQ
+
1. Q: Are you a factory or trading company?
A: We are a company which has our own trading department and factory.
2. Q: What is your sample policy?
A: Free samples could be sent to the test as request. We can arrange a sample by DHL or UPS, but the courier fee would be paid by the customer.
3.Q:What about the shipping way?
A:Generally, the package is delivered by Express DHL/Fedex/TNT/UPS. For big order, we recommend to ship by air or sea to save cost, but it might take longer time. Of course we could ship goods to your forwarder in China according to different customers requirements.
4. Q:Can I print my own brand logo on your product?
A: OEM orders are highly welcome. Please write us the details of your logo color, logo position; user manual before you send us an inquiry. In this way, we can offer you the most accurate answer for the first time.
5.Q:What about the warranty?
A:We provide 1 years warranty from the date of delivery but lifetime technical support.
