High quality industrial lifting electromagnets for scrap metal lifting
- $4500.00 /set
- 1 set
- Henan Hengtai Heavy Industry Group Co.,Ltd
- Henan, China
- Ms Cecilia Wang
| Marketing Type: | Ordinary products | Payment Terms: | L/C, Western Union, T/T |
| Origin: | Henan, China | type: | Normal temperature, high temperature, (ultra) high frequency, strong magnetic type. |
| market: | Hot sale in Africa, Asia, South America, Europe, all over the world | Health status: | New |
| Weight (kg): | 1245 kg | application: | Hoisting and transportation, mining, metallurgy, coal, building materials, etc. |
| Mechanical test report: | if | Rated voltage: | DC-220V |
| Core component warranty: | 1 year | port: | Qingdao Tianjin Shanghai Lianyungang |
| Video factory inspection: | if | Core components: | Engines, motors, pumps |
| Synthetic: | Aluminum coil, steel plate, magnet wire | Packaging Details: | China Construction Powerful Electromagnets and Electric Lifting Magnets |
| color: | Yellow, blue, white, red, green, purple, black or as your request | Brand Name: | Hengtai |
| Supply Ability: | 100 sets per month | shape: | Circle, ring, oval, square, rectangle |
| Product Name: | 24V DC solenoid | Exhibition Hall Location: | No |
| usage: | Lifting scrap steel, steel billets, slabs, rebar coils, steel pipes, etc. |

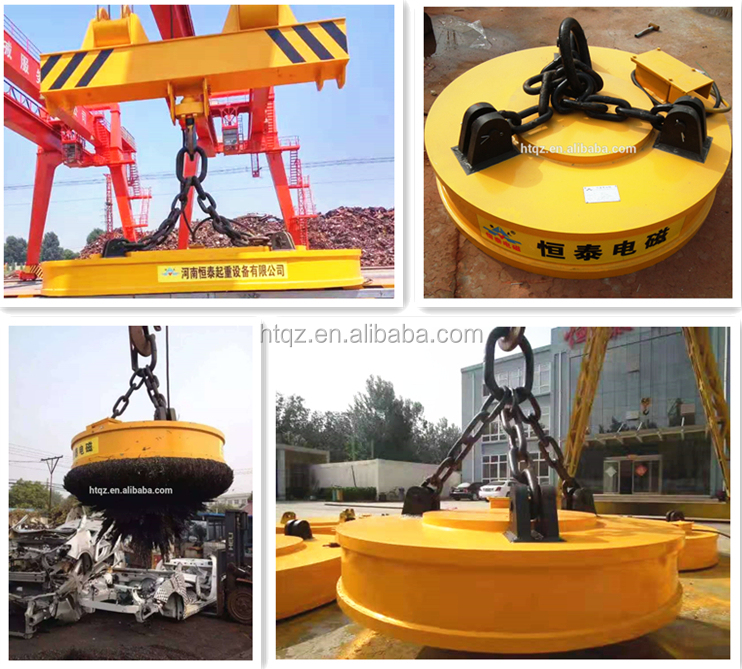

Round lifting magnets handle large volumes of scrap continuously throughout the day. They lift steel faster and easier than any other mechanical device. Ideal for transferring ingots, balls, metal and scrap.
feature:
1. Fully enclosed structure with good moisture-proof performance.
2. After computer optimized design, it has reasonable structure, large absorption ratio and low energy consumption.
3. The excitation coil adopts special technology to improve the electrical and mechanical properties of the coil. The heat resistance grade of the insulation material reaches Class C and has a long service life.
4. Different structures and parameters are adopted according to different absorption conditions to widely meet the needs of users.
5. The high temperature resistant electromagnet adopts a unique heat insulation method, which increases the absorption temperature from 600℃ to 700℃, expanding the application range of the electromagnet.
6. Simple installation, operation and maintenance.
|
Model |
Cold current (answer) |
Cold power (kilowatt) |
Lifting weight (kg) |
Weight (kg) |

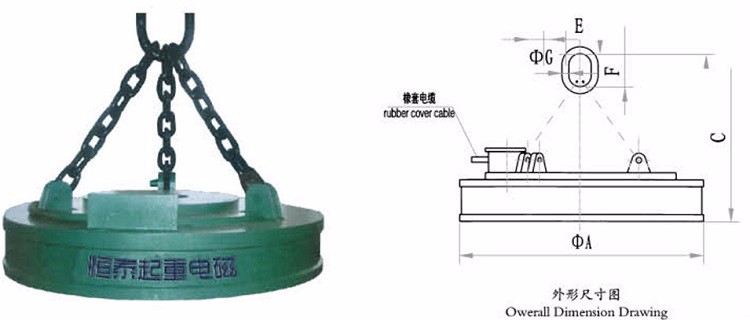

Dimensions (mm) |
Control Equipment manage |
cable Reels and Cable Connectors Constructor |
||||||
|
Single steel ball |
Packaging of steel ingots |
Packaging scrap steel |
one |
Second |
carbon |
Germany |
Egypt |
||||||
|
MW5-70L/1 |
15 |
3.3 |
2500 |
380/200 |
120/100 |
490 |
700 |
800 |
160 |
90 |
thirty |
STML-4E-C |
JTA75-15-2 DL-102 |
|
MW5-80L/1 |
18 |
3.96 |
3000 |
480/250 |
150/130 |
620 |
800 |
800 |
160 |
90 |
thirty |
STML-4E-C |
|
|
MW5-90L/1 |
26.6 |
5.85 |
4500 |
600/400 |
250/200 |
800 |
900 |
1090 |
200 |
125 |
40 |
STQL-7E-C |
|
|
MW5-110L/1 |
XXXV |
7.7 |
6500 |
1000/800 |
450/400 |
1350 |
1100 |
1140 |
220 |
150 |
Chapter 45 |
STQL-9E-C |
JTA100-15-2 DL-102 |
|
MW5-120L/1 |
45.5 |
10 |
7500 |
1300/1000 |
600/500 |
1700 |
1200 |
1180 |
220 |
150 |
Chapter 45 |
STQL-14E-C |
|
|
MW5-130L/1 |
54 |
11.9 |
8500 |
1400/1100 |
700/600 |
2060 |
1300 |
1240 |
250 |
175 |
50 |
STQL-14E-C |
|
|
MW5-150L/1 |
71.2 |
15.6 |
11000 |
1900/1500 |
1100/900 |
2830 |
1500 |
1250 |
350 |
210 |
60 |
STQL-19E-C |
|
|
MW5-165L/1 |
75 |
16.5 |
12500 |
2300/1800 |
1300/1100 |
3200 |
1650 |
1590 |
370 |
230 |
75 |
STQL-19E-C |
|
|
MW5-180L/1 |
102.4 |
22.5 |
14500 |
2750/2100 |
1600/1350 |
4230 |
1800 |
1490 |
370 |
230 |
75 |
STQL-25E-C |
JTA200-15-2 DL-202 |
|
MW5-210L/1 |
129 |
28.4 |
21000 |
3500/2800 |
2200/1850 |
7000 |
2100 |
1860 |
400 |
250 |
80 |
STQL-32E-C |
|
|
MW5-240L/1 |
154 |
33.9 |
26000 |
4800/3800 |
2850/2250 |
9000 |
2400 |
2020 |
450 |
280 |
90 |
STQL-38E-C |
|
Precautions for use:
1. Please check whether the electromagnetic chuck parts are damaged before use and replace them as soon as possible.
2. Pay attention to the surrounding environment before lifting, and do not cross equipment and personnel
3. Check whether the rated current is reached before lifting.
4. Before lifting, check whether there are any non-magnetic objects between the lifting object and the lifting electromagnetic chuck to avoid affecting the lifting height.
5. The lifting electromagnetic suction cup must be placed on the object to be sucked before powering on to avoid small iron chips being cut.
6. When landing, be sure to observe the surrounding environment and pay attention to safety.

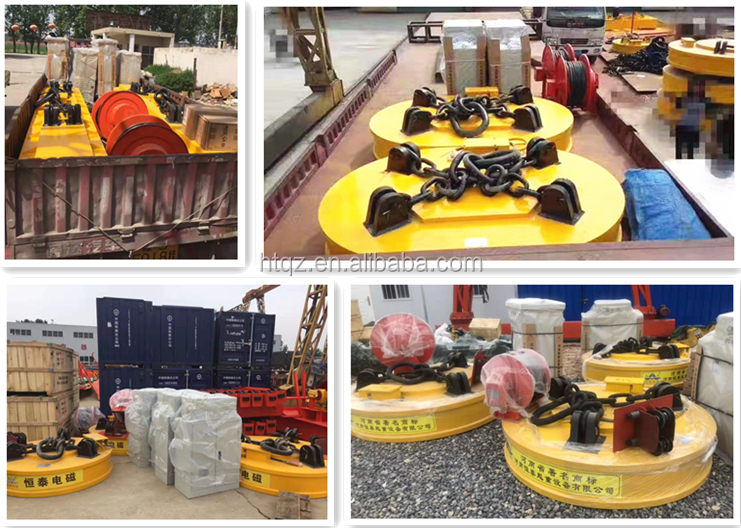

Export Packaging
1. The control cabinet is packed in wooden boxes, and the lifting electromagnet of the crane is packed in plastic
2. Electrical components and accessories are packed in wooden boxes; large goods are packed and loaded onto bulk carriers.
Convenient transportation:
1. All available shipping methods can be express, air or sea.
2. You can use the designated shipping company or our own freight forwarder for transportation.
3. Track the goods for you until they arrive.
4. Delivery time: 20-30 days after receiving the deposit.
