Enduro EMTB Bike Carbon Fiber Frame Fit Bafang M600 Motor, Full Suspension Ebike Mountain Bike Carbon Fiber Frame
- $710.00 / 1 - 9 sets
$700.00 / 10 - 49 sets
$680.00 / >=50 sets - 1 set
- Xiamen Lightcarbon Composite Technology Co., Ltd.
- Fujian, China
- Mr Johnny Cai
PRODUCT DETAIL
| Supply capacity: | 2000 sets per month | Battery: | BTF03(450Wh) or BTF04(600Wh) |
| Head tube: | Tapered 1 1/8"- 1 1/2" | Brake Type: | Rear mounted disc brakes 180mm disc rotors |
| place of origin; place of origin: | Fujian China | Surface treatment: | UD Matt or Glossy |
| Motor system: | Bafang M500 (95NM) or M600 (120NM) mid-drive engine | quit: | Through shaft 12*148mm assist |
| use: | Cruisers, Mountain Bikes, Road Bikes, Electric Bikes | model: | LCES004 |
| Warranty: | 2 years | port: | Xiamen Port |
| type: | carbon fiber frame | weight: | 3300±45g/medium |
| Packaging Preview: | Element: | Frame + seat clip | |
| Front trip: | 150mm | Rear shock absorber size: | 185*55mm (trunnion installation) |
| Back itinerary: | 150mm | size: | m/L |
| Folding: | Do not | Packaging Details: | En standard carton packaging with inner foam protection |
| payment terms: | L/C,Western Union,T/T,Paypal | brand: | light carbon |
Product Description

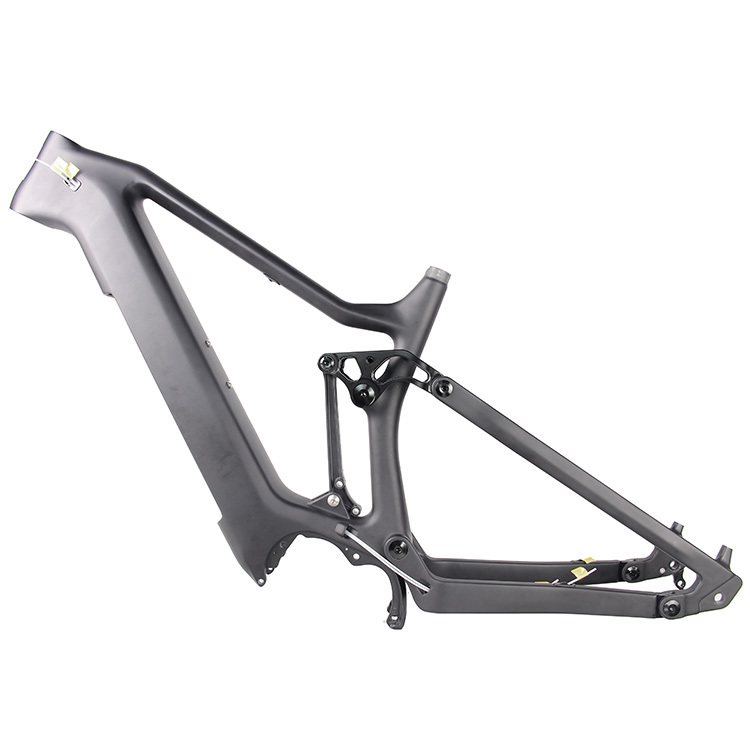

New LightCarbon Enduro Full Suspension Electric Bike Frame for Bafang
- 27.5 plus full suspension Enduro ebike frame
- 12*148mm thru axle
- Bafang M500(95NM)/M600(120NM) mid-drive engine
- Bafang BTF03 battery
- 185*55mm shock absorber size after trunnion installation
- 12*148mm thru axle
- Bafang M500(95NM)/M600(120NM) mid-drive engine
- Bafang BTF03 battery
- 185*55mm shock absorber size after trunnion installation

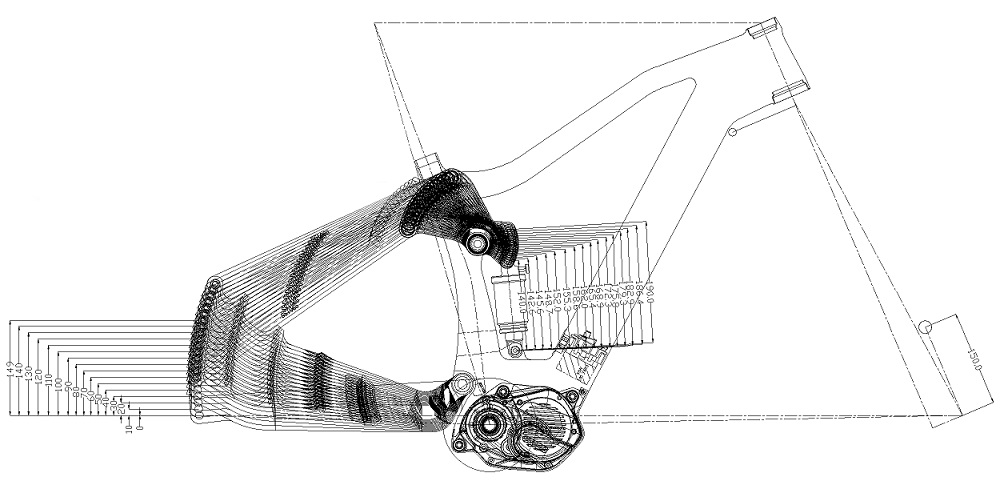

Frame Travel Leverage Ratio Infographic
frame | New LightCarbon Enduro Full Suspension Ebike Frame Designed for Bafang Motors |
Material | High modulus Toray T700 carbon fiber |
size | Medium/Large |
head tube | Tapered 1 1/8"- 1 1/2" head tube, 44mm up, 56mm down (headphone standard FSA No.57E) |
weight | 3300±45g/medium |
Seatpost Diameter | 31.6mm (34.9mm seat clip) |
Motor system | Bafang M500 (95NM) or M600 (120NM) mid-drive engine |
Battery | Bafang BTF03(450Wh) or BTF04(600Wh) |
Maximum tire clearance | 650b*2.8" and 29er*2.35" |
front trip | 150mm |
rear travel | 150mm |
Rear shock absorber size | 185*55mm (trunnion installation) |
brake type | Rear mounted disc brakes 180mm disc rotors |
quit | Through shaft 12*148mm assist |
largest chainring | 34T |
standard test | ISO4210 |
Warranty | 2 years |

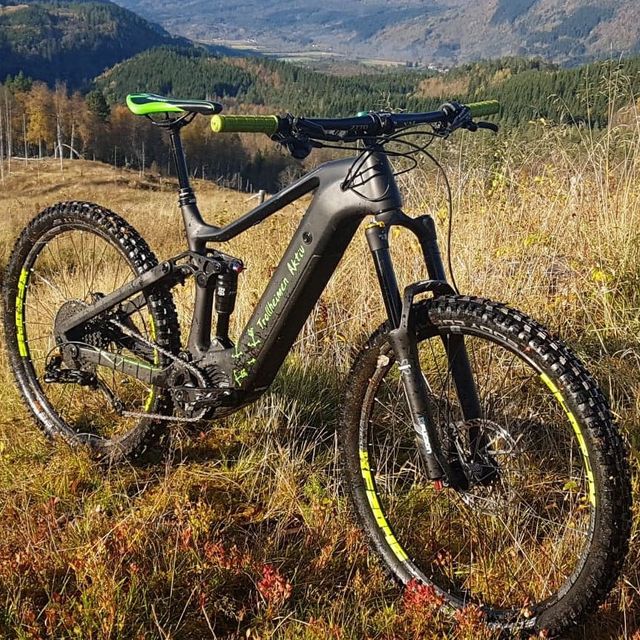

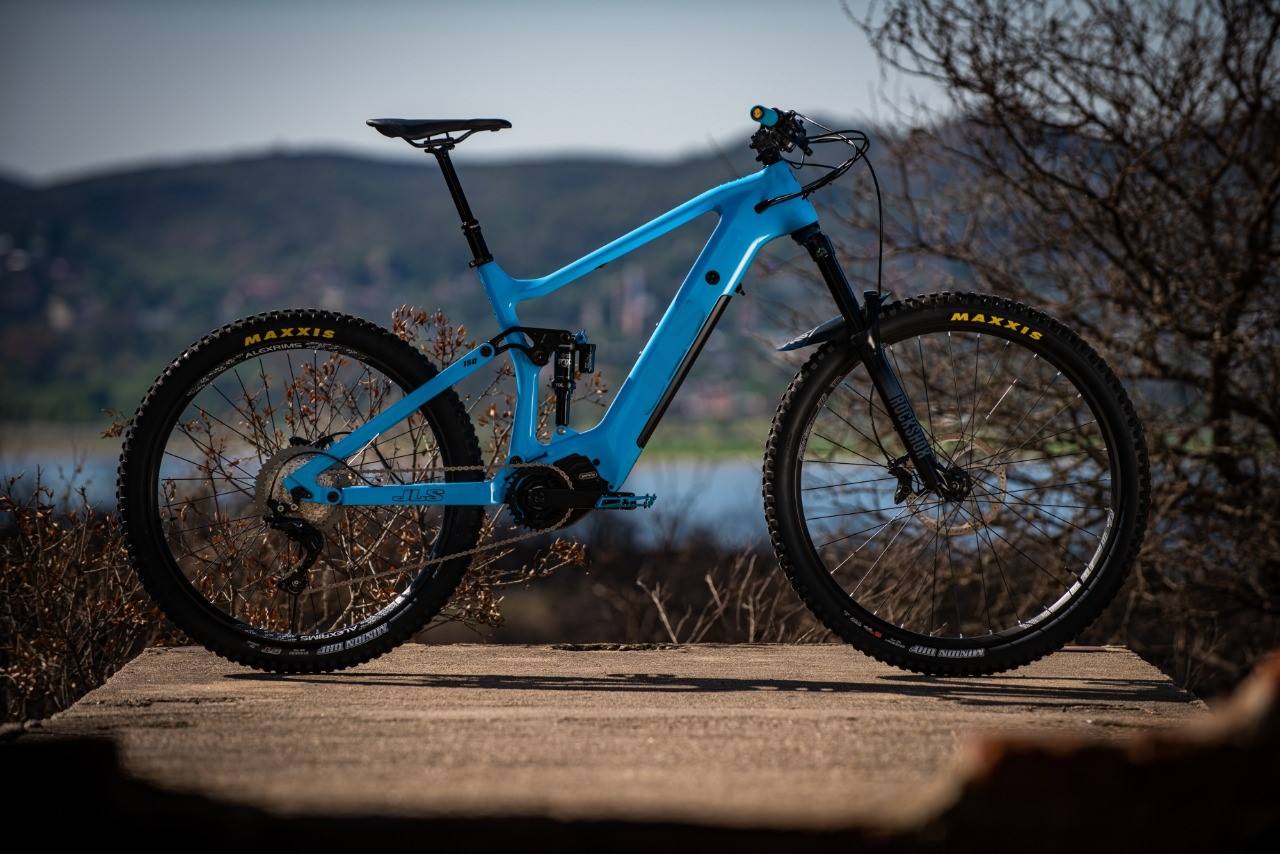

customer photo
Technology and Testing
Who is Light Carbon?
Xiamen Light Carbon Composite Technology Co., Ltd.is a leading carbon fiber bicycle parts manufacturer in China.
Our main products are: carbon fiber frames and carbon fiber rims.
2012 –We set up a carbon frame factory in Huizhou City, Guangdong Province. Since then, we have developed and built carbon fiber frames and carbon fiber forks.
2015 –Invested in Xiamen Carbon Wheel Factory, Fujian Province. At the same time, we have established an international
LightCarbon team, responsible for international sales and after-sales service.
Since 2016,We started participating in global bike shows, including Eurobike, Interbike, Cosmo Bike, etc., and established business relationships with many well-known brands. After 7 years of rapid development, now we have served customers in more than 50 countries.
Our main products are: carbon fiber frames and carbon fiber rims.
2012 –We set up a carbon frame factory in Huizhou City, Guangdong Province. Since then, we have developed and built carbon fiber frames and carbon fiber forks.
2015 –Invested in Xiamen Carbon Wheel Factory, Fujian Province. At the same time, we have established an international
LightCarbon team, responsible for international sales and after-sales service.
Since 2016,We started participating in global bike shows, including Eurobike, Interbike, Cosmo Bike, etc., and established business relationships with many well-known brands. After 7 years of rapid development, now we have served customers in more than 50 countries.
Why trust us?
Our R&D department has more than 20 engineers. Some of them have over 15 years of experience in the carbon frame industry and have worked at the OE factory for brands like Specialized, Cannondale, Pinarello...with the support of an experienced R&D department. , we are always leading the way in new product development. All our carbon fiber frames and rims are made from high modulus carbon fiber (Toray T700, T800 and T1000) and tested according to the new ISO4210 standard. Additionally, we have increased our testing criteria to 20% for more rigorous testing. We never start mass production until our new product has successfully passed all tests. Warranty: We offer a 2-year quality warranty on all carbon fiber frames and forks, carbon fiber rims and wheels. Currently, we have about 180 workers in our carbon rim factory and about 150 workers in our carbon frame factory. Our current production capacity is: carbon fiber frame--->2000 sets/month carbon forks--->3500 sets/month carbon rims--->4500 sets/month carbon wheels--->1000 pairs/month
exhibition
2019 LIGHTCARBON Eurobike Show 2019 Taipei Bike Show 2018 Interbike E-bike Show 2018 Eurobike Show 2017 Italy Cosmo Bike Show 2017 Spain UNIBIKE SHOW 2016 Italy Cosmo Bike 2016 American Interbike Show...
