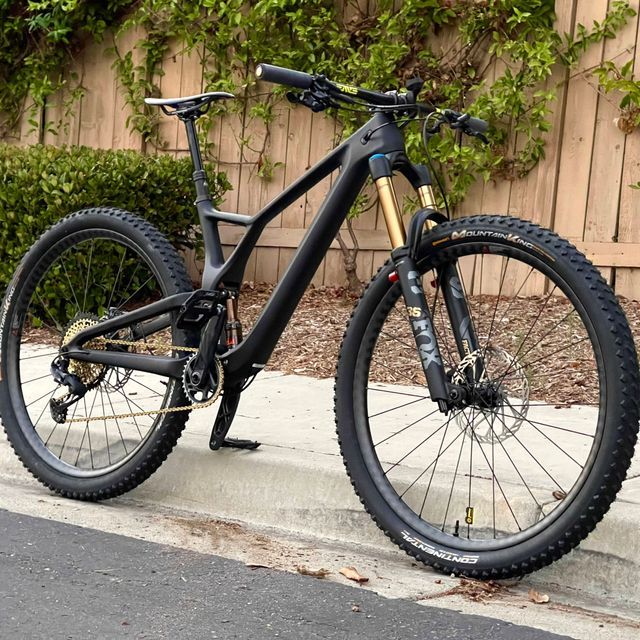

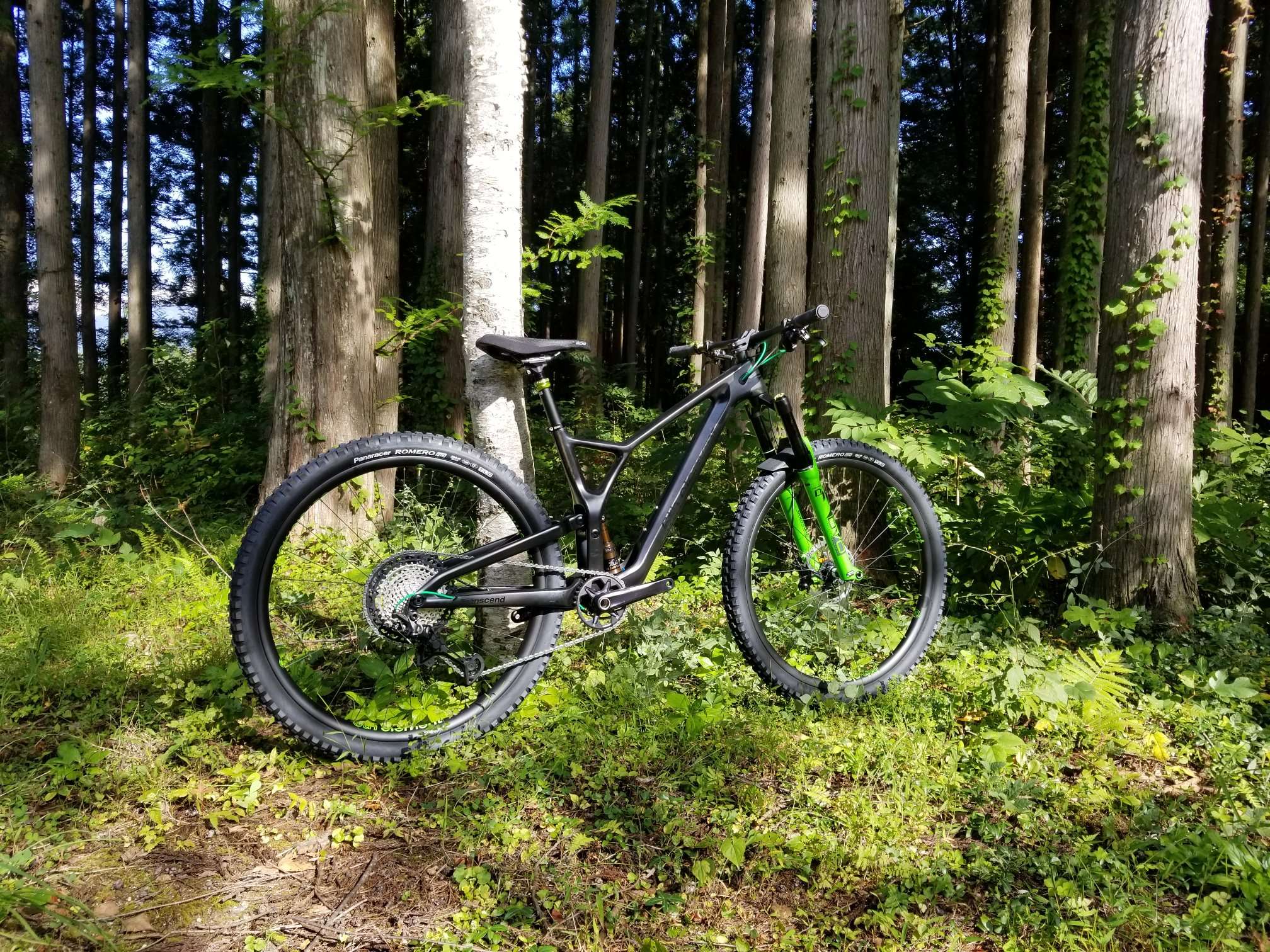

Trail MTB Carbon Frameset w/ Full Suspension Mountain Bike Carbon Frame 29er & 27.5 Tires w/ BSA BB
- $569.00 / 1 - 4 sets
$549.00 / 5 - 19 sets
$529.00 / 20 - 99 sets
$500.00 / >=100 sets - 1 set
- Xiamen Lightcarbon Composite Technology Co., Ltd.
- Fujian, China
- Mr Johnny Cai
PRODUCT DETAIL
| Rear shock absorber: | 165*45mm trunnion mounted rear shock absorber | Folding: | No |
| Warranty: | 2 years | Supply capacity: | 2000 sets per month |
| Element: | Frame + seat clamp + axle | Head tube: | Tapered 1 1/2''-1 1/8" |
| model: | LCFS958 | use: | mountain bike, full suspension bike |
| port: | Xiamen Port | brake: | disc brake |
| Origin: | Fujian China | brand: | light carbon |
| Bottom bracket: | BSA-73mm | type: | carbon fiber frame |
| payment terms: | L/C, Western Union, T/T, Paypal | Package preview: | |
| Surface treatment method: | UD matte or glossy | Front derailleur: | Single sprocket 1x drivetrain |
| After dropout: | 12x148mm | Packaging Details: | En standard carton packing, inner foam protection |
| Cable routing: | complete interior | size: | Medium, Large, Extra Large |
| Custom Decals/Paintings: | usable | weight: | 2445g±45g (19") |
Product Description

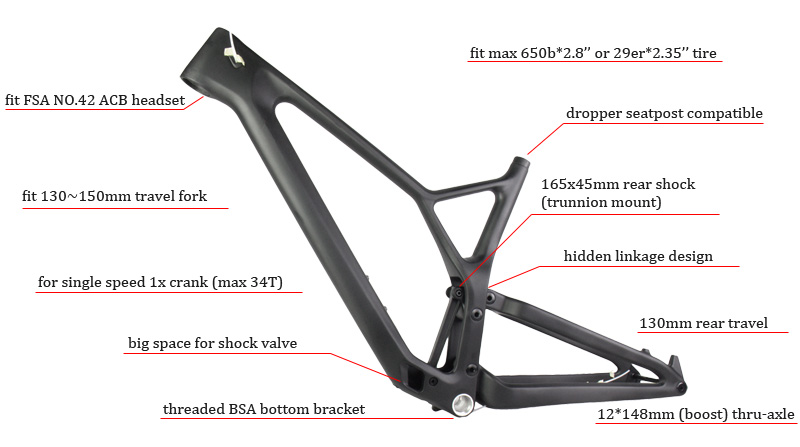

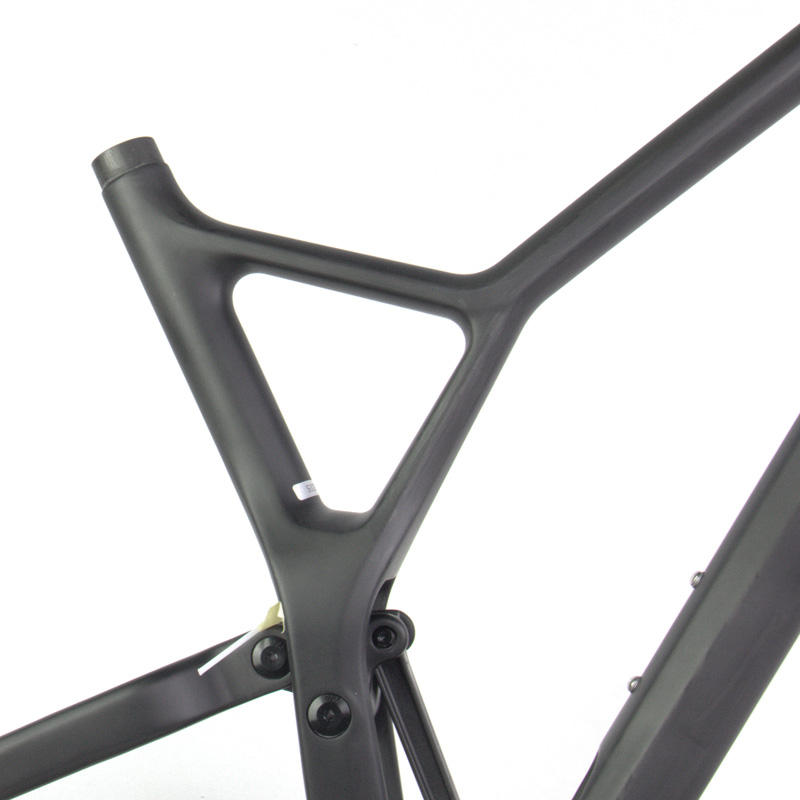

New LightCarbon Trail MTB frame
- Carbon 29er Full Suspension Test Rack
- 165*45mm trunnion mounted rear shock absorber
- Travel 130-150mm front, 130mm rear
- 12*148mm Boost thru axle
- 165*45mm trunnion mounted rear shock absorber
- Travel 130-150mm front, 130mm rear
- 12*148mm Boost thru axle
frame | New Full Suspension Trail Mountain Bike Frameset |
Material | High modulus Toray T700 carbon fiber |
size | 17.5", 19", 20.5" (Medium, Large, King) |
front trip | 130-150mm |
post trip | 130mm |
head pipe | Tapered 1 1/8" - 1 1/2" head tube, 42mm top by 52mm bottom (headphone standard FSA No.42ACB) |
weight | 2400g/17.5in |
Seatpost Diameter | 31.6mm (37mm clamp) - dropper seatpost insertion length 17.5''=170mm 19''=200mm |

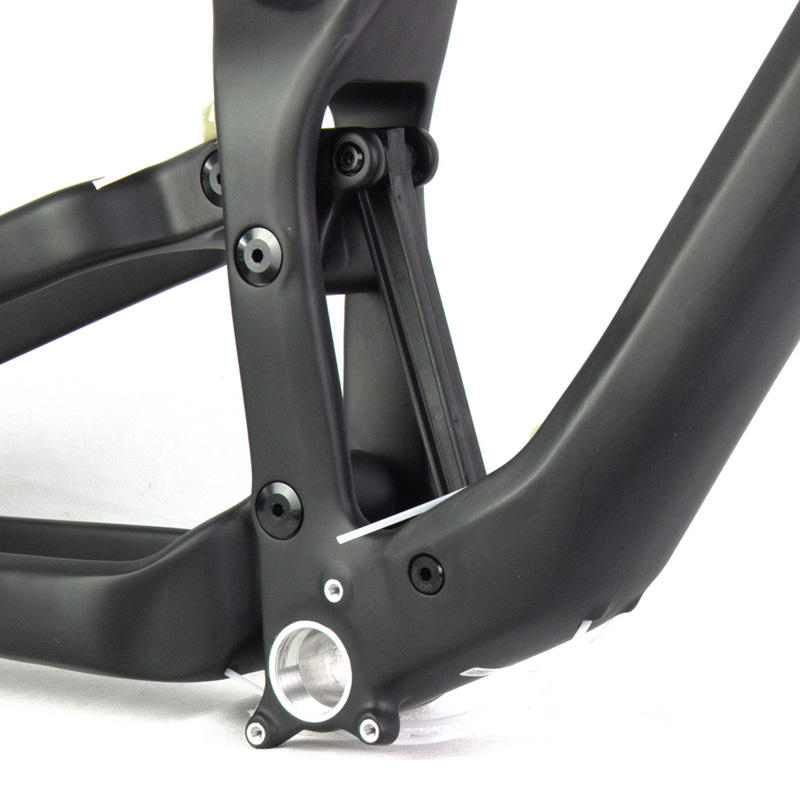

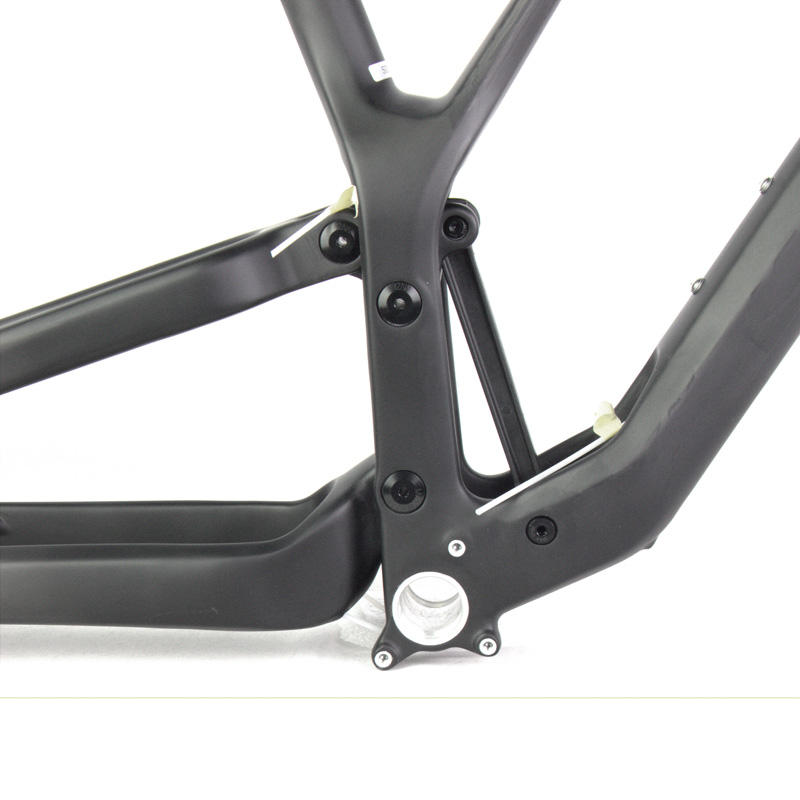

bottom bracket | BSA -73mm (Compatible with ISCG-05 chain guides) |
tire clearance | 29er*2.4'' and 27.5*2.8'' |
Maximum Compatible Chainring | 34 tons |
rotor | 180mm |
front derailleur | Single sprocket 1x drivetrain |
rear shock absorber | 165*45mm trunnion mounted rear shock absorber (54*φ10mm - 30*φ8mm) |
drop out | 12*148mm booster shaft |
standard test | ISO4210 |
Warranty | 2 years |

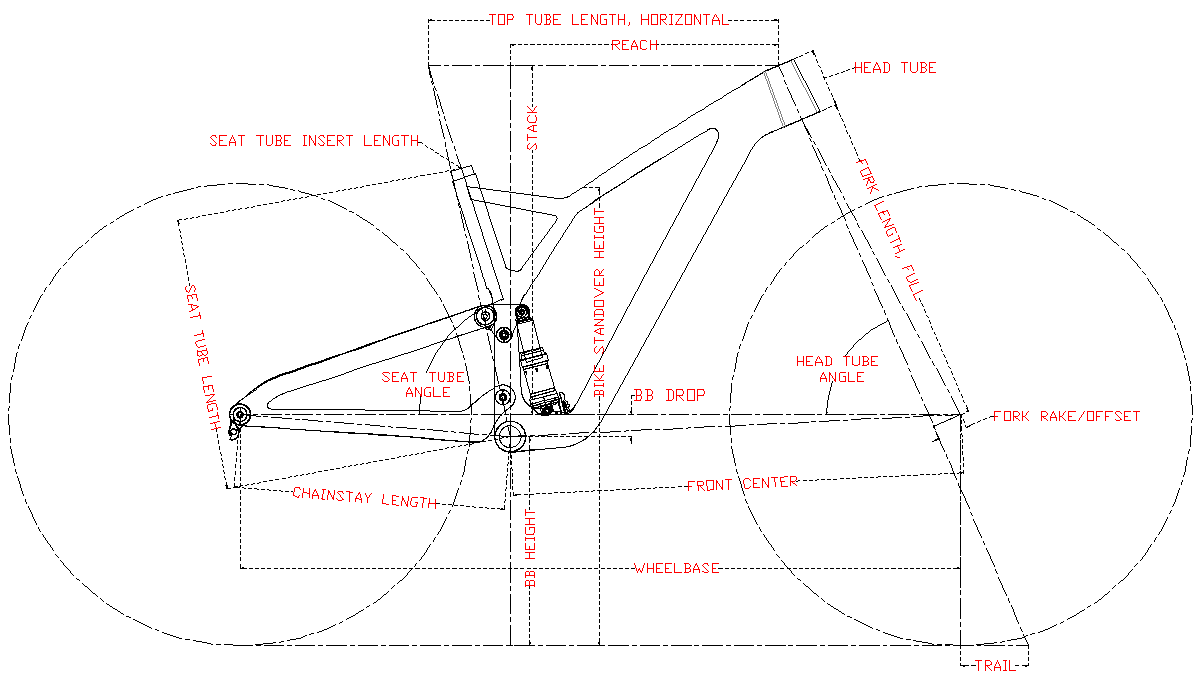

geometry
Compatible rear shock (165*45mm trunnion mount) and bushing kit (30*8mm)
Bearing size
17.5" | 19" | 20.5" | |
Seatpost Insertion Length | 170mm | 200mm | 230mm |
arrival | 440mm | 470mm | 500mm |
Top Tube Length, Horizontal | 590mm | 623mm | 658mm |
heap | 566mm | 579mm | 593mm |
wheelbase | 1178mm | 1214mm | 1250mm |
chain length | 444.5mm | 444.5mm | 444.5mm |
front center | 736mm | 772mm | 807mm |
BB drops | 36mm | 36mm | 36mm |
BB height | 339mm | 339mm | 339mm |
Seat tube angle | 76° | 76° | 76° |
head angle | 67° | 67° | 67° |
Seat tube length | 440mm | 480mm | 520mm |
Head tube length | 95mm | 110mm | 125mm |
Bike Standing Height (29"*2.35") | 731.4mm | 732.8 mm | 735.9mm |
Fork rake/offset | 51mm | 51mm | 51mm |
Fork length, full | 541mm | 541mm | 541mm |
trace | 104mm | 104mm | 104mm |

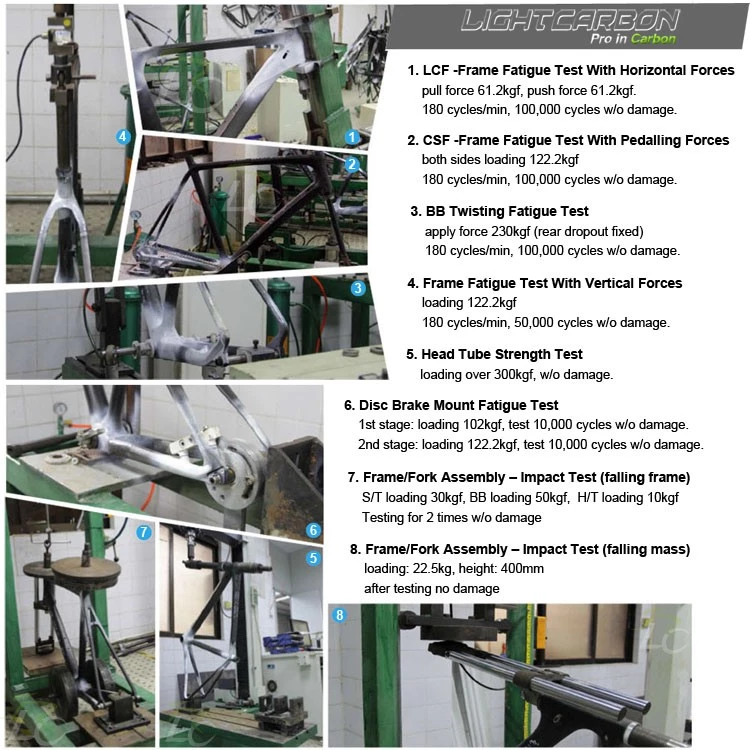

Technology and Testing
Who is LightCarbon?
Xiamen Light Carbon Composite Material Technology Co., Ltd.is a leading manufacturer of carbon fiber bicycle parts in China.
Our main products are: carbon fiber frame and carbon fiber rim.
2012 –We have set up a carbon frame factory in Huizhou City, Guangdong Province. Since then, we have developed and manufactured carbon fiber frames and carbon fiber forks.
2015 –We have participated in a carbon fiber rim factory in Xiamen City, Fujian Province. At the same time, we established an international
The LightCarbon team, handles international sales and after-sales service.
Since 2016,We started to participate in global bicycle exhibitions, including Eurobike, Interbike, Cosmo Bike, etc., and established business relationships with many famous brands. After 7 years of rapid development, now we have served customers in more than 50 countries.
Our main products are: carbon fiber frame and carbon fiber rim.
2012 –We have set up a carbon frame factory in Huizhou City, Guangdong Province. Since then, we have developed and manufactured carbon fiber frames and carbon fiber forks.
2015 –We have participated in a carbon fiber rim factory in Xiamen City, Fujian Province. At the same time, we established an international
The LightCarbon team, handles international sales and after-sales service.
Since 2016,We started to participate in global bicycle exhibitions, including Eurobike, Interbike, Cosmo Bike, etc., and established business relationships with many famous brands. After 7 years of rapid development, now we have served customers in more than 50 countries.
Why trust us?
There are more than 20 engineers in our R&D department. Some of them have over 15 years experience in the carbon frame bike industry, in addition to having worked in the OE factories of Specialized, Cannondale, Pinarello, etc... with the support of an experienced R&D department. , we are always in the leading position of new product development. All our carbon frames and rims are made from high modulus carbon fiber (Toray T700, T800 and T1000) and tested according to the new ISO4210 standard. In addition, we increased the test standard by 20% for more rigorous testing. We will never start mass production of our new product until it has successfully passed all tests. Warranty: We offer a 2-year warranty on all carbon fiber frames and forks, carbon fiber rims and wheels. Currently, we have about 180 workers in our carbon fiber rim factory and about 150 workers in our carbon fiber frame factory. Our current production capacity is: carbon frame ---> 2000 sets/month carbon fork ---> 3500 pcs/month carbon ring ---> 4500 pcs/month carbon wheel ---> 1000 pairs/month
exhibition
2019 LIGHTCARCARBON Eurobike Show 2019 Taipei Cycling Show 2018 Interbike E-bike Show 2018 Eurobike Show 2017 Italy Cosmo Bike Show 2017 Spain UNIBIKE SHOW 2016 Italy Cosmo Bike 2016 America Interbike show …
