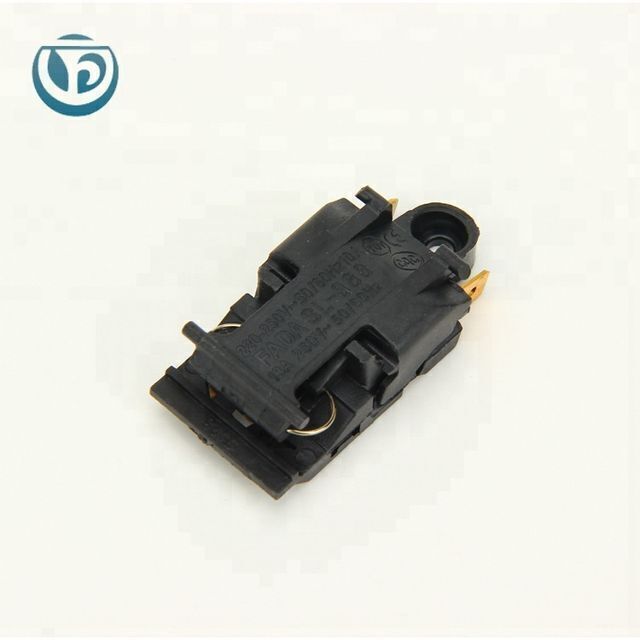

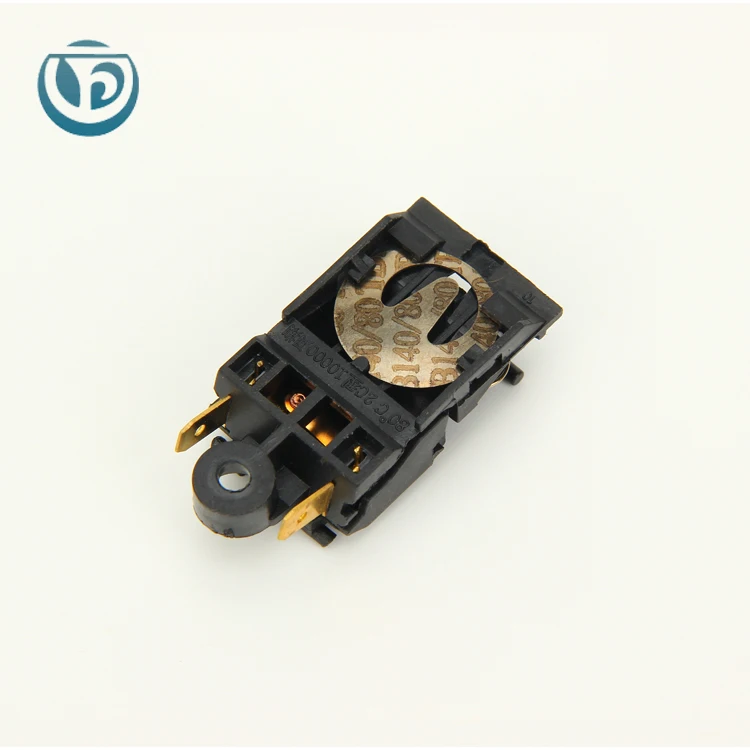

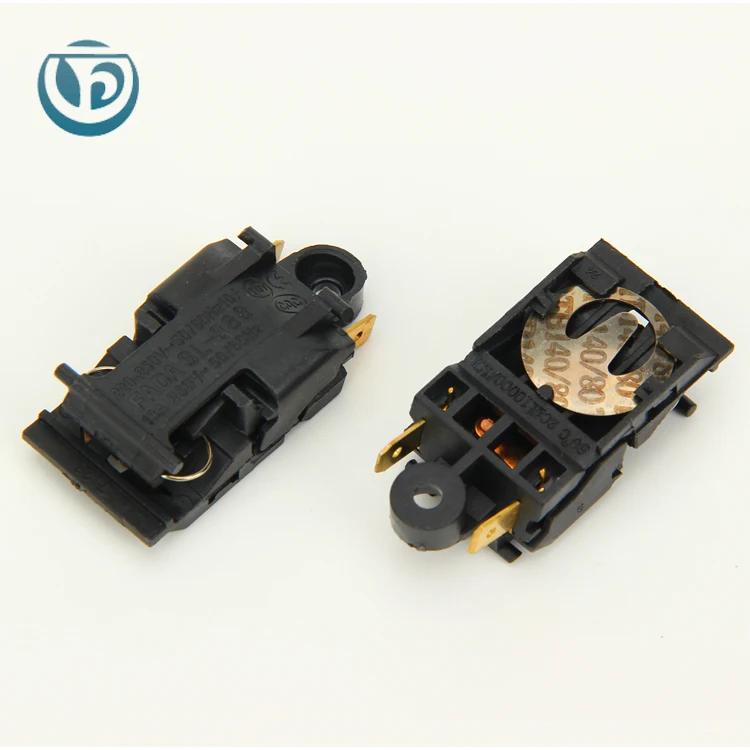

FADA SL-888 kettle Steam switch for electric kettle

PRODUCT DETAIL
Place of Origin:Zhejiang China;Packaging Detail:20PCS/INNER BOX, 2000 PCS/OUTER CARTON G.W/ N.W: 19KG/17KG CARTON SIZE:48.5*23*36 CM;
Type:Electric Kettle Parts;Model Number:SL-888;
Brand Name:FADA;Port:NING BO;
color:white or black;Supply Ability:5000000 Piece/Pieces per Year;
Payment Terms:T/T;
INSTRUCTION



The electric kettle will generate heat after connect to the power. When water temperature rising gradually to 100 degrees, water begins to boil, steam impact steam switch bimetal, due to the double above heat bilges cold shrink role, bimetal expansion and deformation, propped switch contact disconnect the power supply. If the steam switch failure, water in kettle may have been burned down, until the water was dry up, heating elements temperature rising sharply, located at the bottom of the heating plate have two double sequins and heat transfer function for temperature rising sharply, inflation deformation, disconnect the power. Therefore electric safety protection device of electric kettle is very scientific and reliable on design.

APPLICATION

Suitable for 360 degree rotational cordless temperature control kettle.

Kettle steam switch SL-888 series with360 degree rotational cordless temperature control used together.

The bimetal piece has high quality and acumen ;

The insulated plastic material could be ensured high temperature ;

Dry burn prevent protection for safer use ;

Reasonable configuration and easy assemble .

Specification

              items

          parameter

Rated voltage

110V-250V

Rated current

 13A

Max. Ambient temperature

T125

Operating life

10000 cycle

 Temperature tolerance

±5 ℃

Hi-pot

2200V AC 1 minute

Approval

CQC  TUV  CE  CCC  CB
