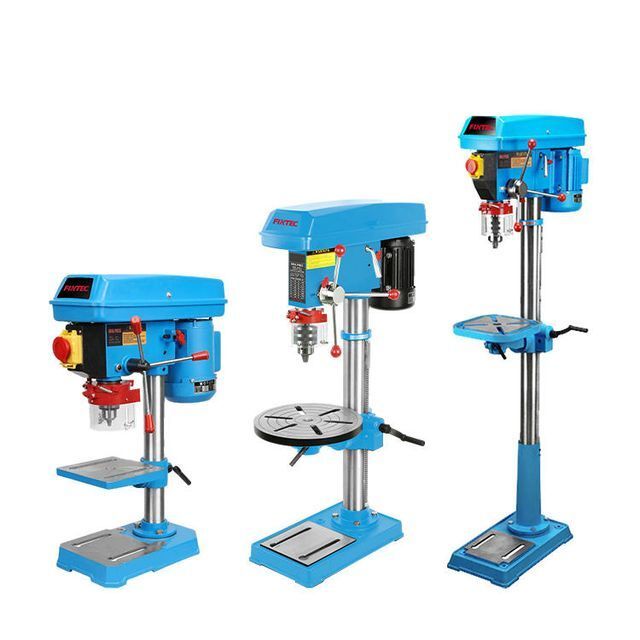

FIXTEC Heavy Duty Bench Drilling 350W 550W 750W Table Drill Press

  • $70.00 / 1 - 19 pieces
    $68.20 / 20 - 99 pieces
    $67.50 / >=100 pieces
  • 1 piece
  • EBIC Tools Co., Ltd.
  • Jiangsu, China
  • Mr Daniel Liu
PRODUCT DETAIL
Video outgoing-inspection:Not Available;After Warranty Service:Video technical support;
Warranty of core components:1 Year;Brand Name:FIXTEC;
Sample:Available;Key Selling Points:High-accuracy;
Port:Shanghai;Power (kW):0.35/0.55/0.75;
Dimension(L*W*H):46*34*25.5CM;Voltage:230V;
Drilling Speed:Normal Speed;Marketing Type:Hot Product 2021;
Model Number:FDP35002/FDP55016/FDP75001;CNC or Not:Normal;
Machinery Test Report:Provided;Max. Drilling Dia. (mm):20 mm;
Place of Origin:Jiangsu, China;Core Components:Motor,Engine;
Warranty:1 year;Showroom Location:None;
Range of Spindle Speed(r.p.m):180 - 3320 r.p.m;Payment Terms:L/C,Western Union,T/T;
Condition:New;Weight (KG):15 KG;
Applicable Industries:Manufacturing Plant,Construction works ;Supply Ability:2000 Pieces per Month;
type:Bench Drilling Machine;Packaging Detail:Brown Box;
Keywords:press drill machine;
Product Category
Recommend Products
Product Description

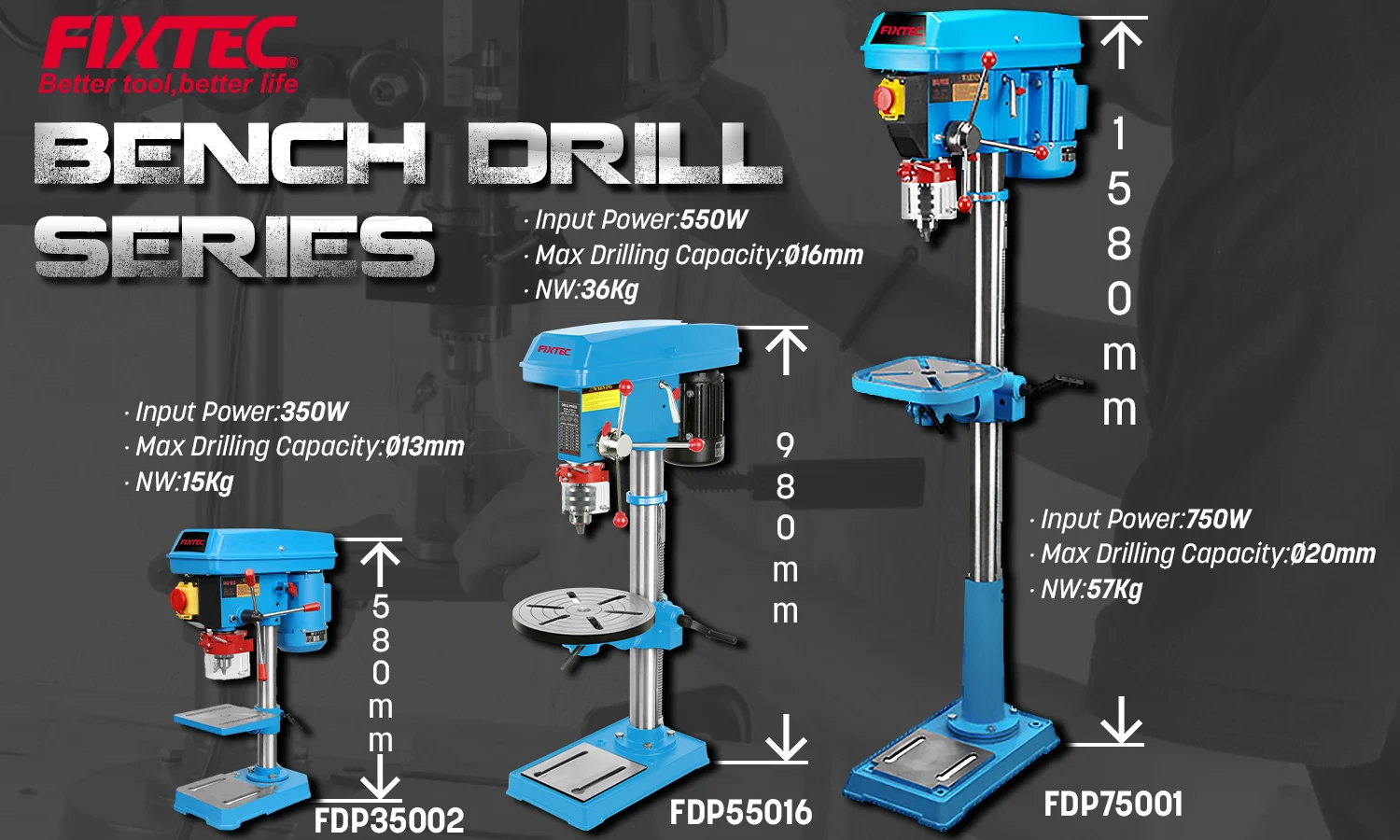

Model NO.
Specifications
Package






FDP35002
Voltage/Frequency:230V-/50Hz
Input power:350W
Max drilling capacity:Ø13mm
Spindle Travel: 50mm
Column Diameter:46mm
Spindle speed:5speed:760~3070rpm
Distance Spindle/Column 104mm
Distance Spindle/Table 200mm
Distance Spindle/Base 290mm
Table size:160x160mm
Base size:291x183mm
Package:Color box
Accessories:1 pc chuck key;2pcs hex key




Carton Size: 47.5*36.5*24.5cm

Qty/CTN: 1PC

NW./GW. : 15kg/16.8kg







FDP55016
Voltage/Frequency:230V-/50Hz
Input power:550W
Max drilling capacity:Ø16mm
Spindle Travel: 80mm
Column Diameter:φ72
Class of speed:16 Speed
50Hz : 180-2770R.P.M. 60Hz: 220-3320R.P.M.
Spindle Tape:MT2
Distance Spindle/Column 162.5mm
Distance Spindle/Table 450mm
Distance Spindle/Base 630mm
Swing:325mm
Table size::Ø290mm
Base size:420X250mm
Column Diameter(mm): Ø72mm
Cast iron base and Table
Carton box



Carton Size: 77*45*27cm

Qty/CTN: 1PC

NW./GW. : 36kg/38kg






FDP75001
Voltage/Frequency:230V-/50Hz
Input power:750W
Max drilling capacity:Ø20mm(3/4'')
Spindle Travel: 80mm
Column Diameter:φ72
12 Speeds: 50Hz:180~2770rpm
60Hz:220-3320rpm
Distance Spindle/Column 162.5mm
Distance Spindle/Table 725mm
Distance Spindle/Base 1205mm
Table size:250x250mm
Base size::460x270mm
Cast iron working table,
Cast iron base
Package:Color box
Accessories:1 pc chuck key;2pcs hex key





Carton Size: 111*45*27.5cm

Qty/CTN: 1PC

NW./GW. : 57kg/60kg
Company Information
FAQ
Attention :1 unit only for sample testing before bulk order,we don't make retail business.
