Fabric, Foam, Velvet Automatic Fabric Coating Machine Made in China

PRODUCT DETAIL
glue:Polyurethane glueCertification:CE
brand:KuntaiCore components:Engines, motors, pumps
Type of machine:Laminating machineApplicable industries:manufacturing plant
Video outbound inspection:ifLamination speed:5~50m/minute
payment terms:L/C, Western Union, T/Tfeature:Automated, efficient, multifunctional
weight:11500kgShowroom location:not any
Packaging details:Export standard packagingPackage preview:
Local service locations:not anyPlace of origin:Jiangsu, China
Supply capacity:50 sets per monthPost-warranty service:Video technical support, online support, spare parts
Dimensions (length*width*height):11600×3400×3700mmHealth status:new
strength:45kW, 50kWMechanical test report:if
usage:Leather/fabric/non-woven fabric/textile/PU/PP/aluminum foil/glass wool, etc.Automatic level:automatic
Marketing type:2020 new productsport:Shanghai
Production capacity:50kWCore component warranty:1 year
After-sales service provided:Free spare parts, video technical support, online supportWarranty:1 year
Voltage:220V/380V/can be customizedMaximum coating width:1600mm/1800mm/2400mm/can be customized
application:Fabric, foam, velvet coating machine

Fabric, Foam, Velvet Automatic Fabric Coating Machine Made in China

application:

Product Description

 Hot melt adhesive lamination coating machine is suitable for:

1. EVA+PVC, PU or artificial leather

2. EVA + Fabric (for shoe materials, etc.)

3. Neoprene + fabric (for wetsuits, etc.)

4. PU foam + fabric (for bras, car mats, etc.)

5.TPU film + fabric. (for mountaineering clothing, camouflage clothing, etc.)

6. Fabric + fabric. (for clothing, medical supplies, etc.)





Hot melt glue:

Hot melt adhesives offer several advantages over solvent-based adhesives in industrial applications. volatile

Organic compounds are reduced or eliminated, and drying or curing steps are eliminated. hot melt advertising

-hesives have a long shelf life and can usually be handled without special precautions.




The most advanced hot melt adhesive, moisture reactive hot melt adhesive (PUR & TPU) with high viscosity

And environmentally friendly. Can be used for laminating 99.9% of textiles. Laminate is

Soft and heat resistant. After hygroscopic reaction, the material is less susceptible to environmental influences

temperature. In addition, laminates offer long-lasting elasticity and are resistant to wear, oil, and corrosion.

resistance. In particular, PUR's mist properties, neutral color and other characteristics make it a good choice for medical

- Can be used for cal industrial applications.



When laminated with functional waterproof and breathable films such as PTFE, PE, and TPU, water

- Heat insulation, waterproof protection, oil, water and gas filtration, etc.

New materials will be created. The needs of the clothing industry, motor manufacturing, and medical industries,

The environmental protection industry will be satisfied.

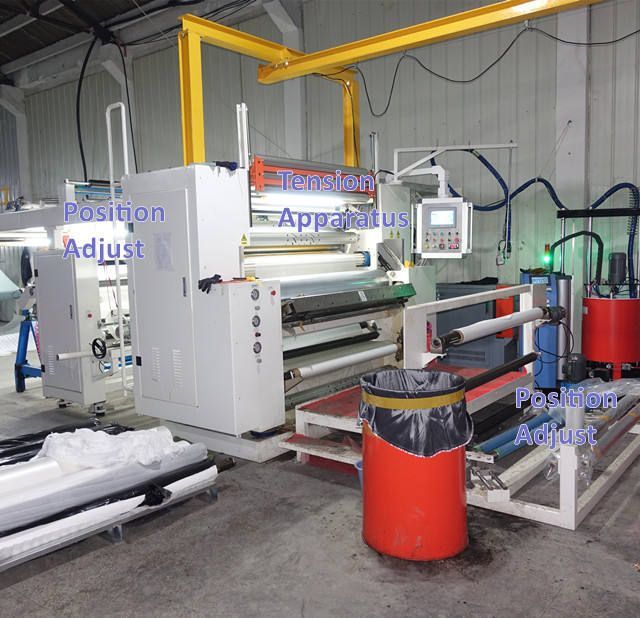

Our hot melt laminating machine mainly consists of fabric winding and unwinding units, fabric and film

Transport systems and tension controllers, film unwinding and lining or film carrier rewinding units, thermal

Melting device (optional), pump (optional), thermal oil source system (optional), glue point transfer

Unit, laminating device, cooling device, PLC and other devices. It has compact structure, high degree of automation and easy operation

maintain.



Options:

1. Accumulators for foam, textiles, backings, etc.

2. Trimming device

3. Inspection machine

4. Swinging device to swing the final laminate into piles

5. Cutting machine



Standard technical parameters (can be customized):

Model: KT-PUR-1800
Maximum material width: 1600mm
Machine drum width: 1800mm
Glue amount: 5-80g/m2
Machine speed: 10-60m/min
strength: 45.0kW
Current and voltage: customizable
Estimated net weight: 11500kg
Estimated dimensions: 11800×3400×3700mm





Main features:

  • Hot melt adhesive makes environmentally friendly products possible, making the entire lamination process pollution-free.
  • Using this laminating machine, the materials are firmly bonded and the product is soft, comfortable, washable and breathable.
  • The machine is controlled by a touch screen programmable controller system, with a modular design structure and simple and convenient operation.
  • Famous brand motors and frequency converters can be installed, and the machine performance is stable.
  • The tension-free unwinding device makes the laminate smooth and flat, ensuring good bonding effect.
  • Fabric and film openers also allow smooth, smooth material feeding.
  • For four-way stretch fabrics, a special fabric transfer/delivery system can be installed on the laminator.
  • Parallel centering device ensures that materials are fed in sequence.
  • The specially designed glue application system can control the amount of glue applied well and ensure accuracy.
  • For hot melt adhesive melting machines, the temperature control is accurate and stable.
  • The final laminate can be re-rolled into small or large rolls.
  • Low maintenance cost and low operating noise.
  • Advanced technology, reliable quality control and satisfactory after-sales service make our laminators the first choice of customers at home and abroad.
